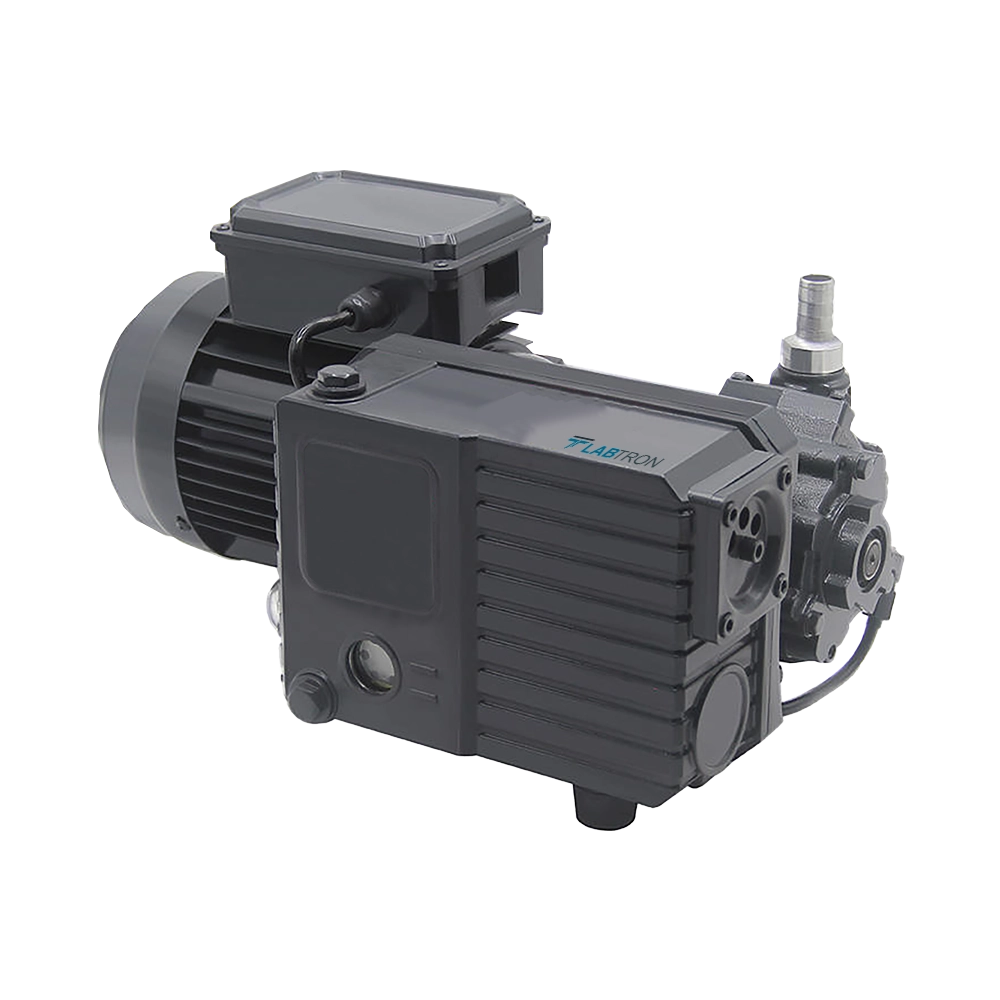

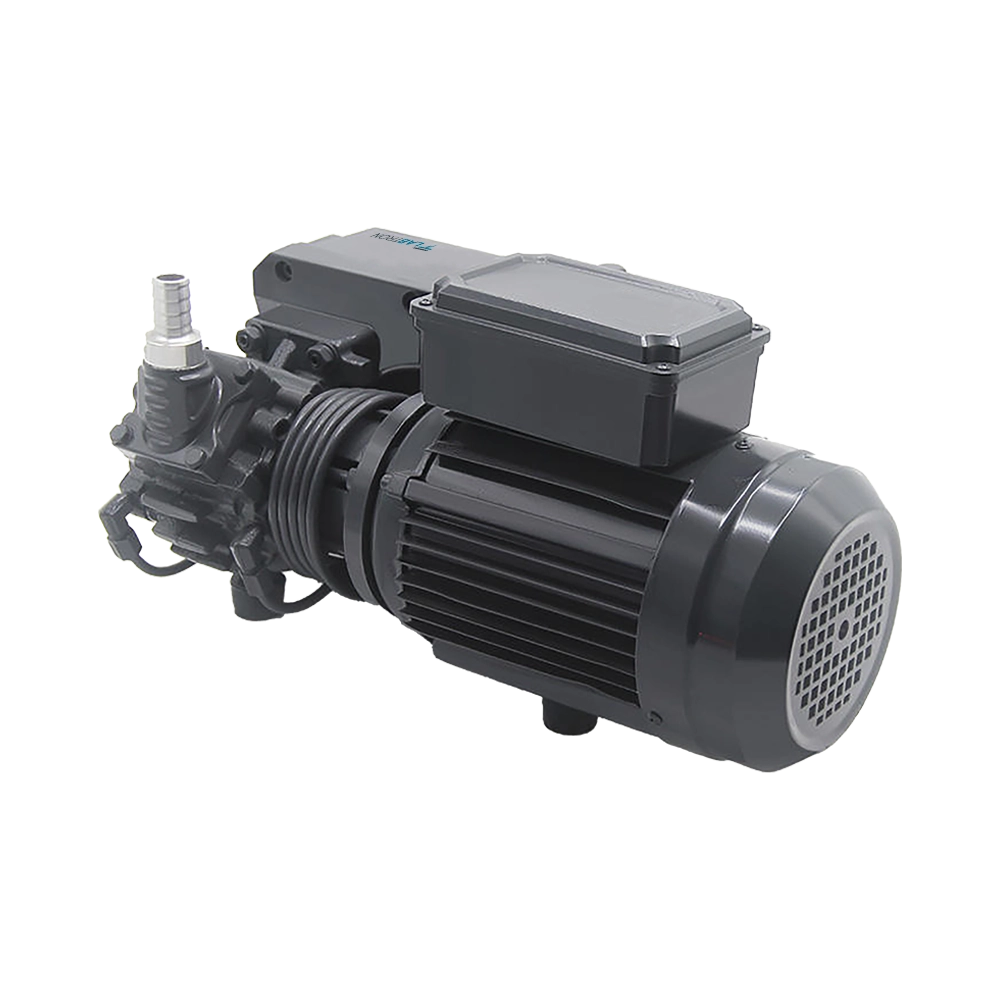

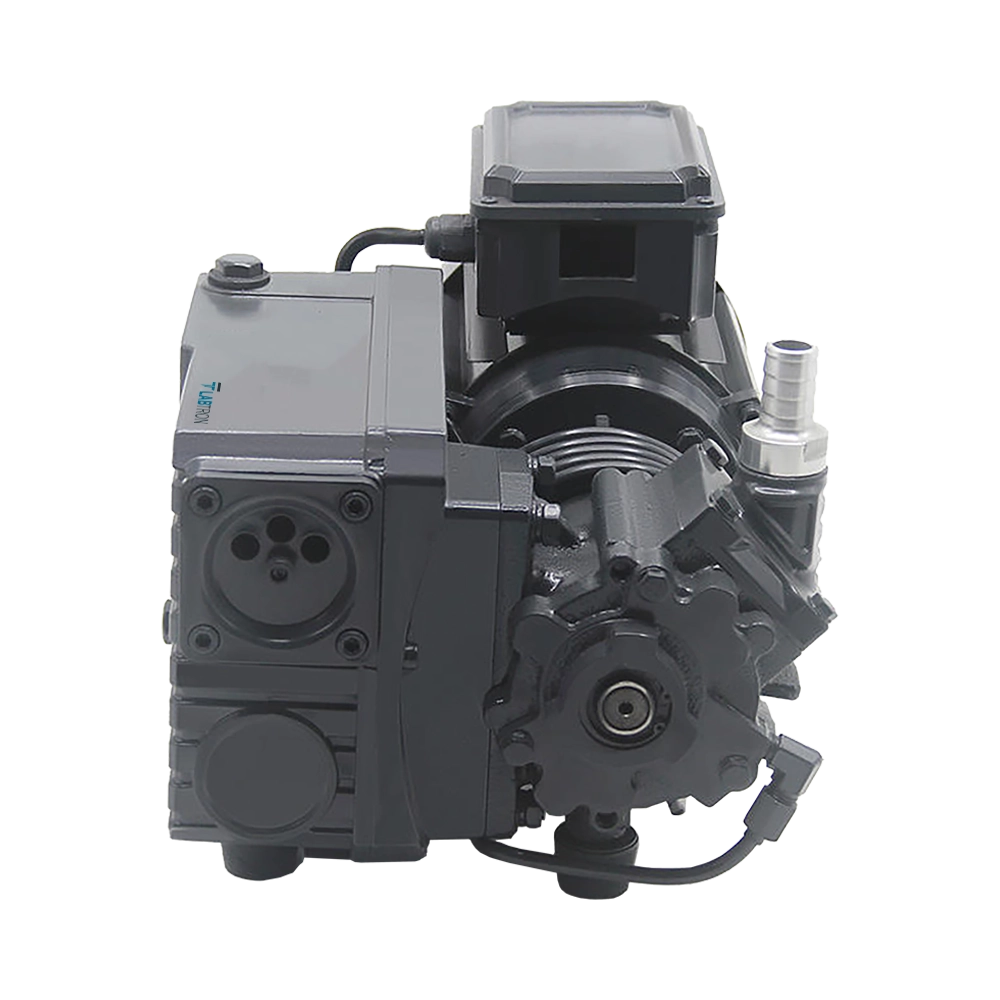

Rotary Vane Vacuum Pump LRVP-A21

Name: Rotary Vane Vacuum Pump LRVP-A21
Brand: Labtron
SKU: LRVP-A21
Rating: 4.9 (758 reviews)

Rotary Vane Vacuum Pump LRVP-A21 delivers optimal suction capacity with free air displacement of 10 CFM ensuring efficient performance. It offers superior vapor tolerance for handling varied materials effectively. The integrated gas ballast valve manages vapor effectively for improved efficiency. Thermal overload protection secures motor during extreme conditions preventing damage. Additionally, quick-start mechanism enhances workflow efficiency and saves valuable time.

Request Quote

Pumping Speed	10 CFM
Oil Capacity	0.45 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	1HP
Voltage	220V
Frequency	50Hz
Dimension	430mm × 142mm × 280mm
Weight	17kg

User-friendly control interface
Energy-efficient motor operation
Reliable continuous-duty performance
Compact footprint for convenience
Rugged corrosion-resistant construction
High volumetric flow rate

Our Rotary Vane Vacuum Pump LRVP-A21 is ideal for industrial and laboratory use, providing consistent vacuum performance, efficient air displacement, and reliable operation in drying, coating, and material handling processes.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A21 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
