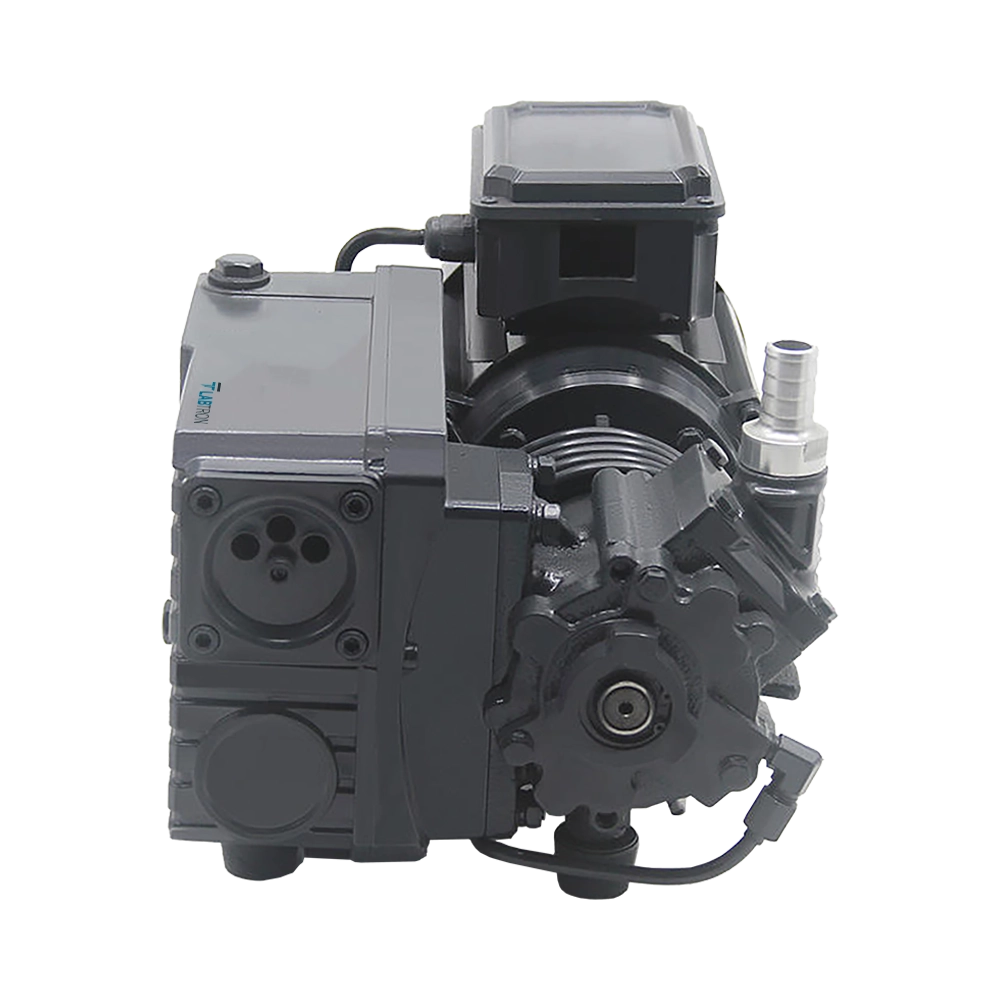

Rotary Vane Vacuum Pump LRVP-A16

Name: Rotary Vane Vacuum Pump LRVP-A16
Brand: Labtron
SKU: LRVP-A16
Rating: 4.8 (989 reviews)

Rotary Vane Vacuum Pump LRVP-A16 features 0.22 L oil capacity, ensuring optimal lubrication for consistent and reliable vacuum performance. Its easy refill and drain mechanisms simplify maintenance, reducing downtime and enhancing operational efficiency. The ports are designed to support secure and efficient connections to various systems and instruments. Its moisture-handling capability improves performance in humid and wet gas environments, ensuring reliable operation. Additionally, it effectively prevents heat buildup during continuous operation cycles, maintaining peak performance and extending life.

Request Quote

Pumping Speed	2.5 CFM
Oil Capacity	0.22 L
Rotating Speed	1440rpm
Ultimate Pressure	5 Pa
Power	0.25HP
Voltage	220V
Frequency	50Hz
Dimension	260mm × 110mm × 240mm
Weight	5.5kg

Lightweight and portable build
Corrosion-resistant external casing
Smooth and consistent operation
Enhanced thermal protection system
Extended operational life expectancy

Our Rotary Vane Vacuum Pump LRVP-A16 supports reliable vacuum generation for industrial, laboratory, and research applications, including degassing, drying, and material transfer, ensuring efficiency, durability, and low maintenance.

Fan Cover
Cross Screw
Fan
Motor Cover
Cross Screw
Bearing
Motor Rotor
Power Supply Cords
Power Switch
Centrifugal Switch
Motor Stator
Capacitor
Handle
Inlet Lifting
Trestle
Screw
Cap board
Exhaust lifting
Die cast Aluminium Housing
Sight Glass
Oil Drain Cap
Screw
Seal
Base
Rubber Foot

Download catalog for
Rotary Vane Vacuum Pump LRVP-A16 Catalog

Available Range :

Rotary Vane Vacuum Pump LRVP-A11 : 1.5 CFM Rotary Vane Vacuum Pump LRVP-A13 : 10 CFM Rotary Vane Vacuum Pump LRVP-A14 : 1666.67 L / min Rotary Vane Vacuum Pump LRVP-A16 : 2.5 CFM Rotary Vane Vacuum Pump LRVP-A10 : 20 m³/h Rotary Vane Vacuum Pump LRVP-A17 : 3.5 CFM Rotary Vane Vacuum Pump LRVP-A18 : 4.5 CFM Rotary Vane Vacuum Pump LRVP-A12 : 6 CFM Rotary Vane Vacuum Pump LRVP-A20 : 8 CFM

Models of Rotary Vane Vacuum Pump

Labtron Rotary Vane Vacuum Pump offers lightweight and portable design to create vacuum by removing air or gas from an enclosed space. They include built-in exhaust filter to prevent oil mist emission and maintain cleanliness. Their automatic gas ballast valve prevents vapor condensation within pump chamber. They offer high pumping speed, increasing productivity in air free dependent procedures. Our Rotary Vane Vacuum Pump is ideal for industrial processes like degassing, drying, and distillation.
