| Capacity | 800 L |
| Temperature Range | -40℃ to +150℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ≤2.0℃ |
| Temperature Deviation | ±2.0℃ |
| Heat-up Rate Non-linear | -40℃ to +100℃ 45 min |
| Cool-down Rate Non-linear | +20℃ to -40℃ 60 min |
| Humidity Range | 20% R.H to 98% R.H |
| Humidity Fluctuation | ±2.0 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Deviation | ±3.0 %RH (>75%RH) |
| Noise Level | ≤68 dB |
| Power Consumption | 14 kW |
| Power Supply | AC 3ψ4 W 380 V 50 Hz |
| Dimensions (W × D × H) | 1000 × 1000 × 800 mm |
| External Dimensions (W × D × H) | 1200 × 1980 × 1825 mm |
| Net Weight | 620 Kg |
| Gross Weight | 650 Kg |
Intuitive control panel
Quiet Operation Mode
Stable climate conditions
Programmable test cycles
Flexible testing parameters

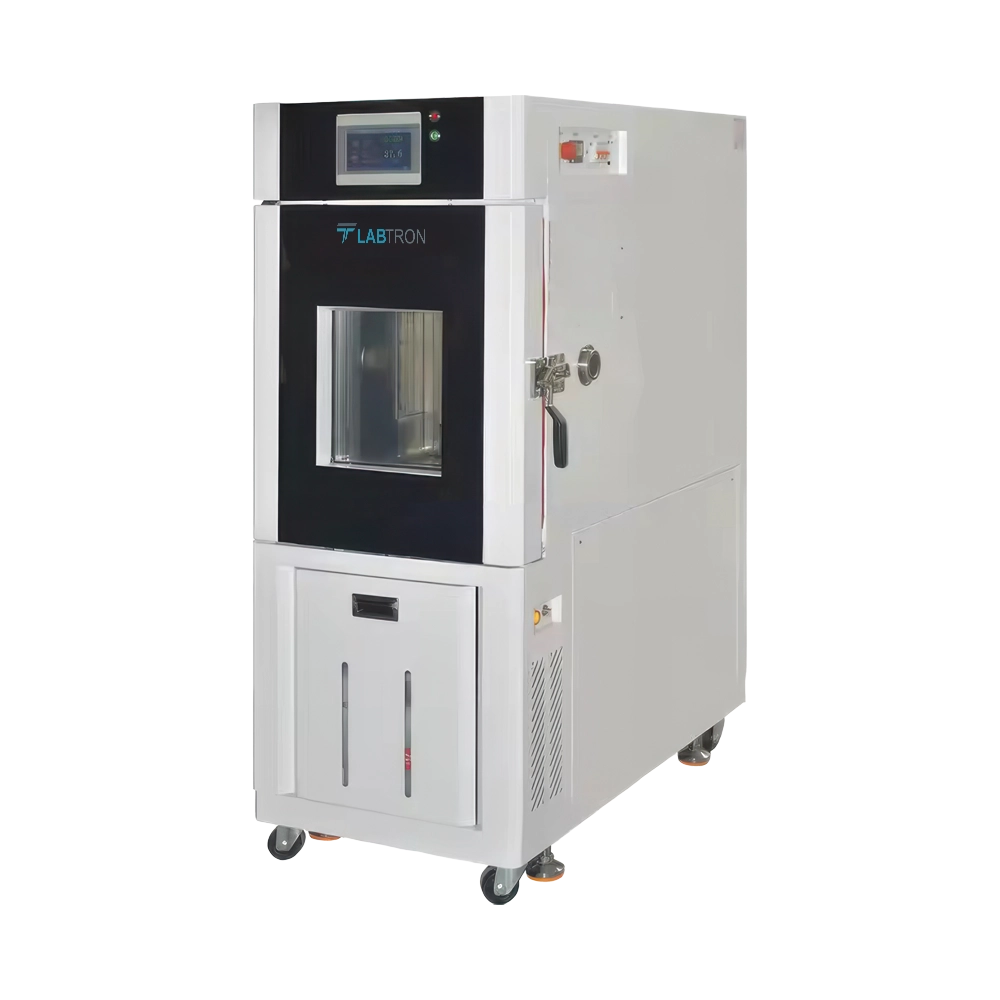

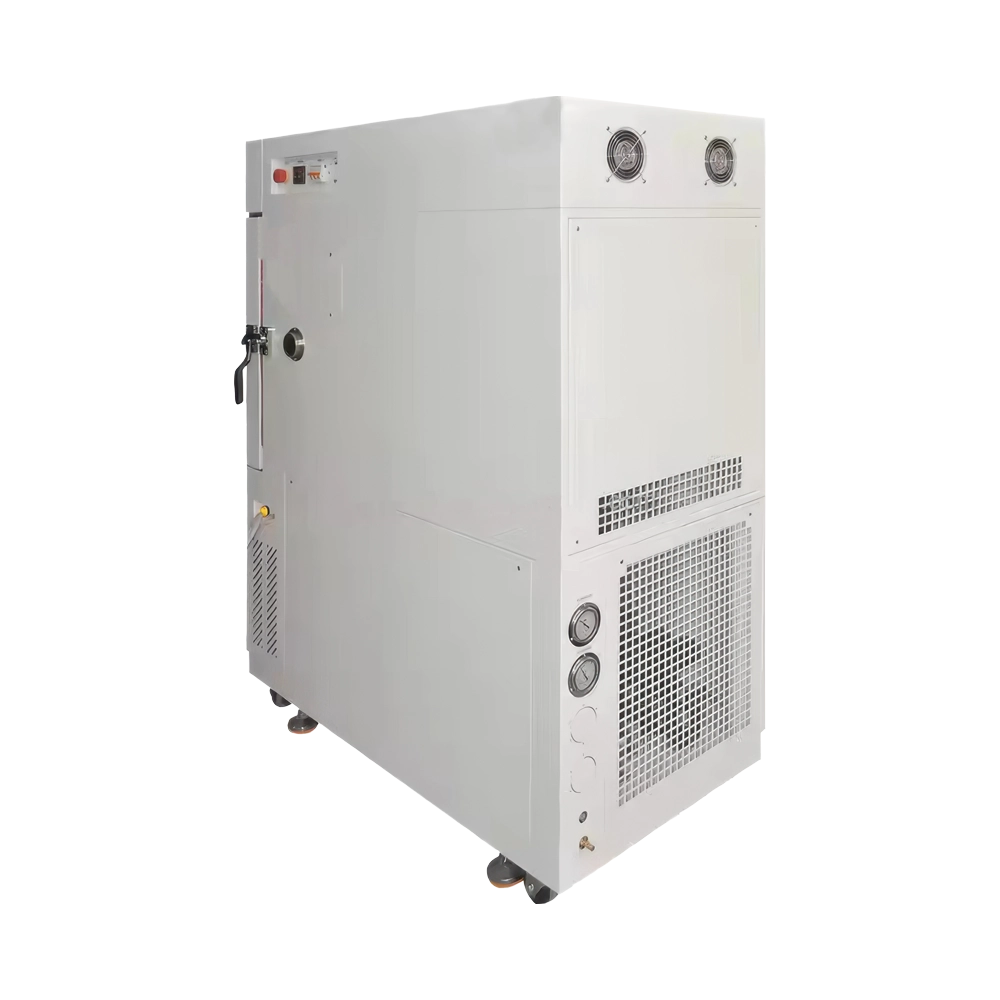

Temperature and Humidity Test Chamber LTHC-E20 is a testing device that simulates specific environmental conditions to evaluate product performance and durability. It is widely used in industries like electronics, automotive, and pharmaceuticals for quality control and research.
Download catalog for
Temperature And Humidity Test Chamber LTHC-E20 Catalog
Available Range :
Temperature and Humidity Test Chamber LTHC-B10 : 100 L Temperature and Humidity Test Chamber LTHC-B14 : 1000 L Temperature And Humidity Test Chamber LTHC-E11 : 105 L Temperature and Humidity Test Chamber LTHC-D11 : 1130L Temperature And Humidity Test Chamber LTHC-A14 : 120L Temperature and Humidity Test Chamber LTHC-C20 : 150 L Temperature and Humidity Test Chamber LTHC-B25 : 1500 L Temperature and Humidity Test Chamber LTHC-B11 : 225 L Temperature And Humidity Test Chamber LTHC-A15 : 225L Temperature and Humidity Test Chamber LTHC-A12 : 250 L Temperature And Humidity Test Chamber LTHC-J10 : 27L Temperature and Humidity Test Chamber LTHC-D10 : 300L Temperature and Humidity Test Chamber LTHC-B30 : 3150 L Temperature And Humidity Test Chamber LTHC-E13 : 408 L Temperature And Humidity Test Chamber LTHC-A10 : 50 L Temperature and Humidity Test Chamber LTHC-B12 : 500 L Temperature And Humidity Test Chamber LTHC-A16 : 504L Temperature and Humidity Test Chamber LTHC-C30 : 550L Temperature And Humidity Test Chamber LTHC-A13 : 64 L Temperature And Humidity Test Chamber LTHC-A11 : 80 L Temperature and Humidity Test Chamber LTHC-B13 : 800 L Temperature And Humidity Chamber LTHC-G10 : Total of 500L Temperature And Humidity Chamber LTHC-G11 : Total of 800LLabtron offers temperature and humidity test chambers with capacities ranging from 50 to 1130 L. They have a humidity controller and thermal-insulating material resistant to high temperatures. They feature an LCD touch screen with a corrosion-resistant interior chamber and a double-layered glass observation window. They include an independent R&D software and a compressor overload switch. Our temperature and humidity tester has built-in safety self-protection and overheating prevention.
.webp "Temperature and Humidity Test Chamber LTHC-B24")
.webp "Temperature and Humidity Test Chamber LTHC-B20")
Labtron chambers have high-performance heating and cooling systems that enable rapid temperature transitions while maintaining accuracy. Advanced air circulation and refrigeration technology ensure uniform temperature distribution, preventing thermal lag or overshooting. This precise control is essential for thermal shock, stress testing, and accelerated aging studies, helping industries evaluate material durability and product performance under extreme conditions.
Extended exposure to high humidity can lead to short circuits, insulation breakdown, corrosion, and reduced performance in electronic components. Moisture can penetrate circuit boards, degrade solder joints, and promote oxidation, leading to malfunctions or complete failure over time. Labtron chambers help manufacturers simulate and evaluate these risks, ensuring that products maintain long-term reliability and durability in humid environments.
Labtron chambers use PID (Proportional-Integral-Derivative) controllers to regulate heating and cooling elements, ensuring precise temperature control. They automatically adjust to minimize fluctuations, prevent overshooting, and maintain stable conditions, enhancing test accuracy and efficiency.
Yes, Labtron chambers can be used to simulate controlled environmental conditions for plant growth studies, seed germination, and agricultural research by adjusting temperature, humidity, and lighting conditions.
Labtron chambers use advanced humidity sensors, steam generators, and dehumidification systems to maintain stable humidity levels throughout testing. These systems continuously monitor and adjust moisture levels, preventing fluctuations and ensuring consistent environmental conditions for accurate and repeatable results.
Labtron chambers are built for continuous operation and can run for weeks or even months based on testing requirements. With robust components, efficient cooling, and humidity control systems, they ensure stable conditions over extended durations. Regular maintenance, such as sensor calibration and system checks, helps sustain optimal performance for long-term testing applications.
Labtron chambers are designed with air circulation and exchange systems that allow for controlled introduction and removal of air, ensuring a stable test environment.
Yes, but for optimal performance, Labtron recommends placing the chamber in a temperature-controlled room to avoid excessive strain on the heating and cooling systems.
