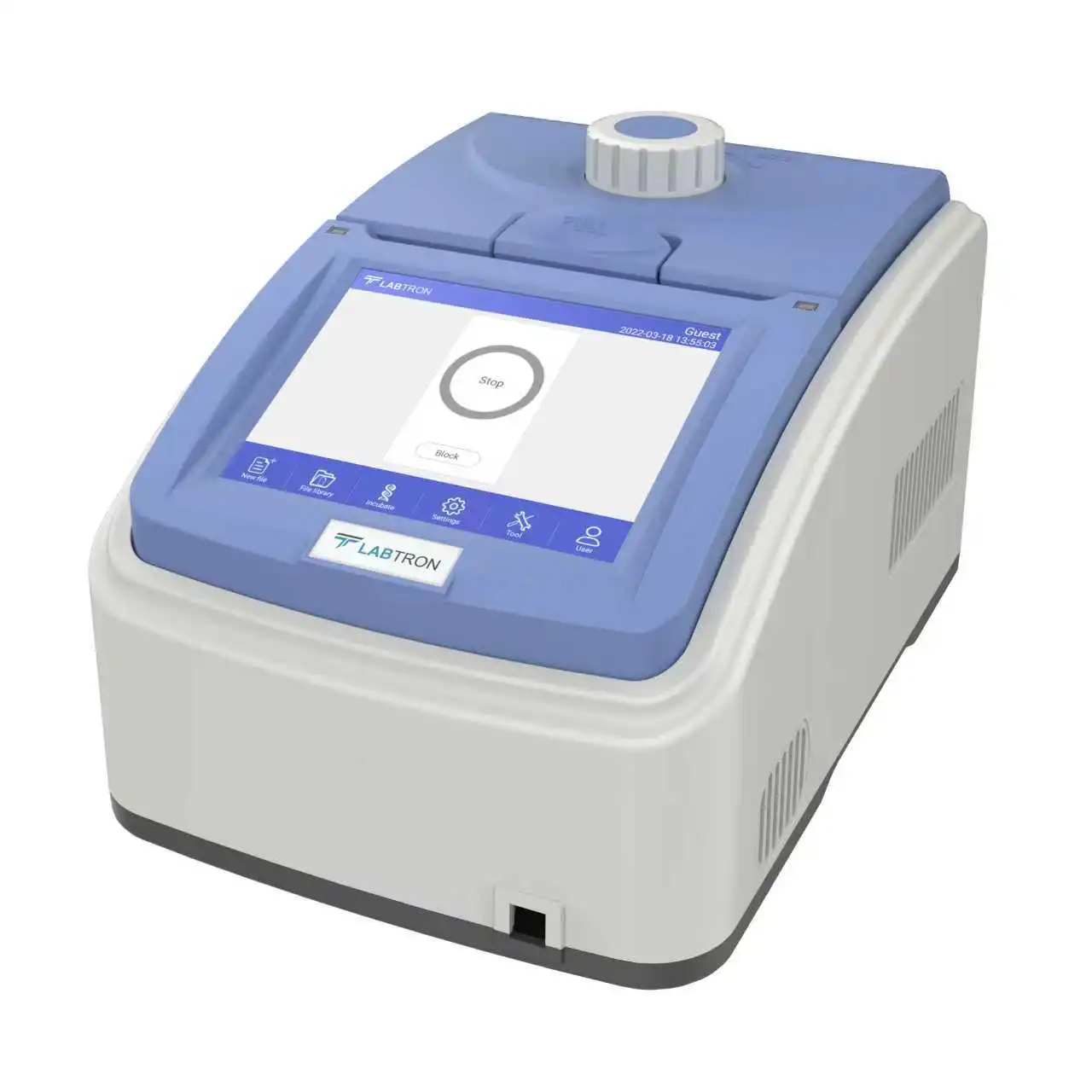

Touch Thermal Cycler (Basic) LTCB-A10

Name: Touch Thermal Cycler (Basic) LTCB-A10
Brand: Labtron
SKU: LTCB-A10
Rating: 5 (931 reviews)

Touch Thermal Cycler (Basic) LTCB-A10 comes with customized 8 pcs long service life Marlow (US) peltier heating units. Each thermal block has 4 independent temperature control sensors. With 5°C/s maximum ramping rate, this cycler saves operation time of user. Its 8 inch TFT touch screen with graphical real time display. With Windows OS, PC control function, print function, large storage capacity, USB connection, this cycler meets latest experimental demands.

Request Quote

Capacity	96 × 0.2 ml
Block Temperature Range	0 to 100℃
Temperature Control Accuracy	≤ ± 0.1 ℃
Ramping Rate Adjustable	0.1 - 5 ℃
Temperature Uniformity	≤ ± 0.2 ℃
Heating Rate	5 ℃/s
Cooling Rate	4 ℃/s
Temperature Control Mode	Block \ Tube
Hot-lid Temperature Range	30 to 110℃
Hot Lid Height Adjustable	Stepless Adjustable
Max No. of Steps	30
Max No. of Cycles	99
Time Increment/Decrement	1 sec to 9 min 59 sec
Temperature Increment/Decrement	0.1 to 9.9℃
Program	10000 +(USB FLASH)
Pause Function	Yes
Auto Data Protection	Yes
Print	Yes
LCD	8 inch，800×600 Pixels, 16 colors TFT touch screen
Communication	USB 2.0 , LAN
Power Supply	85 to 264 V AC , 47 to 63 Hz , 600 W
Dimension ( L×W×H )	380 × 240 × 260 mm
Packaging dimension ( L×W×H )	390 × 270 × 255 mm
Net weight	8.5 kg
Gross weight	10 kg

8” TFT color screen for easy monitoring
High heating and cooling rate
Step less adjustable hot lid with pressure protection
Built in in 11 standard program file template for quick editing of files
Real time display to show running status of experiment
One-click quick incubation function to meet different experimental needs
Internal flash memory for 10000 typical PCR files
User-friendly setting for hot lid temperature and hot lid work mode
Auto restart after power failure
Easy view of actual and target temperatures in real time
Support USB and LAN to update software
Supports email alert function when experiment is over

Widely used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics and analytical laboratories.

Download catalog for
Touch Thermal Cycler (Basic) LTCB-A10 Catalog

Available Range :

Touch Thermal Cycler (Basic) LTCB-A13 : 3 × (32 × 0.2 ml ) Touch Thermal Cycler (Gradient) LTCG-A23 : 3 × 32 × 0.2ml Touch Thermal Cycler (Basic) LTCB-A12 : 384 well Touch Thermal Cycler (Gradient) LTCG-A26 : 384 × 0.4 mL Touch Thermal Cycler (Gradient) LTCG-A21 : 48×0.2ml and 30×0.5ml Touch Thermal Cycler (Basic) LTCB-A11 : 60 × 0.5 ml Touch Thermal Cycler (Basic) LTCB-A10 : 96 × 0.2 ml Touch Thermal Cycler (Gradient) LTCG-A20 : Double (each block with) 48×0.2ml

Models of Touch Thermal Cycler

Labtron Touch Thermal Cycler comes with the basic and gradient temperature functionality model. These cycler deliver rapid thermal cycling with high heating and cooling rates. They are equipped with stepless adjustable hot lids featuring pressure protection. The thermal cycler can accommodate various tube heights while preventing sample evaporation. For software updates and data transfer, they support USB and LAN connectivity. The email alert feature notifies users as soon as their experiment is finished. It can run single or dual independent programs simultaneously. They are built with safety features such as auto data protection and GLP-compliant report generation. Our Touch Thermal Cycler’s robust construction and corrosion-resistant materials ensure durability and long service life.
