Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22

Air Jacketed CO2 Incubator with UV Sterilization LAJI-F22 offers a spacious 260-litre capacity, suitable for high-throughput lab workflows. Its direct hot gas jacket design with multi-zone heating ensures fast, uniform temperature control. The water level sensor alerts users when to refill to maintain optimal humidity. It features a quick-insert drain system for tool-free water replacement.  Our incubator is used for DNA transfected cells, supporting genome editing, CRISPR workflows, and gene expression studies.

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22_front view
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22-01

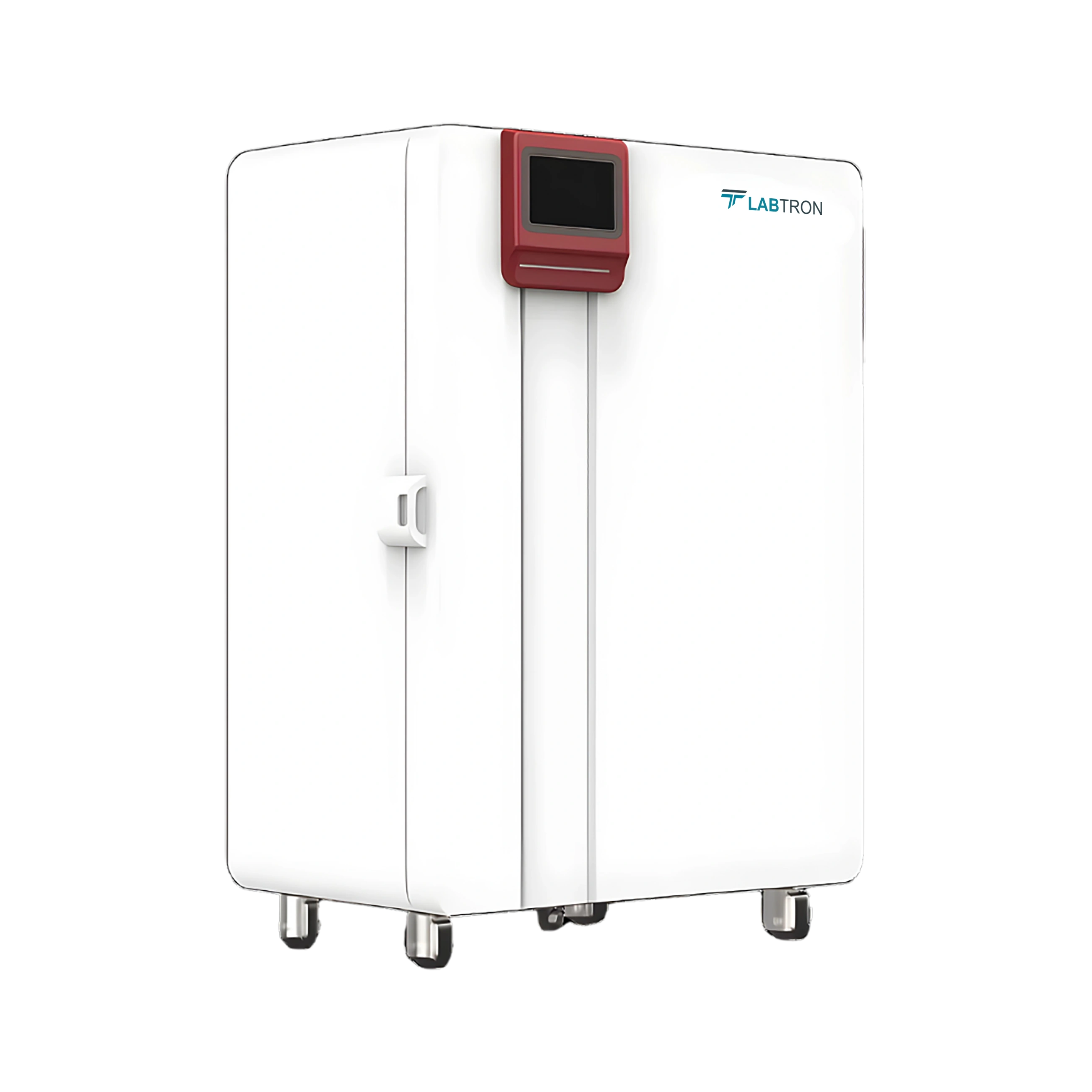

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22-02
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22-03
Request Quote
Sterilization Method UV sterilization
Capacity 260 L
Temperature Range RT+5 to 55℃
Ambient temperature range 18 to 30℃
Temperature Fluctuation ±0.3℃
Temperature Uniformity ±0.5℃
Temperature Control Accuracy ±0.1°C
Relative Humidity Greater than 90%
CO2 Inlet Pressure 0.05 to 0.1 MPa
CO2 Control Range 0 to 20 %vol
CO2 Control Accuracy ±0.1 %vol
CO2 Recovery Time 6 min (at 5% vol)
CO2 Intake Time 5 min (at 5% vol)
CO2 Fluctuation ±0.1% vol
Amount of Water Required 3.0 L
Standard Quantity of Shelves 3
Maximum Quantity of Shelves 22
Power Consumption 1000 W
Power Supply AC 220V (± 10%) 50/60Hz
Shelve Dimensions 500 × 505 mm
Internal Dimensions (W x D x H) 550 × 560 × 850 mm
Housing Dimensions (W x D x H) 800 × 780 × 1210 mm
Load per Shelf 10 Kg
  • Non-SD Data Storage
  • Unchangeable Data Export
  • Traceable User Operations
  • Multi-Zone Heating System
  • Anti-Condensation Design

Our Air Jacketed CO2 Incubator with UV Sterilization is ideal for genetic research centers requiring sterile conditions for DNA transfected cells, supporting genome editing, CRISPR workflows, and gene expression studies.

  • Optional Embedded Printer
  • Door Open Alarm
  • Double Temperature Protection
  • Low Water Level Protection
  • Filter Alarm
  • Abnormal CO2 Concentration Alarm


Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22 | Sterilization Method : UV sterilization | Capacity : 260 L
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22 | Non-SD Data Storage | Unchangeable Data Export

Models of Air-jacketed CO2 Incubator

Labtron Air-Jacketed CO2 Incubator is specialized to maintain optimal condition with chamber volume of 40 L to 570 L. Their dual-layer construction ensures stable internal temperature and protects against external fluctuations effectively. They are equipped with carbon dioxide monitoring system to measure accurate gas concentration levels. Their humidity control system prevents dehydration of cell cultures, promoting healthy growth environments consistently. Our Air-Jacketed CO2 Incubator culture sensitive cells and tissues for stem cell research and genetic engineering.

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F21

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F21

  • Sterilization Method : UV sterilization
  • Capacity : 180 L
  • Temperature Range : RT+5 to 55℃
  • Ambient temperature range : 18 to 30℃
Air Jacketed CO2 Incubator LAJI-B11

Air Jacketed CO2 Incubator LAJI-B11

  • Chamber Volume : 80 L
  • Shelves : 2 (pcs)
  • Heating Method : Air-jacketed, PID Control
  • Temperature Range : RT + 5 to 50°C
Air Jacketed CO2 Incubator With Moist Heat Sterilization LAJI-F12

Air Jacketed CO2 Incubator With Moist Heat Sterilization LAJI-F12

  • Sterilization Method : Moist heat sterilization
  • Capacity : 260 L
  • Temperature Range : RT+5 to 55℃
  • Ambient temperature range : 18 to 30℃
Air Jacketed CO2 Incubator LAJI-B16
Air Jacketed CO2 Incubator LAJI-B16
  • Heating Method : Direct Heating Air Jacket Type
  • Capacity : 55 L
  • Temperature Range : RT+3 to 60℃
  • Temperature Uniformity : Less than or equal to ±0.25℃
Air Jacketed CO2 Incubator With Moist Heat Sterilization LAJI-F10
Air Jacketed CO2 Incubator With Moist Heat Sterilization LAJI-F10
  • Sterilization Method : Moist heat sterilization
  • Capacity : 100 L
  • Temperature Range : RT+5 to 55℃
  • Ambient temperature range : 18 to 30℃
Air Jacketed CO2 Incubator LAJI-C13

Air Jacketed CO2 Incubator LAJI-C13

  • Chamber Volume : 233 L
  • Shelves : 3
  • Heating Method : Air-jacketed
  • Temperature Range : RT+5 ℃ to 50 ℃
Air Jacketed CO₂ Incubator LAJI-C14

Air Jacketed CO₂ Incubator LAJI-C14

  • Capacity : 300L
  • Sterilization : 90°C steam sterilization
  • Temperature Sensor : PT100
  • Temperature Range : RT+5 to 60℃
Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F20

  • Sterilization Method : UV sterilization
  • Capacity : 100 L
  • Temperature Range : RT+5 to 55℃
  • Ambient temperature range : 18 to 30℃

Air Jacketed CO2 Incubator With UV Sterilization LAJI-F22 FAQ's
  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F22 maintains precise environmental conditions through its advanced multi-zone heating system and intelligent BRIGHT I control platform. It regulates temperature within ±0.1°C and CO2 concentration within ±0.1% vol, ensuring minimal fluctuation throughout the chamber. The jacketed heating design and high-accuracy dual-wavelength IR sensor work together to deliver uniform conditions, which are essential for sensitive cell lines such as stem cells and transfected cultures. These features provide researchers with consistent incubation parameters critical for reproducibility and data integrity.

  • The 260-litre capacity of the Air Jacketed CO2 Incubator LAJI-F22 provides significant advantages for laboratories handling large-scale or multi-user projects. It can accommodate up to 22 shelves, allowing parallel incubation of numerous experiments without compromising airflow or environmental uniformity. This is especially beneficial for high-throughput labs conducting parallel assays, batch cultures, or extensive drug screening procedures. The spacious chamber, coupled with adjustable shelf configuration, enhances workflow flexibility while maintaining stable culture conditions across all levels.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F22 CO2 Incubator incorporates a rights management system that allows administrators to define and restrict access based on user roles. Each user’s actions are logged with a unique digital imprint and timestamp, enabling full traceability of system operations. This not only enhances security but also ensures compliance with Good Laboratory Practice (GLP) and audit requirements. The 7-inch HD touch screen provides an intuitive interface for authorized users, while system logs are automatically maintained and can be exported for regulatory documentation.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F22 is engineered for long-term incubation through its contamination control, environmental stability, and operational reliability. The UV sterilization ensures microbial-free conditions throughout prolonged usage, while the mirror-finish inner chamber with large arc corners supports easy cleaning. With high-capacity data logging, real-time monitoring, and automated alerts for water levels and CO2 deviations, the LAJI-F22 is optimized to support extended research cycles without requiring frequent manual intervention, making it a dependable tool for consistent cell growth.

  • The Air Jacketed CO2 Incubator with UV Sterilization LAJI-F22 CO2 incubator supports documentation and traceability with a built-in data management system capable of storing over 500,000 records. These records include operational parameters, environmental readings, and system events, which can be viewed in real time or exported in a tamper-proof format via USB. The unchangeable file format aligns with documentation standards for audits and regulatory reviews. This comprehensive data tracking ensures that research conducted within the incubator is verifiable, secure, and compliant with international standards for lab data integrity.
