| Max Speed | 6000 rpm |
| Speed Accuracy | ± 10 rpm |
| Max RCF | 5200 × g |
| Capacity | 4 × 500 mL |
| Timing Range | 1 min to 9999 min 59 sec |
| Noise | Up to 60 dB |
| ACC/DEC Rates | 19 rates |
| Programs | 12 |
| Power Consumption | 600 W |
| Dimension | 550 × 450 × 390 mm |
| Net Weight | 50 kg |
| Gross Weight | 72 kg |
Gas hinge for smooth lid operation
Variable frequency motor
Durable steel housing
RPM and RCF auto conversion
Autoclavable aluminum and steel rotors
Calibration/ operation port
Our Low Speed Centrifuge LLS-A71 is ideal for routine sample separation, sedimentation, and purification in clinical, research, and industrial laboratories. It is suitable for use in biology, medicine, chemistry, and environmental testing.
| Name | Max. Speed | Max. RCF | Capacity | Tube Size |
| Swing Out Rotor 01 | 5000 | 4650 × g | 4 × 100 mL | Փ38 × 114 mm |
| Swing Out Rotor 02 | 5000 | 4650 × g | 4 × 50 mL | Փ30 × 116 mm |
| Swing Out Rotor 03 | 4000 | 2980 × g | 32 × 15 mL | Փ17 × 121 mm |
| Swing Out Rotor 04 | 4000 | 2980 × g | 8 × 50 mL | Փ30 × 116 mm |
| Swing Out Rotor 05 | 4000 | 2980 × g | 8 × 100 mL | Փ38 × 114 mm |
| Swing Out Rotor 06 | 4000 | 2980 × g | 48 × 2 to 7 mL (Blood Tube) | Փ13 × 75 to 100 mm |
| Swing Out Rotor 07 | 4000 | 2980 × g | 64 × 2 to 7 mL | Փ13 × 75 to 100 mm |
| Swing Out Rotor 08 | 5000 | 5200 × g | 4 × 250 mL | Փ63 × 111 mm |
| Swing Out Rotor 09 | 4000 | 3400 × g | 4 × 500 mL | Փ80 × 137 mm |
| Swing Out Rotor 10 | 4000 | 3400 × g | 20 × 50 mL | Փ29.5 × 116 mm |
| Swing Out Rotor 11 | 4000 | 3400 × g | 40 × 15 mL | Փ17 × 121 mm |
| Swing Out Rotor 12 | 4000 | 3400 × g | 80 × 10 Ml (Blood Tube) | Փ15 × 100 mm |
| Swing Out Rotor 13 | 4000 | 3400 × g | 112 × 2 to 7 mL (Blood Tube) | Փ13 × 75 to 100 mm |
| Swing Out Rotor 14 | 4000 | 3400 × g | 100 × 1.5 mL | Փ11 × 42 mm |
| Swing Out Rotor 15 | 4000 | 3400 × g | 148 × 5 mL (RIA Tube) | Փ13 × 75 to 100 mm |
| Swing Out Rotor 16 | 4000 | 3400 × g | 96 × 2 to 7 mL | Փ13 × 75 to 100 mm |
| Swing Out Rotor 17 | 4000 | 3400 × g | 4 × 250 mL (Conical bottom) | Փ60 × 164 mm |
| Microplate Rotor 01 | 4000 | 1970 × g | 2 × 3 × 96 well plate | 128 × 87 × 60 mm |
| Microplate Rotor 02 | 4000 | 3400 × g | 4 × 2 × 96 well plate | 128 × 87 × 60 mm |
| Fixed Angle Rotor 01 | 6000 | 5120 × g | 12 × 15 mL | Փ17 × 121 mm |
| Fixed Angle Rotor 02 | 6000 | 5120 × g | 6 × 50 mL | Փ29 × 116 mm |
| Name | Capacity | Compatibility |
| Adapter 01 | 8 × 50 mL | Swing Our Rotor 08 |
| Adapter 02 | 4 × 100 mL | Swing Our Rotor 08 |
| Adapter 03 | 36 × 10 mL | Swing Our Rotor 08 |
| Adapter 04 | 40 × 7 mL | Swing Our Rotor 08 |
| Adapter 05 | 20 × 15 mL | Swing Our Rotor 08 |
| Adapter 06 (Normal) | 16 × 50 mL | Swing Our Rotor 09 |
| Adapter 07 (Aerosol Tight) | 16 × 50 mL | Swing Our Rotor 09 |
| Adapter 08 (Normal) | 36 × 15 mL | Swing Our Rotor 09 |
| Adapter 09 (Aerosol Tight) | 36 × 15 mL | Swing Our Rotor 09 |
| Adapter 10 (Normal) | 76 × 2 to 7 mL | Swing Our Rotor 09 |
| Adapter 11 (Aerosol Tight) | 76 × 2 to 7 mL | Swing Our Rotor 09 |
Download catalog for
Low Speed Centrifuge LLS-A71 Catalog
Available Range :
Low Speed Centrifuge LLS-A59 : 0 to 6000 rpm (adjustable) Low Speed Centrifuge LLS-A32 : 4000 rpm Low Speed Centrifuge LLS-A62 : 4200 rpm Low Speed Centrifuge LLS-B14 : 500 to 4000 rpm Low Speed Centrifuge LLS-A58 : 5000 rpm Low Speed Centrifuge LLS-A26 : 5000rpm Low Speed Centrifuge LLS-D14 : 5300 rpm Low Speed Centrifuge LLS-A21 : 5500rpm Low Speed Centrifuge LLS-A61 : 6000 rpm Low Speed Centrifuge LLS-A25 : 6000rpm Low Speed Centrifuge LLS-A12 : 6500 rpm Low Speed Centrifuge LLS-A22 : 6500rpmLabtron Low Speed Centrifuge provide separation of substances of different densities within liquid upto 6000rpm. They are equipped with fixed-angle or swing-out rotors, which determine positioning of specimens and their effective segregation. Their components include motor that drives spindles at controlled, less velocity rotation for efficient partitioning. They include cooling mechanism to maintain integrity during prolonged processes. Our Low Speed Centrifuge isolates proteins from cell lysates, assists sedimentation of bacterial cells and medicine formulation.
The Low Speed Centrifuge LLS-A71 comes with 12 operating programs and features a stainless-steel chamber for durability and ease of cleaning.
Yes, the Low Speed Centrifuge LLS-A71 allows speed, RCF, time, and temperature adjustments even during operation, ensuring flexibility and precise control.
Labtron’s Low Speed Centrifuge LLS-A71 is engineered for reliable and efficient separation of biological, clinical, and chemical samples. It achieves a maximum speed of 6000 rpm and generates a maximum relative centrifugal force (RCF) of 5200 × g. This performance range allows it to handle both light and moderately dense samples, making it suitable for routine as well as specialized protocols across diverse lab environments.
Safety is central to the design of the Low Speed Centrifuge LLS-A71. It features a motorized electronic door lock that automatically engages during rotation, preventing the lid from opening and exposing the user to potential hazards. In the event of a malfunction or power outage, the emergency door release and calibration/operation port allow controlled access without compromising safety. This layered protection makes it compliant with stringent laboratory safety standards.
Our Low Speed Centrifuge LLS-A71 uses a high-efficiency variable frequency motor combined with a microprocessor-based control system. This combination enables precise control of rotational speed, RCF, timing, and acceleration/deceleration rates. It minimizes vibration, reduces wear on components, and ensures consistent and repeatable results—an essential feature for laboratories requiring reproducibility and accuracy in every run.

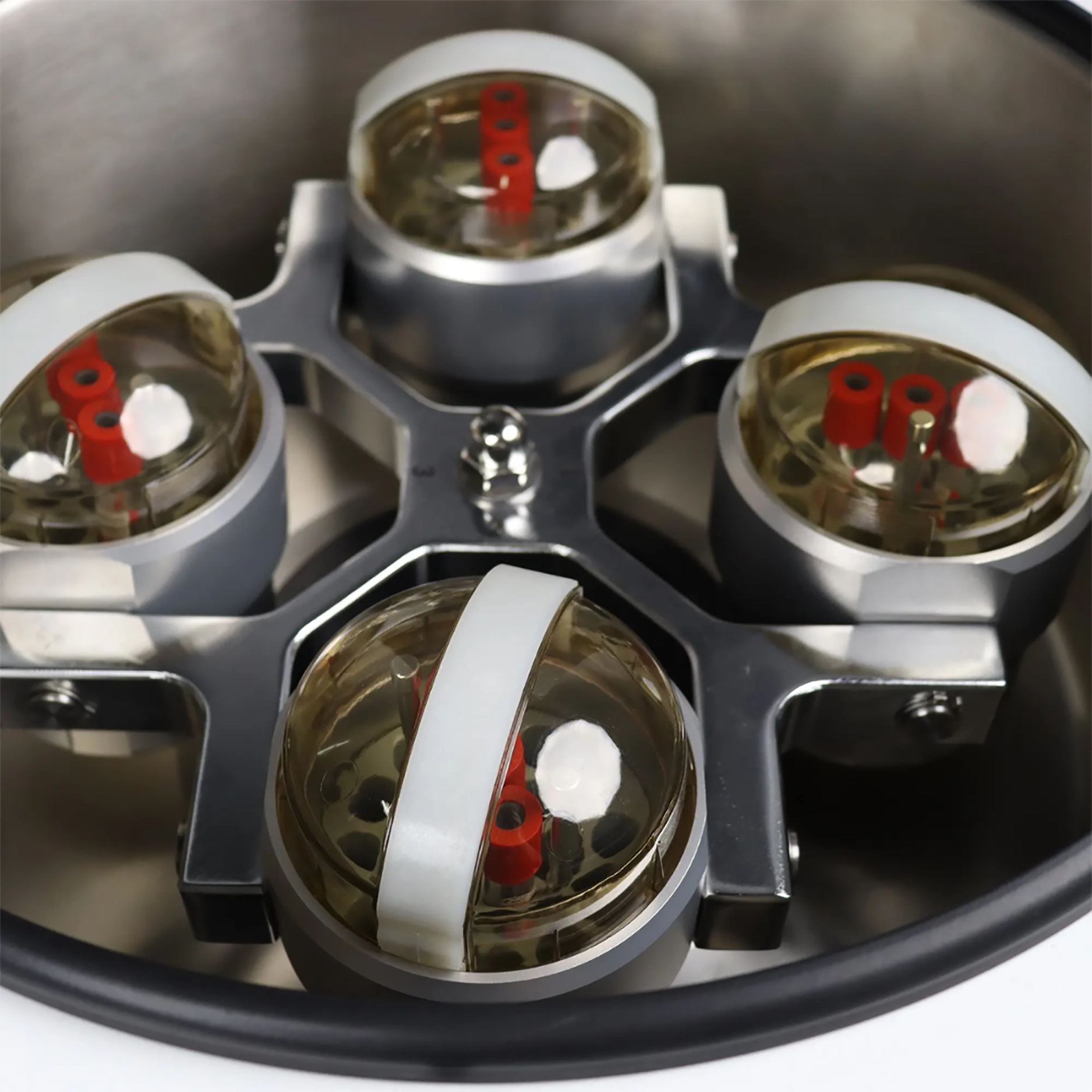

One of the standout features of the Low Speed Centrifuge LLS-A71 is its compatibility with a wide array of rotor types and tube capacities. Whether users are working with blood tubes, microplates, conical tubes, or larger sample containers up to 500 mL, it can adapt through interchangeable swing-out rotors, fixed-angle rotors, and adapters. It supports 12 programmable protocols and 19 acceleration/deceleration profiles, allowing labs to tailor settings for different sample types and separation goals.
Designed for continuous use and batch processing, the Low Speed Centrifuge LLS-A71 supports a total capacity of up to 2 liters, making it ideal for high-throughput labs. With features like autoclavable rotors, low-noise operation, and real-time performance monitoring via an intuitive LCD interface, the centrifuge enables smooth, uninterrupted workflows. Its high capacity and ease of use translate to reduced downtime and increased productivity in clinical, industrial, and research settings.
