Q1. What is the Ink Rub Tester used for?

Labtron’s Ink Rub Tester is designed to evaluate the durability of printed materials by testing the adhesion and wear resistance of ink. It simulates repeated rubbing or abrasion on various substrates under controlled conditions, ensuring that printed products meet industry standards for longevity and performance. This tester is widely used in the packaging, printing, and paper industries for quality control and research purposes.

How does the Ink Rub Tester operate?

Our Ink Rub Tester operates by moving test samples back and forth at a controlled speed and pressure to simulate real-world friction conditions. It follows international friction load standards and allows for precise adjustments using microcomputer controls. The tester offers four different speed options and ensures reliable operation with a compact design.

What industries can benefit from using the Ink Rub Tester?

The Ink Rub Tester is highly beneficial for industries involved in printing, packaging, and paper production. It helps manufacturers and quality control teams assess ink adhesion and durability, ensuring compliance with industry standards. Research laboratories also use this tester to study the wear resistance of printed materials.

What is the purpose of friction load settings in the Ink Rub Tester?

The friction load settings (10 N and 20 N) in the Ink Rub Tester allow users to simulate different levels of abrasion pressure on test samples. This helps in evaluating the durability of printed materials under various conditions, ensuring accurate performance assessments.

How does the LCD display enhance the functionality of the Ink Rub Tester?

The LCD display provides a user-friendly interface for setting and monitoring test parameters. It allows users to easily adjust speed, friction load, and other testing conditions, ensuring precise and efficient operation of our Ink Rub Tester.

Ink Rub Tester LIRT-A10

Name: Ink Rub Tester LIRT-A10
Brand: Labtron
SKU: LIRT-A10
Rating: 4.9 (740 reviews)

Ink Rub Tester LIRT-A10 features a sample area of 230x60mm and a friction stroke of 60mm, ensuring standardized testing conditions. It evaluates ink adhesion by simulating repeated rubbing or abrasion on substrates. The tester moves test samples back and forth at a controlled speed and pressure, following international friction load standards. Its microcomputer controls allow for precise adjustments of various parameters. Our tester ensures printed materials meet industry standards for longevity and performance.

Request Quote

Sample Area	230 × 60 mm
Friction Stroke	60 mm
Frequency Setting	0 to 9999 auto-complete
Friction Area	150 × 50 mm
Friction Speed	Standard: 43 c.p.m Adjustable: 21/43/85/106 c.p.m
Friction Load	10 N, 20 N
Workbench Dimension	263 × 230 × 350
Power Supply	AC 220 V, 50 Hz

LCD display
4 speed options
Reliable operation
Compact design

Our Ink Rub Tester LIRT-A10 is used in quality control and research labs to assess the durability of printed materials by measuring ink adhesion and wear resistance. It is widely applied in the packaging, printing, and paper industries to ensure compliance with industry standards.

Slider × 1

Download catalog for
Ink Rub Tester LIRT-A10 Catalog

Models of Paper Testing Instruments

Labtron Paper Testing Instruments requires air supply for automatic clamping, ensuring smooth and secure operation. These provide real-time pressure curve displays, allowing users to monitor pressure changes instantly. Their over-range reset function protects the sensor by automatically adjusting it in case of excessive readings. They measure ink absorption values, useful for quality control in printing processes. Our paper testing instruments measure WH Hunter whiteness, YI yellowness, and CIE whiteness for precise color and whiteness evaluations for various applications.

Carton compression tester TP-I11

Measuring range : 1 to 50 kN
Indication error : < ± 1%
Platen Size : 800×800 mm/ 1000×1000 mm/ 1200×1200 mm/ 1500×1500 mm (customized)
Operating stroke : 800 mm/ 1000 mm/ 1200 mm/ 1500 mm (customized)

Compare Remove

Bekk Smoothness Tester LBST-A10

Measuring scope : ( 1 to 9999) s, divided in to (1 to 15) s, (15 to 300) s, (300 to 9999) s, the automatic (no. more than 200 s)
Accuracy : ±0.1 s within 300 s
Vacuum system volume (ml) : Bigger volume: 380 ± 1Smaller volume: 38 ± 1
Contact pressure : 100 ± 2 kPa

Compare Remove

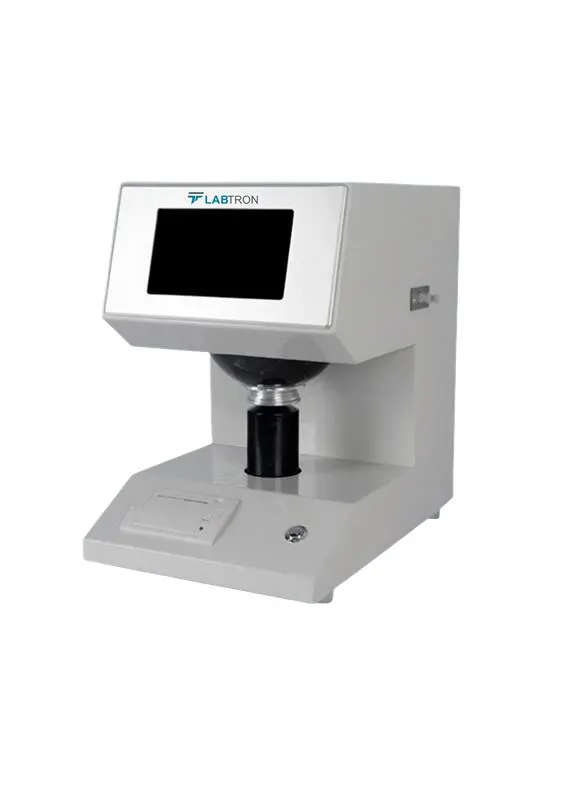

Whiteness and chromaticity tester LWACT-A10

Sample (size) length : Diameter ≥30 mm, Thickness ≤ 40 mm
Measurement mode : Diffuse reflection factor Rx, Ry, Rz, stimulus value Y10, X10, Z10, chromaticity coordinates x10, y10, z10; lightness L *, chroma a * b *, chroma C * ab, hue angle h * ab, dominant wavelength λd, excitement purity Pe, color difference ΔE * ab, lightness difference ΔL *, chroma difference ΔC * ab, hue difference ΔH * ab, Hunter system L , A, b
Stability : ≤ 0.1 within 30 min
Accuracy : Chromaticity co-ordinate 0.0001

Compare Remove

Vertical Tensile Tester LVTT-C11

Capacity (MAX) : 1KN (optional 10N~1KN force sensor)
Control Method : Full computer control mode, powerful software
Unit of Force : N, kN, gf, kgf, lbf, kP, tf(SI), tf (long)...
Unit of Length : Mm, cm, Inch, m, km, um..

Compare Remove

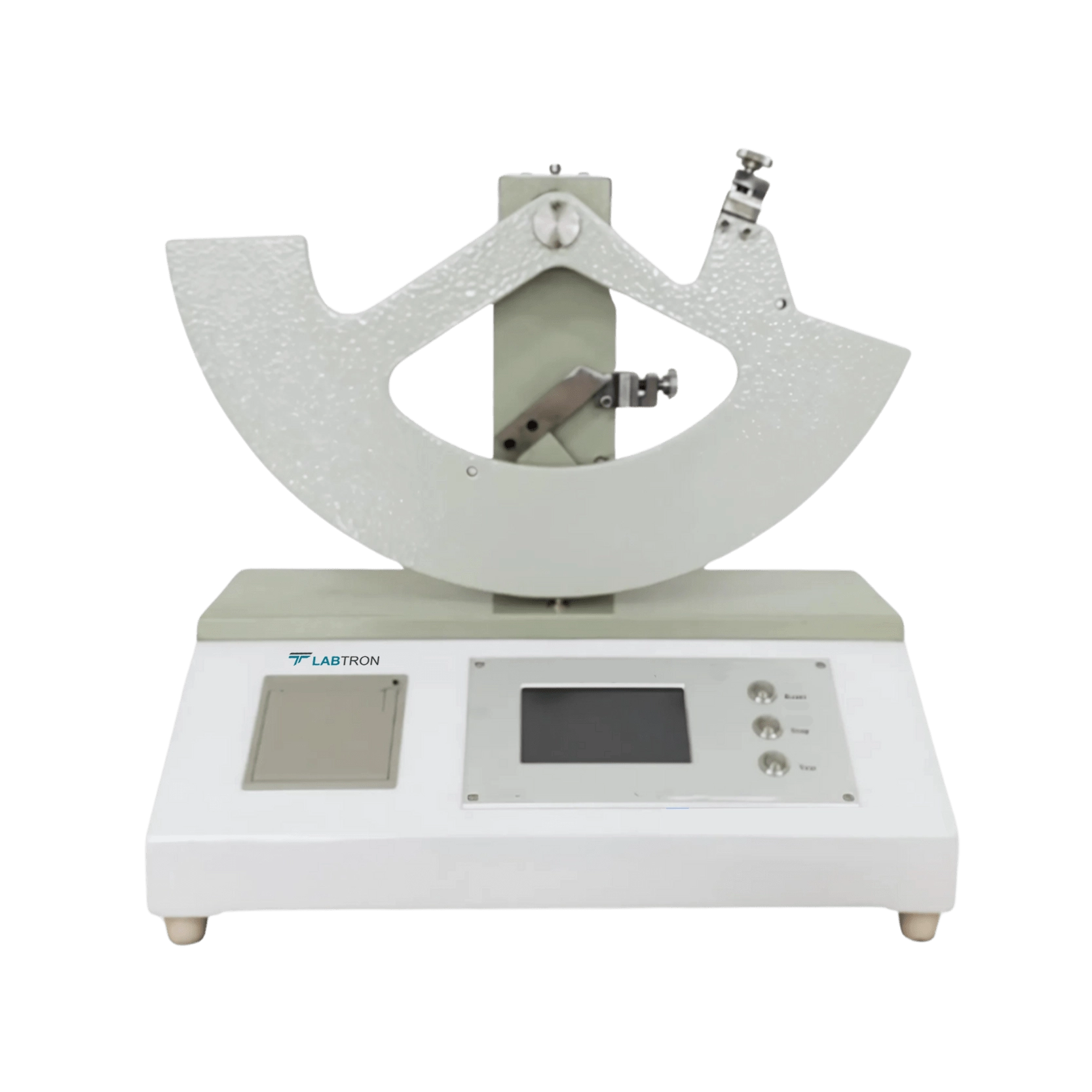

Electronic Tearing tester TP-J21

Capacity : 10 -16000 mN
Resolution : 0.1 mN
Tearing arm : 104 ± 1 mm
Tearing angle : 27.5° ± 5°

Compare Remove

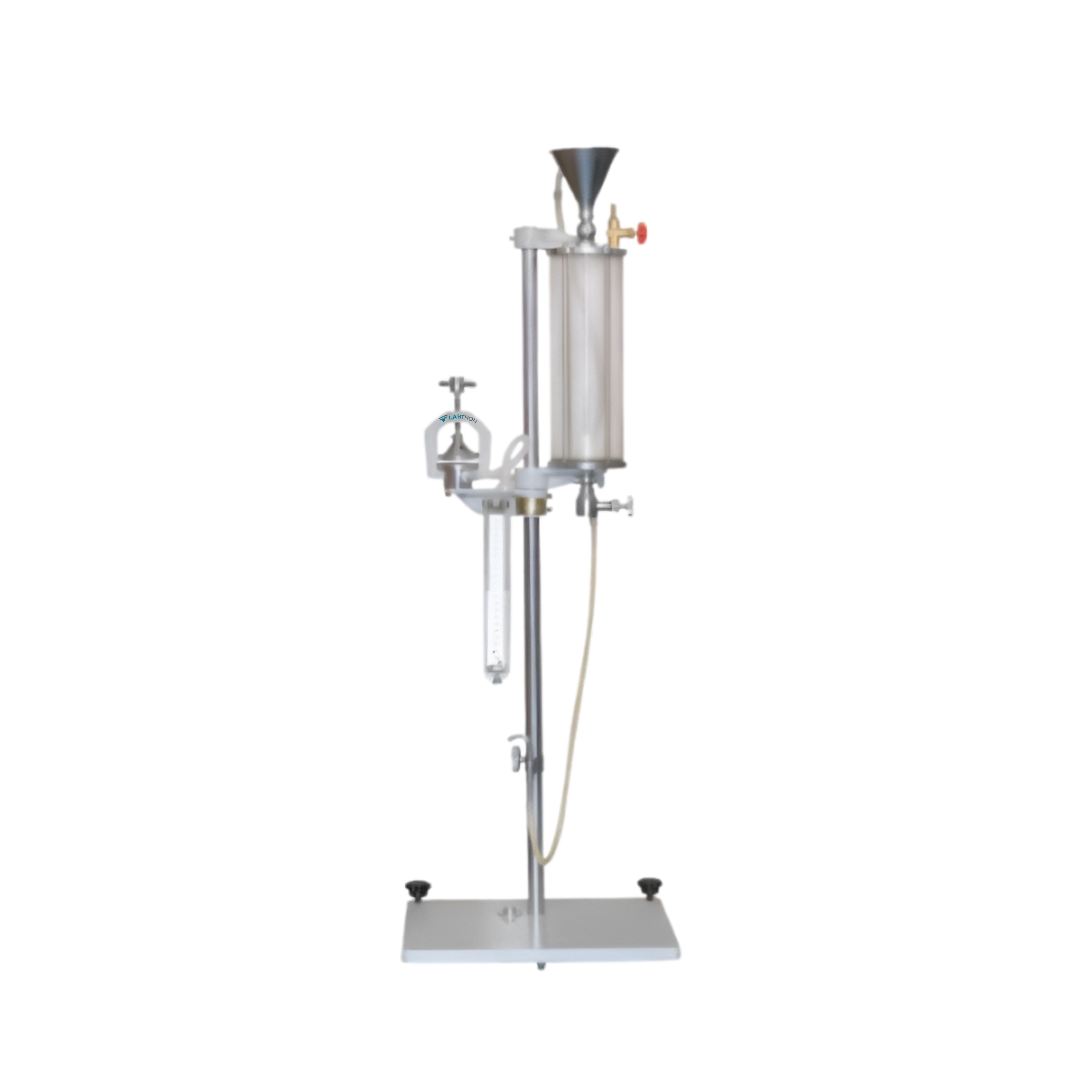

Paper Air Permeability Tester TP-J10

Measuring range : 0 to 1000 ml/min
Test area : 10 ± 0.02² cm
Area differential pressure : 1 ± 0.01 kPa
Inner diameter of grip ring : 35.68 ± 0.05 mm

Compare Remove

Vertical Tensile Tester LVTT-D12

Capacity (MAX) : 5KN (10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN sensors available)
Control Method : Full computer control mode, powerful software
Unit of Force : N, kN, gf, kgf, lbf, kP, tf(SI), tf (long)...
Unit of Length : mm, cm, Inch, m, km, um..

Compare Remove

Vertical Tensile Tester LVTT-D11

Capacity (MAX) : 5KN (10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN sensors available)
Control Method : Full computer control mode, powerful software
Unit of Force : N, kN, gf, kgf, lbf, kP, tf(SI), tf (long)...
Unit of Length : mm, cm, Inch, m, km, um..

Compare Remove

Ink Rub Tester LIRT-A10 FAQ's

Labtron’s Ink Rub Tester is designed to evaluate the durability of printed materials by testing the adhesion and wear resistance of ink. It simulates repeated rubbing or abrasion on various substrates under controlled conditions, ensuring that printed products meet industry standards for longevity and performance. This tester is widely used in the packaging, printing, and paper industries for quality control and research purposes.
Our Ink Rub Tester operates by moving test samples back and forth at a controlled speed and pressure to simulate real-world friction conditions. It follows international friction load standards and allows for precise adjustments using microcomputer controls. The tester offers four different speed options and ensures reliable operation with a compact design.
The Ink Rub Tester is highly beneficial for industries involved in printing, packaging, and paper production. It helps manufacturers and quality control teams assess ink adhesion and durability, ensuring compliance with industry standards. Research laboratories also use this tester to study the wear resistance of printed materials.
The friction load settings (10 N and 20 N) in the Ink Rub Tester allow users to simulate different levels of abrasion pressure on test samples. This helps in evaluating the durability of printed materials under various conditions, ensuring accurate performance assessments.
The LCD display provides a user-friendly interface for setting and monitoring test parameters. It allows users to easily adjust speed, friction load, and other testing conditions, ensuring precise and efficient operation of our Ink Rub Tester.
