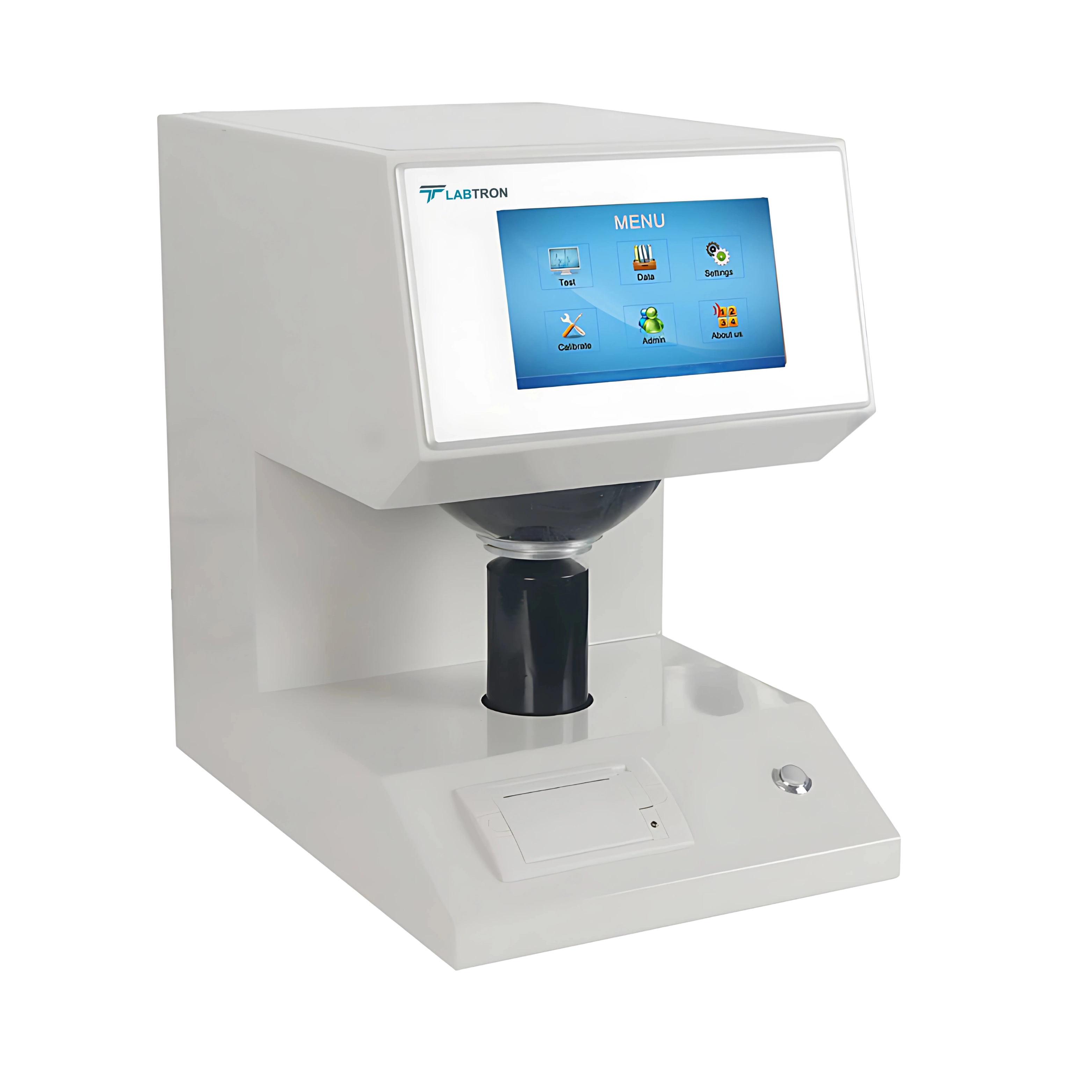

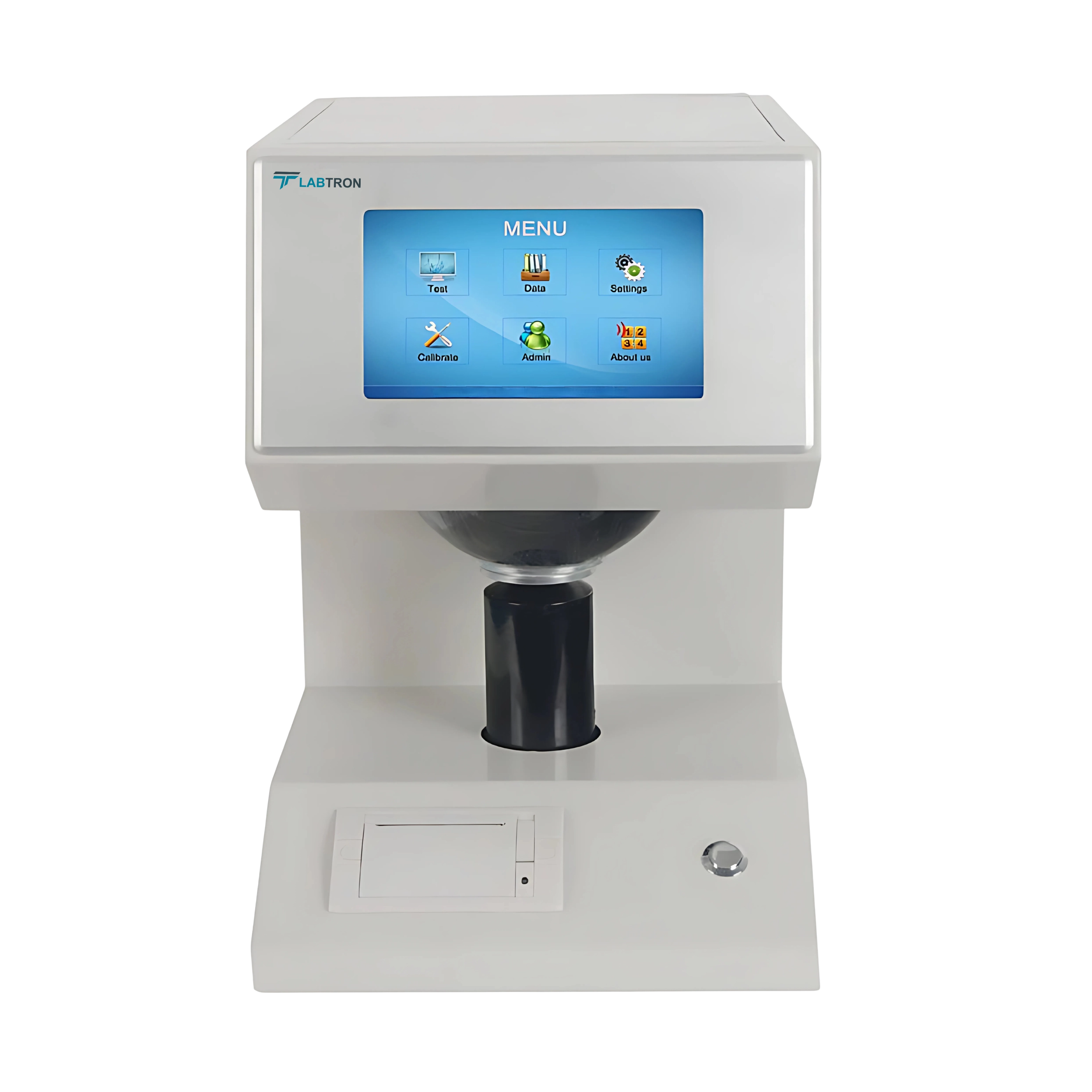

Whiteness and chromaticity tester LWACT-A10

Name: Whiteness and chromaticity tester LWACT-A10
Brand: Labtron
SKU: LWACT-A10
Rating: 4.9 (623 reviews)

Whiteness and chromaticity tester LWACT-A10 is based on a D/0 geometry with a 150 mm diffuser and a 30 mm test aperture, ensuring uniform illumination. It offers excellent stability of less than equal to 0.1 within 30 minutes for high-precision applications. This system supports measurements in both CIE and Hunter color systems (L, A, b), offering versatility for various industry standards. It is a reliable tool for industries requiring meticulous color and whiteness control.

Request Quote

Sample (size) length	Diameter ≥30 mm, Thickness ≤ 40 mm
Measurement mode	Diffuse reflection factor Rx, Ry, Rz, stimulus value Y10, X10, Z10, chromaticity coordinates x10, y10, z10; lightness L , chroma a b , chroma C ab, hue angle h * ab, dominant wavelength λd, excitement purity Pe, color difference ΔE * ab, lightness difference ΔL , chroma difference ΔC ab, hue difference ΔH * ab, Hunter system L , A, b
Stability	≤ 0.1 within 30 min
Accuracy	Chromaticity co-ordinate 0.0001
Repeatability	Rx, Ry and Rz s ≤ 0.1 chromaticity co-ordinate s ≤ 0.0010, R457 s ≤ 0.10
System	D/0 lighting geometrical viewing conditions, diffuser diameter (d) 150 mm, testing hole diameter 30 mm
Light measurement	CIE whiteness (Ganz whiteness W10, Color cast value TW10), WH hunter whiteness, YI Yellowness, ISO brightness R457
Storage	9 reference samples
Power supply	220 V ± 10 %, 50 Hz
Dimension (L × W × H)	360 × 264 × 400 mm
Net weight	23 kg

Efficient Illumination Simulation
Accurate Opacity/Transparency Measurement
Precise Light Scattering Analysis
Optical Absorption Detection
Consistent Ink Absorption Testing
Standard WH Hunter Whiteness Evaluation
Accurate Yellowness Index (YI)
CIE-Compliant Whiteness Measurement
Intuitive Large Touch LCD
User-Friendly Data Handling
Integrated RS232 PC Interface
Seamless Data Communication
Power-Failure Data Protection

Our Whiteness and chromaticity tester LWACT-A10 is used to measure color values, brightness, whiteness in papermaking, printing, ceramics, chemicals, textile printing and dyeing, building materials, food, salt and other industries.

Download catalog for
Whiteness and chromaticity tester LWACT-A10 Catalog

Available Range :

Tensile Stiffness Tester TP-B10 : 38×70 mm Whiteness and chromaticity tester LWACT-A10 : Diameter ≥30 mm, Thickness ≤ 40 mm
