Electronic bending stiffness tester TP-E10

Electronic bending stiffness tester TP-E10

Electronic bending stiffness tester TP-E10 comes with microprocessor controlled system, highly advanced motor, low noise operations determines the bending stiffness/ rigidity of paper, paperboard, and plastic films. Stiffness tester is equipped with pneumatic clamps to hold the sample properly and eliminate the errors. It can determine the bending force (mN), bending stiffness torque (mNm) values of paper and cardboard, plastic films.

Request Quote
Testing speed 200° ± 20° / min
Test range 1 to 10000 mN
Indicating Error ± 1 %
Testing length 5, 10, 15, 20, 25, 50 mm
Sample size Width 38 ± 0.2 mm, length 70 mm
Bend angle 1 to 90°
Dimension 200×230×350 mm
Weight 15 kg
Power supply AC220 V ± 10 % , 50 Hz
  • Highly advanced motor with low noise operations
  • Advanced data acquisition & data processing software
  • LCD touch screen display
  • Printer connection to print test report
  • User friendly operations

Electronic bending stiffness tester is used to test the bending stiffness of paper and cardboard, plastic films

Compare Models

Model Sample size (L*B) Rub pressure Friction speed Friction area (L*B) No. of friction Measuring range Division value Accuracy Gauge Contact pressure (to create false weight) Contact diameter Error of depth parallelism Testing speed Test range Indicating Error Indication variability Pressing depth of the measuring head Parallelism error between two brims of the specimen stages Slit width of the specimen stage Testing length Sample size Bend angle Sample width Sample maximum length Parallelism Dimension Weight Power supply

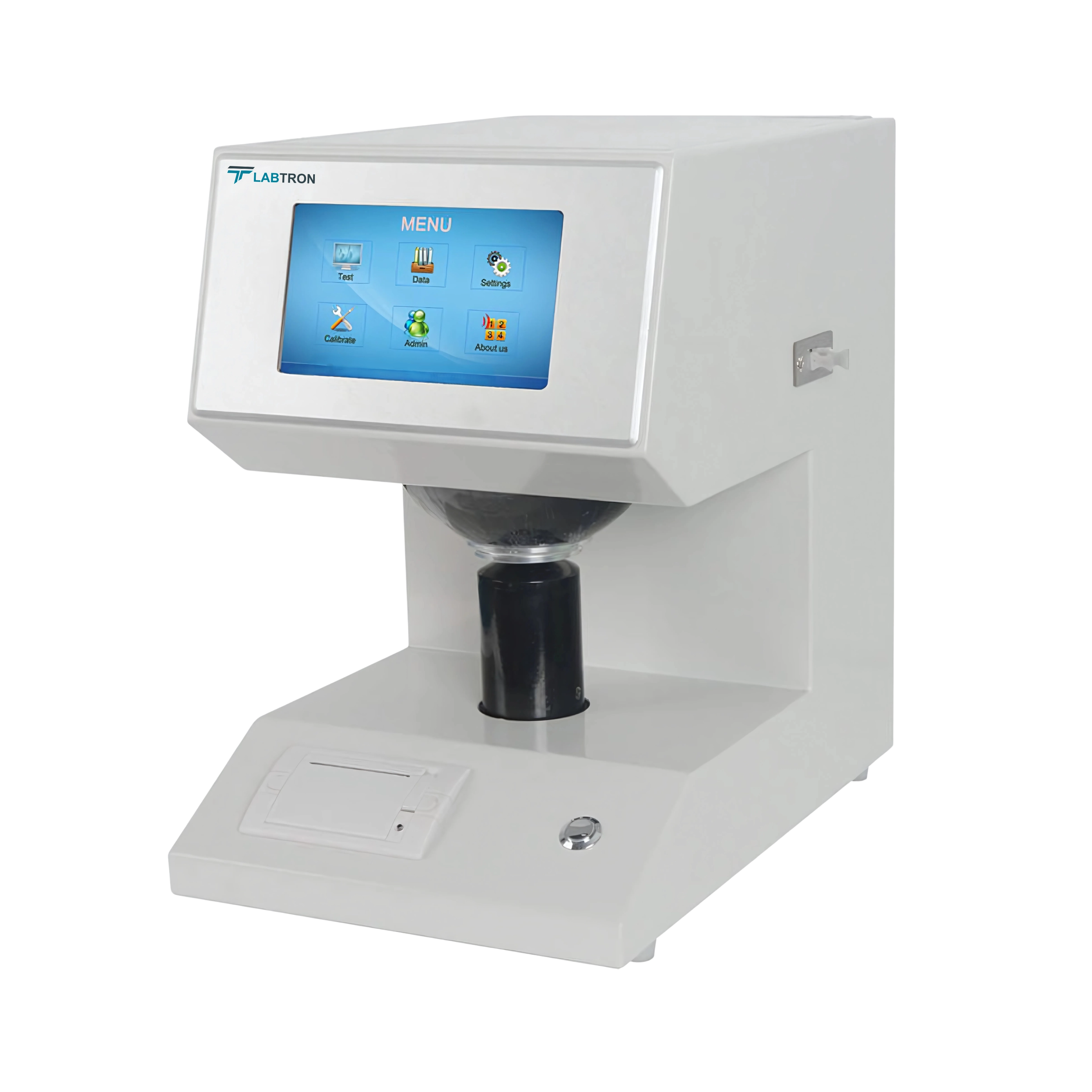

TP-A10 - - - - - - - Chromaticity co-ordinate 0.0001 - - - - - - - - - - - - - - - - - - - 220 V ± 10 %, 50 Hz
TP-A11 - - - - - - - - - - - - - - - - - - - - - - - - - - - 220 V ± 10 %, 50 Hz
TP-B10 - - - - - (1-500) mN.m (divided into 7 small ranges) - - - - - - - - - - - - - - - - - - - - - 220 V ± 10 %, 50 Hz
TP-B11 - - - - - 0 to 30, 0 to 100 N,0 to 300 N - ± 1 % - - - - - - - - - - - - - - 15 mm, 25 mm, 50mm - - - - 220 V ± 10 %, 50 Hz
TP-B12 - - - - - 0 to 30, 0 to 100 N,0 to 300 N, 0 to 500 N, 0 to 1000 N - ± 1 % - - - - - - - - - - - - - - 15 mm - - - - 220 V ± 10 %, 50 Hz
TP-B20 - - - - - 0 to 30 N (tissue paper), 0 to 100 N,0 to 300 N, 0 to 500 N, 0 to 1000 N - ± 1 % - - - - - - - - - - - - - - 15 mm - - - - 220 V ± 10 %, 50 Hz
TP-C10 - - - - - - - - - - - - - - - - - - - - - - - - - 450×250×1100 mm - -
TP-C20 - - - - - - 1 mm - - - - - - - - - - - - - - - - - - 420×250×380 mm - -
TP-C21 - - - - - - - - - - - - - - - - - - - - - - - - - 270×400×300 mm - -
TP-C30 - - - - - - - - - - - - - - - - - - - - - - - - - 240×288×435 mm - -
TP-D10 - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TP-E10 - - - - - - - - - - - - 200° ± 20° / min 1 to 10000 mN ± 1 % - - - - 5, 10, 15, 20, 25, 50 mm Width 38 ± 0.2 mm, length 70 mm 1 to 90° - - - 200×230×350 mm 15 kg AC220 V ± 10 % , 50 Hz
TP-E20 - - - - - 0 to 4 mm - 0.01 or 0.001 mm Analogue gauge display 100 ± 10 kPa 16.0 ± 0.5 mm 0.005 mm or 1 % - - ± 0.0025 mm or ± 0.5 % ≤ 0.0025 mm or ≤ 0.5 % - - - - - - - - - 233×160×120 mm 5.5 kg -
TP-E21 - - - - - 0 to 20 mm - 0.01 mm Analogue gauge display 20 ± 0.5 kPa 35.7 ± 0.5 mm 0.03 mm - - ± 0.0025 mm or ± 0.5 % ≤ 0.0025 mm or ≤ 0.5 % - - - - - - - - - 233×160×120 mm 5.5 kg -
TP-F10 230×50 mm (can join short samples together) 20 ± 0.2 N 43 times / min 155×50 mm 0 to 999, auto shutdown - - - - - - - - - - - - - - - - - - - - 275×302×297 mm 25 kg AC220 V ± 10 % , 50 Hz
TP-G10 - - - - - - - - - - - - - - - - - - - - - - 15 mm 300 mm ≤ 0.1 mm 240×520×70 mm 4 kg -
TP-H10 - - - - - 10 to 1000 mN 1 mN ± 1% - - - - - - ≤ 0.5 - 8 + 0.5 mm ≤ 0.05 mm 5 mm, 6.35 mm, 10 mm, 20 mm - - - - - - 570×410×200 mm 33 kg AC220 V ± 10 % , 50 Hz
TP-I10 - - - - - 0.1 to 10 kN - - - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-I11 - - - - - 1 to 50 kN - - - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-J10 - - - - - 0 to 1000 ml/min - - - - - - - - - - - - - - - - - - - 410×300×1160 mm About 15kg -
TP-J11 - - - - - - - - - - - - - - - - - - - - - - - - - 700×340×600 mm 92    g -
TP-J12 - - - - - A (1 to 6) J indicating error ± 0.05 J
B (1 to 12) J indicating error ± 0.05 J
C (1 to 24) J indicating error ± 0.05 J
D (1 to 48) J indicating error ± 0.05 J
The indicating errors w.r.t measurement range of 20 to 80 %
- - - - - - - - - - - - - - - - - - - 800×470×840 mm 185 kg AC220 V ± 10 % , 50 Hz
TP-J20 - - - - - 0 to 1000 mN - - - - - - - - - - - - - - - - - - - - - -
TP-J21 - - - - - - - - - - - - - - - - - - - - - - - - - - 20 kg -
TP-K10 - - - - - - - ± 0.5 % F.S. - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-K11 - - - - - - - ≤± 0.5 % - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-L10 - - - - - - - ± 1 % - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-L20 - - - - - - - ±0.1 s within 300 s - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-M10 - - - - - - - - - - - - - - - - - - - - - - - - - - - AC220 V ± 10 % , 50 Hz
TP-E30 - - - - - 0 to 5 mm 0.001 mm - - - - - - - - ≤ 0.0025 mm or ≤ 0.5 % - - - - - - - - - - 25 Kg -
