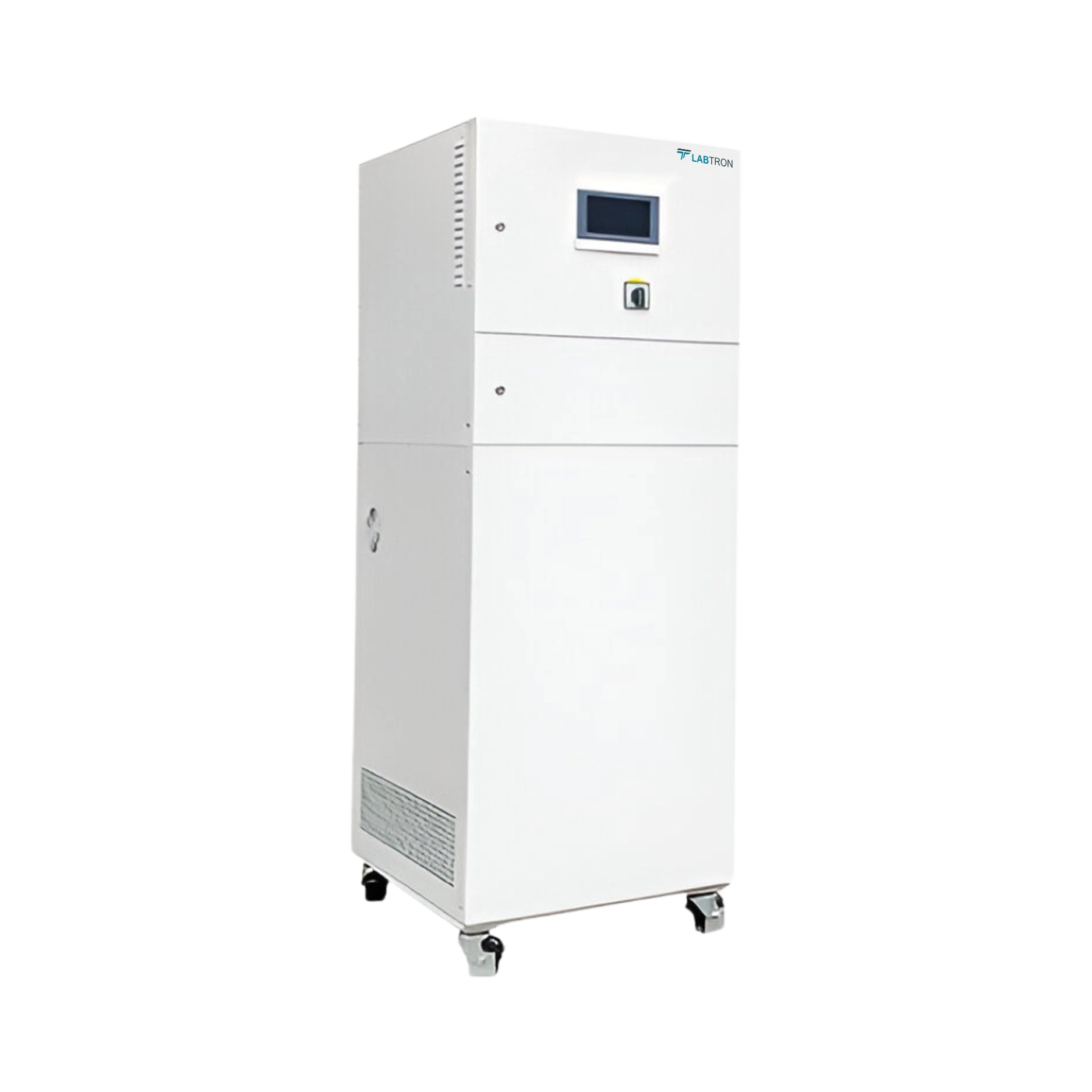

Recirculating Chiller LRC-D16

Name: Recirculating Chiller LRC-D16
Brand: Labtron
SKU: LRC-D16
Rating: 4.8 (629 reviews)

Recirculating Chiller LRC-D16 is equipped with a 35L expansion tank and 20L internal circulating fluid volume. Offers adjustable temperature controls, ensuring precise regulation of cooling parameters for experiments. Features a high-quality filtration system for enhanced fluid cleanliness and efficient heat management. Incorporates anti-vibration mounts to ensure stable operation and minimize mechanism wear. It is engineered to deliver precise thermal adjustment for industrial and scientific applications, providing reliable operation, protecting equipment, and maintaining stability.

Request Quote

Temperature Range	-45°C to 90°C
Temperature Control	±0.05°C
Expansion Tank Volume	35L
Fluid Volume	20L Internal Circulation
Flow Control	25 to 75L/min 5bar max
Cooling Water flow	8m³/H at 20°C
Refrigerant	R448A
Cooling Capacity	8Kw at -35°C
Dimension	1080mm x 500mm x 1500mm

Vibration Damping
Streamlined Operation
Maintenance-Free Design
Smooth Functionality
Superior Fluid Filtration

Our Recirculating Chiller is engineered to offer precise temperature regulation for industrial and scientific applications, providing reliable cooling, protecting equipment, and maintaining stability for optimal performance in temperature-sensitive processes.

Download catalog for
Recirculating Chiller LRC-D16 Catalog

Available Range :

Recirculating Chiller LRC-F10 : -100°C to 90°C Recirculating Chiller LRC-A12 : -20 ℃ to RT Recirculating Chiller LRC-L10 : -20°C to RT Recirculating Chiller LRC-A11 : -20℃ to RT Recirculating Chiller LRC-C10 : -25°C to 90°C Recirculating Chiller LRC-D10 : -45°C to 90°C Recirculating Chiller LRC-E10 : -80°C to 90°C Recirculating Chiller LRC-B10 : 5°C to 90°C Recirculating Chiller LRC-A10 : 5˚C to 40˚C Recirculating Chillers LRC-L11 : –20 to 25°C Recirculating Chillers LRC-L12 : –30 to 5°C

Models of Recirculating Chiller

Labtron Recirculating Chiller provide cooling of fluids from -5℃ to 40℃ by circulating them through system to remove heat. They include evaporators to absorb thermal energy from liquid ensuring temperature control. Their expansion valves control flow of refrigerant and regulate freezing capacity of system. They feature filtration system to remove particulates and impurities from solution. Our Recirculating Chiller is applicable for automotive testing, electronics, medical and pharmaceutical equipment.
