| Capacity | 18 L |
| Chamber Size | Ø250 × 370 mm |
| Working Sterilization Temperature | 134℃ |
| Working Sterilization Pressure | 0.22 Mpa |
| Design Pressure | 0.25 Mpa (2.5 bar) |
| Design Temperature | 139℃ |
| Working Pressure | 0.22 Mpa (2.2 bar) |
| Voltage | 110 V/220 V,60 Hz/50 Hz |
| Power Consumption | 2.2 kW |
| Outer Dimension (L × W × H) | 480 × 590 × 450 mm |
| Packing Dimension (L × W × H) | 670 × 560 × 510 mm |
| Gross Weight | 57 kg |
| Net Weight | 48 kg |
Multi-Layer Safety Mechanism
End-of-Cycle Notification
Cold Air Auto Release
Rapid Steam Supply System
Leak-Proof Tank Construction

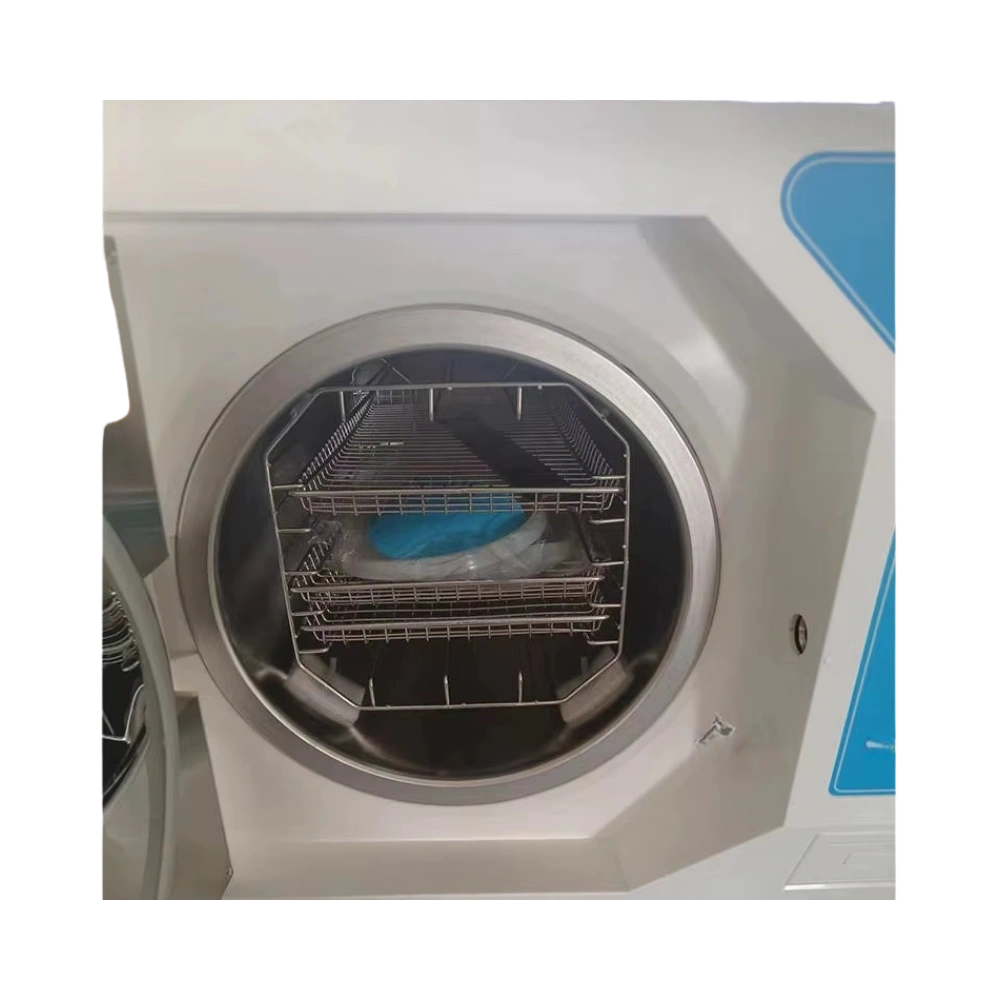

Tabletop Autoclave LTTA-H12 is a compact sterilization unit that uses pressurized steam to disinfect medical and laboratory tools efficiently. It is widely used in clinics, dental offices, and research labs for quick and reliable sterilization of small instruments and glassware.
Download catalog for
Tabletop Autoclave LTTA-H12 Catalog
Available Range :
Tabletop Autoclave LTTA-H15 : 12 L Tabletop Autoclave LTTA-H12 : 18 L Table Top Autoclave LTTA-J10 : 18L Tabletop Autoclave LTTA-A10 : 20 L Tabletop Autoclave LTTA-H13 : 23 L Tabletop Autoclave LTTA-A11 : 24 L Tabletop Autoclave LTTA-J11 : 24L Tabletop Autoclave LTTA-A12 : 35 L Tabletop Autoclave LTTA-K10 : 35L Tabletop Autoclave LTTA-I10 : 45L Tabletop Autoclave LTTA-A13 : 50 L Tabletop Autoclave LTTA-K11 : 50L Tabletop Autoclave LTTA-I11 : 60L Tabletop Autoclave LTTA-H10 : 8 L Tabletop Autoclave LTTA-A14 : 80 LLabtron Table Top Autoclave offer compact sterilizer of 18 L to 50 L that fits easily on workstation. Their effective sterilization is achieved through steam under pressure of 0.22 Mpa. They feature over-temperature monitoring and multiple evaporator controls for enhanced safety. Their quick cycle times significantly enhance workflow efficiency, reducing downtime between procedures. Our Table Top Autoclave is ideal for modest scale sterilization in medical, dental and research labs.








Labtron designs its tabletop autoclaves with durability and efficiency in mind, making them well-suited for high-demand environments such as dental clinics, small hospitals, laboratories, and research facilities where sterilization is performed multiple times a day. The autoclaves are built using robust stainless steel chambers and high-grade electronic components that can withstand repeated thermal cycling without performance degradation. The heating systems are optimized for fast warm-up times and quick steam generation, ensuring minimal downtime between cycles. In addition, automatic functions such as water filling, programmable cycles, and auto-shutoff after sterilization reduce the need for constant supervision, which is especially useful in high-traffic settings.
Labtron tabletop autoclaves incorporate high-precision temperature and pressure sensors that are strategically placed within the chamber to continuously monitor and regulate conditions during the sterilization process. The control system uses this real-time data to maintain exact temperatures and optimal pressure levels, which are essential for effective microbial inactivation. The autoclaves are also equipped with a PID (Proportional-Integral-Derivative) controller, a sophisticated algorithm that adjusts heating input based on changes in temperature and load, ensuring tight control without overshooting or underheating. The pressure system works in tandem, using automatic steam release and venting mechanisms to maintain equilibrium inside the chamber. Labtron also performs rigorous calibration tests and quality checks during production, and provides certified temperature validation upon request, ensuring users receive a highly accurate and reliable device.
Labtron tabletop autoclaves are specifically engineered to handle a wide variety of load types, including wrapped surgical packs, textiles, cotton materials, gauze, and reusable drapes. These items require not only high-temperature sterilization but also effective drying, which is why Labtron integrates post-cycle vacuum or forced-air drying systems depending on the model. The sterilization chamber allows even distribution of steam through every layer of the pack, penetrating folded materials and complex instrument shapes. The pre-vacuum phase, available in advanced models, helps to eliminate trapped air pockets that could hinder proper sterilization in porous or layered materials. Furthermore, the intuitive touchscreen panel lets users select specific programs optimized for textile loads, ensuring complete sterility while maintaining fabric integrity.
Labtron tabletop autoclaves are advanced sterilization devices that differ significantly from basic pressure cookers or non-regulated sterilizers in both functionality and safety standards. Unlike domestic or improvised sterilizers, Labtron autoclaves feature programmable electronic control systems that allow precise adjustments of cycle time, temperature, and pressure based on load type. They are built to comply with international sterilization guidelines such as EN 13060, ISO 13485, and CE standards, making them suitable for professional healthcare and laboratory applications. Additionally, Labtron tabletop autoclaves come with integrated safety features like automatic pressure locks, error alarms, cycle documentation, and fail-safes that prevent operation if conditions are not optimal.Labtron units can generate sterilization logs, cycle history, and printed records, which are critical for quality assurance, auditing, and regulatory compliance.
Labtron understands that sterilization needs vary across industries, which is why their tabletop autoclaves offer a range of customizable options and model upgrades. Users can select autoclaves with different chamber capacities, depending on the volume of instruments to be sterilized, with models ranging from compact to mid-sized. Additional features such as built-in thermal printers, USB data ports, and programmable sterilization cycles can be included based on user preference. Some models also support language customization, external water supply integration, and password-protected access control, making them adaptable to both research labs and clinical environments. For institutions with stringent documentation policies, Labtron offers autoclaves that are compatible with external data logging systems and provide cycle validation certificates. These flexible configurations ensure that users receive a sterilizer that aligns precisely with their workflow, compliance needs, and operational scale.
