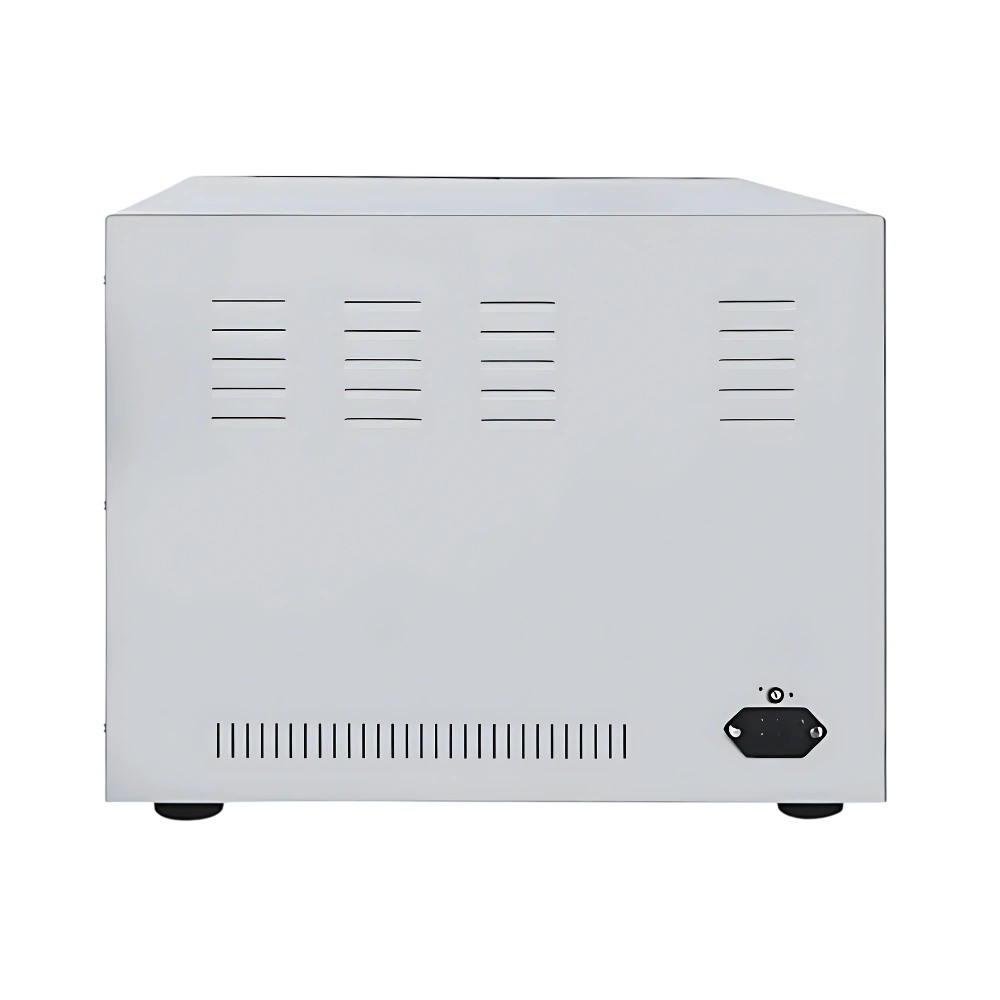

Table top autoclave LTTA-A13 is a robust and compact, space efficient unit with 50 L of capacity and a sterilizing temperature of 134 °C. It is equipped with 4 sterilizing baskets along with safety features like automatic shutoff preventing overheating of chamber, automatic cold air discharge and auto protection against raised temperature and pressure making a reliable and user friendly device.
| Capacity | 50 L |
| Sterilization Temperature | 134 °C |
| Adjustment temperature | 105 to 134 °C |
| Sterilization Pressure | 0.22 MPa |
| Number of sterilizing baskets | 4 |
| Timer Range | 0 - 60 minutes |
| Heat Average | ≤ ± 1 ℃ |
| Chamber Dimension (Φ×D) | 340 × 550 mm |
| Net Weight | 86 kg |
| Gross Weight | 105 kg |
| Power Supply | 2.7 kW / AC 220 V 50 Hz |
Table top autoclave has its application in medical, clinical and drug testing research and also in hospitals, cosmetic salons & tattoo parlours.
Available Range :
Capacity : 24 L Capacity : 35 L Capacity : 50 L Capacity : 24 L Capacity : 35 L Capacity : 50 LRelated Models :
Tabletop Laboratory Autoclave LTTA-A11
Tabletop Laboratory Autoclave LTTA-A12
Tabletop Laboratory Autoclave LTTA-A20
Tabletop Laboratory Autoclave LTTA-B12
Tabletop Laboratory Autoclave LTTA-B13
Tabletop Laboratory Autoclave LTTA-E13
Tabletop Laboratory Autoclave LTTA-E14
Tabletop Laboratory Autoclave LTTA-A10
Tabletop Laboratory Autoclave LTTA-D11
Tabletop Laboratory Autoclave LTTA-C10
Tabletop Laboratory Autoclave LTTA-C11
Tabletop Laboratory Autoclave LTTA-F10
| Model | Capacity | Sterilization Temperature | Adjustment temperature | Sterilization Pressure | Number of sterilizing baskets | Timer Range | Heat Average | Chamber Dimension (Φ×D) | Dimension | Net Weight | Gross Weight | Power Supply |
| LTTA-A11 | 24 L | 134 °C | 105 to 134 °C | 0.22 MPa | 3 | 0 - 60 minutes | ≤ ± 1 ℃ | 250 × 520 mm | - | 45 kg | 50 kg | 1.5 kW / AC 220 V 50 Hz |
| LTTA-A12 | 35 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 300 × 500 mm | - | 73 kg | 90 kg | 2.7 kW / AC 220V 50 Hz |
| LTTA-A13 | 50 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 340 × 550 mm | - | 86 kg | 105 kg | 2.7 kW / AC 220 V 50 Hz |
| LTTA-A20 | 24 L | 134 °C | 105 to 134 °C | 0.22 MPa | 3 | 0 - 60 minutes | ≤ ± 1 ℃ | 270 × 410 mm | 560 × 350 × 500 mm | 18 kg | 20 kg | AC 220V 50 Hz / 1.5 kW |
| LTTA-B12 | 35 L | 105 °C - 134 °C | - | 0.22 MPa | 4 | 0 - 99 minutes | - | 300 × 500 mm | - | 73 kg | 90 kg | 2.7 kW / AC 220 V 50 Hz |
| LTTA-B13 | 50 L | 105 °C - 134 °C | - | 0.22 MPa | 4 | 0 - 99 minutes | - | 340 × 550 mm | - | 106 kg | 130 kg | 2.7 kW / AC 220 V 50 Hz |
| LTTA-E13 | 35 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 300 × 500 mm | 730 × 550 × 510 mm | 73 kg | 90 kg | AC 220 V 50 Hz / 2.7 kW |
| LTTA-E14 | 50 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 340 × 550 mm | 770 × 600 × 540 mm | 86 kg | 105 kg | AC 220 V 50 Hz / 2.7 kW |
| LTTA-A10 | 20 L | 134 °C | 105 to 134 °C | 0.22 MPa | 3 | 0 - 60 minutes | ≤ ± 1 ℃ | 250 × 420 mm | - | 40 kg | 44 kg | 1.5 kW / AC 220 V 50 Hz |
| LTTA-D11 | - | - | - | - | - | - | - | - | - | - | - | - |
| LTTA-C10 | - | - | - | - | - | - | - | - | - | - | - | - |
| LTTA-C11 | - | - | - | - | - | - | - | - | - | - | - | - |
| LTTA-F10 | 35 L | - | 55 ℃ to 134 ℃ | - | - | - | ≤ 2 ℃ | - | 730 × 550 × 510 mm | 73 Kg | 90 Kg | - |
