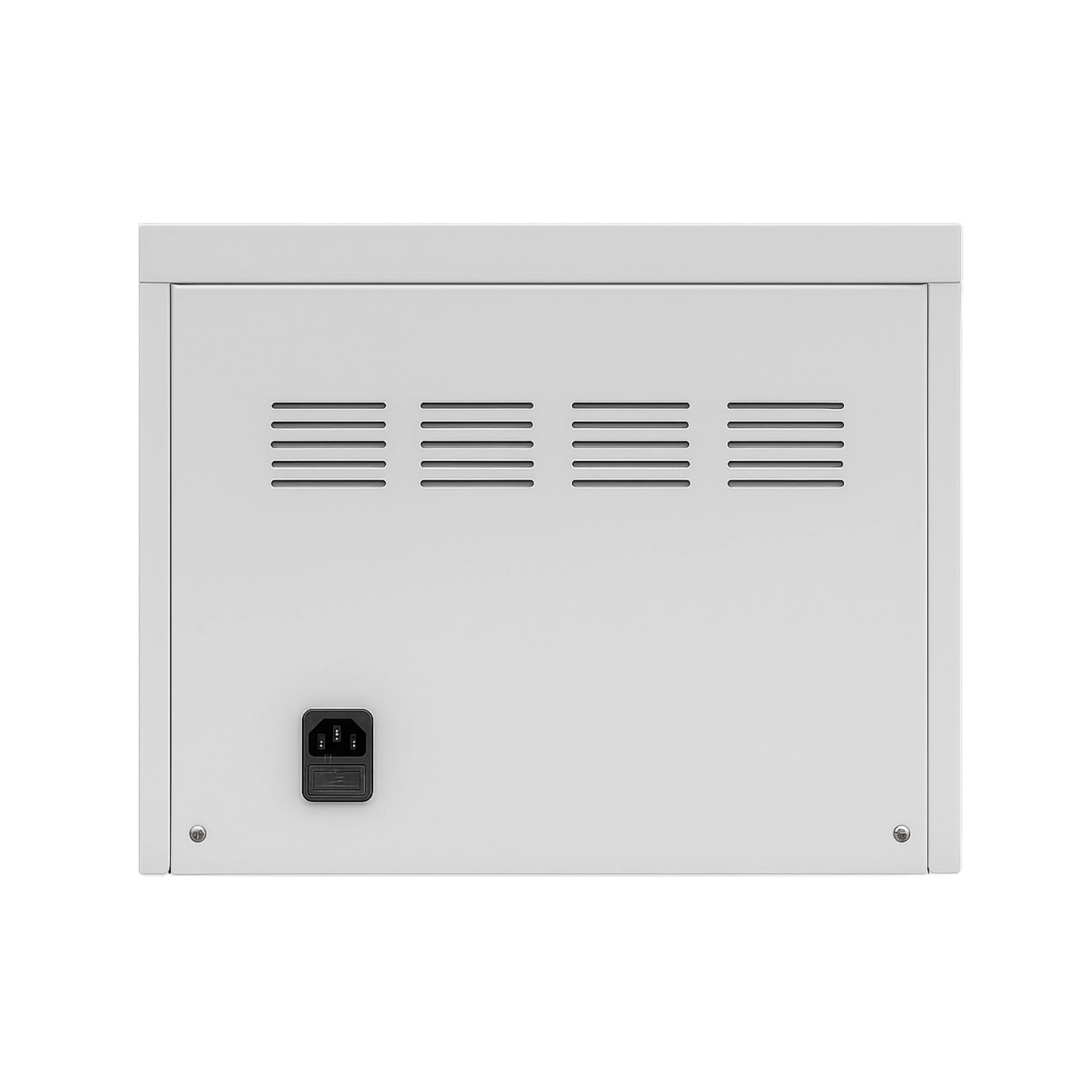

Table top autoclave LTTA-E13 is a portable B class computer controlled unit with capacity up to 35 L and a sterilizing temperature of 134 °C. It has an effectively sterilization which can inactivate even HIV, HBV, mad cow virus and bacillus. Equipped with safety features like automatic shutoff preventing overheating of chamber, automatic cold air discharge and auto protection against raised temperature and pressure.
| Capacity | 35 L |
| Sterilization Temperature | 134 °C |
| Adjustment temperature | 105 to 134 °C |
| Sterilization Pressure | 0.22 MPa |
| Number of sterilizing baskets | 4 |
| Timer Range | 0 - 60 minutes |
| Heat Average | ≤ ± 1 ℃ |
| Chamber Dimension (Φ×D) | 300 × 500 mm |
| Dimension | 730 × 550 × 510 mm |
| Net Weight | 73 kg |
| Gross Weight | 90 kg |
| Power Supply | AC 220 V 50 Hz / 2.7 kW |
Table top autoclave has its application in medical, clinical and drug testing research and also in hospitals, cosmetic salons & tattoo parlours.
Available Range :
Capacity : 24 L Capacity : 35 L Capacity : 50 L Capacity : 24 L Capacity : 35 L Capacity : 50 LRelated Models :
Tabletop Laboratory Autoclave LTTA-A11
Tabletop Laboratory Autoclave LTTA-A12
Tabletop Laboratory Autoclave LTTA-A13
Tabletop Laboratory Autoclave LTTA-A20
Tabletop Laboratory Autoclave LTTA-B12
Tabletop Laboratory Autoclave LTTA-B13
Tabletop Laboratory Autoclave LTTA-E14
Tabletop Laboratory Autoclave LTTA-A10
Tabletop Laboratory Autoclave LTTA-D11
Tabletop Laboratory Autoclave LTTA-C10
Tabletop Laboratory Autoclave LTTA-C11
Tabletop Laboratory Autoclave LTTA-F10
| Model | Capacity | Sterilization Temperature | Adjustment temperature | Sterilization Pressure | Number of sterilizing baskets | Timer Range | Heat Average | Chamber Dimension (Φ×D) | Dimension | Net Weight | Gross Weight | Power Supply |
| LTTA-A11 | 24 L | 134 °C | 105 to 134 °C | 0.22 MPa | 3 | 0 - 60 minutes | ≤ ± 1 ℃ | 250 × 520 mm | - | 45 kg | 50 kg | 1.5 kW / AC 220 V 50 Hz |
| LTTA-A12 | 35 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 300 × 500 mm | - | 73 kg | 90 kg | 2.7 kW / AC 220V 50 Hz |
| LTTA-A13 | 50 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 340 × 550 mm | - | 86 kg | 105 kg | 2.7 kW / AC 220 V 50 Hz |
| LTTA-A20 | 24 L | 134 °C | 105 to 134 °C | 0.22 MPa | 3 | 0 - 60 minutes | ≤ ± 1 ℃ | 270 × 410 mm | 560 × 350 × 500 mm | 18 kg | 20 kg | AC 220V 50 Hz / 1.5 kW |
| LTTA-B12 | 35 L | 105 °C - 134 °C | - | 0.22 MPa | 4 | 0 - 99 minutes | - | 300 × 500 mm | - | 73 kg | 90 kg | 2.7 kW / AC 220 V 50 Hz |
| LTTA-B13 | 50 L | 105 °C - 134 °C | - | 0.22 MPa | 4 | 0 - 99 minutes | - | 340 × 550 mm | - | 106 kg | 130 kg | 2.7 kW / AC 220 V 50 Hz |
| LTTA-E13 | 35 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 300 × 500 mm | 730 × 550 × 510 mm | 73 kg | 90 kg | AC 220 V 50 Hz / 2.7 kW |
| LTTA-E14 | 50 L | 134 °C | 105 to 134 °C | 0.22 MPa | 4 | 0 - 60 minutes | ≤ ± 1 ℃ | 340 × 550 mm | 770 × 600 × 540 mm | 86 kg | 105 kg | AC 220 V 50 Hz / 2.7 kW |
| LTTA-A10 | 20 L | 134 °C | 105 to 134 °C | 0.22 MPa | 3 | 0 - 60 minutes | ≤ ± 1 ℃ | 250 × 420 mm | - | 40 kg | 44 kg | 1.5 kW / AC 220 V 50 Hz |
| LTTA-D11 | - | - | - | - | - | - | - | - | - | - | - | - |
| LTTA-C10 | - | - | - | - | - | - | - | - | - | - | - | - |
| LTTA-C11 | - | - | - | - | - | - | - | - | - | - | - | - |
| LTTA-F10 | 35 L | - | 55 ℃ to 134 ℃ | - | - | - | ≤ 2 ℃ | - | 730 × 550 × 510 mm | 73 Kg | 90 Kg | - |
