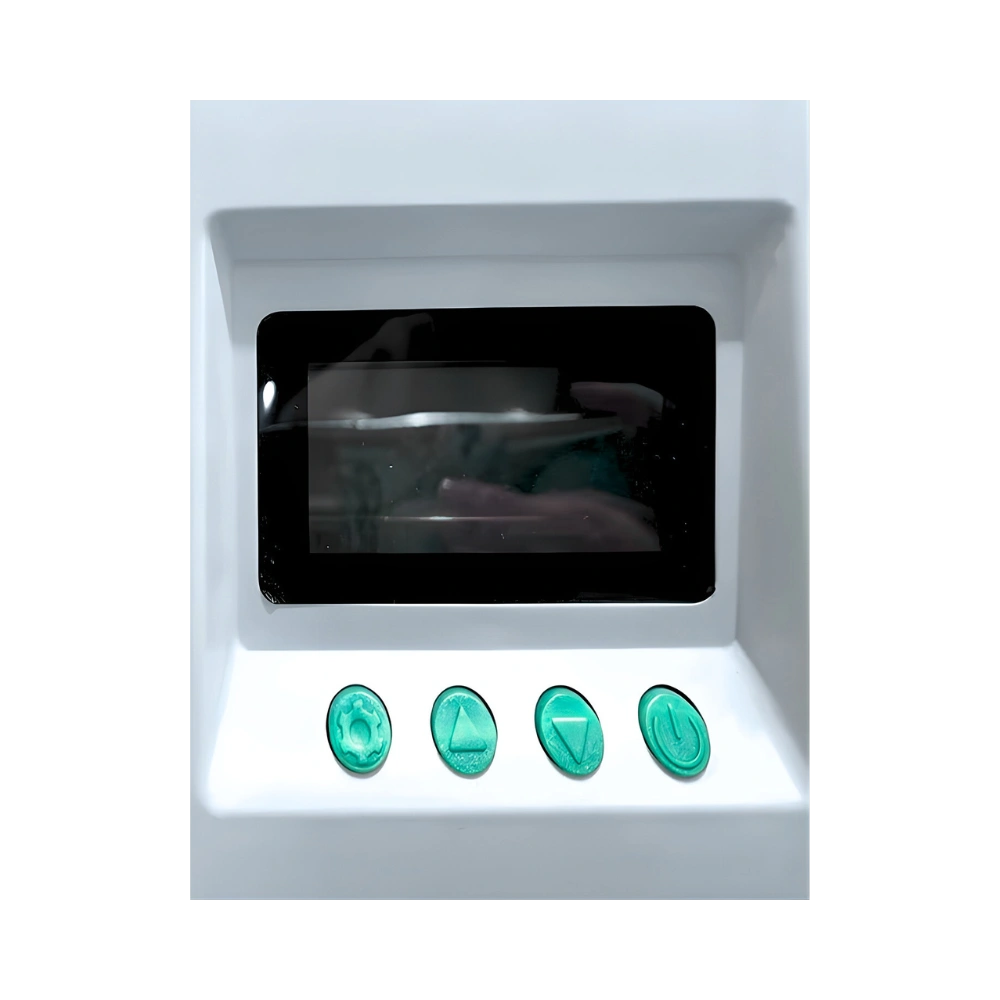

Tabletop Autoclave LTTA-J11

Tabletop Autoclave LTTA-J11

Tabletop Autoclave LTTA-J11 offers a 24 L capacity for thorough sterilization. It has a fast and independent steam generator for efficient sterilization cycles. The fully computer-controlled LCD display features a modular interface for simplified operation. Its built-in mini printer records sterilization information for documentation. Our autoclave is ideal for dental clinics, hospitals, school labs, and research institutions.

Request Quote
Capacity 24L
Maximum Working Pressure 0.22 MPa
Maximum Working Temperature 134°C
Temperature Adjust Range 105 to 134°C
Timer Range 0 to 99 minutes
Heat Average ≤ ±1°C
Power Consumption 2 kW
Power Supply Single Phase, AC 220V to 240V, 50/60Hz
Total CBM 0.27 CBM
Chamber Size Ø250 × 470 mm
Dimensions (W×D×H) 480 × 680 × 455 mm
Packing Dimensions (W×D×H) 580 × 790 × 580 mm
Net Weight 53 kg
Gross Weight 57 kg
  • Standard Class B
  • Triple Vacuum Drying
  • LCD Touch Display
  • High Vacuum Capability
  • Complete Instrument Sterilization

Our Tabletop Autoclave LTTA-J11 is ideal for dental clinics, hospitals, school labs, and research institutions, effectively sterilizing surgical, dental, and eye instruments, glassware, medicines, culture media, biological dressings, and food safely and efficiently.

  • 3 Trays
  • Drain Hose
  • Measuring Water Cup
AccessoriesQuantity
Door Gaskets1pc
Steam Generator1pc
Water pump1pc
Valves – Solenoid valve1pc
Mother Board1pc
LCD Display Board1pc
Pressure Sensor (includes 3 sensors)1pc
Button Wire1pc
Water level Sensor1pc

Models of Table Top Autoclave

Labtron Table Top Autoclave offer compact sterilizer of 18 L to 50 L that fits easily on workstation. Their effective sterilization is achieved through steam under pressure of 0.22 Mpa. They feature over-temperature monitoring and multiple evaporator controls for enhanced safety. Their quick cycle times significantly enhance workflow efficiency, reducing downtime between procedures. Our Table Top Autoclave is ideal for modest scale sterilization in medical, dental and research labs.

Tabletop Autoclave LTTA-H17

Tabletop Autoclave LTTA-H17

  • Capacity : 23 L
  • Chamber Size : Ø250 × 470 mm
  • Working Sterilization Temperature : 134℃
  • Working Sterilization Pressure : 0.22 Mpa
Tabletop Autoclave LTTA-C11

Tabletop Autoclave LTTA-C11

  • Capacity : 24 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
  • Working Temperature Range : 105°C to 134°C
Tabletop Autoclave LTTA-H10

Tabletop Autoclave LTTA-H10

  • Capacity : 8 L
  • Chamber Size : Ø170 × 320 mm
  • Working Sterilization Temperature : 134℃
  • Working Sterilization Pressure : 0.22 Mpa
Tabletop Autoclave LTTA-K11
Tabletop Autoclave LTTA-K11
  • Capacity : 50L
  • Maximum Working Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Working Temperature Range : 105 to 134℃
Tabletop Autoclave LTTA-B13
Tabletop Autoclave LTTA-B13
  • Capacity : 50 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
  • Working Temperature Range : 105°C to 134°C
Tabletop Autoclave LTTA-I11

Tabletop Autoclave LTTA-I11

  • Capacity : 60L
  • Working Temperature : 105 to 138°C
  • Working Pressure : 0 to 0.25 Mpa
  • Design Pressure : -0.1 / 0.3 Mpa
Tabletop Autoclave LTTA-K10

Tabletop Autoclave LTTA-K10

  • Capacity : 35L
  • Maximum Working Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Working Temperature Range : 105 to 134℃
Tabletop Autoclave LTTA-H12

Tabletop Autoclave LTTA-H12

  • Capacity : 18 L
  • Chamber Size : Ø250 × 370 mm
  • Working Sterilization Temperature : 134℃
  • Working Sterilization Pressure : 0.22 Mpa

Tabletop Autoclave LTTA-J11 FAQ's
  • The Table Top Autoclave LTTA-J11 features a 24-liter stainless steel chamber, making it ideal for small to mid-sized medical clinics, dental practices, research labs, and surgical centers. It is suitable for sterilizing a wide range of items including wrapped and unwrapped instruments, glassware, porous loads, and rubber or plastic components that can withstand high-pressure steam sterilization.

  • The Table Top Autoclave LTTA-J11 operates within a working temperature range of 105°C to 134°C and maintains a stable working pressure of 0.22 MPa, with a maximum pressure of 0.23 MPa. This ensures optimal sterilization conditions for eliminating bacteria, viruses, and spores on medical and laboratory instruments.

  • The Table Top Autoclave LTTA-J11 is equipped with a pre-vacuum and post-vacuum system, which removes air before sterilization and extracts moisture afterward for efficient vacuum drying. This system ensures deeper steam penetration and faster, more thorough drying, particularly important for wrapped or hollow instruments.

  • Table Top Autoclave LTTA-J11 uses a microprocessor control system with an intuitive LCD screen, allowing users to easily program sterilization and drying cycles. Users can set both sterilization and drying durations independently, from 0 to 99 minutes, ensuring flexibility and precision for different load types.

  • Table Top Autoclave LTTA-J11 includes a safety interlock door system to prevent the chamber from opening while under pressure, ensuring user protection. Additionally, the autoclave provides temperature accuracy of ±0.1°C and heat distribution accuracy of less than equal to ±1°C, maintaining consistent sterilization conditions throughout the cycle.
