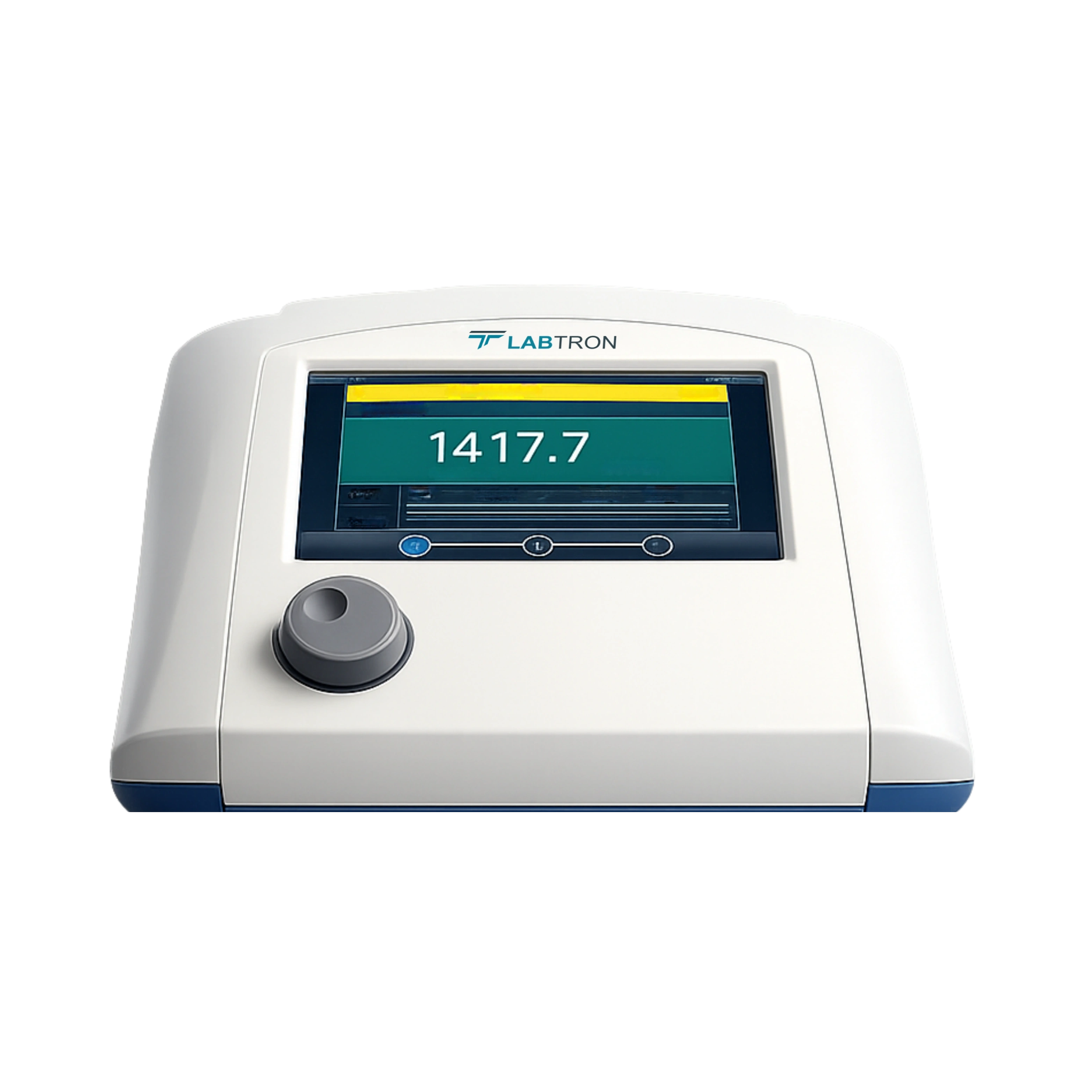

Benchtop Conductivity Meter LBCM-A13 with 7 inch display conducts up to 5 point calibration, automatically recognizes calibration standards. Comes with 03 reading mode: fast, medium, strict, custom to balance the work operations. Complied with GLP specifications, meter allows user to carry data statistics, measure results, carry out and review, analyze, and compare statistics.
| Conductivity measurement range | 0.000 μS/cm to 3000mS/cm | ||||||
| Resistivity measurement range | 5.00 Ω·cm to 100.0 MΩ·cm | ||||||
| TDS measurement range | 0.000 mg/L to 1000g/L | ||||||
| Salinity measurement range | 0.00 to 8.00 % | ||||||
| Temperature measurement range | -5.0 to 135.0 °C | ||||||
| Conductivity accuracy | ± 0.5 % FS | ||||||
| Resistivity accuracy | ± 0.5 % FS | ||||||
| TDS accuracy | ± 0.5 % FS | ||||||
| Salinity accuracy | ± 0.1 % | ||||||
| Temperature accuracy | ± 0.1 °C | ||||||
| Automatic temperature compensation | Yes | ||||||
| Automatic calibration | Yes | ||||||
| Automatic range switching | Yes | ||||||
| Calibration function | Yes | ||||||
| Reading mode |
|
||||||
| Data interface | RS232, USB | ||||||
| Data storage | 1000 sets | ||||||
| Complied with GLP specifications | Yes | ||||||
| Power supply | (Input: AC 100 to 240 V, 1.35 A) (Output: DC 24 V, 3A) | ||||||
| Dimension | 280 × 280 × 130 mm | ||||||
| Weight | 2.5 kg |
Used to test Conductivity, TDS, Salinity, resistivity values of different type of liquid such as pure, hard/low conductivity water, distilled water. Also used in water purification labs, water testing and management plants, and water processing and packaging units for quality and research purpose.
| Accessories no. | Name |
| 1 | Conductivity Electrode |
| 2 | Temperature sensor |
| 3 | Electrode holder |
| 4 | AC/DC Power Adapter |
| 5 | USB Communication Line |
| Accessories No. | Name |
| 1 | Conductivity Probe (K=0.01) |
| 2 | Conductivity Probe (K=0.1) |
| 3 | Conductivity Probe (K=1) |
| 4 | Conductivity Probe (K=10) |
Labtron Benchtop Conductivity Meter is specialized to measure ion concentration with conductivity of 0 to 3000 mS/cm in liquid samples. Their probes are highly sensitive and provide reliable assessment. They feature automatic temperature compensation to ensure accurate results regardless of fluctuation. Their self-diagnostic system monitors the functionality of meter and alert users to any issues. Our Benchtop Conductivity Meter is versatile for chemical analysis, pharmaceutical and agriculture ensuring water quality testing.
Labtron Benchtop Conductivity Meter can test a wide range of liquids, including pure water, distilled water, hard/low conductivity water, and brine. It measures conductivity, TDS, salinity, and resistivity, making it suitable for water purification labs, research, and water management plants. The meter's versatility allows accurate testing in diverse water quality applications. This makes it an essential tool for monitoring water treatment processes.
The Benchtop Conductivity Meter provides high accuracy with ±0.5% FS for conductivity, resistivity, and TDS, and ±0.1% for salinity. Automatic temperature compensation adjusts the readings to account for temperature variations. This ensures consistent, reliable results under different environmental conditions. These features make it ideal for precise water quality monitoring.
Our Benchtop Conductivity Meter offers three reading modes: fast, medium, and strict, as well as a custom mode for specific needs. "Fast" mode provides quick measurements, while "medium" and "strict" modes offer more precise results. Custom mode allows users to adjust settings based on specific operational requirements. This flexibility helps balance speed and accuracy depending on the application.
Yes, the Benchtop Conductivity Meter supports RS232 and USB connections for transferring data to a PC or serial printer. This enables efficient data storage and analysis on a computer. The device also supports firmware upgrades and U-disk hot swapping for added convenience. These features make it easy to integrate with external systems for detailed analysis.
Labtron's Benchtop Conductivity Meter complies with GLP by providing automatic calibration, temperature compensation, and the ability to store up to 1000 measurement data sets. These features help users maintain traceable and accurate data. The meter allows users to review and analyze stored results, ensuring compliance with regulatory standards. This makes it a reliable tool for labs requiring precise data tracking.
Our Benchtop Conductivity Meter requires regular cleaning of the conductivity electrode and temperature sensor and checking for wear or fouling. The electrodes should be checked and replace them if necessary. Users may ensure the power supply connections are secure and that the device's software is updated. Proper maintenance ensures the meter continues to perform accurately.
