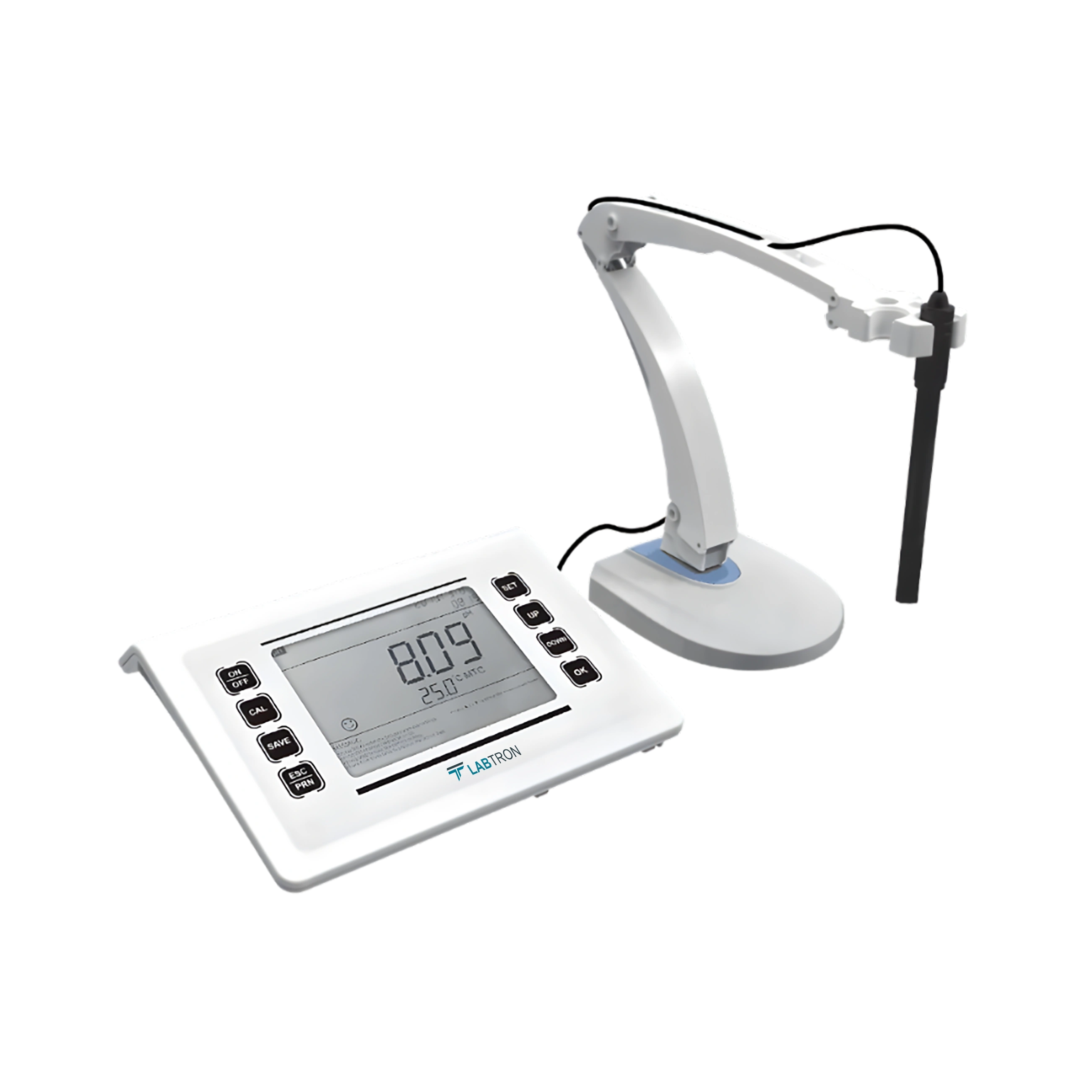

Benchtop Conductivity Meter LBCM-A14

Name: Benchtop Conductivity Meter LBCM-A14
Brand: Labtron
SKU: LBCM-A14
Rating: 5 (700 reviews)

Benchtop Conductivity Meter LBCM-A14 with 1 to 3 points push button conductivity calibration, automatically recognizes calibration standards. With setup menu, it does setting of 6 parameters calibration points, temperature units and others. Large LCD display shows settings and measurement values. Temperature calibration by manual method improves the accuracy of conductivity meter.

Request Quote

Conductivity Mode

Conductivity measurement range	0.01-20.0, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm
Conductivity accuracy	±1% F.S.
Conductivity resolution	0.001, 0.01, 0.1, 1
Conductivity calibration points	1 to 3 points
Conductivity calibration solutions	10 µS/cm , 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm

TDS Mode

TDS measurement Range	0 to 10.00, 100.0, 1000 ppm, 10.00, 100 ppt (Max. 200 ppt)
TDS Accuracy	± 1 % F.S.
TDS Factor	0.01 to 1.00 (default 0.5)
TDS Calibration points	3 points

Temperature Mode

Temperature range	0 to 105°C, 32 to 221°F
Temperature accuracy	±1°C
Temperature resolution	0.1°C, 0.1°F
Temperature calibration points	1 point
Temperature Compensation Range and Mode	Manual or Automatic, 0 to 100°C , 32 to 212°F
Temperature coefficient	0.0 to 10.0 % per °C

Cell constant

K=0.1, 1, 10

Power requirements

DC 9 V, using AC adapter, AC 220 V, 50 Hz

Dimension (L×W×H)

210 × 205 × 75 mm

Weight

1.5 kg

Measures conductivity, TDS, Temperature of the liquids
Automatic temperature compensation for accurate values over the entire range
Selectable temperature units (°C or °F) for different application requirements
Reset function automatically resumes all the setting back to factory default options
Manual and automatic mode of temperature calibration
Auto hold feature to lock, record and read stable measurement endpoint
Stability indicator displays the status of current measurement
Help message as an operational guide, with quick access to test parameters
Conductivity/TDS Mode
1 to 3 Conductivity push button calibration points
3 TDS calibration points
1 Temperature calibration point

Used to test Conductivity, TDS values of different type of liquid such as pure, hard/low conductivity water, distilled water. Also used in water purification labs, water testing and management plants, and water processing and packaging units for quality and research purpose

Accessories no.	Name
1	Conductivity Electrode (range 0.01 to 20 mS/ cm)
2	Temperature Probe
3	Conductivity Calibration Standard Solutions
4	Electrode Holder
5	Power Adapter

Accessories no.	Name
1	Conductivity Electrode (K=0.1) suitable for measuring the low conductivity liquids ( <10µS/ cm) e.g. Pure water
2	Conductivity Electrode (K=10) suitable for measuring the high conductivity liquids (>20mS/ cm) e.g. Sea water

Download catalog for
Benchtop Conductivity Meter LBCM-A14 Catalog

Available Range :

Benchtop Conductivity Meter LBCM-A14 :

Conductivity measurement range	0.01-20.0, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm
Conductivity accuracy	±1% F.S.
Conductivity resolution	0.001, 0.01, 0.1, 1
Conductivity calibration points	1 to 3 points
Conductivity calibration solutions	10 µS/cm , 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm
