| Capacity | 225 L |
| Temperature Range | -40℃ to +150℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ≤2.0℃ |
| Temperature Deviation | ±2.0℃ |
| Heat-up Rate Non-linear | -40℃ to +100℃ 45 min |
| Cool-down Rate Non-linear | +20℃ to -40℃ 60 min |
| Humidity Range | 20% R.H to 98% R.H |
| Humidity Fluctuation | ±2.0 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Deviation | ±3.0 %RH (>75%RH) |
| Noise Level | ≤68 dB |
| Power Consumption | 7 kW |
| Power Supply | AC 3ψ4 W 380 V 50 Hz |
| Dimensions (W × D × H) | 600 × 750 × 500 mm |
| Exterior Dimensions (W × D × H) | 800 × 1730 × 1525 mm |
Dual-mode operation
Multi-layer insulation
Cloud-Based Data Access
Customizable test programs
Efficient power management

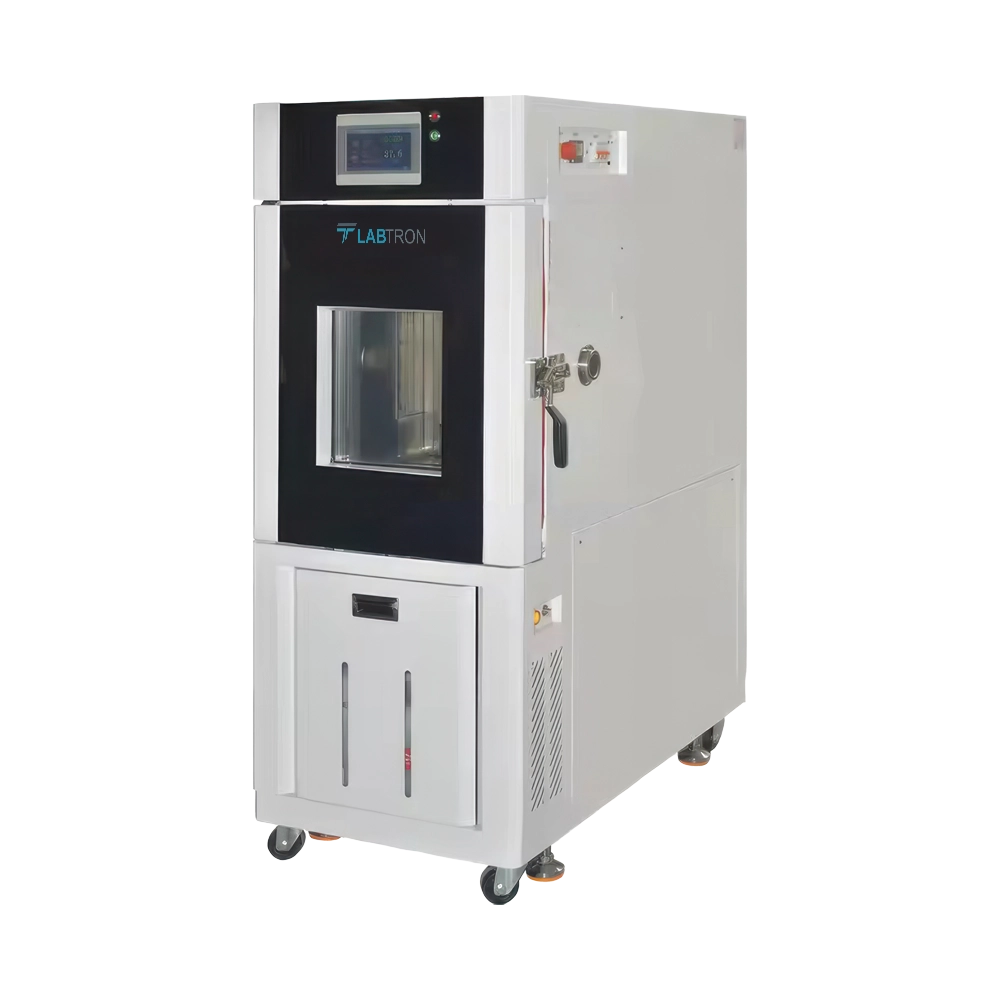

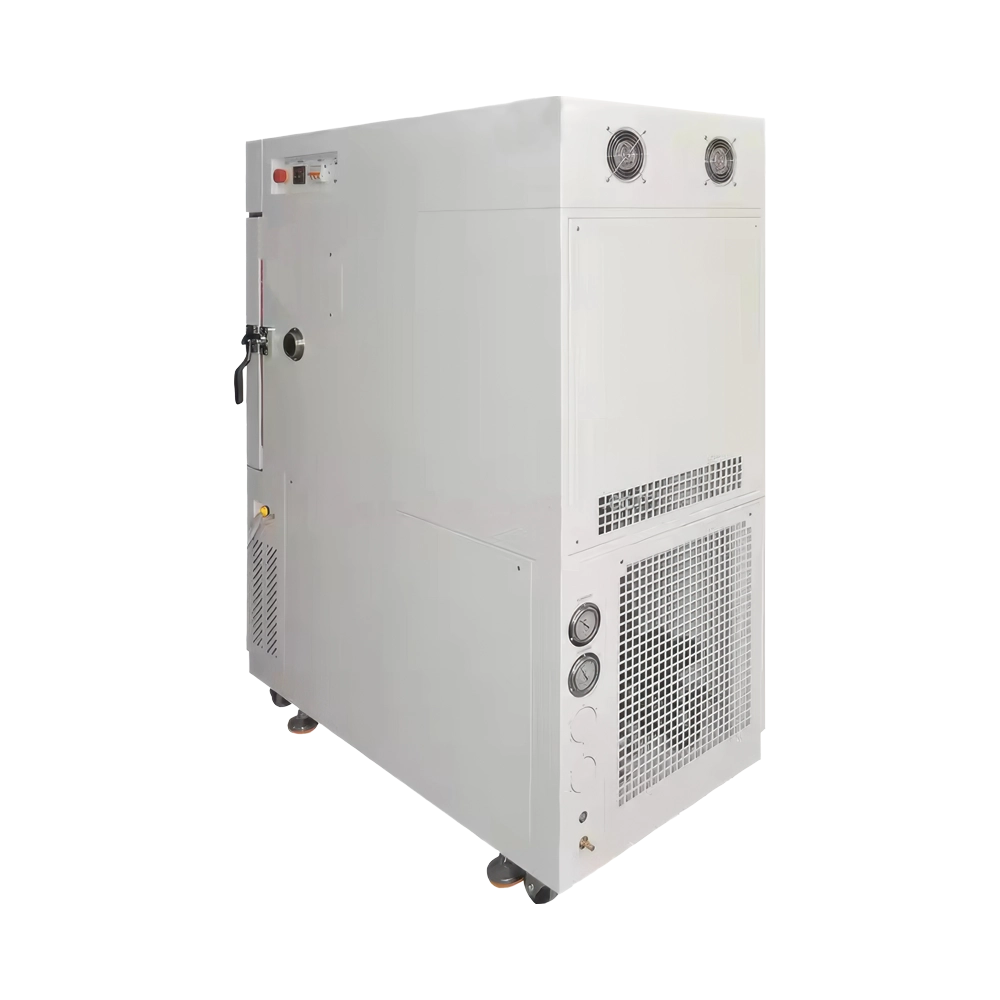

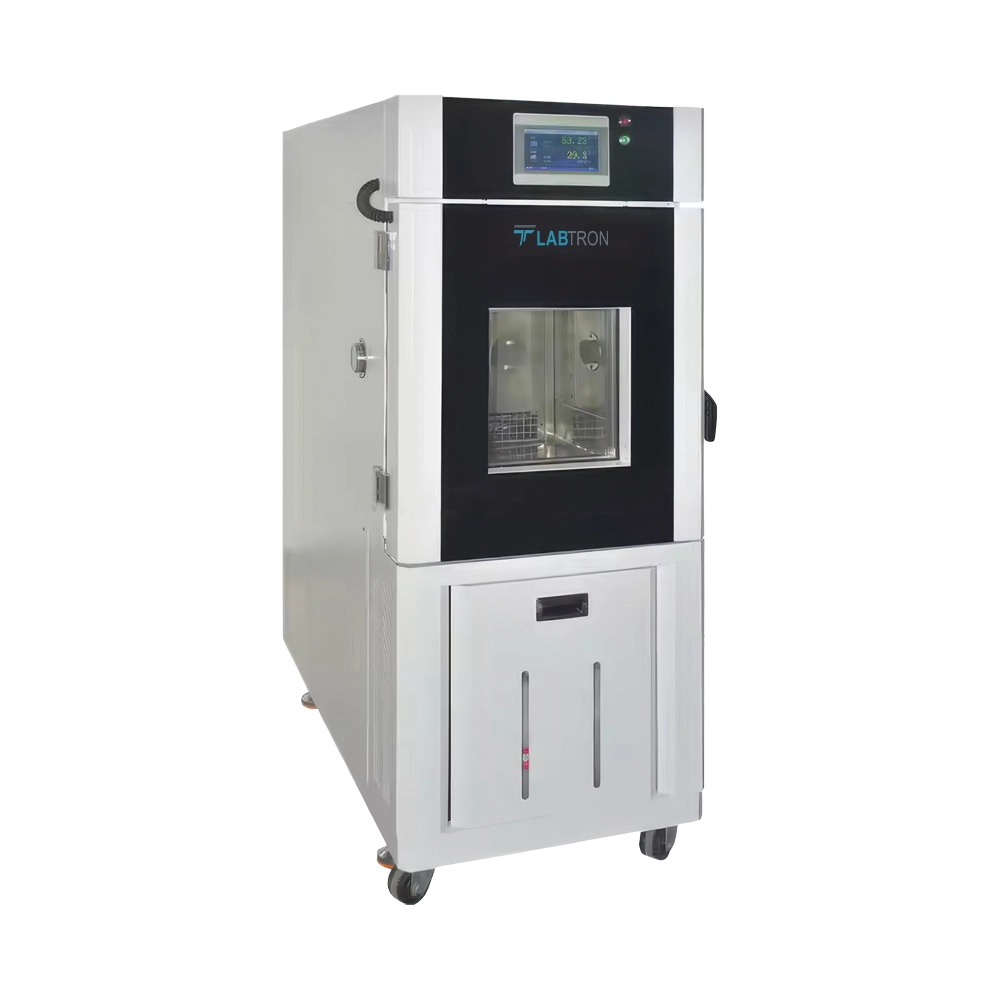

Temperature and Humidity Test Chamber LTHC-E18 is a testing device that simulates specific environmental conditions to evaluate product performance and durability. It is widely used in industries like electronics, automotive, and pharmaceuticals for quality control and research.
Download catalog for
Temperature And Humidity Test Chamber LTHC-E18 Catalog
Available Range :
Temperature and Humidity Test Chamber LTHC-B10 : 100 L Temperature and Humidity Test Chamber LTHC-B14 : 1000 L Temperature And Humidity Test Chamber LTHC-E11 : 105 L Temperature and Humidity Test Chamber LTHC-D11 : 1130L Temperature And Humidity Test Chamber LTHC-A14 : 120L Temperature and Humidity Test Chamber LTHC-C20 : 150 L Temperature and Humidity Test Chamber LTHC-B25 : 1500 L Temperature and Humidity Test Chamber LTHC-B11 : 225 L Temperature And Humidity Test Chamber LTHC-A15 : 225L Temperature and Humidity Test Chamber LTHC-A12 : 250 L Temperature And Humidity Test Chamber LTHC-J10 : 27L Temperature and Humidity Test Chamber LTHC-D10 : 300L Temperature and Humidity Test Chamber LTHC-B30 : 3150 L Temperature And Humidity Test Chamber LTHC-E13 : 408 L Temperature And Humidity Test Chamber LTHC-A10 : 50 L Temperature and Humidity Test Chamber LTHC-B12 : 500 L Temperature And Humidity Test Chamber LTHC-A16 : 504L Temperature and Humidity Test Chamber LTHC-C30 : 550L Temperature And Humidity Test Chamber LTHC-A13 : 64 L Temperature And Humidity Test Chamber LTHC-A11 : 80 L Temperature and Humidity Test Chamber LTHC-B13 : 800 L Temperature And Humidity Chamber LTHC-G10 : Total of 500L Temperature And Humidity Chamber LTHC-G11 : Total of 800LLabtron offers temperature and humidity test chambers with capacities ranging from 50 to 1130 L. They have a humidity controller and thermal-insulating material resistant to high temperatures. They feature an LCD touch screen with a corrosion-resistant interior chamber and a double-layered glass observation window. They include an independent R&D software and a compressor overload switch. Our temperature and humidity tester has built-in safety self-protection and overheating prevention.
.webp "Temperature and Humidity Test Chamber LTHC-B12")
Vibrations can disrupt test stability and affect results, especially for sensitive components like microelectronics and medical devices. Labtron chambers are designed to operate with minimal internal vibrations, ensuring accurate testing conditions.
Proper airflow velocity ensures uniform temperature and humidity distribution inside the chamber. Labtron chambers use optimized airflow designs to eliminate hot/cold spots, providing consistent exposure to test samples.
Testing volatile substances requires specialized explosion-proof chambers. Standard Labtron chambers are not designed for highly flammable materials and should only be used for non-hazardous product testing.
At higher altitudes, air pressure and heat transfer rates can impact chamber efficiency. Labtron chambers are optimized for standard lab conditions, but custom models are available for high-altitude testing.
Yes, Labtron chambers can cycle between freezing and thawing temperatures, which is essential for material durability, food preservation, and biomedical research.
Labtron chambers are built for high endurance and can run thousands of test cycles continuously, depending on maintenance and operating conditions.
Yes, Labtron offers custom-built chambers with specific temperature-humidity ranges, additional ports, remote monitoring features, and compatibility with specialized test setups.
Yes, the chamber should be placed in a ventilated, dust-free, and vibration-free environment with a stable power supply. Labtron provides installation guidelines for optimal performance.
