Portable Infrared Gas Detector LIGD-A10

Name: Portable Infrared Gas Detector LIGD-A10
Brand: Labtron
SKU: LIGD-A10
Rating: 4.7 (978 reviews)

Portable infrared gas detector LIGD-A10 is a hand-held SF6 (sulfur hexafluoride) Gas detector for continuous measurement of gas. Adopted with imported gas infrared sensor, it utilizes unique method of data processing. Light emitting organic matter OLED screen, gives clear display in absence of light and when operated during dark. With Non-dispersive infrared (NDIR) principle, the detection resolution of leakage can reach up to 0.1ppm.

Request Quote

Gas Detected	SF₆ (sulphur hexafluoride)
Measuring Range	0 to 50 ppm range / 0 to 1000 ppm range (as per requirement)
Measuring Resolution	0.1 ppm
Measurement Principle	Non-dispersive infrared (NDIR)
Detection Uncertainty	< 1.5% F. S
Sampling Mode	Pumping type
Probe Unit Rod Length	22 cm
Response Time	1 to 5 seconds
Warm-up Time	100 seconds
Operating Temperature	-10 to 60°C
Display	OLED self-luminous with low power consumption, high brightness
Power Supply	4.2 V internal lithium battery, 2200 mAh
Shelf Life	>10 years
Dimensions	500 × 290 × 180 mm
Weight	0.7 kg

Zero drift automatic modification
Imported with long shelf life sensors
Instant response and recovery rate
Multi-level speech and light alarm
High sensitivity data
USB or AC adopter charging mode
Data Analysis, reading by PC software through USB
Storage and inquiry of measurement data

Used to measure the gas leakage of switchgear, GIS, circuit breaker etc. in electronic industry, also used in greenhouse, painting, chemical industry.

Download catalog for
Portable Infrared Gas Detector LIGD-A10 Catalog

Available Range :

Portable Cl₂ Gas Detector LPSG-A31 : CL₂ (Chlorine) Portable 4 In 1 Multi Gas Detector LPGD-A11 : Combustible Gas, Oxygen (O₂), Carbon Monoxide (CO), Hydrogen Sulfide (H₂S) Portable 2 In 1 Gas Detector LPTG-A10 : CO₂ and O₂, CO, NH₃, or H₂S Handheld C2H4 Ethylene Gas Detector LEGD-A10 : Ethylene (C₂H₄) Portable He Gas Detector LPHG-A10 : Helium Portable H₂S Gas Detector LPSG-A30 : Hydrogen Sulfide (H₂S) Portable Methane Gas Detector LPMG-A13 : Methane Portable NH₃ Gas Detector LPSG-B10 : NH₃ Wall Mounted 2 In 1 Multi Gas Detector LAGD-A11 : NH₃, B₂H₆ Portable 4 In 1 Multi Gas Detector LPGD-A10 : NH₃, SO₂, H₂S, CO₂ (Customizable) Portable Nitrogen N2 Gas Detector LNGD-A10 : Nitrogen (N₂) Portable NO₂ Gas Detector LPSG-A21 : Nitrogen Dioxide (NO₂) Portable VOC Gas Detector LPVG-A10 : Oxygen, EX gas, poisonous gases like H₂S, NH₃, CO, SO₂, Cl₂ Portable Multiple Gas Detector LPMG-A10 : O₂, CH₄, CO, H₂S Portable 10 In 1 Multi Gas Detector LMGD-A10 : O₂, CO, H₂S, SO₂, Cl₂, NO₂, NH₃, CH₄, CO₂, VOC Portable Multiple Gas Detector LPMG-A11 : O₂, LEL, CO, H₂S, SO₂, C₁₂, NH₃, NO₂, NO, O₃, PH₃, H₂, HF, HCl, HCN, CH₄ (IR), PID (VOCs), CO₂ (IR), C₃H₈ (IR), C₂H₄ Portable 4 In 1 Multi Gas Detector LPGD-A12 : PH₃, CH₃Br, CO₂, Other gas combinations Portable Infrared Gas Detector LIGD-A10 : SF₆ (sulphur hexafluoride) Portable SO₂ Gas Detector LPSG-A22 : SO₂ Portable SO₂Gas Detector LPSG-A20 : Sulphur dioxide (SO₂)

Wall Mounted Gas Detector LAGD-A10

Gases Detected : Hydrogen (H₂), Hydrogen cyanide (HCN), Ammonia (NH₃), Oxygen (O₂)
Detection Principle : Electrochemistry (HCN, NH₃, O₂), Catalytic (H₂)
Precision : ≤ ±2% FS
Measuring Range : H₂: 0 to 100% LEL, HCN: 0 to 100 ppm, NH₃: 0 to 100 ppm

Compare Remove

Portable VOC Gas Detector LPVG-A10

Gas Detected : Oxygen, EX gas, poisonous gases like H₂S, NH₃, CO, SO₂, Cl₂
Temperature Range : -20°C to 50°C
Humidity : 15% to 95% RH
Detection Method : Pump suction

Compare Remove

Wall-mounted CO₂ Gas Detector LAGD-B10

Measured Parameters : CO₂, Temperature, Humidity
Temperature Range : -10°C to 50°C
Storage Temperature : -10°C to 60°C
Relative Humidity : 20% to 85%

Compare Remove

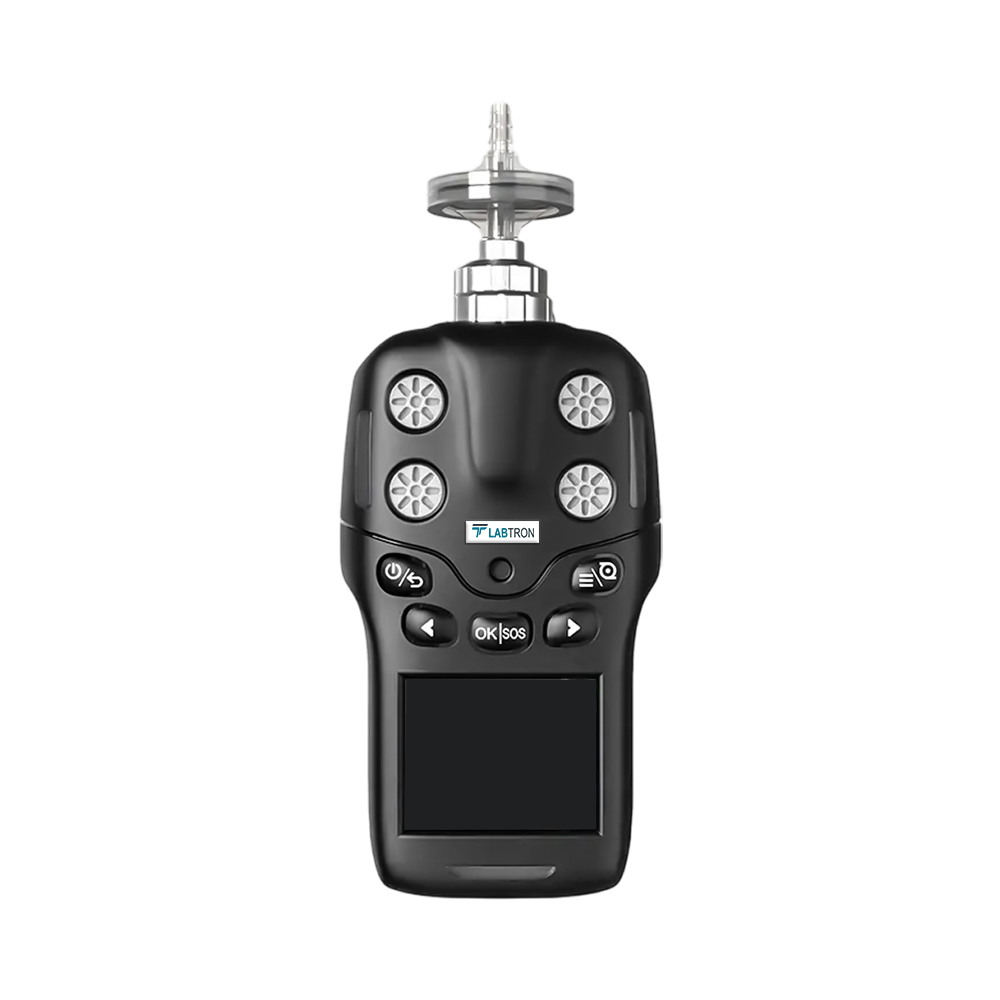

Portable 4 In 1 Multi Gas Detector LPGD-A11
