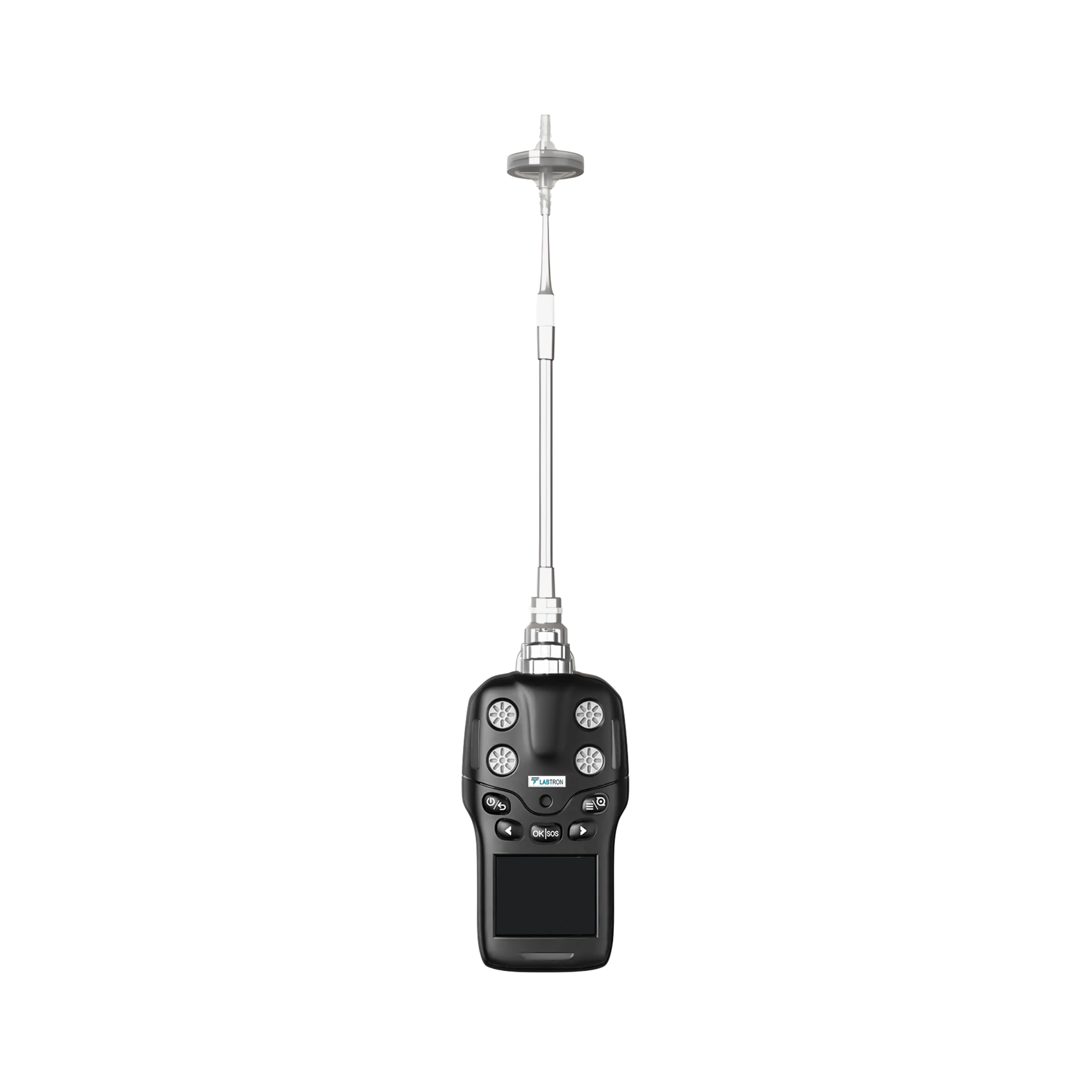

Portable 4 In 1 Multi Gas Detector LPGD-A11

Name: Portable 4 In 1 Multi Gas Detector LPGD-A11
Brand: Labtron
SKU: LPGD-A11
Rating: 4.8 (820 reviews)

Portable 4 in 1 Multi Gas Detector LPGD-A11 detects up to 4 gases, including combustible gas, O₂, and toxic gases. It measures combustible gases up to 100,000 ppm, O₂ up to 300,000 ppm, and CO and H₂S up to 1,000 ppm. It uses catalytic combustion for combustibles and electrochemical sensors for toxic gases. Powered by a 3.7V lithium battery, it provides 18 hours of use after a 4-hour charge. With a 90 dB alarm and IP66-rated housing, it’s durable and ideal for applications in confined space monitoring and industrial safety.

Request Quote

Gas Detected	Combustible Gas, Oxygen (O₂), Carbon Monoxide (CO), Hydrogen Sulfide (H₂S)
Measuring Range	Combustible Gas: 0 to 100,000 ppm, Oxygen (O₂): 0 to 300,000 ppm, Carbon Monoxide (CO): 0 to 1,000 ppm, Hydrogen Sulfide (H₂S): 0 to 100 ppm
Measuring Resolution	Combustible Gas (Ex): 0.1% LEL, O₂: 0.01% vol, CO: 1 ppm; H₂S: 0.1 ppm
Detection Principle	Catalytic for combustibles; Electrochemical for toxic gases
Response Time (T90)	≤ 30/60/180 seconds
Accuracy	± 5% Full Scale
Repeatability	≤ 2% Full Scale
Sampling Method	Diffusion
Battery	3.7V, 2200mAh lithium
Battery Life	Up to 18 hours after a 4-hour charge
Sound Intensity	90 dB
Display	LCD
Ingress Protection	IP 66
Operating Temperature	-20°C to 60°C
Operating Humidity	10% to 95% RH (non-condensing)
Dimensions	156 mm × 74 mm × 54 mm
Weight	0.35 kg

Compact and portable design
High-brightness LCD display
Visual and audible alarms
Multiple gas detection capabilities
Real-time gas monitoring
Dustproof and waterproof protection

Our Portable 4 in 1 Multi Gas Detector LPGD-A11 is designed for detecting hazardous gases in industrial environments, confined spaces, and workplaces. It ensures safety by monitoring combustible gases, oxygen, and toxic gases, providing real-time alerts for immediate action.

Packing Box Calibration Cap Adapter

Sampling Pump

Download catalog for
Portable 4 In 1 Multi Gas Detector LPGD-A11 Catalog

Download manual for
Portable 4 In 1 Multi Gas Detector LPGD-A11 Manual

Available Range :

Portable Cl₂ Gas Detector LPSG-A31 : CL₂ (Chlorine) Portable 4 In 1 Multi Gas Detector LPGD-A11 : Combustible Gas, Oxygen (O₂), Carbon Monoxide (CO), Hydrogen Sulfide (H₂S) Portable 2 In 1 Gas Detector LPTG-A10 : CO₂ and O₂, CO, NH₃, or H₂S Handheld C2H4 Ethylene Gas Detector LEGD-A10 : Ethylene (C₂H₄) Portable He Gas Detector LPHG-A10 : Helium Portable H₂S Gas Detector LPSG-A30 : Hydrogen Sulfide (H₂S) Portable Methane Gas Detector LPMG-A13 : Methane Portable NH₃ Gas Detector LPSG-B10 : NH₃ Wall Mounted 2 In 1 Multi Gas Detector LAGD-A11 : NH₃, B₂H₆ Portable 4 In 1 Multi Gas Detector LPGD-A10 : NH₃, SO₂, H₂S, CO₂ (Customizable) Portable Nitrogen N2 Gas Detector LNGD-A10 : Nitrogen (N₂) Portable NO₂ Gas Detector LPSG-A21 : Nitrogen Dioxide (NO₂) Portable VOC Gas Detector LPVG-A10 : Oxygen, EX gas, poisonous gases like H₂S, NH₃, CO, SO₂, Cl₂ Portable Multiple Gas Detector LPMG-A10 : O₂, CH₄, CO, H₂S Portable 10 In 1 Multi Gas Detector LMGD-A10 : O₂, CO, H₂S, SO₂, Cl₂, NO₂, NH₃, CH₄, CO₂, VOC Portable Multiple Gas Detector LPMG-A11 : O₂, LEL, CO, H₂S, SO₂, C₁₂, NH₃, NO₂, NO, O₃, PH₃, H₂, HF, HCl, HCN, CH₄ (IR), PID (VOCs), CO₂ (IR), C₃H₈ (IR), C₂H₄ Portable 4 In 1 Multi Gas Detector LPGD-A12 : PH₃, CH₃Br, CO₂, Other gas combinations Portable Infrared Gas Detector LIGD-A10 : SF₆ (sulphur hexafluoride) Portable SO₂ Gas Detector LPSG-A22 : SO₂ Portable SO₂Gas Detector LPSG-A20 : Sulphur dioxide (SO₂)

Models of Gas Detectors

Labtron offers all types of gas detectors, including wall-mounted, handheld, and portable models. These have cutting-edge sensors for excellent precision and quick reaction times. They facilitate real-time data monitoring and come with light and audible alerts. We provide lightweight, portable, and user-friendly gas detectors. They have inbuilt sample pumps for effective gas detection. These detectors have extended battery lives and robust construction, with dust, water, and explosion-proof shells. Our gas detectors make data transfer easy, ensuring straightforward analysis and storage.

Portable Nitrogen N2 Gas Detector LNGD-A10

Gas Detected : Nitrogen (N₂)
Measuring Range : 0 to 100% VOL
Measuring Resolution : 0.01% VOL
Detection Principle : Electrochemistry

Compare Remove

Portable 4 In 1 Multi Gas Detector LPGD-A12

Gas Detected : PH₃, CH₃Br, CO₂, Other gas combinations
Measuring Range : PH₃: 0 to100 ppm, CH₃Br: 0 to 100 ppm, CO₂: 0 to 5000 ppm
Sampling Method : Natural diffusion
Display Mode : LCD screen

Compare Remove

Portable Nitrous Oxide Gas Detector LPNG-A11

Detected Gases : Oxygen (O₂), Combustible gases (EX), Toxic gases (CO, H₂S, NH₃, Cl₂, etc.)
Measuring Range : 0 to 20,000 ppm
Measuring resolution : Around 1 ppm
Response Time : ≤ 30 s (O₂), ≤ 40 s (CO), ≤ 20 s (EX)

Compare Remove

Portable Multiple Gas Detector LPMG-A12

Detected Gases : LEL, flammable gases
Measuring Range : 0 to 10,000 ppm or 0 to 100% LEL
Measuring Resolution : 1 ppm or 1% LEL
Detection Principle : Semi-Conductor/Catalytic

Compare Remove

Portable H2S Gas Detector LPSG-A30

Gas Detected : Hydrogen Sulfide (H₂S)
Measuring Range : Options: 0-10 ppm, 0-50 ppm, 0-100 ppm, 0-500 ppm, 0-1000 ppm, 0-2000 ppm, 0-5000 ppm, 0-10000 ppm
Measuring Resolution : 0.001 ppm (0-10 ppm), 0.01 ppm (0-50 ppm, 0-100 ppm), 0.1 ppm (0-500 ppm), 1 ppm (0-1000 ppm)
Detection Principle : Electrochemistry

Compare Remove

Portable Multiple Gas Detector LPMG-A20

Detectable Gases : Flammable, toxic, and harmful gases
Measuring Range : C₂H₄: 0 to 200 ppm, CO₂: 0 to 2000 ppm, O₂: 0 to 100% vol
Measuring Resolution : C₂H₄: 1 ppm, CO₂: 1 ppm, O₂: 1%
Detection Principle : Electrochemical, infrared, laser

Compare Remove

Portable Cl₂ Gas Detector LPSG-A31

Gas Detected : CL₂ (Chlorine)
Measuring Range : 0 to 100 ppm
Measuring Resolution : 0.01 ppm
Precision : ± 2% FS (Full Scale)

Compare Remove

Portable Multiple Gas Detector LPMG-A11

Gas Detected : O₂, LEL, CO, H₂S, SO₂, C₁₂, NH₃, NO₂, NO, O₃, PH₃, H₂, HF, HCl, HCN, CH₄ (IR), PID (VOCs), CO₂ (IR), C₃H₈ (IR), C₂H₄
Measuring Range : O₂: 0-25% vol / 30% vol, LEL: 0-100% LEL, CO: 0-1000 ppm / 2000 ppm, H₂S: 0-200 ppm, 0-100% LEL, SO₂: 0-200 ppm, C₁₂: 0-20 ppm, NH₃: 0-100 ppm / 2000 ppm, NO₂: 0-200 ppm, NO: 0-1000 ppm, O₃: 0-5% vol, 0-5 ppm / 20 ppm, PH₃: 0-10 ppm, H₂: 0-2000 ppm / 4% vol, HF: 0-10 ppm, HCl: 0-30 ppm / 200 ppm, HCN: 0-200 ppm, CH₄ (IR): 0-5.00% vol, 0-1000 ppm, PID (VOCs): 0-1999.9 ppm, CO₂ (IR): 0-5.00% vol, (0-1% vol), 0-100 ppm, C₃H₈ (IR): 0-100 ppm, C₂H₄: 0-100 ppm
Measuring Resolution : O₂: 0.1% vol, LEL: 1% LEL, CO: 1 ppm, H₂S: 0.1 ppm, SO₂: 0.1 ppm, C₁₂: 0.1 ppm, NH₃: 1 ppm, NO₂: 0.1 ppm, NO: 1 ppm, O₃: 0.1 ppm, PH₃: 0.1 ppm, H₂: 1 ppm, HF: 0.1 ppm, HCl: 0.1 ppm, HCN: 0.1 ppm, CH₄ (IR): 0.01% vol, PID (VOCs): 0.1 ppm, CO₂ (IR): 0.01% vol, C₃H₈ (IR): 0.01% vol, C₂H₄: 0.1 ppm
Detecting Method : Diffusion or Pump

Compare Remove
