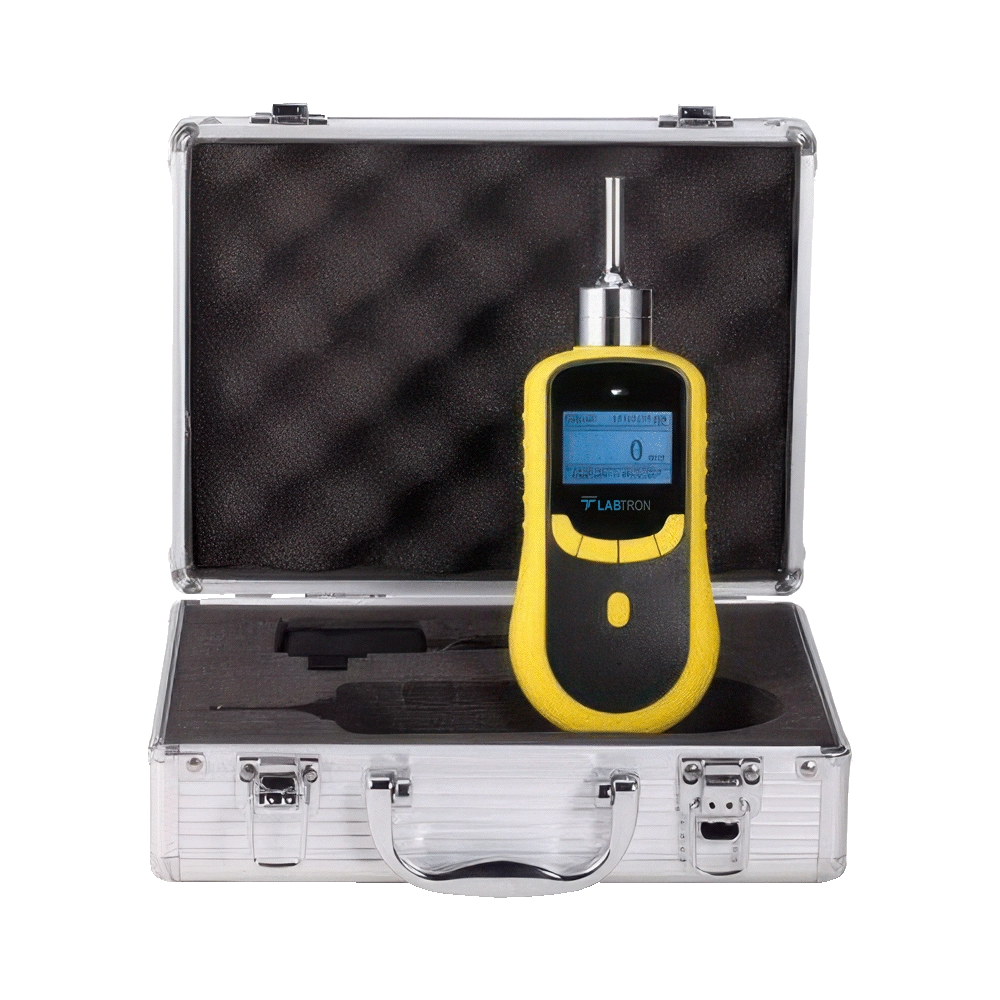

Portable NH₃ Gas Detector LPSG-B10

Name: Portable NH₃ Gas Detector LPSG-B10
Brand: Labtron
SKU: LPSG-B10
Rating: 4.9 (762 reviews)

Portable NH₃ Gas Detector LPSG-B10 is engineered to accurately measure ammonia (NH₃) gas concentrations ranging from 0 to 5000 ppm. It has a built-in micro-sampling pump with adjustable suction for fast, precise detection. The device has an LCD dot matrix display showing real-time data like gas type, concentration, and time. Its two-stage alarm system with sound, light, and vibration ensures safety during operation. Our model is made of high-intensity engineering plastics for durability in various environments.

Request Quote

Gas Detected	NH₃
Measuring Range	0 to 5000ppm
Measuring Resolution	1ppm
Precision	2% F.S.
Detection Principle	Electrochemistry
Sampling Method	Pumping suction
Suction Grades	10
Gas Concentration Units	PPM and mg/m³ (Switchable)
Signal Output (Optional Function)	USB data transmission Download and print options available
Response Time	≤ 10S
Repeatability	≤ ± 1%
Zero Shift	≤ ± 1% (F.S/year)
Operating Language	English (Switchable)
Temperature	-20°C to 50°C
Explosion-Proof	Exia \|\| CT4
Alarm Mode	Sound, light, vibration
Recovery Time	≤ 10S
Linearity Error	≤ ± 1%
Display	LCD dot matrix display
Humidity	0 to 90%RH
Degree of Protection	IP66
Operating Time	100h (pump off)
Battery	Rechargeable lithium polymer battery
Dimensions	205 × 75 × 32 mm
Weight	300g

Rapid Response
Durable Construction
Self-Calibration
Long Battery Life
Rechargeable Battery

Our Portable NH3 Gas Detector is utilized in the petrochemical & chemical industry, municipal engineering & utilities, agricultural & environmental protection, electronic, food & pharmaceutical industries, and other industries.

Aluminum suitcase
Charging adapter
Instruction Manual

Download catalog for
Portable NH₃ Gas Detector LPSG-B10 Catalog

Available Range :

Portable Cl₂ Gas Detector LPSG-A31 : CL₂ (Chlorine) Portable 4 In 1 Multi Gas Detector LPGD-A11 : Combustible Gas, Oxygen (O₂), Carbon Monoxide (CO), Hydrogen Sulfide (H₂S) Portable 2 In 1 Gas Detector LPTG-A10 : CO₂ and O₂, CO, NH₃, or H₂S Handheld C2H4 Ethylene Gas Detector LEGD-A10 : Ethylene (C₂H₄) Portable He Gas Detector LPHG-A10 : Helium Portable H₂S Gas Detector LPSG-A30 : Hydrogen Sulfide (H₂S) Portable Methane Gas Detector LPMG-A13 : Methane Portable NH₃ Gas Detector LPSG-B10 : NH₃ Wall Mounted 2 In 1 Multi Gas Detector LAGD-A11 : NH₃, B₂H₆ Portable 4 In 1 Multi Gas Detector LPGD-A10 : NH₃, SO₂, H₂S, CO₂ (Customizable) Portable Nitrogen N2 Gas Detector LNGD-A10 : Nitrogen (N₂) Portable NO₂ Gas Detector LPSG-A21 : Nitrogen Dioxide (NO₂) Portable VOC Gas Detector LPVG-A10 : Oxygen, EX gas, poisonous gases like H₂S, NH₃, CO, SO₂, Cl₂ Portable Multiple Gas Detector LPMG-A10 : O₂, CH₄, CO, H₂S Portable 10 In 1 Multi Gas Detector LMGD-A10 : O₂, CO, H₂S, SO₂, Cl₂, NO₂, NH₃, CH₄, CO₂, VOC Portable Multiple Gas Detector LPMG-A11 : O₂, LEL, CO, H₂S, SO₂, C₁₂, NH₃, NO₂, NO, O₃, PH₃, H₂, HF, HCl, HCN, CH₄ (IR), PID (VOCs), CO₂ (IR), C₃H₈ (IR), C₂H₄ (Choose any 5) Portable 4 In 1 Multi Gas Detector LPGD-A12 : PH₃, CH₃Br, CO₂, Other gas combinations Portable Infrared Gas Detector LIGD-A10 : SF₆ (sulphur hexafluoride) Portable SO₂ Gas Detector LPSG-A22 : SO₂ Portable SO₂Gas Detector LPSG-A20 : Sulphur dioxide (SO₂)

Models of Gas Detectors

Labtron offers all types of gas detectors, including wall-mounted, handheld, and portable models. These have cutting-edge sensors for excellent precision and quick reaction times. They facilitate real-time data monitoring and come with light and audible alerts. We provide lightweight, portable, and user-friendly gas detectors. They have inbuilt sample pumps for effective gas detection. These detectors have extended battery lives and robust construction, with dust, water, and explosion-proof shells. Our gas detectors make data transfer easy, ensuring straightforward analysis and storage.

Wall-mounted CO₂ Gas Detector LAGD-B10

Measured Parameters : CO₂, Temperature, Humidity
Temperature Range : -10°C to 50°C
Storage Temperature : -10°C to 60°C
Relative Humidity : 20% to 85%

Compare Remove

Wall Mounted 2 In 1 Multi Gas Detector LAGD-A11

Gas Detected : NH₃, B₂H₆
Measuring Range : NH3: 0 to 100 ppm; B₂H₆: 0 to 100 ppm
Measuring Resolution : 0.1 ppm
Precision : ≤ ± 2% FS

Compare Remove

Portable Methane Gas Detector LPMG-A13

Gas Detected : Methane
Measuring Range : 0 to 100% volume
Measuring Resolution : 1% volume
Sample Detection mode : Natural Diffusion

Compare Remove

Portable Multiple Gas Detector LPMG-A12

Detected Gases : LEL, flammable gases
Measuring Range : 0 to 10,000 ppm or 0 to 100% LEL
Measuring Resolution : 1 ppm or 1% LEL
Detection Principle : Semi-Conductor/Catalytic

Compare Remove

Portable Multiple Gas Detector LPMG-A11

Gas Detected : O₂, LEL, CO, H₂S, SO₂, C₁₂, NH₃, NO₂, NO, O₃, PH₃, H₂, HF, HCl, HCN, CH₄ (IR), PID (VOCs), CO₂ (IR), C₃H₈ (IR), C₂H₄ (Choose any 5)
Measuring Range : O₂: 0-25% vol / 30% vol, LEL: 0-100% LEL, CO: 0-1000 ppm / 2000 ppm, H₂S: 0-200 ppm, 0-100% LEL, SO₂: 0-200 ppm, C₁₂: 0-20 ppm, NH₃: 0-100 ppm / 2000 ppm, NO₂: 0-200 ppm, NO: 0-1000 ppm, O₃: 0-5% vol, 0-5 ppm / 20 ppm, PH₃: 0-10 ppm, H₂: 0-2000 ppm / 4% vol, HF: 0-10 ppm, HCl: 0-30 ppm / 200 ppm, HCN: 0-200 ppm, CH₄ (IR): 0-5.00% vol, 0-1000 ppm, PID (VOCs): 0-1999.9 ppm, CO₂ (IR): 0-5.00% vol, (0-1% vol), 0-100 ppm, C₃H₈ (IR): 0-100 ppm, C₂H₄: 0-100 ppm (Choose any 5)
Measuring Resolution : O₂: 0.1% vol, LEL: 1% LEL, CO: 1 ppm, H₂S: 0.1 ppm, SO₂: 0.1 ppm, C₁₂: 0.1 ppm, NH₃: 1 ppm, NO₂: 0.1 ppm, NO: 1 ppm, O₃: 0.1 ppm, PH₃: 0.1 ppm, H₂: 1 ppm, HF: 0.1 ppm, HCl: 0.1 ppm, HCN: 0.1 ppm, CH₄ (IR): 0.01% vol, PID (VOCs): 0.1 ppm, CO₂ (IR): 0.01% vol, C₃H₈ (IR): 0.01% vol, C₂H₄: 0.1 ppm (Choose any 5)
Detecting Method : Diffusion or Pump

Compare Remove

Portable Nitrous Oxide Gas Detector LPNG-A11

Detected Gases : Oxygen (O₂), Combustible gases (EX), Toxic gases (CO, H₂S, NH₃, Cl₂, etc.)
Measuring Range : 0 to 20,000 ppm
Measuring resolution : Around 1 ppm
Response Time : ≤ 30 s (O₂), ≤ 40 s (CO), ≤ 20 s (EX)
