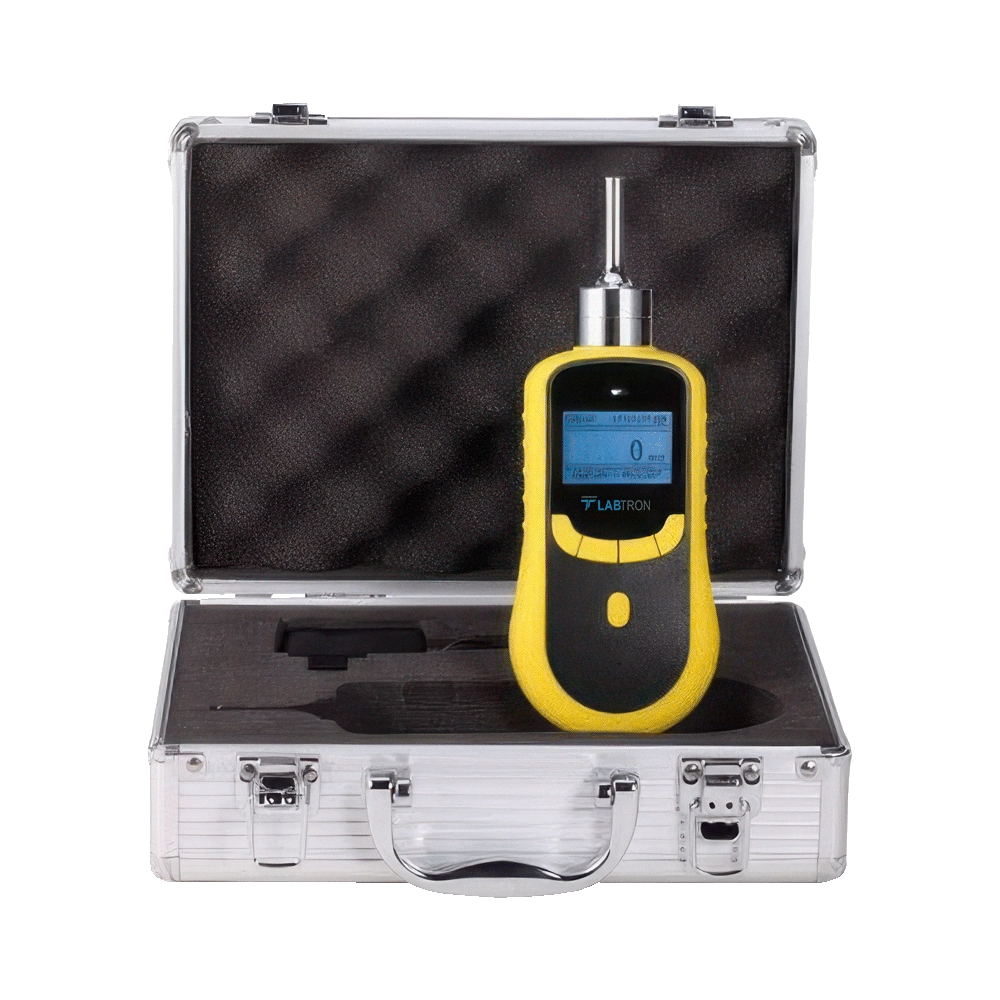

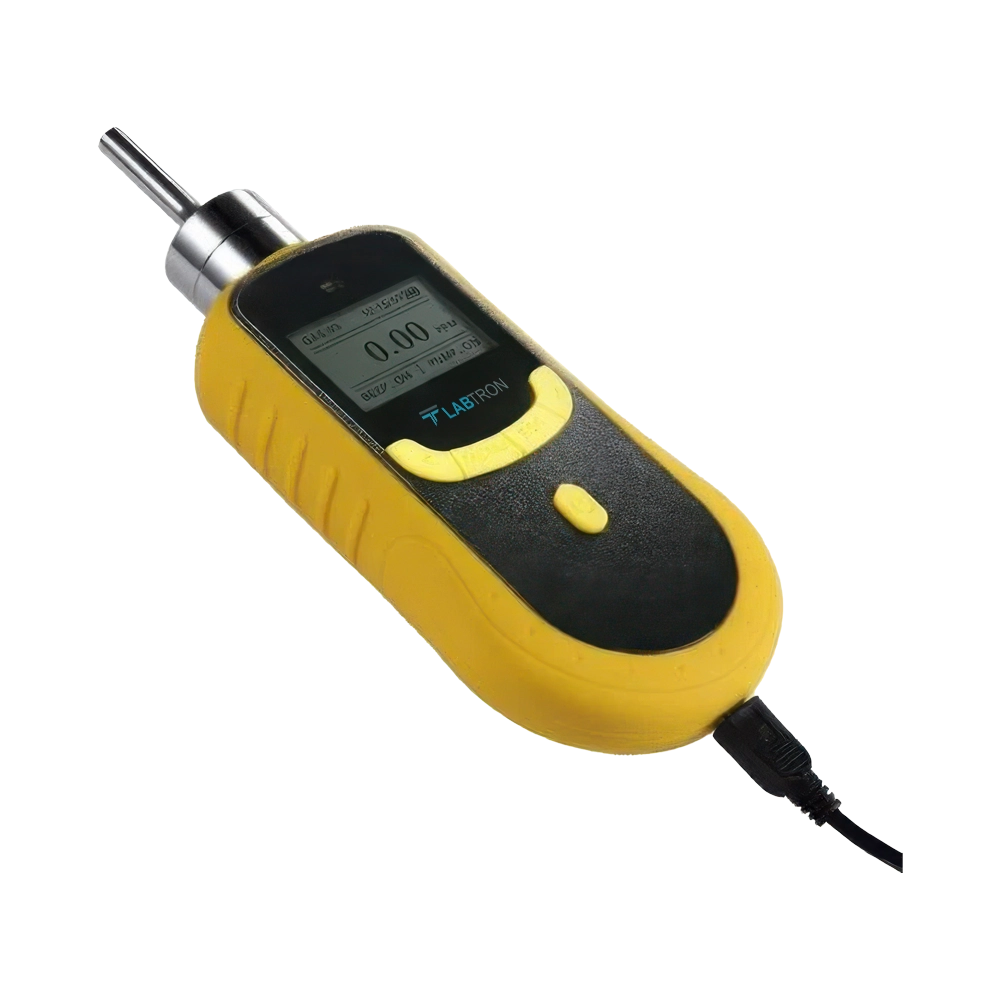

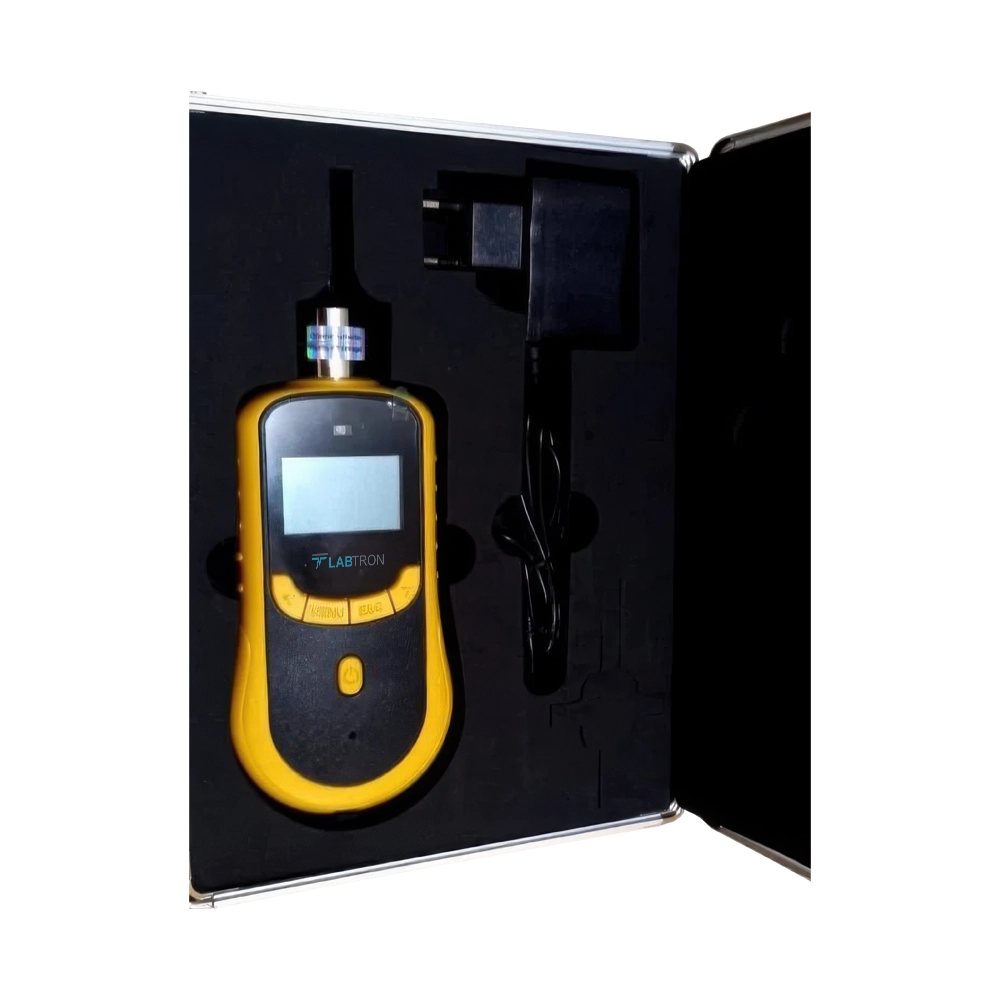

Portable SO2Gas Detector LPSG-A20

Name: Portable SO 2 Gas Detector LPSG-A20
Brand: Labtron
SKU: LPSG-A20
Rating: 4.8 (635 reviews)

Portable SO₂Gas Detector LPSG-A20 is a fast response and high accuracy gas measurement device with 0 to 1000 ppm range. Its internal sampling pump with fast sampling speed and high flow rate, ensures the accurate response time of the detector. Portable nature, small size ait offers role in special high intensity engineering plastic housing, suitable for different kinds of situation and environment. The gas concentration unit ppm and mg/m3 can be shifted quickly and also the local time can be shown on the screen.

Portable SO<sub>2</sub>Gas Detector LPSG-A20

Request Quote

Gas Detected	Sulphur dioxide (SO₂)
Measuring Range	0 to 1000 ppm
Measuring Resolution	1 ppm
Detection Principle	Electrochemistry
Sampling Method	Pumping suction, flow rate up to 1 L/min, with ten selectable grades
Precision	± 2% full scale
Signal Output	High-speed data transmission via USB; supports data downloading and printing
Response Time	≤ 10 seconds
Repeatability	≤ ± 1%
Zero Shift	≤ ± 1% full scale per year
Operating Language	English
Operating Temperature	-20°C to 50°C
Explosion-Proof Rating	Exib II CT4
Alarm Modes	Sound, light, vibration
Recovery Time	≤ 10 seconds
Linearity Error	≤ ± 1%
Display	LCD dot matrix display
Gas Units	Switchable between ppm and mg/m³
Operating Humidity	0 to 95% RH
Degree of Protection	IP 66
Operating Time	100 hours (with pump off)
Dimensions	205 × 75 × 32 mm
Weight	300 g

Micro sampling pump
High-speed data transfer
Self-zero calibration
Dual-stage alarm
Adjustable alarm points
Rechargeable battery
Adjustable pumping suction

Our Portable SO₂Gas Detector is used in petrochemical and chemical industry, agriculture environment protection, electronic, food, pharmaceutical industry, bio-pharmaceutical plant, green household and fermentation process.
