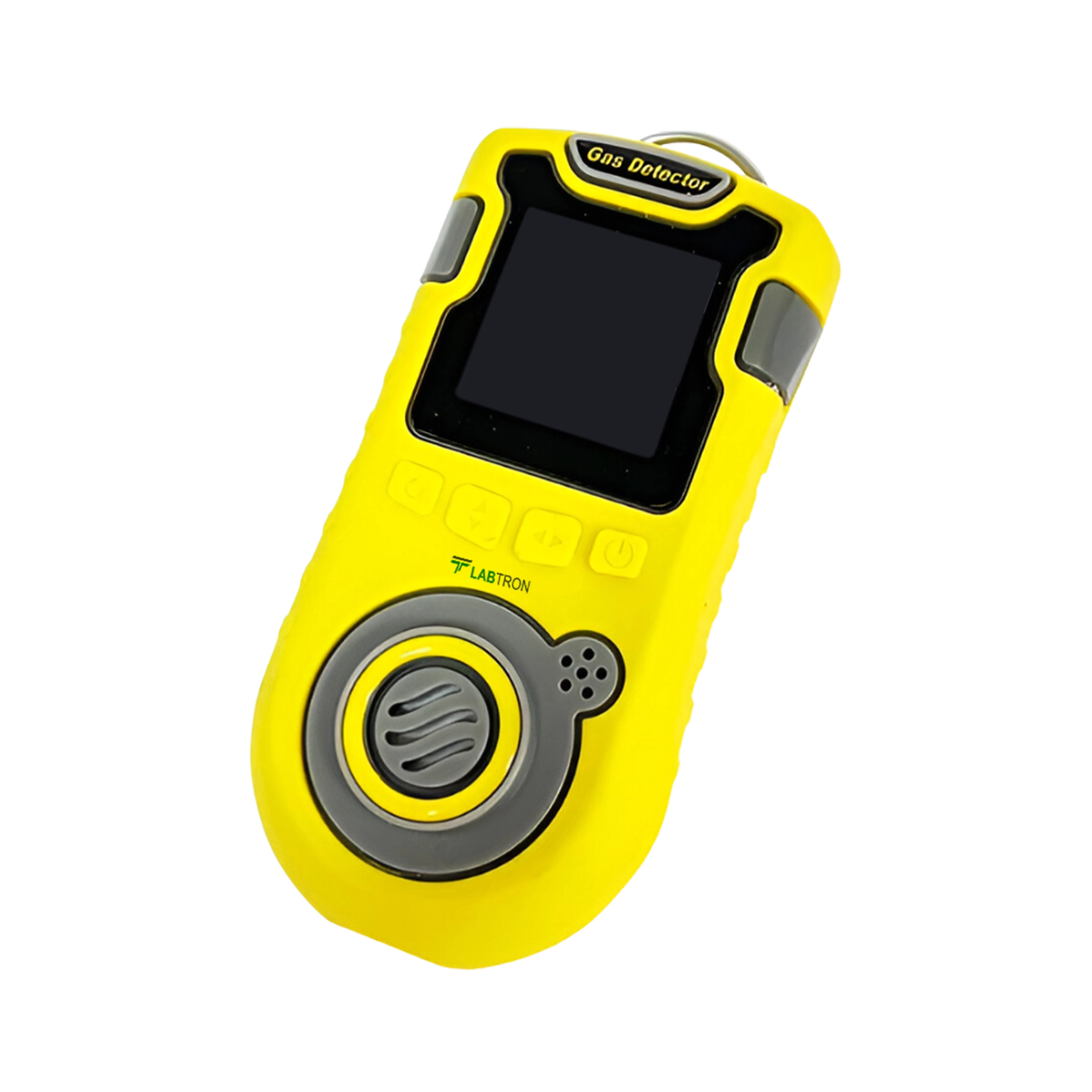

Portable Methane Gas Detector LPMG-A14

Name: Portable Methane Gas Detector LPMG-A14
Brand: Labtron
SKU: LPMG-A14
Rating: 4.9 (824 reviews)

Portable Methane Gas Detector LPMG-A14 detects methane within a 0–100% LEL range with 1% LEL resolution. It stores up to 3,000 alarm records and 990,000 real-time data points. The detector uses the catalytic combustion principle to measure the amount of methane gas in the air. Its large LCD screen displays readings, with audible, visual, and vibration alarms for high gas levels. Our detector has an ABS encapsulation offering durability and protection against environmental factors.

Request Quote

Gas Detected	Methane
Measuring Range	0 to 100% LEL
Measuring Resolution	1% LEL
Detection Principle	Catalytic combustion
Sampling Mode	Natural diffusion
Display	1.5 inch TFT color screen
Operating Temperature	-20 to 50°C
Permissible Humidity	15% to 95% RH (no condensation)
Interface	C-type USB interface
Alarm	Voice alarm + light alarm + vibration
Data Logger	Save 3000 alarm records and 990000 real time data records
Charging Time	3 to 5 hours
Charging Power Supply	DC 5 V
Detector Power Supply	2500 mAh Lithium rechargeable battery
Dimensions	130 × 58 × 50 mm
Weight	150 g

Zero setting baseline calibration
Custom alarm threshold
Self-diagnosis and self-repair
Automatic turn-off
Restore factory settings
Back alligator clip design
Waterproof design
C-type USB interface
Computer connection (optional)

Our Portable Methane Gas Detector LPMG-A14 is used in water treatment plant, oil and gas industries, biogas plants and mining environments.

Charger × 1

Download catalog for
Portable Methane Gas Detector LPMG-A14 Catalog

Available Range :

Portable Cl₂ Gas Detector LPSG-A31 : CL₂ (Chlorine) Portable 4 In 1 Multi Gas Detector LPGD-A11 : Combustible Gas, Oxygen (O₂), Carbon Monoxide (CO), Hydrogen Sulfide (H₂S) Portable 2 In 1 Gas Detector LPTG-A10 : CO₂ and O₂, CO, NH₃, or H₂S Handheld C2H4 Ethylene Gas Detector LEGD-A10 : Ethylene (C₂H₄) Portable He Gas Detector LPHG-A10 : Helium Portable H₂S Gas Detector LPSG-A30 : Hydrogen Sulfide (H₂S) Portable Methane Gas Detector LPMG-A13 : Methane Portable NH₃ Gas Detector LPSG-B10 : NH₃ Wall Mounted 2 In 1 Multi Gas Detector LAGD-A11 : NH₃, B₂H₆ Portable 4 In 1 Multi Gas Detector LPGD-A10 : NH₃, SO₂, H₂S, CO₂ (Customizable) Portable Nitrogen N2 Gas Detector LNGD-A10 : Nitrogen (N₂) Portable NO₂ Gas Detector LPSG-A21 : Nitrogen Dioxide (NO₂) Portable VOC Gas Detector LPVG-A10 : Oxygen, EX gas, poisonous gases like H₂S, NH₃, CO, SO₂, Cl₂ Portable Multiple Gas Detector LPMG-A10 : O₂, CH₄, CO, H₂S Portable 10 In 1 Multi Gas Detector LMGD-A10 : O₂, CO, H₂S, SO₂, Cl₂, NO₂, NH₃, CH₄, CO₂, VOC Portable Multiple Gas Detector LPMG-A11 : O₂, LEL, CO, H₂S, SO₂, C₁₂, NH₃, NO₂, NO, O₃, PH₃, H₂, HF, HCl, HCN, CH₄ (IR), PID (VOCs), CO₂ (IR), C₃H₈ (IR), C₂H₄ Portable 4 In 1 Multi Gas Detector LPGD-A12 : PH₃, CH₃Br, CO₂, Other gas combinations Portable Infrared Gas Detector LIGD-A10 : SF₆ (sulphur hexafluoride) Portable SO₂ Gas Detector LPSG-A22 : SO₂ Portable SO₂Gas Detector LPSG-A20 : Sulphur dioxide (SO₂)

Portable Nitrogen N2 Gas Detector LNGD-A10

Gas Detected : Nitrogen (N₂)
Measuring Range : 0 to 100% VOL
Measuring Resolution : 0.01% VOL
Detection Principle : Electrochemistry

Compare Remove

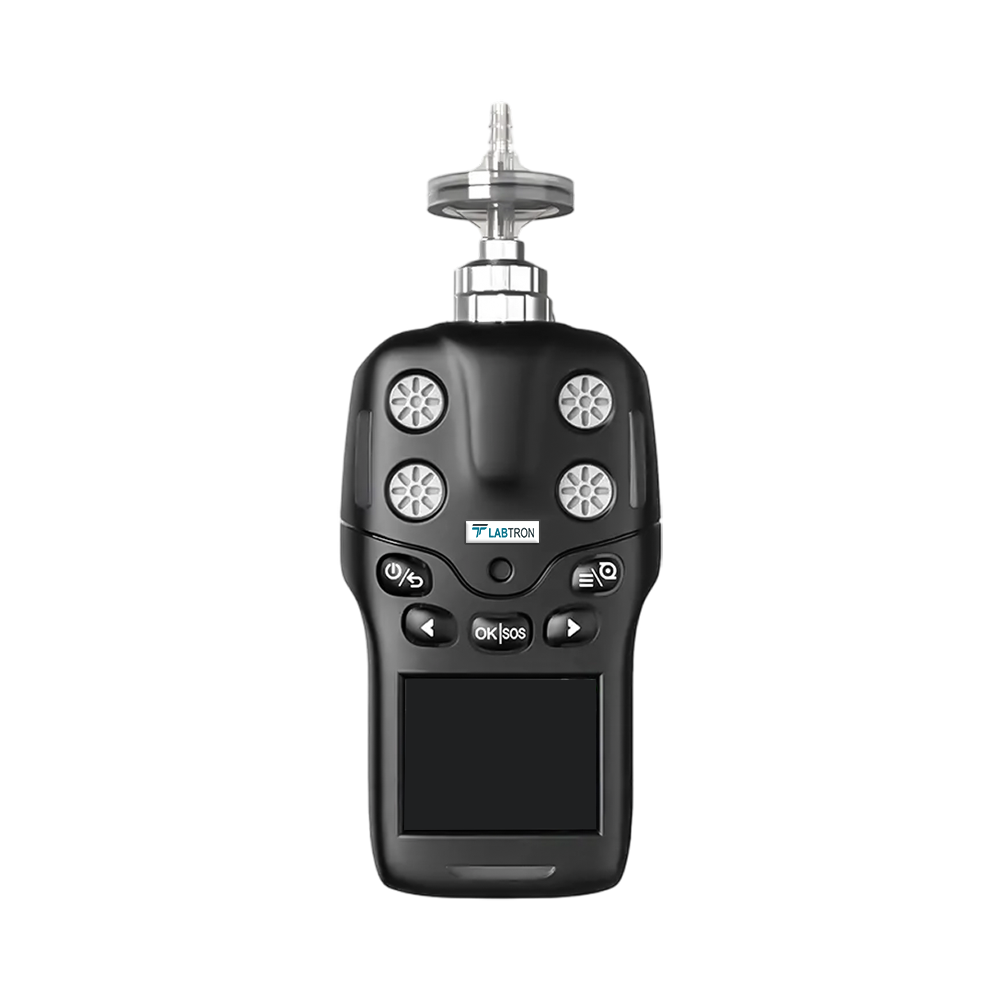

Portable 4 In 1 Multi Gas Detector LPGD-A11
