What is the chamber capacity of the Horizontal Laboratory Autoclave LHA-B20, and how does it benefit high-throughput sterilization needs?

The Horizontal Laboratory Autoclave LHA-B20 offers a generous 500-liter chamber capacity, making it ideal for sterilizing large batches of instruments, equipment, and materials in a single cycle. This high-volume capacity significantly enhances workflow efficiency in laboratories, hospitals, CSSD units, pharmaceutical industries, and industrial applications that demand frequent and large-scale sterilization processes.

What temperature and pressure ranges are supported by the Horizontal Laboratory Autoclave LHA-B20 for effective sterilization?

The Horizontal Laboratory Autoclave LHA-B20 supports a temperature range from 105°C to 134°C and operates at a working pressure of 0.22 MPa. This range ensures optimal sterilization conditions for a variety of materials, including wrapped/unwrapped instruments, rubber, liquids, and porous or hollow items that require precise thermal control to guarantee sterilization efficacy.

How does the Horizontal Laboratory Autoclave LHA-B20 ensure uniform heat distribution during sterilization cycles?

The Horizontal Laboratory Autoclave LHA-B20 features an advanced microprocessor-controlled system that maintains heat distribution accuracy within less than equal to ±1°C. This ensures uniform thermal exposure across all surfaces and materials inside the chamber, preventing cold spots and ensuring that every load is consistently and effectively sterilized.

What type of control and monitoring systems does the Horizontal Laboratory Autoclave LHA-B20 include?

The Horizontal Laboratory Autoclave LHA-B20 is equipped with a microprocessor-based control system for precise management of sterilization and drying parameters. It also includes a clear status indicator light display that provides real-time feedback on the autoclave’s operation status, improving user control and safety during operation.

What materials are used in the construction of the Horizontal Laboratory Autoclave LHA-B20, and how do they contribute to durability?

The Horizontal Laboratory Autoclave LHA-B20 is constructed with high-quality stainless steel 304 for the chamber, steam generator, and water tank. These corrosion-resistant materials offer long-lasting durability and resistance to high temperatures and pressures, making the unit suitable for intensive and repeated sterilization cycles in demanding environments.

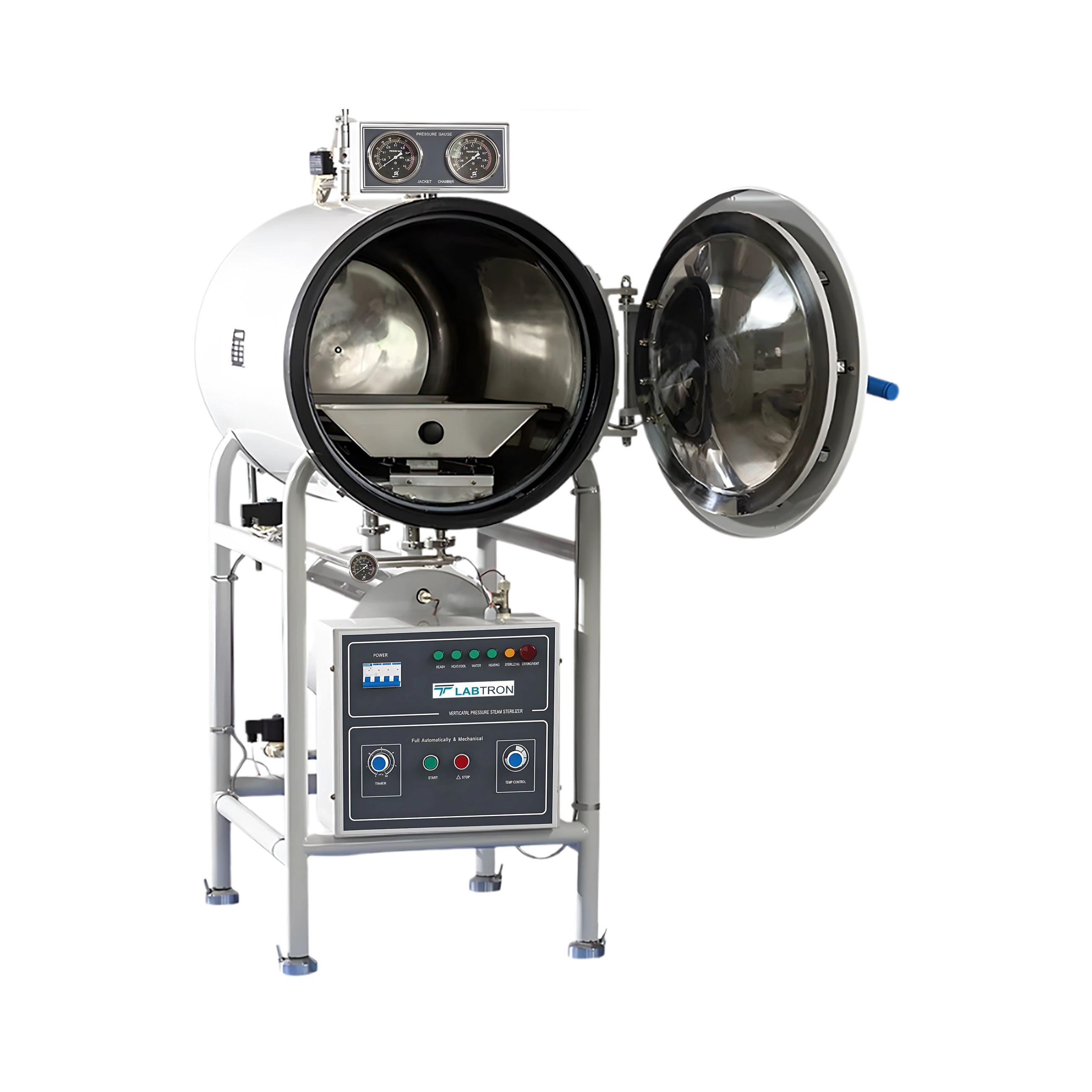

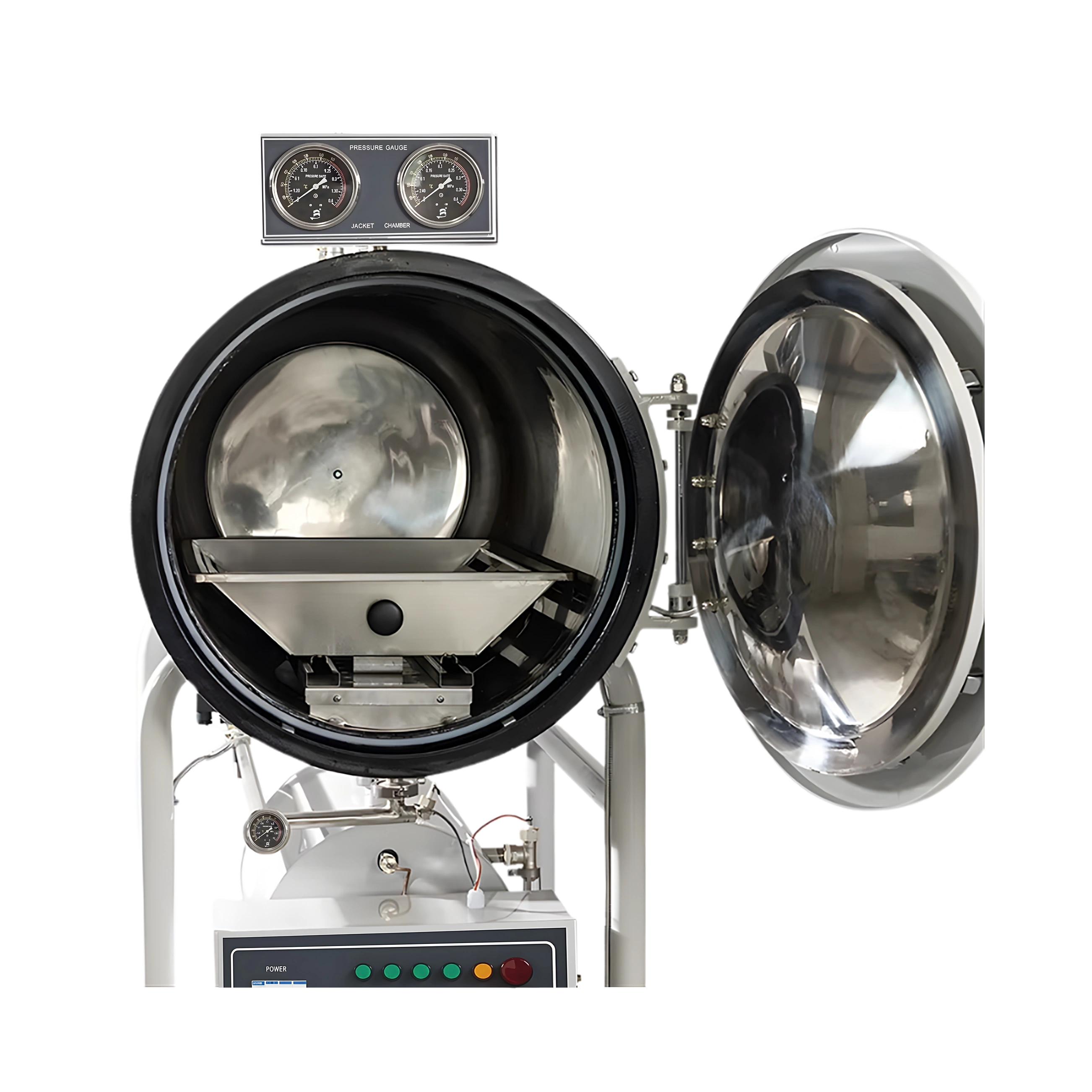

Horizontal Laboratory Autoclave LHA-B20

Name: Horizontal Laboratory Autoclave LHA-B20
Brand: Labtron
SKU: LHA-B20
Rating: 4.7 (631 reviews)

Horizontal Laboratory Autoclave LHA-B20 offers a generous 500L capacity for high-volume sterilization needs in laboratories, and industrial settings. Its temperature range spans from 105 °C to 134 °C, with both sterilization and drying times. Its chamber and removable sterilization tray are constructed from stainless steel, supporting rigorous sterilization cycles. With a high-power consumption, this autoclave delivers rapid cycles and consistent output. In addition, it ensures stability and robustness in demanding environments.

Request Quote

Capacity	500L
Working Pressure	0.22 MPa
Working Temperature	134 °C
Temperature Range	105 to 134 °C
Sterilization Time	0 to 60 minutes
Drying Time	0 to 60 minutes
Heat Distribution	≤ ±1 °C
Control System	Microprocessor
Status Display	Indicator Light
Steam Generator	Built-In, Stainless Steel 304
Water Tank	Stainless Steel 304
Chamber Material	Stainless Steel 304
Door Type	Safety Interlock Door

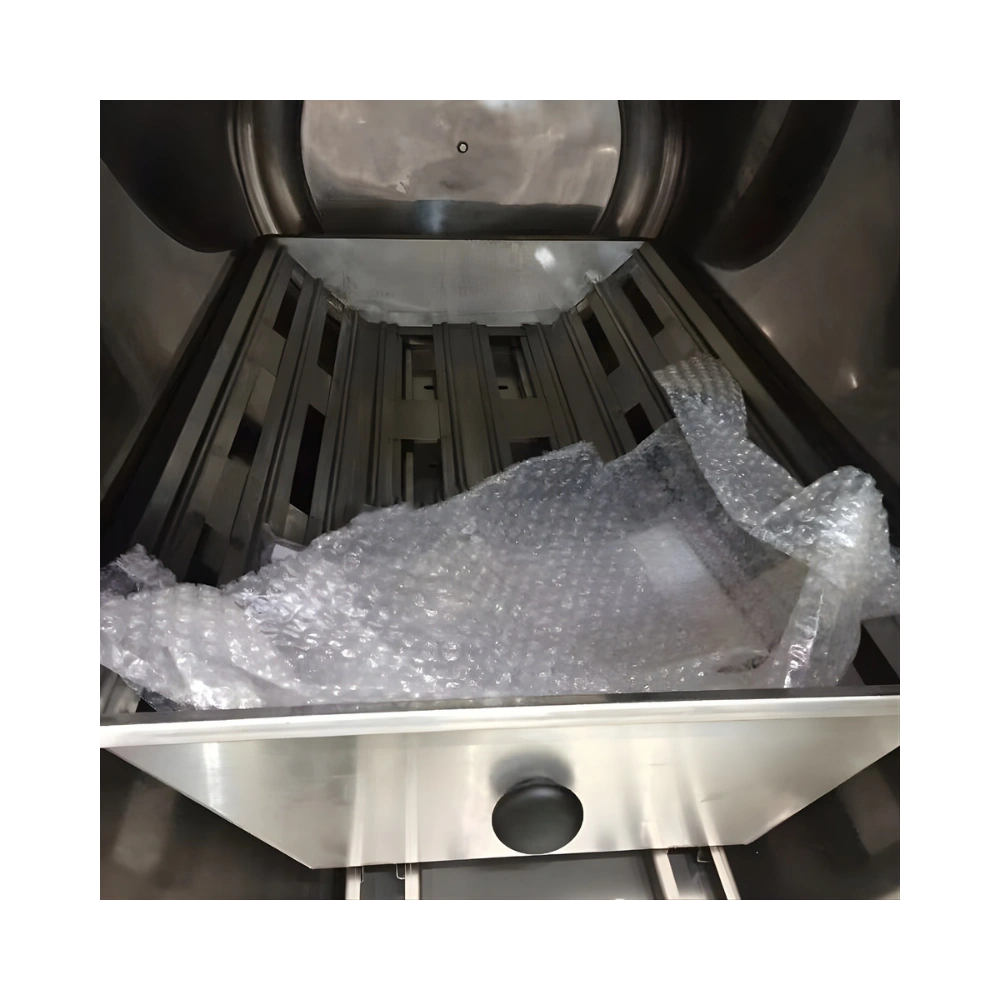

Loading Tray	Removable Stainless Steel Sterilization Tray
Voltage Options	220V single phase 220/380V three phase 50/60Hz
Power Consumption	18 kW
Chamber Dimensions	500L / Ø700 × 1300 mm
Outer Dimensions	1800 × 900 × 1820 mm
Packing Dimensions	1850 × 1050 × 2100 mm
Net Weight	470 kg
Gross Weight	580 kg

Large Capacity
High Sterilization Performance
Wide Temperature Range
Precise Timing Control
Uniform Heat Distribution
Advanced Control System
Clear Status Indicators
Durable Construction
Safety Interlock Door
Flexible Voltage Options
High Power Efficiency
Spacious and Accessible Design
Compact Footprint for Large Capacity

Our Horizontal Laboratory Autoclave LHA-B20 is designed to handle materials that are high-temperature and high-pressure resistant, the autoclave ensures safe, effective, and reliable sterilization across diverse clinical and industrial environments.

Download catalog for
Horizontal Laboratory Autoclave LHA-B20 Catalog

Available Range :

Horizontal Laboratory Autoclave LHA-I15

Capacity : 120 L
Working Temperature Range : 105 ℃ to 139 ℃
Sterilization Temperature : 150 ℃
Sterilization Pressure : -0.1/0.3Mpa

Compare Remove

Horizontal Laboratory Autoclave LHA-D21

Capacity : 1500L
Operating Temperature : 150°C
Max. Working Temperature : 139°C
Temperature Uniformity : ±1°C

Compare Remove

Horizontal Laboratory Autoclave LHA-D36

Chamber Capacity : 800 Liters
Door Type : Single Door
Control System : PLC + HMI + Built-in Printer
Display : 7.0-inch Color Touchscreen

Compare Remove

Horizontal Laboratory Autoclave LHA-B19

Capacity : 300L
Working Pressure : 0.22 MPa
Working Temperature : 134 °C
Temperature Range : 105 to 134 °C

Compare Remove

Horizontal Laboratory Autoclave LHA-B16

Capacity : 400 L
Sterilization Pressure : 0.22 MPa
Sterilization Temperature : 134°C
Temperature Adjustment : 105°C to 134°C

Compare Remove

Horizontal Laboratory Autoclave LHA-E11

Capacity : 200 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 MPa
Timer Range : 0 - 99 minutes

Compare Remove

Horizontal Laboratory Autoclave LHA-D27

Chamber Capacity : 250 Liters
Door Type : Double Door
Control System : PLC + HMI + Built-in Printer
Display : 7.0-inch Color Touchscreen

Compare Remove

Horizontal Laboratory Autoclave LHA-D15

Capacity : 1500 L
Sterilization Temperature : 139 °C
Sterilization Pressure : 0.22MPa
Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 50 kg

Compare Remove

The Horizontal Laboratory Autoclave LHA-B20 offers a generous 500-liter chamber capacity, making it ideal for sterilizing large batches of instruments, equipment, and materials in a single cycle. This high-volume capacity significantly enhances workflow efficiency in laboratories, hospitals, CSSD units, pharmaceutical industries, and industrial applications that demand frequent and large-scale sterilization processes.
The Horizontal Laboratory Autoclave LHA-B20 supports a temperature range from 105°C to 134°C and operates at a working pressure of 0.22 MPa. This range ensures optimal sterilization conditions for a variety of materials, including wrapped/unwrapped instruments, rubber, liquids, and porous or hollow items that require precise thermal control to guarantee sterilization efficacy.
The Horizontal Laboratory Autoclave LHA-B20 features an advanced microprocessor-controlled system that maintains heat distribution accuracy within less than equal to ±1°C. This ensures uniform thermal exposure across all surfaces and materials inside the chamber, preventing cold spots and ensuring that every load is consistently and effectively sterilized.
The Horizontal Laboratory Autoclave LHA-B20 is equipped with a microprocessor-based control system for precise management of sterilization and drying parameters. It also includes a clear status indicator light display that provides real-time feedback on the autoclave’s operation status, improving user control and safety during operation.
The Horizontal Laboratory Autoclave LHA-B20 is constructed with high-quality stainless steel 304 for the chamber, steam generator, and water tank. These corrosion-resistant materials offer long-lasting durability and resistance to high temperatures and pressures, making the unit suitable for intensive and repeated sterilization cycles in demanding environments.
