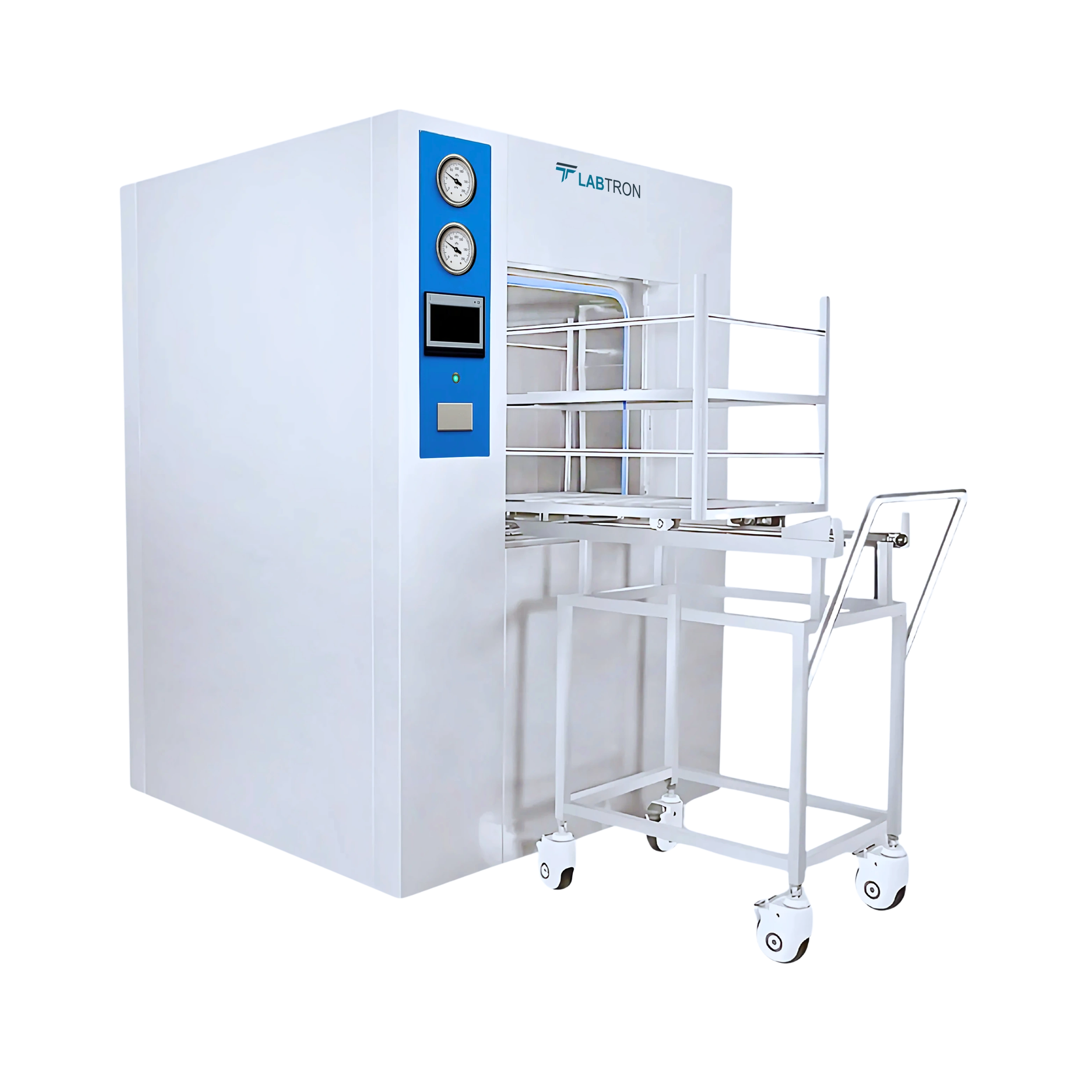

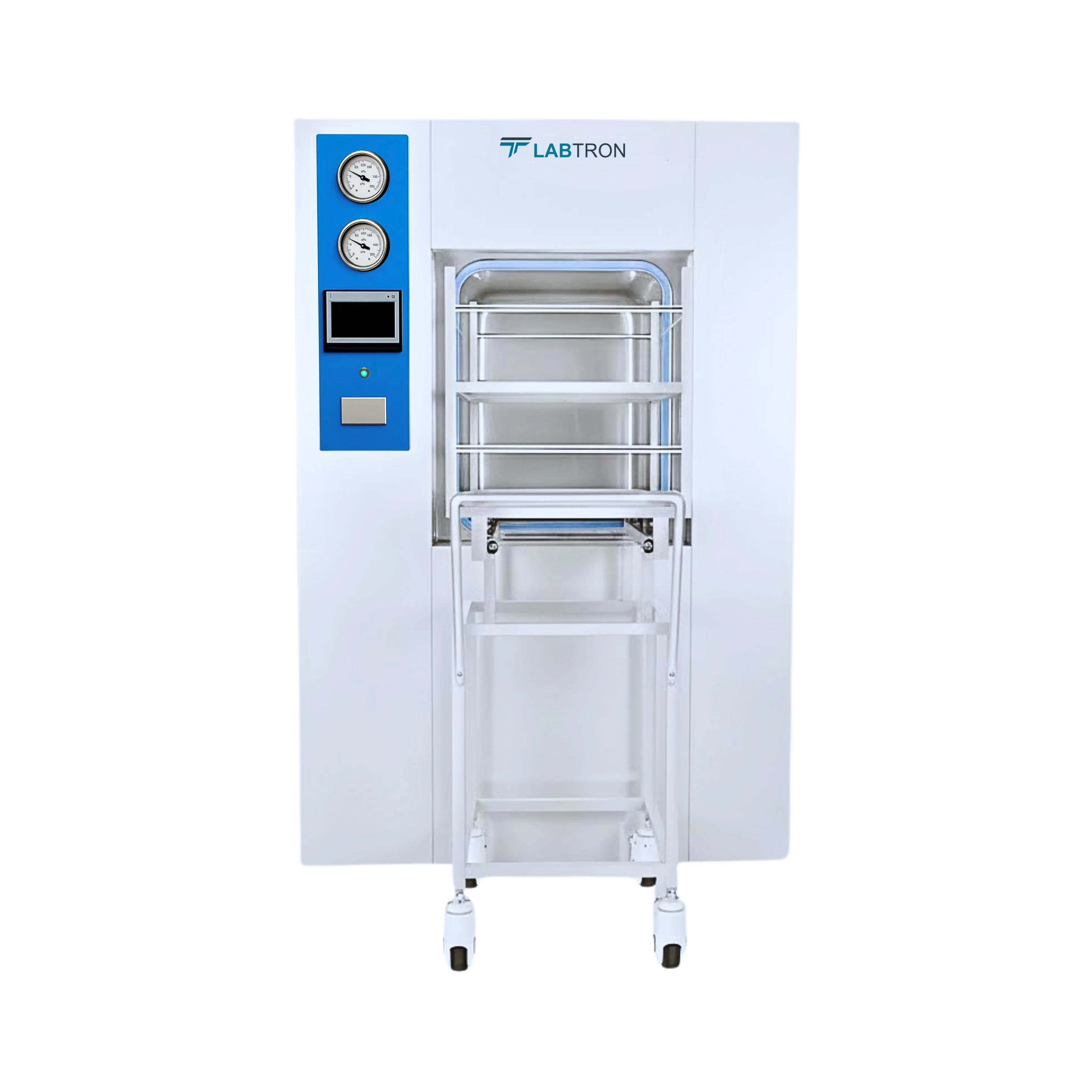

Horizontal Laboratory Autoclave LHA-D35

The Horizontal Laboratory Autoclave LHA-D35 offers several significant operational advantages. It features a 600-liter spacious chamber, which accommodates large volumes of instruments and materials in a single cycle. The PLC + HMI control system with a 7.0-inch color touchscreen provides an intuitive user interface for easy programming, monitoring, and documentation via the built-in printer. With programmable sterilization and drying times from 0 to 999 minutes, it adapts efficiently to various load types including liquids, wrapped and unwrapped instruments, porous items, and rubber materials. The liquid ring vacuum pump system enables effective air removal, promoting deeper steam penetration and faster drying, ensuring optimal sterilization outcomes.

The Horizontal Laboratory Autoclave LHA-D35 incorporates an advanced PLC-based control system paired with an HMI touchscreen display, allowing precise programming and real-time parameter monitoring. The system ensures temperature control accuracy within ±0.2°C, and temperature display accuracy of 0.1°C, delivering consistent and repeatable sterilization results. Users can program specific cycles for different materials, ensuring effective sterilization without the risk of overexposure or damage. The control system also integrates alarms and safety interlocks for added user and equipment protection.

The Horizontal Laboratory Autoclave LHA-D35 is versatile in its sterilization capabilities and is suitable for a wide variety of applications. It can safely sterilize unwrapped or wrapped surgical instruments, dressing materials, rubber components, liquids in open or sealed containers, implantable medical instruments, hollow and porous items, and complex laboratory glassware. Its pre- and post-vacuum capabilities enable effective air removal from intricate surfaces and internal cavities, ensuring complete sterilization of even the most challenging load types.

Equipped with a liquid ring vacuum pump, the Horizontal Laboratory Autoclave LHA-D35 conducts both pre-vacuum and post-vacuum phases. This mechanism effectively removes residual air before steam injection, which enhances steam penetration into porous and hollow items. After the sterilization phase, the post-vacuum function ensures efficient drying by removing moisture from the load. This is particularly critical for instruments that must remain dry to maintain sterility and prevent corrosion, especially when being stored or reused immediately.

The Horizontal Laboratory Autoclave LHA-D35 is designed with multiple reliable safety mechanisms to protect both the user and the equipment. It includes a double-door interlock system to prevent both doors from opening simultaneously, which is critical in clean and sterile environments. The safety valve opens at 0.28 MPa, offering pressure protection during abnormal operating conditions. The autoclave also features automated pressure and temperature regulation, real-time monitoring, and emergency stop functions to enhance operational safety during use.
