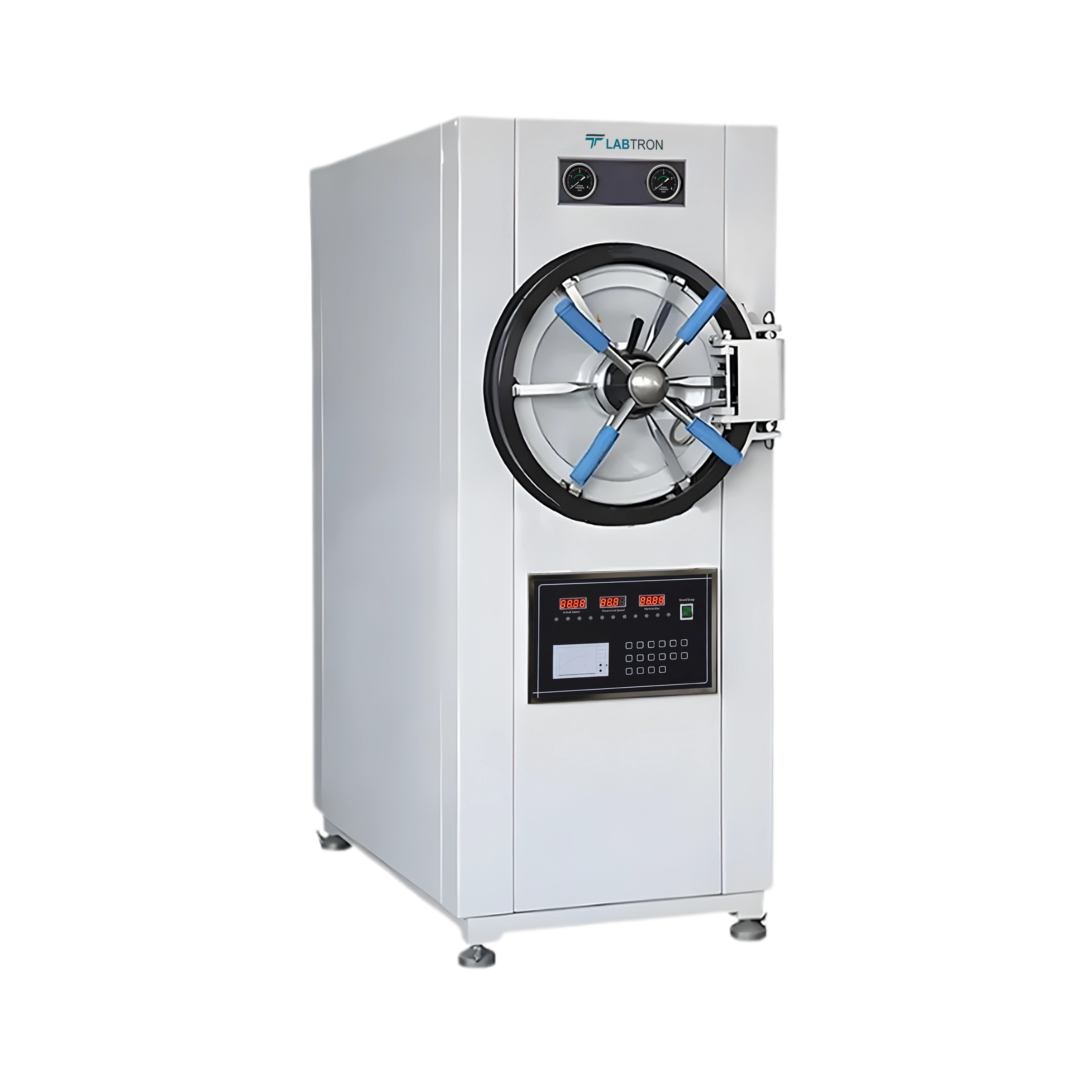

Horizontal Laboratory Autoclave LHA-H13

Horizontal Laboratory Autoclave LHA-H13

Horizontal Laboratory Autoclave LHA-H13 offers 300-liter capacity, designed for efficient and high-volume sterilization. It operates within a temperature range of 0 to 134°C and a working pressure up to 0.22 Mpa. Its chamber and removable sterilization tray are made of stainless steel, ensuring corrosion resistance and long-term use. Additional features include a safety interlock door, built-in printer, and support for both drying and sterilization in one cycle.

Horizontal Laboratory Autoclave LHA-H13
Horizontal Laboratory Autoclave LHA-H13
Horizontal Laboratory Autoclave LHA-H13
Horizontal Laboratory Autoclave LHA-H13
Request Quote
Capacity 300 L
Working Pressure 0 to 0.22 MPa
Working Temperature 134 °C
Temperature Range 0 to 134 °C
Sterilization Time Range 0 to 99 minutes
Drying Time Range 0 to 99 minutes
Heat Average ≤ 1°C
Control System Computer-based
Status Display Digital display and indicator light
Steam Generator Built-in, Stainless steel 304
Water Tank Stainless Steel 304
Chamber Material Stainless Steel 304
Door Type Safety Interlock Door
Loading Tray Removable, Stainless steel sterilization tray
Voltage Options 220V single phase
220 to 380V three phase
50/60Hz
Power Consumption 12 KW
Chamber Dimensions 300L / Ø600 × 1080
Product Dimensions 1500 × 910 × 1900 mm
Packing Dimensions 1680 × 108 × 2060 mm
Net Weight 460 kg
Gross Weight 570 kg
  • Large Capacity
  • Wide Temperature Range
  • Adjustable Sterilization and Drying Time
  • Precise Heat Distribution
  • Computer-Based Control System
  • Digital Display with Indicator Lights
  • Built-in Steam Generator
  • Built-in Stainless Steel Water Tank
  • Stainless Steel Chamber and Removable Tray
  • Safety Interlock Door System
  • Integrated Drying Function
  • Built-in Printer for Cycle Records
  • Supports English Language Interface
  • Flexible Voltage Options
  • High Power Output

Our Horizontal Laboratory Autoclave LHA-H13 is ideal for sterilization tasks in laboratories, hospitals, research institutions, pharmaceutical manufacturing, and food industries. Its large capacity and advanced control features make it suitable for high-throughput environments where consistent and reliable sterilization is essential.

Horizontal Laboratory Autoclave LHA-H13 | Capacity: 300 L | Working Pressure: 0 to 0.22 MPa
Horizontal Laboratory Autoclave LHA-H13 | Large Capacity | Wide Temperature Range

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-F17

Horizontal Laboratory Autoclave LHA-F17

  • Capacity : 10000L
  • Sterilization Temperature : 105°C to 138°C
  • Sterilization Pressure : -0.1 / 0.5 MPa
  • Steam Pressure : 0.3 to 0.5 MPa
Horizontal Laboratory Autoclave LHA-G12

Horizontal Laboratory Autoclave LHA-G12

  • Capacity : 280 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Timer Range : 0-60 minutes
Horizontal Laboratory Autoclave LHA-D25

Horizontal Laboratory Autoclave LHA-D25

  • Chamber Capacity : 200 Liters
  • Door Type : Double Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-F12
Horizontal Laboratory Autoclave LHA-F12
  • Capacity : 600 L
  • Sterilization Temperature : 139 °C
  • Sterilization Pressure : 0.25MPa
  • Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 30 kg
Horizontal Laboratory Autoclave LHA-I15
Horizontal Laboratory Autoclave LHA-I15
  • Capacity : 120 L
  • Working Temperature Range : 105 ℃ to 139 ℃
  • Sterilization Temperature : 150 ℃
  • Sterilization Pressure : -0.1/0.3Mpa
Horizontal Laboratory Autoclave LHA-D31

Horizontal Laboratory Autoclave LHA-D31

  • Chamber Capacity : 400 Liters
  • Door Type : Double Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-D24

Horizontal Laboratory Autoclave LHA-D24

  • Chamber Capacity : 200 Liters
  • Door Type : Single Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-K13

Horizontal Laboratory Autoclave LHA-K13

  • Capacity : 150 L
  • Design Pressure : -0.1 / 0.25 MPa
  • Max Working Pressure : 0.23 MPa
  • Design Temperature : 139°C
Horizontal Laboratory Autoclave LHA-H13 FAQ's
  • The LHA-H13 autoclave is engineered with precise heat distribution (heat average less than equal to 1°C) and a digital control system that maintains uniform temperature and pressure throughout the chamber. Its built-in steam generator, stainless steel chamber, and microprocessor-based computer control ensure reliable and repeatable sterilization cycles every time. The digital display with indicator lights provides real-time feedback for optimal monitoring and control.

  • The LHA-H13 features a 304-grade stainless steel chamber, removable sterilization tray, steam generator, and water tank, all chosen for their high resistance to corrosion and wear. These components ensure the autoclave is durable, easy to clean, and maintains high performance over long-term use, even in demanding industrial and clinical environments.

  • Safety is a key priority in the LHA-H13. It is equipped with a safety interlock door system that prevents the chamber from being opened during operation or when pressure is present, reducing the risk of accidents. The autoclave also features digital alerts, indicator lights, and automated cycle control, ensuring users are informed of system status and errors in real time.

  • Yes, the LHA-H13 is designed for convenience and ease of use. It includes a computer-based control system, digital status display, and an English-language interface. Additionally, it supports a built-in printer for automatic logging of sterilization cycle data, which is essential for compliance in healthcare and pharmaceutical settings.

  • The LHA-H13 features an integrated drying function that operates in the same cycle as sterilization. The drying time can be adjusted independently (0 to 99 minutes) to match the type and volume of load. This feature eliminates the need for external drying equipment and ensures that instruments come out ready for immediate use.
