| Capacity | 150 L |
| Designed Temperature | 150℃ |
| Maximum Working Temperature | 139℃ |
| Inner Chamber Pressure | -0.1 to 0.3 MPa |
| Jacket Pressure | 0.3 MPa |
| Safety Valve Opening Pressure (Inner) | 0.28 MPa |
| Safety Valve Opening Pressure (Jacket) | 0.28 MPa |
| Maximum Working Pressure | 0.25 MPa |
| Steam Consumption | 12 Kg/C |
| Sterilization Temperature Precision | 0 to 2℃ |
| Temperature Uniformity | ± 1℃ |
| Vacuum Leakage Rate | ≤ 0.13 kPa/min |
| Vacuum Pulsation Amplitude | -80 to 0 kPa |
| Vacuum Pulsation Times | 1 to 99 times |
| Pulse Across Pressure | -80 to 80 kPa, 1 time |
| Power | 2 KW + 24 KW |
| Power Supply | 380V, 50Hz |
| Inner Chamber Dimension (W × H × D) | 450 × 450 × 800 mm |
| Dimension (L × W × H) | 1160 × 1150 × 1820 mm |

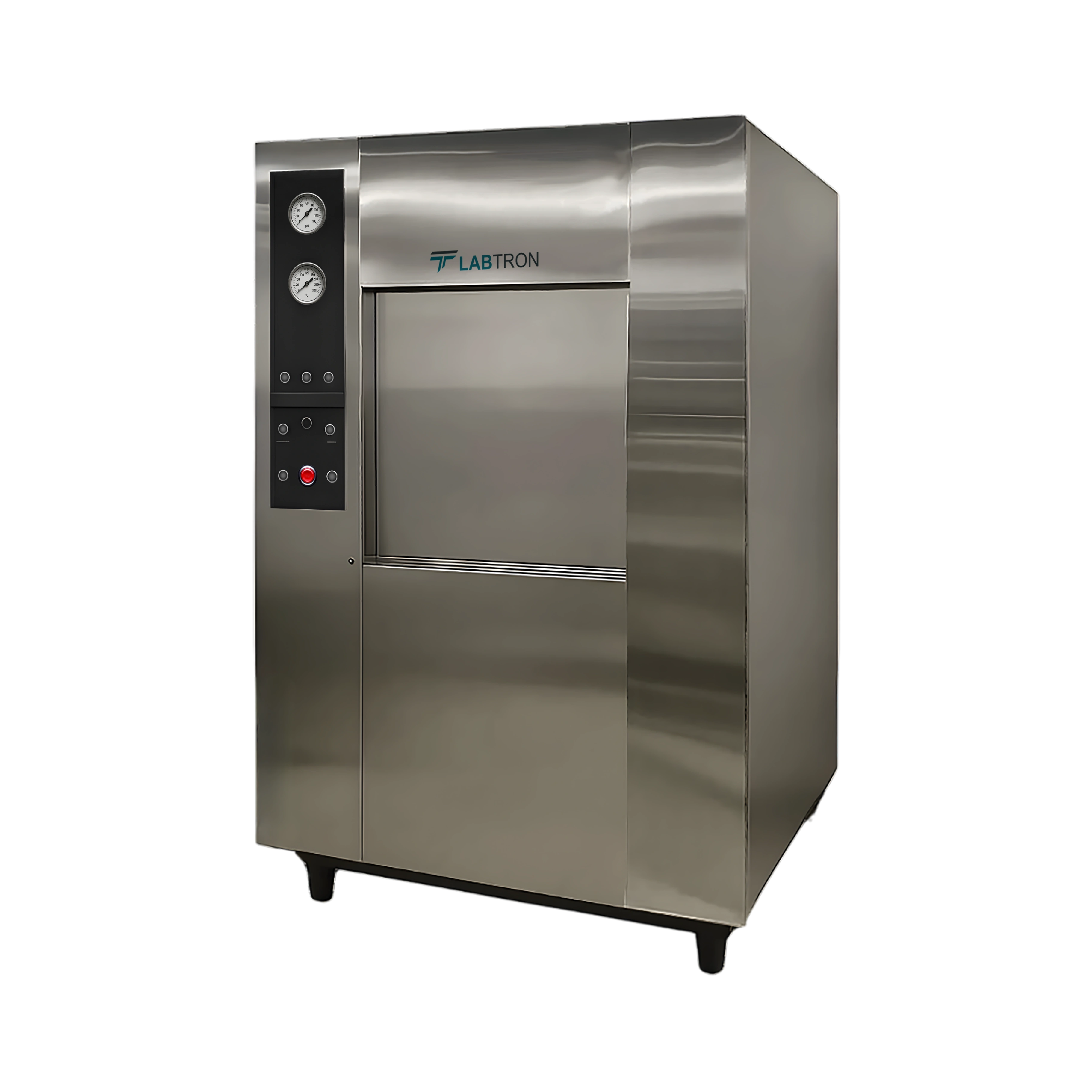

Horizontal Laboratory Autoclave LHA-I13 is widely used in hospitals, laboratories, pharmaceutical industries, and research centres for sterilization of large volumes of medical instruments, laboratory equipment, and biohazardous materials.
Download catalog for
Horizontal Laboratory Autoclave LHA-I13 Catalog
Available Range :
Horizontal Laboratory Autoclave LHA-K10 : 100 L Horizontal Laboratory Autoclave LHA-F17 : 10000L Horizontal Laboratory Autoclave LHA-J10 : 100L Horizontal Laboratory Autoclave LHA-D18 : 120 L Horizontal Laboratory Autoclave LHA-D14 : 1200 L Horizontal Laboratory Autoclave LHA-D20 : 150 L Horizontal Laboratory Autoclave LHA-D15 : 1500 L Horizontal Laboratory Autoclave LHA-D21 : 1500L Horizontal Laboratory Autoclave LHA-B15 : 150L Horizontal Laboratory Autoclave LHA-I14 : 180 L Horizontal Laboratory Autoclave LHA-B11 : 200 L Horizontal Laboratory Autoclave LHA-D16 : 2000 L Horizontal Laboratory Autoclave LHA-I16 : 2000L Horizontal Laboratory Autoclave LHA-B18 : 200L Horizontal Laboratory Autoclave LHA-D10 : 250 L Horizontal Laboratory Autoclave LHA-B12 : 280 L Horizontal Laboratory Autoclave LHA-A10 : 300 L Horizontal Laboratory Autoclave LHA-B19 : 300L Horizontal Laboratory Autoclave LHA-D11 : 360 L Horizontal Laboratory Autoclave LHA-B13 : 400 L Horizontal Laboratory Autoclave LHA-A11 : 500 L Horizontal Laboratory Autoclave LHA-B20 : 500L Horizontal Laboratory Autoclave LHA-I10 : 60 L Horizontal Laboratory Autoclave LHA-D12 : 600 L Horizontal Laboratory Autoclave LHA-I11 : 80 L Horizontal Laboratory Autoclave LHA-D13 : 800 L Horizontal Laboratory Autoclave LHA-I20 : 90 L
Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.
