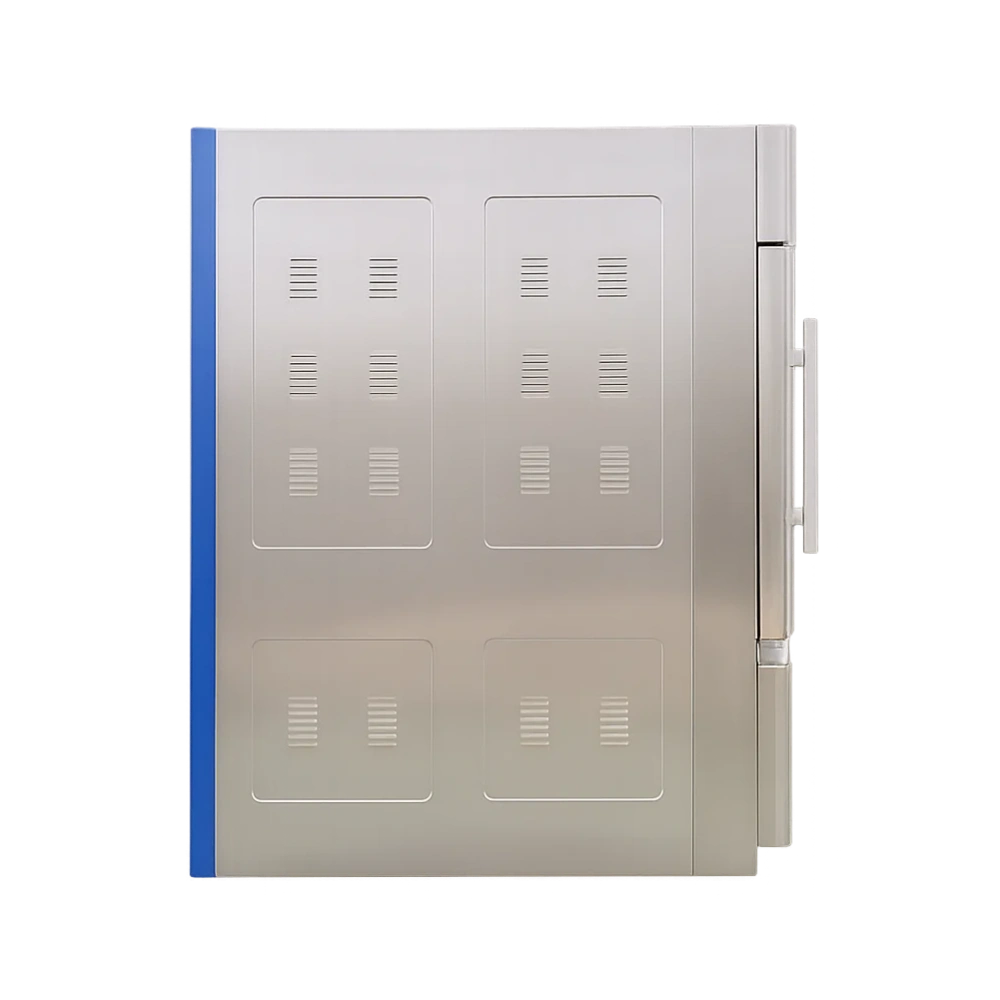

Horizontal Autoclave LHA-D21

Horizontal Autoclave LHA-D21

Horizontal Autoclave LHA-D21 operates at a temperature of 150°C and has a capacity of 1500 liters. It utilizes saturated steam as the sterilizing medium. Constructed from high-quality S30408 stainless steel, it is designed for enhanced durability. The jacket is insulated with premium Q245R material and pearl sand for optimal performance. Additionally, our autoclave features a double pulsation process, ensuring thorough sterilization and superior drying efficiency.
Request Quote
Capacity 1500L
Operating Temperature 150°C
Max. Working Temperature 139°C
Temperature Uniformity ±1°C
Inner Chamber Pressure -0.1 to 0.3MPa
Jacket Pressure 0.3MPa
Safety Valves Pressure 0.28MPa
Steam Consumption 80 Kg/C
Tap Water Consumption 750 Kg/C
Vacuum Leakage Rate ≤0.13KPa/min
Ultimate Vacuum Rate -97KPa
Negative Pressure Amplitude of -80 to 0 KPa, Times 1-99
Positive Pressure Amplitude of -80 to 80KPa, Times 1-3
Power Consumption 4KW
Power Supply 380V, 50Hz
Tank Size (W × H × D) 680 × 1180 × 1900 mm
Overall Dimension (L × W × H) 2220 × 1490 × 2050 mm
Weight 1850 Kg
  • S30408 stainless steel pipes with clamp joints
  • GEMU and SEW Euro drive valves and pumps
  • Large color touch screen with PLC control
  • Intelligent maintenance system
  • Optional water-ring vacuum pump
  • Optional remote monitoring
Our Horizontal Autoclave is used in hospitals, third-party disinfecting centers, and medical operations for sterilizing medical devices, dressings, rubber, lumen devices, implantable devices, and liquids.
