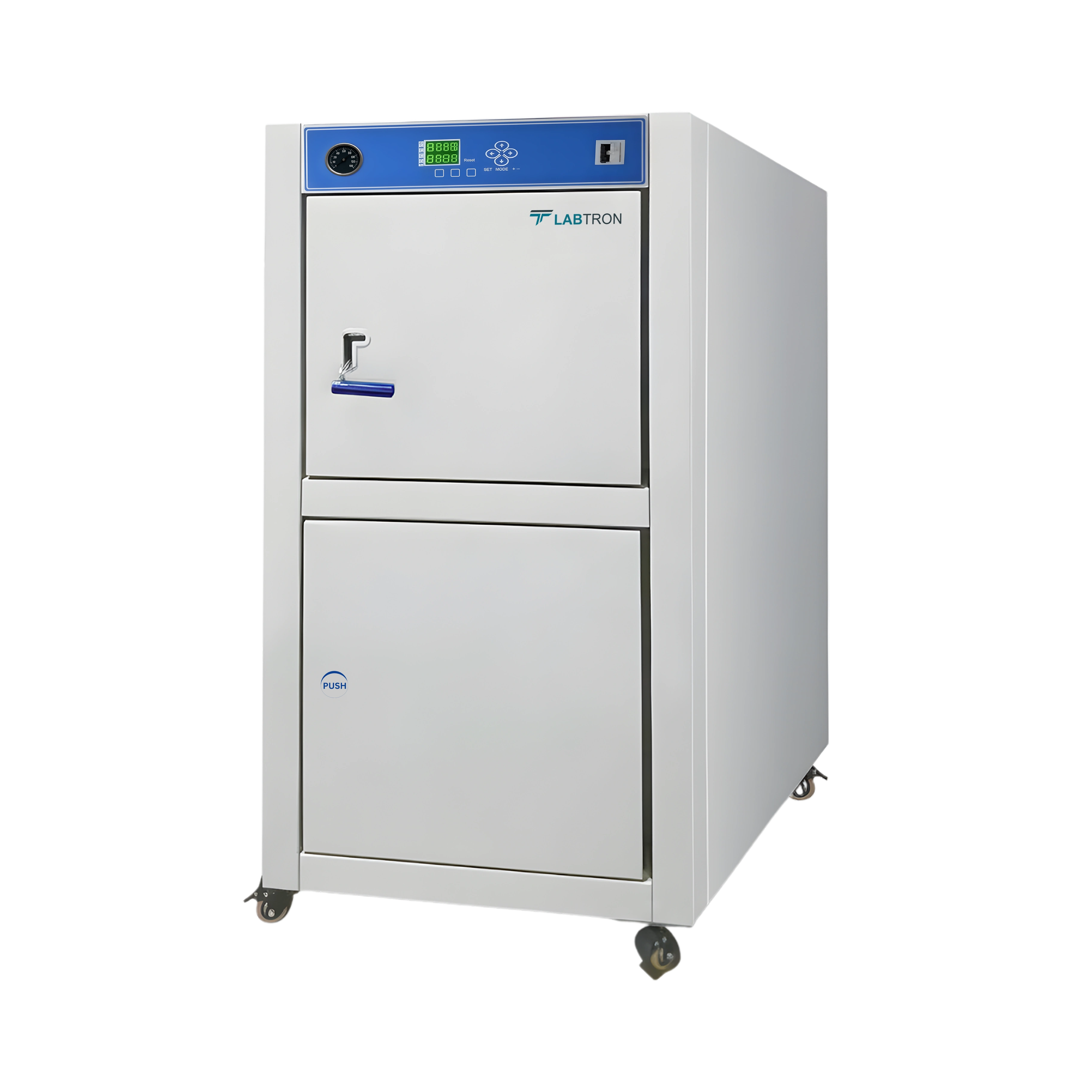

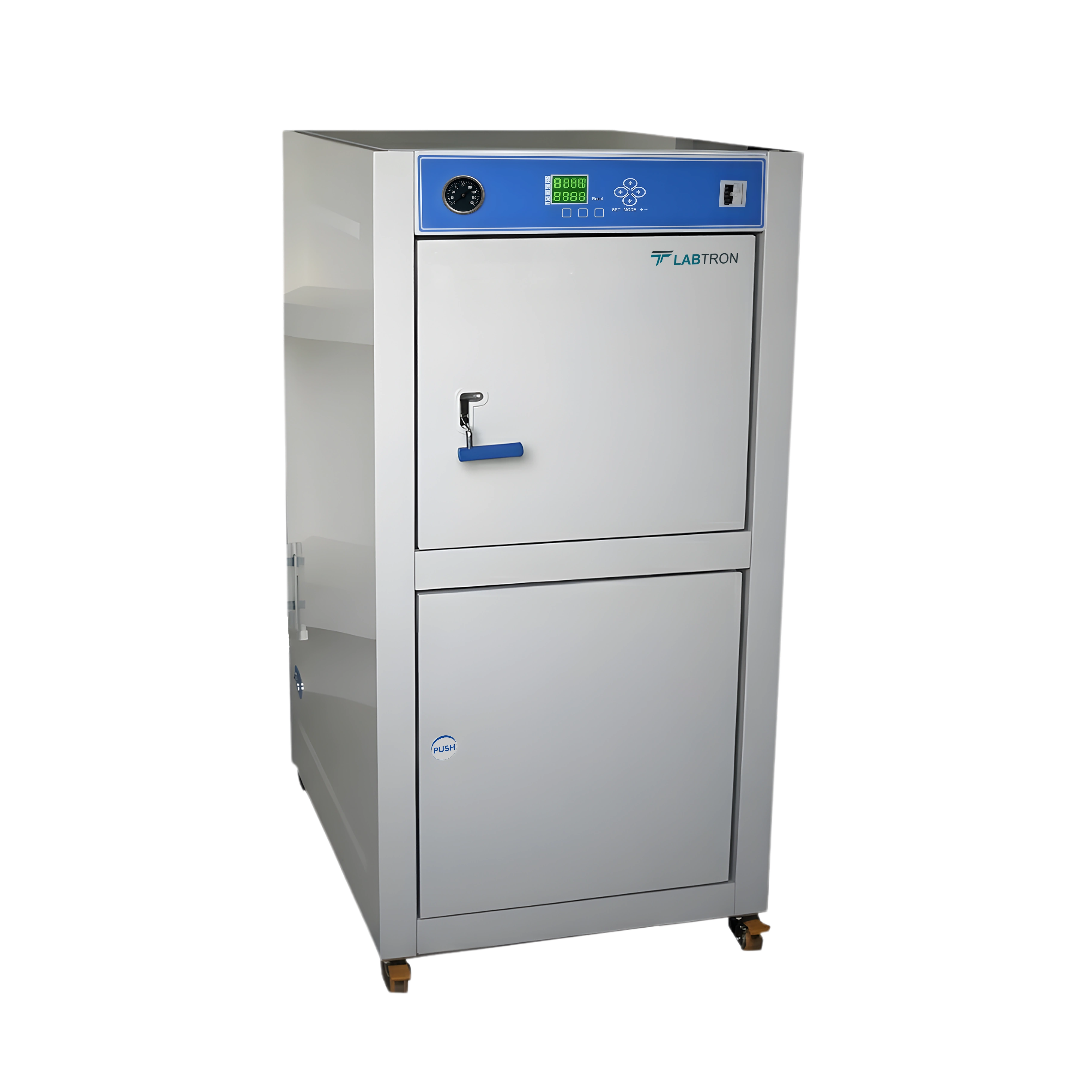

Horizontal Laboratory Autoclave LHA-I20

Horizontal Laboratory Autoclave LHA-I20

Horizontal Laboratory Autoclave LHA-I20 is a 90 L capacity, horizontal steam autoclave, designed as per gravity type pressurized steam sterilization principle with electrical heating. Features sterilizing temperature range from 115°C to 134°C with 0 to 99 min of timing range and 0.07 to 0.22 MPa of pressure control range. Equipped with microcomputer digital controller, screen indicator and safety protection device, features safety door lock system. Provides protection against water-off, over-temperature, over-current and over-pressure with safety valve. This autoclave offers automatic or manual settings of sterilizing temperature, sterilizing time, and drying time, makes it a safe and reliable equipment to use.

Horizontal Laboratory Autoclave LHA-I20
Horizontal Laboratory Autoclave LHA-I20
Horizontal Laboratory Autoclave LHA-I20
Request Quote
Capacity 90 L
Sterilization Temperature 134 °C
Working Pressure 0.22 MPa
Timer Range 0 to 99 min
Sterilization Temperature Range 115°C to 134°C
Pressure Control Range 0.07 to 0.22 MPa
Controller Microcomputer
Heating Electrical
Protection System Water-off;
Over-temperature;
Over-current;
Over-pressure
Parameter Settings Automatic and Manual
Door lock Safety door lock system
Power Supply AC 220 V, 50 Hz
Power 4000 W
Dimension (W×D×H) 940×690×1330 mm
Packaging Dimension (W×D×H) 1030×770×1460 mm
Net Weight 187 kg
Gross Weight 232 kg
  • 90 L capacity horizontal steam autoclave with electrical heating
  • Designed as per gravity type pressurized steam sterilization principle
  • Sterilizing temperature range from 115°C to 134°C
  • 0 to 99 min of timing range and 0.07 to 0.22 MPa of pressure control range
  • Microcomputer digital controller with screen indicators
  • Safety protection device with safety door lock system and safety valve
  • Protection against water-off, over-temperature, over-current and over-pressure
  • Automatic or manual settings of sterilizing temperature, sterilizing time, and drying time
  • Highly efficient, stable and reliable with convenient operation

Horizontal Laboratory Autoclave is used to disinfect and sterilize medical devices, dressings, glass wares, lab wares, cultures and hydroponics medium etc. across various medical, scientific and research institutes.

Download catalog for
Horizontal Laboratory Autoclave LHA-I20 Catalog

Available Range :

Horizontal Laboratory Autoclave LHA-K10 : 100 L Horizontal Laboratory Autoclave LHA-F17 : 10000L Horizontal Laboratory Autoclave LHA-J10 : 100L Horizontal Laboratory Autoclave LHA-D18 : 120 L Horizontal Laboratory Autoclave LHA-D14 : 1200 L Horizontal Laboratory Autoclave LHA-D20 : 150 L Horizontal Laboratory Autoclave LHA-D15 : 1500 L Horizontal Laboratory Autoclave LHA-D21 : 1500L Horizontal Laboratory Autoclave LHA-B15 : 150L Horizontal Laboratory Autoclave LHA-I14 : 180 L Horizontal Laboratory Autoclave LHA-B11 : 200 L Horizontal Laboratory Autoclave LHA-D16 : 2000 L Horizontal Laboratory Autoclave LHA-I16 : 2000L Horizontal Laboratory Autoclave LHA-B18 : 200L Horizontal Laboratory Autoclave LHA-D10 : 250 L Horizontal Laboratory Autoclave LHA-B12 : 280 L Horizontal Laboratory Autoclave LHA-A10 : 300 L Horizontal Laboratory Autoclave LHA-B19 : 300L Horizontal Laboratory Autoclave LHA-D11 : 360 L Horizontal Laboratory Autoclave LHA-B13 : 400 L Horizontal Laboratory Autoclave LHA-A11 : 500 L Horizontal Laboratory Autoclave LHA-B20 : 500L Horizontal Laboratory Autoclave LHA-I10 : 60 L Horizontal Laboratory Autoclave LHA-D12 : 600 L Horizontal Laboratory Autoclave LHA-I11 : 80 L Horizontal Laboratory Autoclave LHA-D13 : 800 L Horizontal Laboratory Autoclave LHA-I20 : 90 L
Horizontal Laboratory Autoclave LHA-I20 | Sterilization Temperature: 134 °C | Timer Range: 0 to 99 min
Horizontal Laboratory Autoclave LHA-I20 | Designed as per gravity type pressurized steam sterilization principle | Sterilizing temperature range from 115°C to 134°C

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-B13

Horizontal Laboratory Autoclave LHA-B13
  • Capacity : 400 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 MPa
  • Timer Range : 0 - 60 minutes
Horizontal Laboratory Autoclave LHA-A10

Horizontal Laboratory Autoclave LHA-A10
  • Capacity : 300 L
  • Sterilization Temperature : 105 to 138 ℃
  • Maximum Temperature : 138 ℃
  • Temperature uniformity : ≤ ± 0.5 ℃
Horizontal Laboratory Autoclave LHA-D12

Horizontal Laboratory Autoclave LHA-D12
  • Capacity : 600 L
  • Sterilization Temperature : 139 °C
  • Sterilization Pressure : 0.22MPa
  • Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 30 kg
Horizontal Laboratory Autoclave LHA-B17
Horizontal Laboratory Autoclave LHA-B17
  • Capacity : 150L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134 °C
  • Temperature Range : 105 to 134 °C
Horizontal Laboratory Autoclave LHA-H11
Horizontal Laboratory Autoclave LHA-H11
  • Capacity : 200 L
  • Working Pressure : 0 to 0.22 MPa
  • Working Temperature : 134 °C
  • Temperature Range : 0 to 134 °C
Horizontal Laboratory Autoclave LHA-B14

Horizontal Laboratory Autoclave LHA-B14
  • Capacity : 500 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 MPa
  • Timer Range : 0 - 60 minutes
Horizontal Laboratory Autoclave LHA-G10

Horizontal Laboratory Autoclave LHA-G10
  • Capacity : 150 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Timer Range : 0 - 60 minutes
Horizontal Laboratory Autoclave LHA-B19

Horizontal Laboratory Autoclave LHA-B19
  • Capacity : 300L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134 °C
  • Temperature Range : 105 to 134 °C

Horizontal Autoclave:
Horizontal Laboratory Autoclave LHA-B13, Horizontal Laboratory Autoclave LHA-A10, Horizontal Laboratory Autoclave LHA-D12, Horizontal Laboratory Autoclave LHA-B17, Horizontal Laboratory Autoclave LHA-H11, Horizontal Laboratory Autoclave LHA-B14, Horizontal Laboratory Autoclave LHA-G10, Horizontal Laboratory Autoclave LHA-B19, and more.
