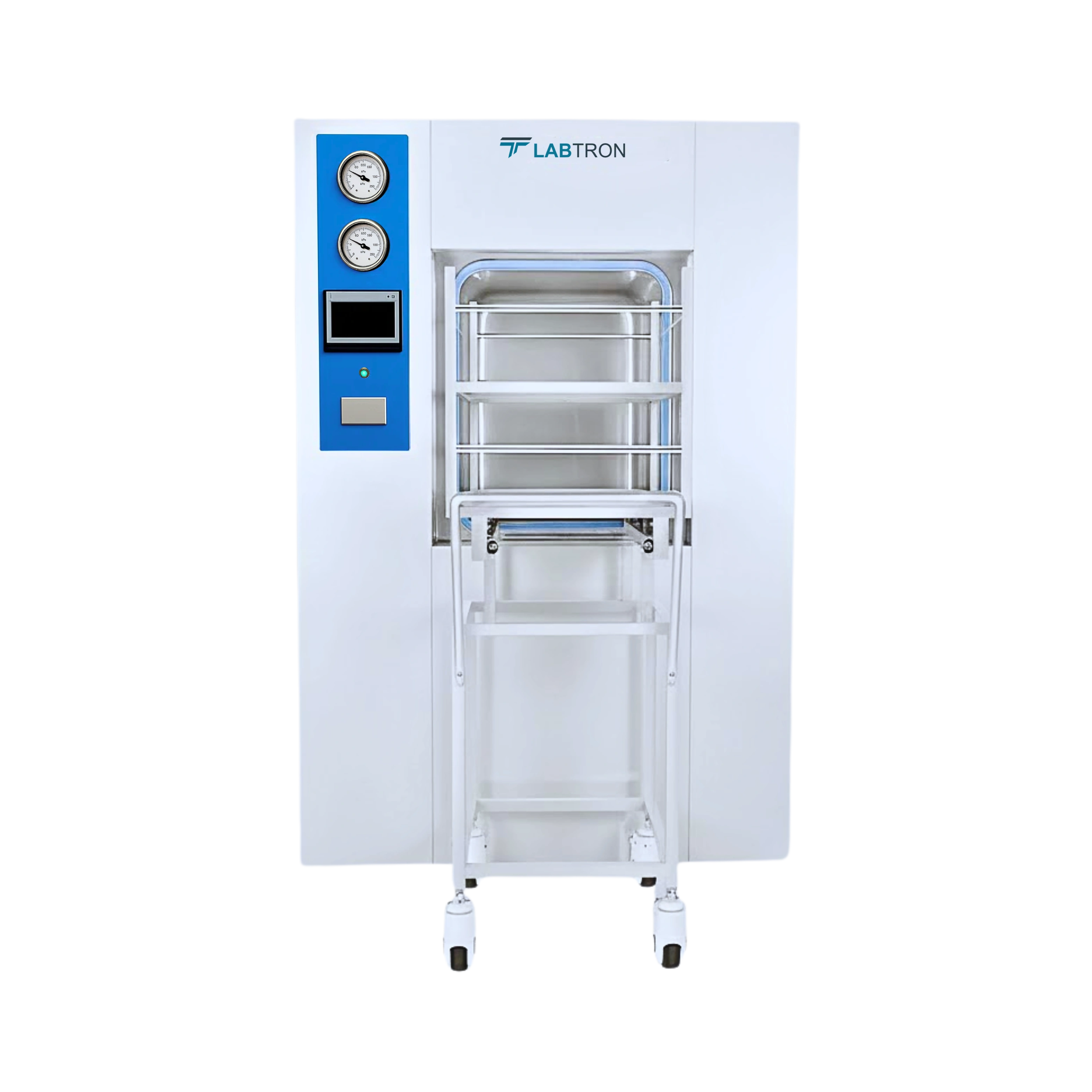

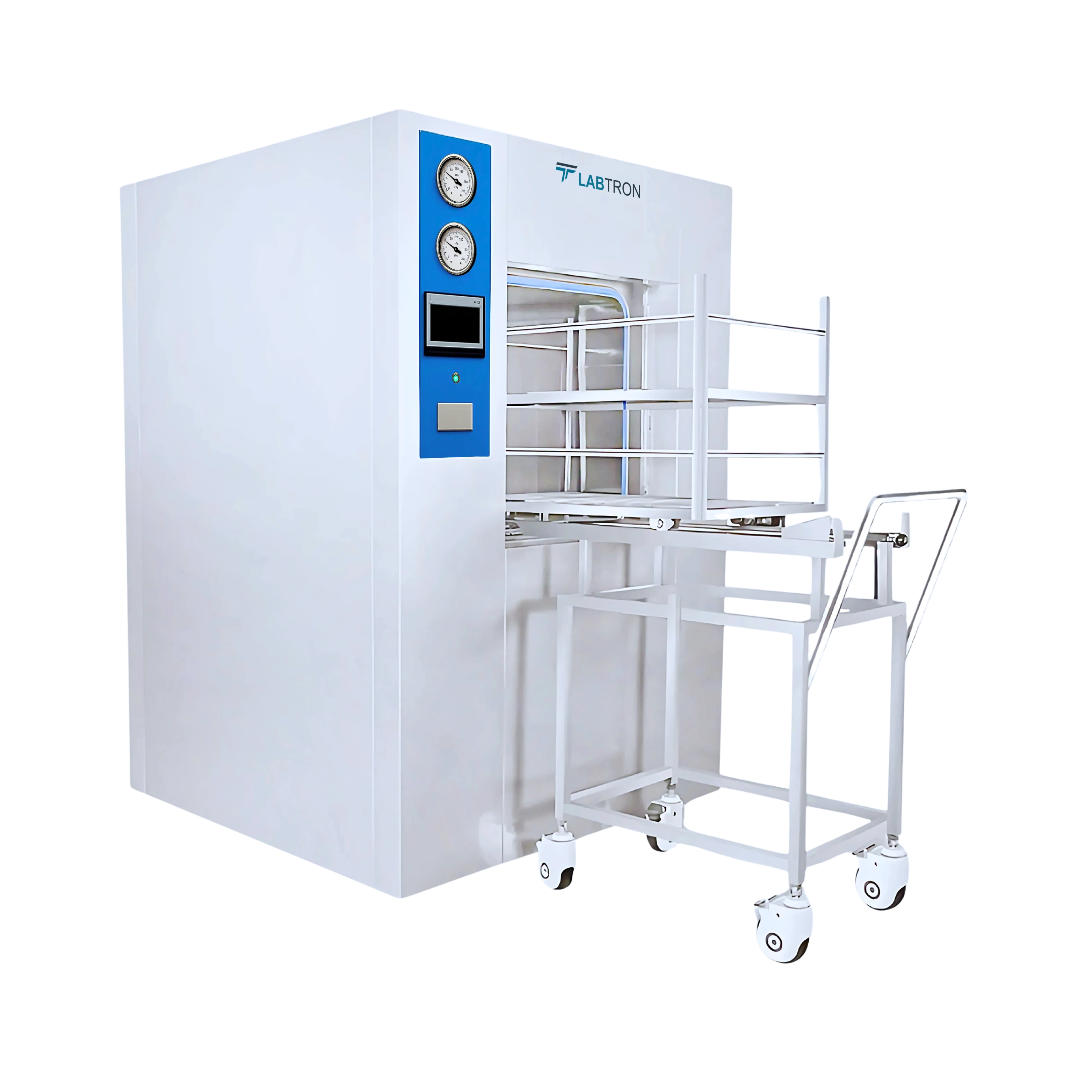

Horizontal Laboratory Autoclave LHA-D24

The Horizontal Laboratory Autoclave LHA-D24 stands out due to its integration of a highly advanced PLC + HMI control system, which enables automated real-time monitoring and precise control over sterilization parameters. It operates within a temperature range of 105°C to 139°C with a high degree of accuracy (less than equal to ± 0.2°C) and supports customizable sterilization and drying times. The 7.0-inch color touchscreen provides intuitive interaction, and the liquid ring vacuum system ensures effective pre- and post-vacuum processes for deep sterilization. Its single-door design, durable stainless-steel construction, low resource consumption per cycle, and built-in safety features further enhance its reliability and performance.

Safety is a central design element in the Horizontal Laboratory Autoclave LHA-D24. The system includes a safety valve with an opening pressure of 0.28 MPa to release excess pressure automatically. Additionally, the autoclave is equipped with precise temperature and pressure control mechanisms to avoid system overloading. The temperature equilibrium is maintained within ± 0.5°C, ensuring consistent sterilization conditions. A robust and secure single-door mechanism helps maintain chamber integrity, while built-in alarms and interlocks protect against improper operation or unsafe conditions during use.

The Horizontal Laboratory Autoclave LHA-D24 is designed to sterilize a broad range of items that are resistant to high temperatures and pressures. This includes wrapped and unwrapped surgical instruments, medical dressings, rubber products, liquids in sealed or open containers, implantable devices, porous loads, and hollow instruments. It is suitable for demanding applications across medical, pharmaceutical, research, and industrial laboratories, where thorough sterilization is critical.

The integrated liquid ring vacuum pump in the Horizontal Laboratory Autoclave LHA-D24 supports both pre-vacuum and post-vacuum phases. During pre-vacuum, it removes air from the chamber to enable better steam penetration, especially in porous or hollow loads. Post-vacuum helps eliminate remaining steam and moisture after sterilization, significantly improving drying efficiency. With a vacuum rate of –97 kPa, the system ensures complete air evacuation and deep sterilization, which is particularly crucial for instruments with complex geometries.

To accommodate the Horizontal Laboratory Autoclave LHA-D24, users should consider its outer dimensions of 1290 × 1850 × 1200 mm (W × D × H). The chamber size is 550 × 550 × 750 mm, providing a capacity of 200 liters, which is ample for high-throughput sterilization cycles. Additionally, provisions for power supply (22 kW), steam and water connections, and proper ventilation are essential to ensure safe and optimal operation. It weighs 650 kg, so proper flooring and transport access must be factored in during planning.
