| Capacity | 200 L |
| Design Pressure | -0.1 / 0.25 MPa |
| Max Working Pressure | 0.23 MPa |
| Design Temperature | 139°C |
| Working Temperature Range | 105°C to 136°C |
| Temperature Accuracy | ±0.1°C |
| Sterilization Time Range | 0 to 99 min |
| Drying Time Range | 0 to 99 min |
| Vacuum Rate | -0.081 MPa |
| Door Type | Single door |
| Control System | PLC + HMI + Built-in Printer |
| Display | 7-inch LCD color touch screen |
| Vacuum System | Pre-vacuum and post-vacuum |
| Steam Generator | Built-in steam generator |
| Loading Type | Sterilization tray |
| Water Tank | Included |
| Drying Function | Vacuum drying |
| Voltage | 380V, 50/60Hz |
| Power Consumption | 12 kW |
| Chamber Size | 200L / Ø515 × 1000 mm |
| Outer Dimensions | 1400 × 760 × 1750 mm |
| Packing Dimensions | 1560 × 910 × 1880 mm |
| Net Weight | 470 kg |
| Gross Weight | 560 kg |

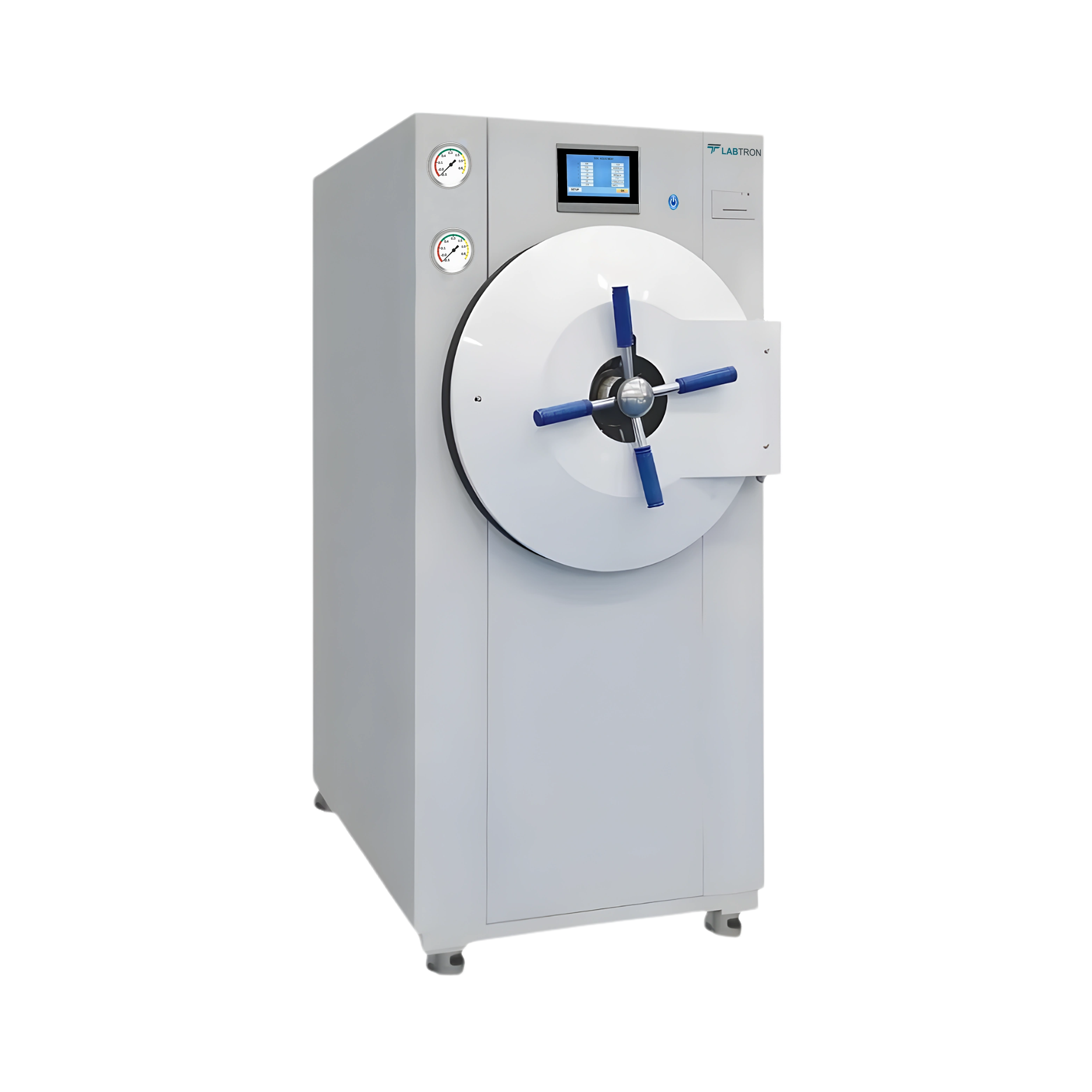

Our Horizontal Laboratory Autoclave LHA-K14 is ideally suited for a wide range of applications across medical, and laboratory settings. It is specifically designed for the sterilization of surgical instruments, laboratory glassware, culture media, textiles, rubber items, and other heat- and pressure-resistant materials.
Download catalog for
Horizontal Laboratory Autoclave LHA-K14 Catalog
Available Range :
Horizontal Laboratory Autoclave LHA-K10 : 100 L Horizontal Laboratory Autoclave LHA-F17 : 10000L Horizontal Laboratory Autoclave LHA-J10 : 100L Horizontal Laboratory Autoclave LHA-D18 : 120 L Horizontal Laboratory Autoclave LHA-D14 : 1200 L Horizontal Laboratory Autoclave LHA-D20 : 150 L Horizontal Laboratory Autoclave LHA-D15 : 1500 L Horizontal Laboratory Autoclave LHA-D21 : 1500L Horizontal Laboratory Autoclave LHA-B15 : 150L Horizontal Laboratory Autoclave LHA-I14 : 180 L Horizontal Laboratory Autoclave LHA-B11 : 200 L Horizontal Laboratory Autoclave LHA-D16 : 2000 L Horizontal Laboratory Autoclave LHA-I16 : 2000L Horizontal Laboratory Autoclave LHA-B18 : 200L Horizontal Laboratory Autoclave LHA-D10 : 250 L Horizontal Laboratory Autoclave LHA-B12 : 280 L Horizontal Laboratory Autoclave LHA-A10 : 300 L Horizontal Laboratory Autoclave LHA-B19 : 300L Horizontal Laboratory Autoclave LHA-D11 : 360 L Horizontal Laboratory Autoclave LHA-B13 : 400 L Horizontal Laboratory Autoclave LHA-A11 : 500 L Horizontal Laboratory Autoclave LHA-B20 : 500L Horizontal Laboratory Autoclave LHA-I10 : 60 L Horizontal Laboratory Autoclave LHA-D12 : 600 L Horizontal Laboratory Autoclave LHA-I11 : 80 L Horizontal Laboratory Autoclave LHA-D13 : 800 L Horizontal Laboratory Autoclave LHA-I20 : 90 LLabtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.
The Horizontal Laboratory Autoclave LHA-K14 offers a working temperature range of 105°C to 136°C, making it highly effective for sterilizing a variety of materials. It delivers exceptional temperature accuracy of ±0.1°C, ensuring reliable and consistent sterilization results. This level of precision is crucial in laboratory and clinical environments where even slight temperature variations can affect outcomes.
The Horizontal Laboratory Autoclave LHA-K14 is designed for versatile sterilization applications in both medical and laboratory settings. It can effectively sterilize surgical instruments, laboratory glassware, culture media, rubber goods, textiles, and heat-resistant plastics. Its high pressure and temperature capabilities, along with vacuum drying, make it suitable for items requiring rigorous sterilization cycles.
The built-in steam generator ensures a steady and efficient supply of steam, reducing warm-up time and enhancing sterilization effectiveness. This integrated Horizontal Laboratory Autoclave LHA-K14 eliminates the need for external steam sources and improves energy efficiency. By providing direct, controlled steam generation, it also minimizes risks of steam pressure fluctuation, ensuring safe and reliable operation.
The Horizontal Laboratory Autoclave LHA-K14 model comes equipped with a 7-inch LCD color touchscreen paired with a PLC + HMI control system and built-in printer. This allows users to easily monitor sterilization cycles in real time, adjust sterilization and drying times, and maintain documentation for compliance purposes. The interface is user-friendly, providing visual alerts, cycle logs, and diagnostics to simplify operation and maintenance.
The Horizontal Laboratory Autoclave LHA-K14 features a pre-vacuum and post-vacuum system that ensures complete air removal before steam sterilization begins and effective moisture removal afterward. The vacuum drying function guarantees that sterilized items come out dry and ready for use or storage. This is particularly important for sterilizing materials like textiles and porous items that retain moisture after the sterilization cycle.
