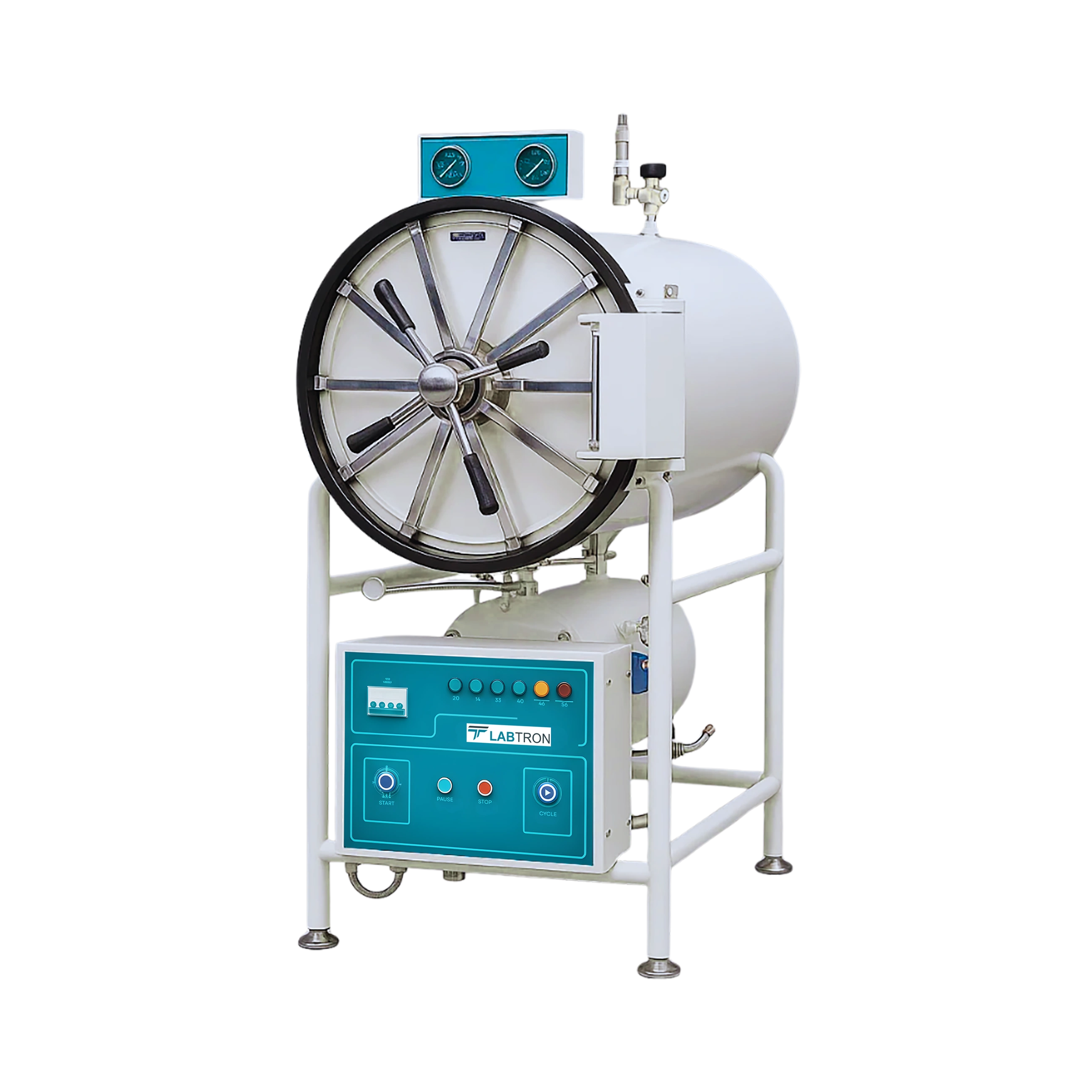

Horizontal Laboratory Autoclave LHA-B11

Horizontal Laboratory Autoclave LHA-B11

Horizontal Laboratory Autoclave LHA-B11 is a microprocessor controlled automatic autoclave.It has a capacity of 200 L and a maximum working temperature of 134 °C. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.

Request Quote
Capacity 200 L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 MPa
Timer Range 0 - 60 minutes
Heat Average ≤ ± 1 ℃
Chamber Dimensions ( Φ × D ) 515 × 1000 mm
Product Dimension ( L × W × H ) 1400 × 670 × 1650 mm
Net Weight 260 kg
Gross Weight 350kg
Power Supply 9 kW / AC 220V 50 Hz

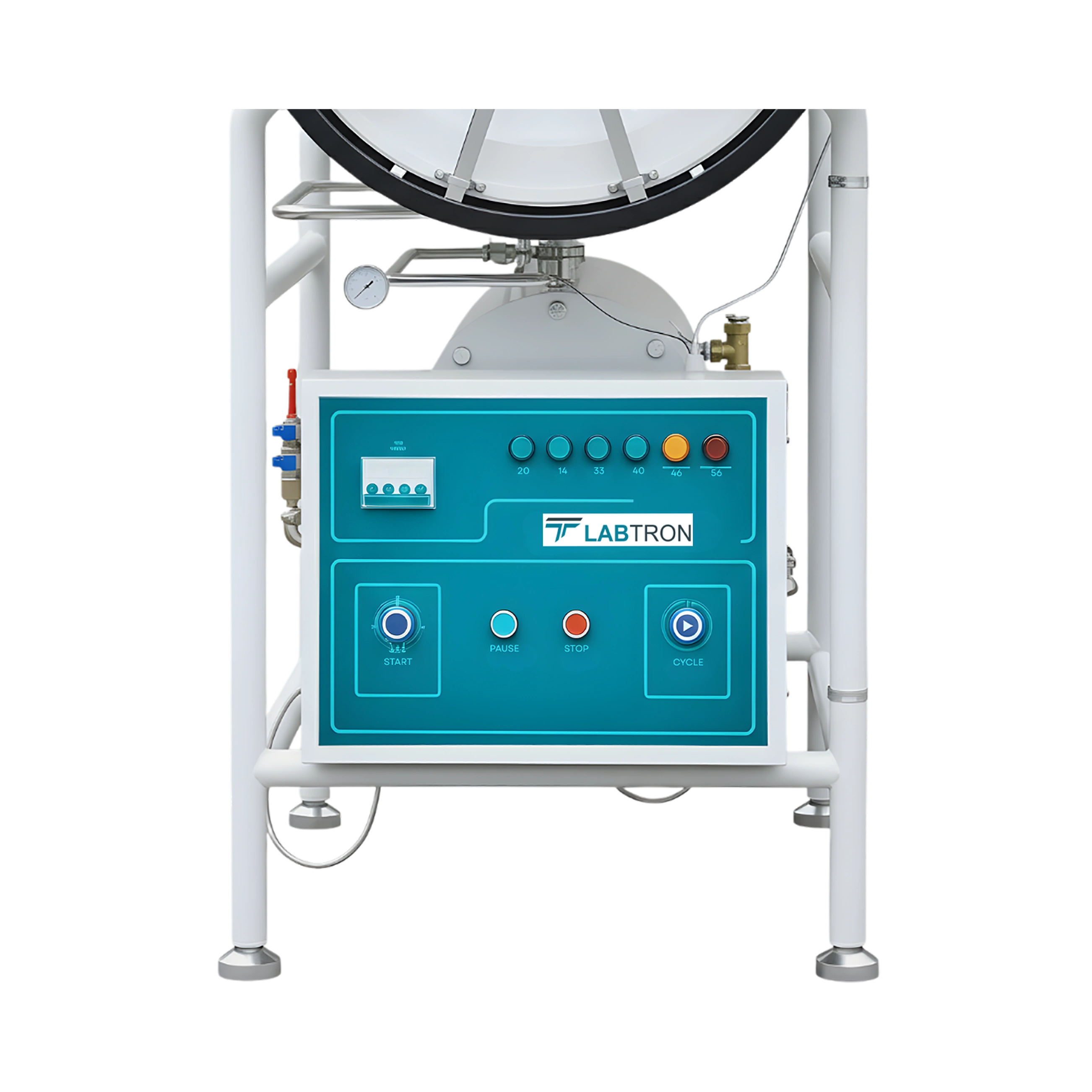

  • Microprocessor control with fully automatic cycles
  • Digital LCD display to monitor working status and parameters
  • Working pressure : 0.22 MPa
  • Working temperature : 134 ℃
  • Automated drying function

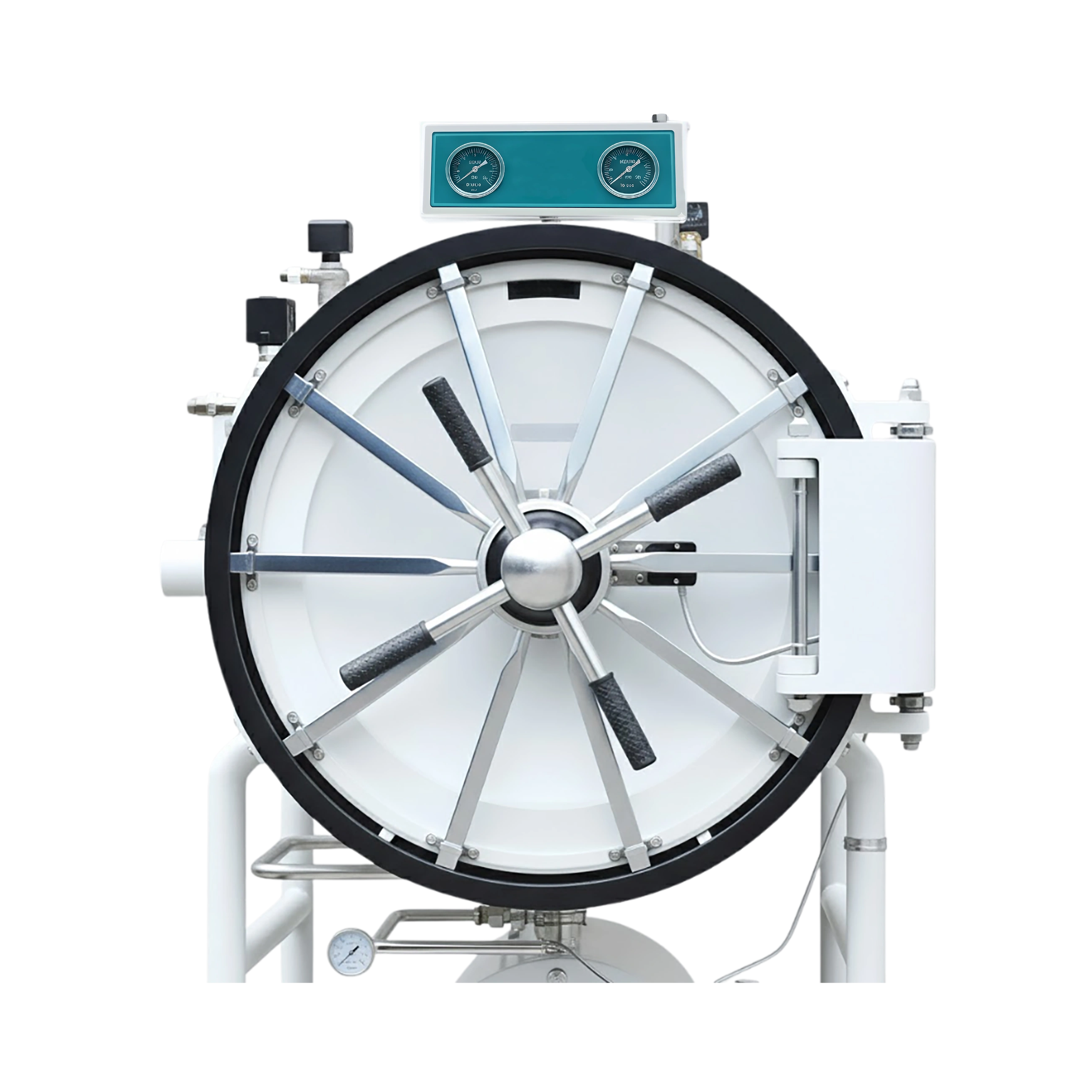

  • Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
  • Safe door lock system ensuring safety / protection during sterilization
  • Automatic power cut off with alarm with low water levels indication

Horizontal autoclave with cylindrical shape is suitable for medical, laboratory, microbiological, clinical use and to sterile the waste before discarding.

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-I15

Horizontal Laboratory Autoclave LHA-I15

  • Capacity : 120 L
  • Working Temperature Range : 105 ℃ to 139 ℃
  • Sterilization Temperature : 150 ℃
  • Sterilization Pressure : -0.1/0.3Mpa
Horizontal Laboratory Autoclave LHA-I16

Horizontal Laboratory Autoclave LHA-I16

  • Capacity : 2000L
  • Working Temperature : 139°C
  • Working Pressure : 0.25 MPa
  • Interior Design Pressure : -0.1 to 0.3 MPa
Horizontal Laboratory Autoclave LHA-G10

Horizontal Laboratory Autoclave LHA-G10

  • Capacity : 150 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Timer Range : 0 - 60 minutes
Horizontal Laboratory Autoclave LHA-D22
Horizontal Laboratory Autoclave LHA-D22
  • Capacity : 150L
  • Design Temperature : 150℃
  • Working Temperature Range : 105℃ to 138℃
  • Working Pressure Range : 0 to 0.25 MPa
Horizontal Laboratory Autoclave LHA-I13
Horizontal Laboratory Autoclave LHA-I13
  • Capacity : 150 L
  • Designed Temperature : 150℃
  • Maximum Working Temperature : 139℃
  • Inner Chamber Pressure : -0.1 to 0.3 MPa
Horizontal Laboratory Autoclave LHA-F13

Horizontal Laboratory Autoclave LHA-F13

  • Capacity : 800 L
  • Sterilization Temperature : 139 °C
  • Sterilization Pressure : 0.25MPa
  • Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 40 kg
Horizontal Laboratory Autoclave LHA-D36

Horizontal Laboratory Autoclave LHA-D36

  • Chamber Capacity : 800 Liters
  • Door Type : Single Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-K10

Horizontal Laboratory Autoclave LHA-K10

  • Capacity : 100 L
  • Design Pressure : -0.1 / 0.25 MPa
  • Max Working Pressure : 0.23 MPa
  • Design Temperature : 139°C

Horizontal Laboratory Autoclave LHA-B11 FAQ's
  • Setting up the Horizontal Laboratory Autoclave LHA-B11 is simple and does not require complex installation. It operates on a standard 220V AC power connection, making it compatible with most laboratory settings. The compact design ensures easy placement without requiring major modifications to the workspace. Pre-set sterilization programs eliminate the need for advanced programming, allowing quick setup. A detailed user manual provides step-by-step guidance, making it accessible even for first-time users.

  • Our Horizontal Laboratory Autoclave is equipped with an automatic power cutoff to prevent damage and ensure user safety. If a power failure occurs, the system does not restart automatically when power is restored, preventing incomplete sterilization. The chamber remains sealed until internal pressure returns to a safe level, reducing the risk of sudden exposure. If sterilization is interrupted, a new cycle may be required to ensure proper decontamination. Users should always check the status of the LCD before reopening the chamber to maintain safety and efficiency.

  • The Horizontal Laboratory Autoclave LHA-B11 emphasizes safety with its built-in protective mechanisms. It includes an automatic power cut-off with alarms for low water levels, ensuring no dry run conditions. The door remains securely locked until the pressure drops to safe levels, preventing accidental openings during high-pressure cycles. This makes it an ideal solution for handling biological, chemical, or hazardous waste sterilization without compromising operator safety. Its stable temperature and pressure control also protect sensitive instruments and materials from damage.

  • Sterilization duration varies based on load size and selected program, ranging from a few minutes to an hour. The adjustable timer in the Horizontal Laboratory Autoclave provides flexibility of up to 60 minutes for different requirements. Uniform heat distribution ensures thorough decontamination while maintaining efficiency. An integrated drying feature accelerates moisture removal, making instruments immediately usable. Each cycle is carefully regulated to achieve complete sterilization without unnecessary delays.

  • Labtron’s Horizontal Autoclave is designed to be both energy-efficient and low-maintenance, making it a practical long-term investment. The automatic cycle management ensures that the unit runs only as long as necessary, avoiding energy wastage. Its built-in alarms and indicators notify users of maintenance needs like water level checks, preventing unexpected breakdowns. The durable construction and automated safety features reduce wear and tear, leading to lower service frequency and costs over time. This makes it ideal for institutions looking for reliable and economical sterilization equipment.

  • Yes, the Horizontal Laboratory Autoclave LHA-B11 comes with an inbuilt drying function that operates automatically after each sterilization cycle. This function ensures that all instruments and materials are completely dry after sterilization, making them ready for immediate use or storage. It helps prevent moisture-related contamination and maintains the sterility of instruments for a longer period. The automatic drying cycle reduces the need for manual handling and improves user convenience. The autoclave ensures effective sterilization and thorough drying in one operation, making it an efficient solution for laboratory needs.
