| Chamber Capacity | 360 Liters |
| Door Type | Single Door |
| Control System | PLC + HMI + Built-in Printer |
| Display | 7.0-inch Color Touchscreen |
| Design Pressure | –0.1 / 0.5 MPa |
| Working Pressure Range | 0 to 0.25 MPa |
| Safety Valve Opening Pressure | 0.28 MPa |
| Design Temperature | 150°C |
| Working Temperature Range | 105°C to 139°C |
| Temperature Control Accuracy | ≤ ± 0.2°C |
| Temperature Display Accuracy | 0.1°C |
| Temperature Equilibrium | ≤ ± 0.5°C |
| Sterilization Time Range | 0 to 999 min |
| Drying Time Range | 0 to 999 min |
| Vacuum Rate | –97 kPa |
| Vacuum System | Liquid Ring Vacuum Pump (Pre & Post) |
| Steam Consumption per Cycle | 20 kg |
| Water Consumption per Cycle | 160 kg |
| Power Consumption | 32 kW |
| Chamber Size (W × D × H) | 610 × 610 × 1000 mm |
| Outer Dimensions (W × D × H) | 1290 × 1850 × 1350 mm |
| Net Weight | 870 kg |

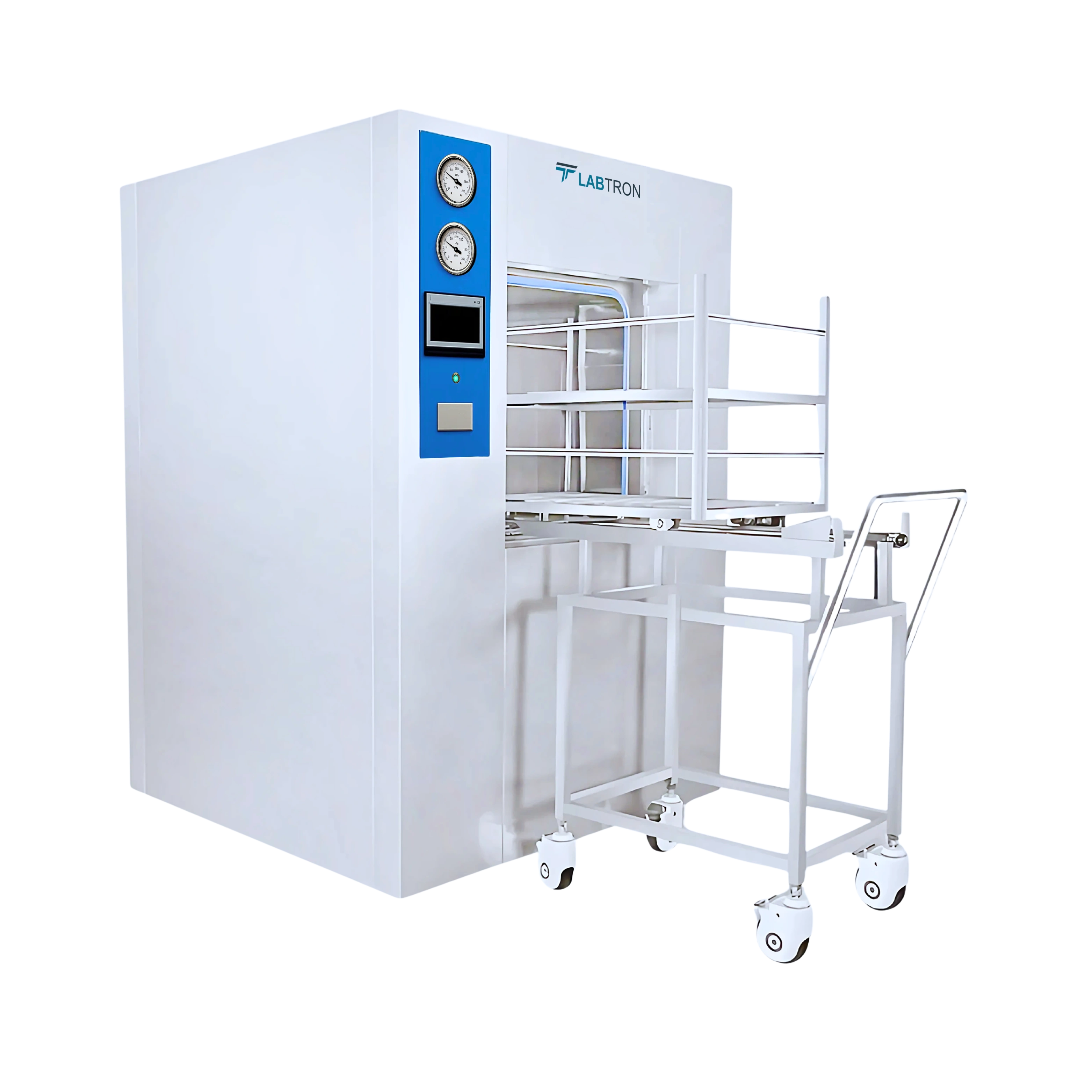

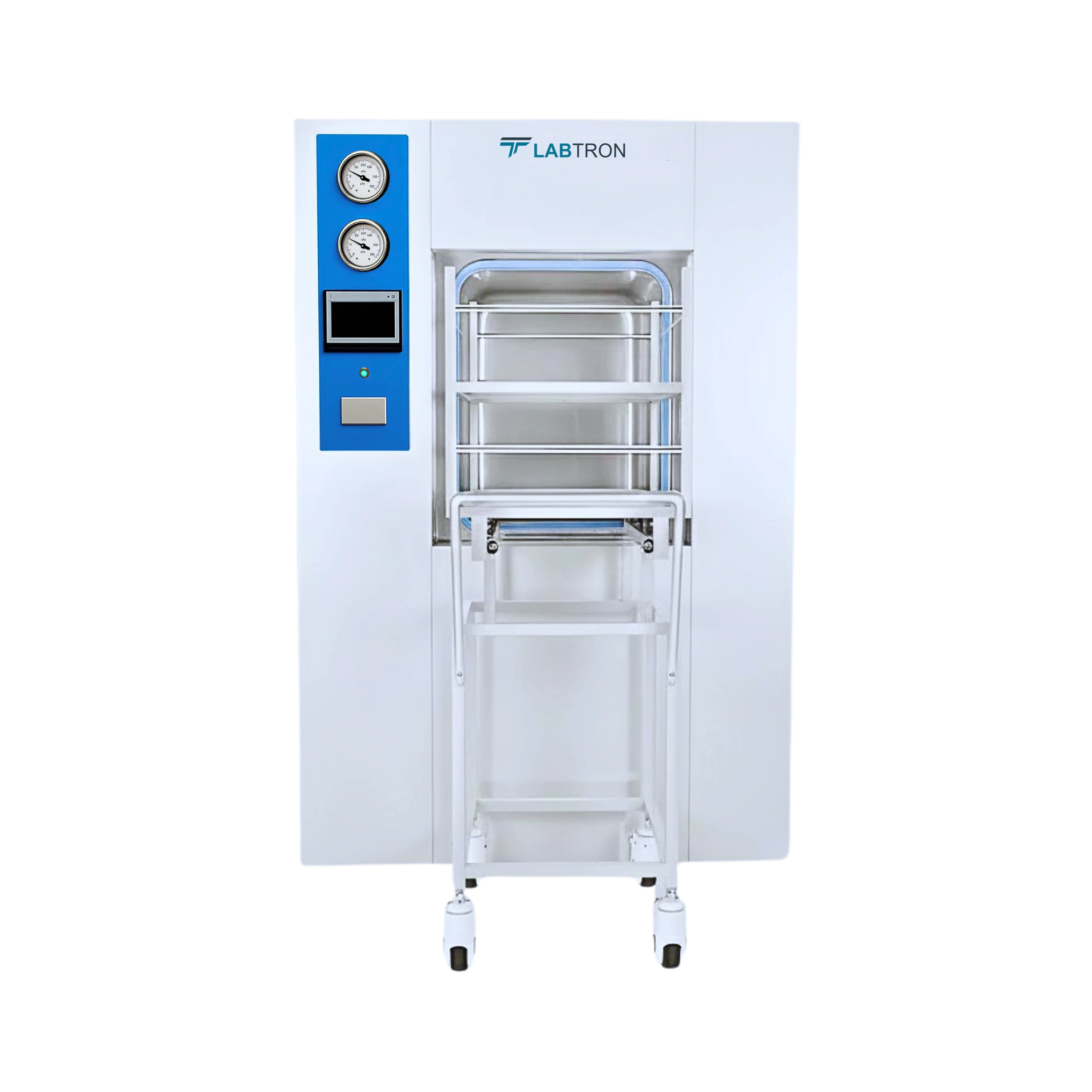

Our Horizontal Laboratory Autoclave LHA-D28 is widely used in CSSDs, laboratories, scientific research institutions, pharmaceutical facilities, and the food industry.
Download catalog for
Horizontal Laboratory Autoclave LHA-D28 Catalog
Available Range :
Horizontal Laboratory Autoclave LHA-D23 : 150 Liters Horizontal Laboratory Autoclave LHA-D24 : 200 Liters Horizontal Laboratory Autoclave LHA-D26 : 250 Liters Horizontal Laboratory Autoclave LHA-D28 : 360 Liters Horizontal Laboratory Autoclave LHA-D30 : 400 Liters Horizontal Laboratory Autoclave LHA-D32 : 450 Liters Horizontal Laboratory Autoclave LHA-D34 : 600 Liters Horizontal Laboratory Autoclave LHA-D36 : 800 Liters
Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.
The Horizontal Laboratory Autoclave LHA-D28 features a spacious 360-liter chamber, making it ideal for high-throughput sterilization in laboratories, CSSDs, pharmaceutical units, and clinical settings. Its large chamber allows the simultaneous sterilization of bulky instruments, multiple trays of tools, or large batches of dressings and labware, significantly improving operational efficiency.
The LHA-D28 is engineered for precision with a working temperature range of 105°C to 139°C, temperature control accuracy within ±0.2°C, and temperature equilibrium of ±0.5°C. This ensures uniform heat distribution across the chamber, making it highly reliable for sterilizing heat-sensitive materials, surgical tools, and porous loads.
The Horizontal Laboratory Autoclave LHA-D28 incorporates an advanced PLC + HMI control system with a built-in printer and a 7.0-inch color touchscreen display. This intuitive interface allows operators to program, monitor, and document sterilization and drying cycles with ease, making it highly user-friendly even in fast-paced environments.
The LHA-D28 uses a liquid ring vacuum pump system capable of both pre- and post-vacuum cycles. This ensures thorough air removal before sterilization and effective drying afterward, making it especially suitable for porous, hollow, or wrapped items, such as surgical instruments and lab tools, which require deep vacuum penetration.
With a sterilization time range of 0 to 999 minutes and a drying time range of 0 to 999 minutes, the LHA-D28 provides complete flexibility to customize sterilization protocols. Whether it's instruments, rubber materials, or liquid media, the user can tailor the cycle to suit the specific load, ensuring optimal results across varied applications.
