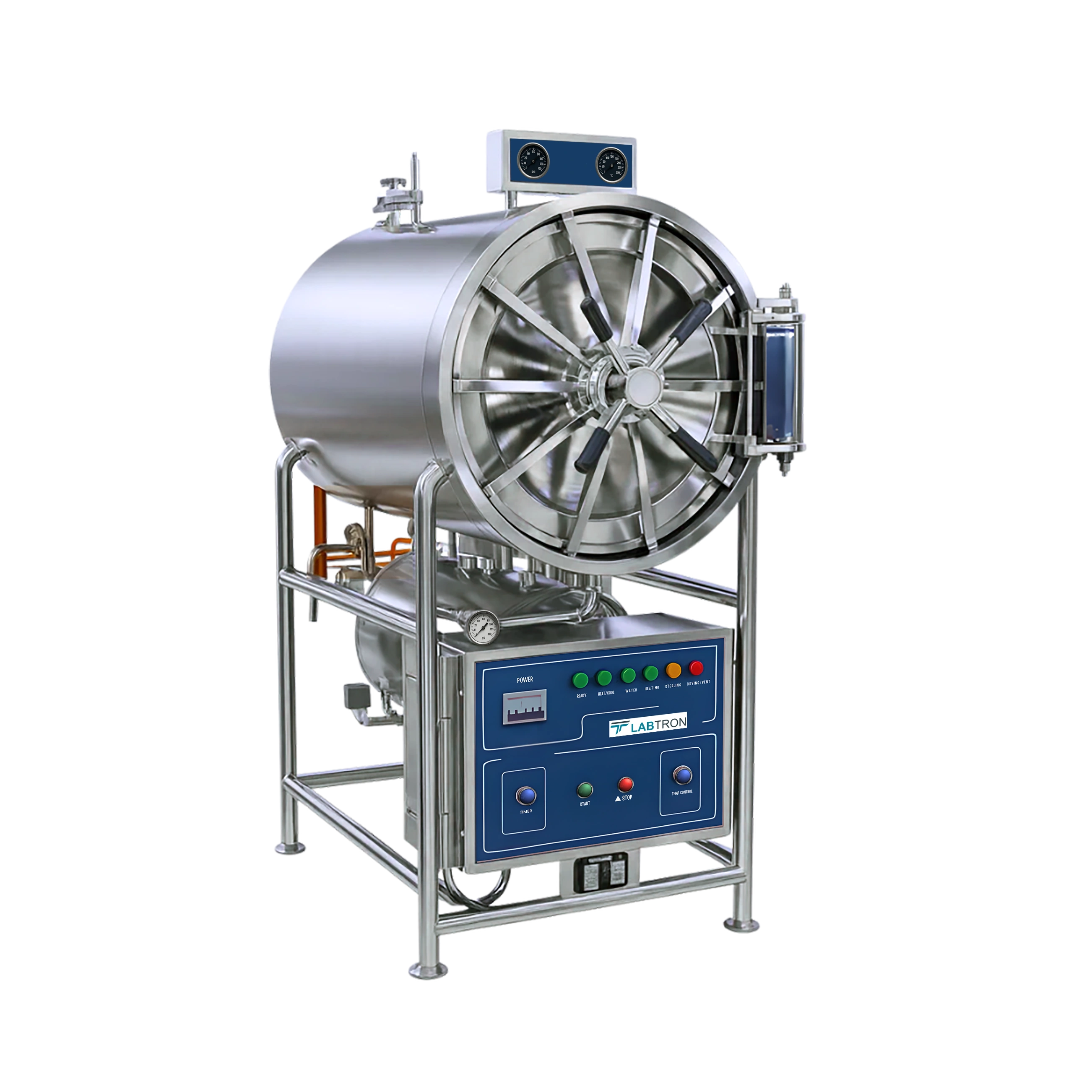

Horizontal Laboratory Autoclave LHA-G12

Horizontal Laboratory Autoclave LHA-G12
Horizontal Laboratory autoclave LHA-G12 is a cylindrical oriented autoclave with a capacity of 280 L. Fully automatic computer controlled system with a sterilizing temperature of 134 °C and heat resistant silicon rubber to prevent steam leakage. Automatic open of jacket and chamber valve incase the door is opened during the operation to prevent damage to the unit. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure.
Horizontal Laboratory Autoclave LHA-G12
Horizontal Laboratory Autoclave LHA-G12
Horizontal Laboratory Autoclave LHA-G12
Horizontal Laboratory Autoclave LHA-G12
Request Quote
Capacity 280 L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 Mpa
Timer Range 0-60 minutes
Heat Average ≤ ± 2 ℃
Chamber Dimensions ( Φ × D ) 600 × 1000 mm
Product Dimension ( L × W × H ) 1400×770×1780mm
Net Weight 365 kg
Gross Weight 465 kg
Power Supply 12 kW / 380 V 50 Hz
  • Digital LCD display to monitor working status and parameters
  • Working pressure : 0.22 MPa
  • Working temperature : 134 ℃
  • Automated drying function
  • Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
  • Self-inflating leak proof chamber
  • Safe door lock system ensuring safety / protection during sterilization
  • Automatic power cut off with alarm with low water levels indication
Horizontal autoclave is widely used in pharmaceuticals, medical & clinical research laboratories, and life science industry to sterile material to be used and also to sterile the waste before discarding.

Download catalog for
Horizontal Laboratory Autoclave LHA-G12 Catalog

Available Range :

Horizontal Laboratory Autoclave LHA-K10 : 100 L Horizontal Laboratory Autoclave LHA-F17 : 10000L Horizontal Laboratory Autoclave LHA-J10 : 100L Horizontal Laboratory Autoclave LHA-D18 : 120 L Horizontal Laboratory Autoclave LHA-D14 : 1200 L Horizontal Laboratory Autoclave LHA-D20 : 150 L Horizontal Laboratory Autoclave LHA-D15 : 1500 L Horizontal Laboratory Autoclave LHA-D21 : 1500L Horizontal Laboratory Autoclave LHA-B15 : 150L Horizontal Laboratory Autoclave LHA-I14 : 180 L Horizontal Laboratory Autoclave LHA-B11 : 200 L Horizontal Laboratory Autoclave LHA-D16 : 2000 L Horizontal Laboratory Autoclave LHA-I16 : 2000L Horizontal Laboratory Autoclave LHA-B18 : 200L Horizontal Laboratory Autoclave LHA-D10 : 250 L Horizontal Laboratory Autoclave LHA-B12 : 280 L Horizontal Laboratory Autoclave LHA-A10 : 300 L Horizontal Laboratory Autoclave LHA-B19 : 300L Horizontal Laboratory Autoclave LHA-D11 : 360 L Horizontal Laboratory Autoclave LHA-B13 : 400 L Horizontal Laboratory Autoclave LHA-A11 : 500 L Horizontal Laboratory Autoclave LHA-B20 : 500L Horizontal Laboratory Autoclave LHA-I10 : 60 L Horizontal Laboratory Autoclave LHA-D12 : 600 L Horizontal Laboratory Autoclave LHA-I11 : 80 L Horizontal Laboratory Autoclave LHA-D13 : 800 L Horizontal Laboratory Autoclave LHA-I20 : 90 L

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-F17

Horizontal Laboratory Autoclave LHA-F17
  • Capacity : 10000L
  • Sterilization Temperature : 105°C to 138°C
  • Sterilization Pressure : -0.1 / 0.5 MPa
  • Steam Pressure : 0.3 to 0.5 MPa
Horizontal Laboratory Autoclave LHA-K13

Horizontal Laboratory Autoclave LHA-K13
  • Capacity : 150 L
  • Design Pressure : -0.1 / 0.25 MPa
  • Max Working Pressure : 0.23 MPa
  • Design Temperature : 139°C
Horizontal Laboratory Autoclave LHA-D26

Horizontal Laboratory Autoclave LHA-D26
  • Chamber Capacity : 250 Liters
  • Door Type : Single Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-K12
Horizontal Laboratory Autoclave LHA-K12
  • Capacity : 150 L
  • Design Pressure : -0.1 / 0.25 MPa
  • Max Working Pressure : 0.23 MPa
  • Design Temperature : 139°C
Horizontal Laboratory Autoclave LHA-D32
Horizontal Laboratory Autoclave LHA-D32
  • Chamber Capacity : 450 Liters
  • Door Type : Single Door
  • Control System : PLC + HMI + Built-in Printer
  • Display : 7.0-inch Color Touchscreen
Horizontal Laboratory Autoclave LHA-B19

Horizontal Laboratory Autoclave LHA-B19
  • Capacity : 300L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134 °C
  • Temperature Range : 105 to 134 °C
Horizontal Laboratory Autoclave LHA-F13

Horizontal Laboratory Autoclave LHA-F13
  • Capacity : 800 L
  • Sterilization Temperature : 139 °C
  • Sterilization Pressure : 0.25MPa
  • Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 40 kg
Horizontal Laboratory Autoclave LHA-I12

Horizontal Laboratory Autoclave LHA-I12
  • Capacity : 120 L
  • Design Temperature : 150°C
  • Design Pressure : 0.26 MPa
  • Sterilization Temperature Range : 107 to 136°C

Horizontal Autoclave:
Horizontal Laboratory Autoclave LHA-F17, Horizontal Laboratory Autoclave LHA-K13, Horizontal Laboratory Autoclave LHA-D26, Horizontal Laboratory Autoclave LHA-K12, Horizontal Laboratory Autoclave LHA-D32, Horizontal Laboratory Autoclave LHA-B19, Horizontal Laboratory Autoclave LHA-F13, Horizontal Laboratory Autoclave LHA-I12, and more.
