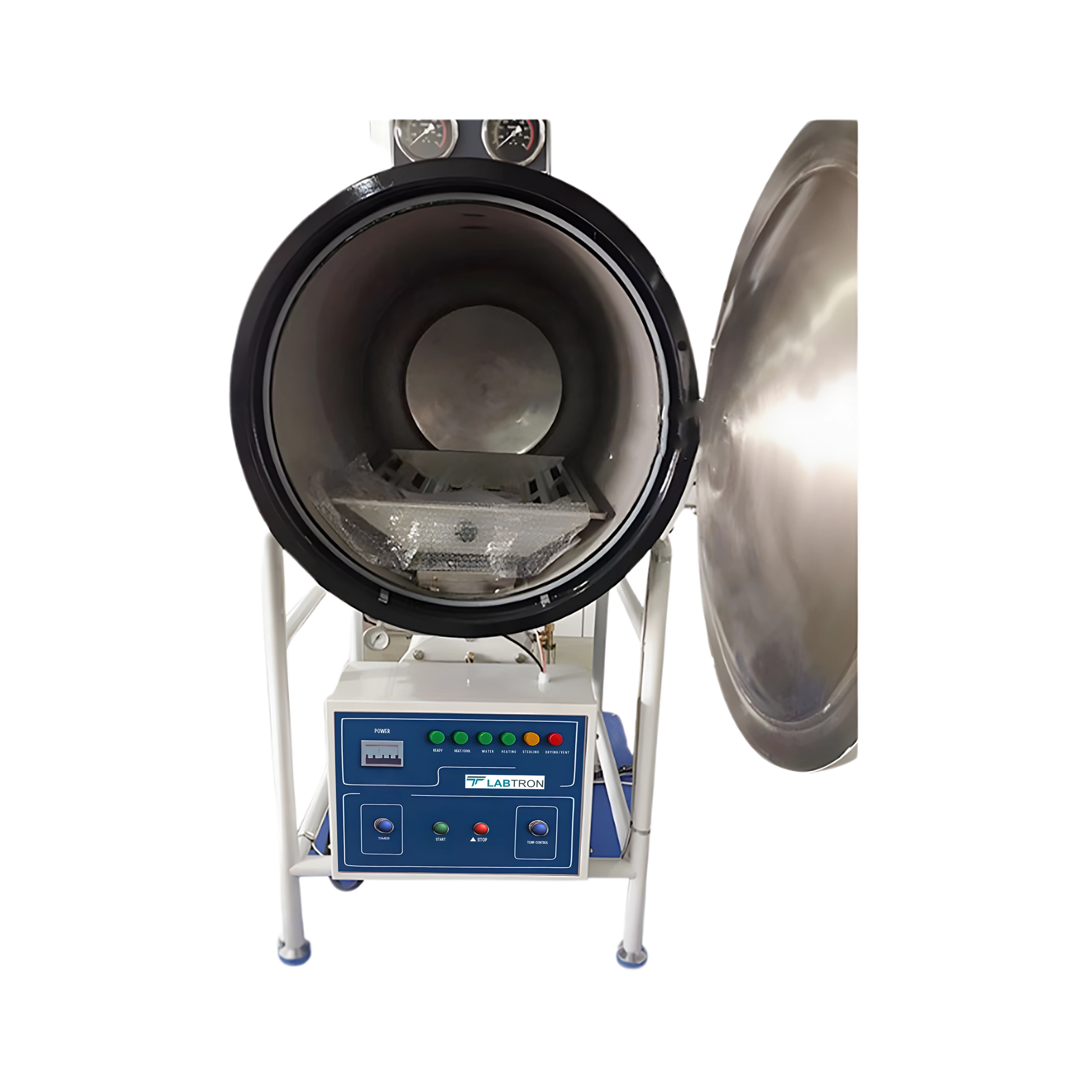

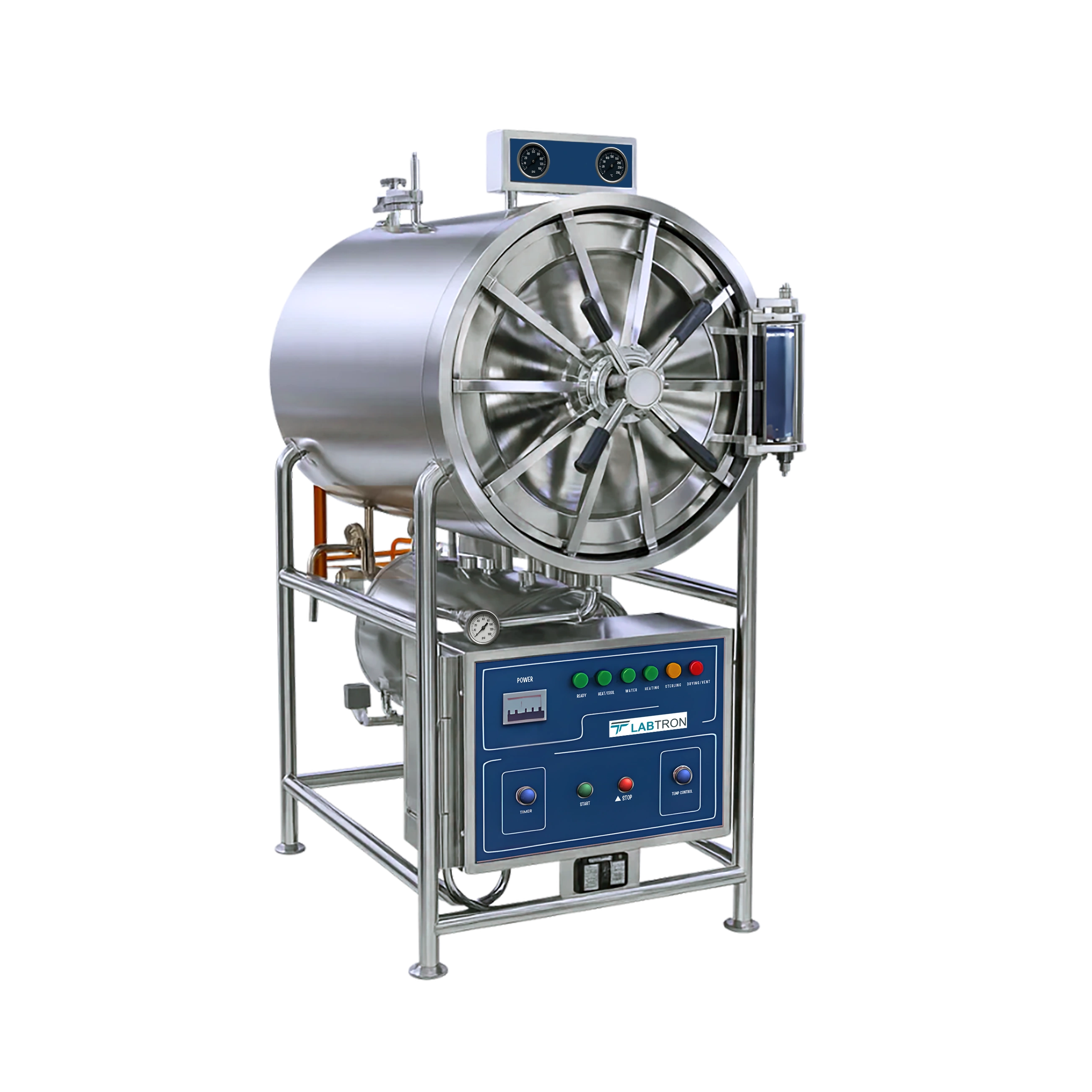

Horizontal Laboratory Autoclave LHA-G11

Horizontal Laboratory Autoclave LHA-G11

Horizontal Laboratory autoclave LHA-G11 is a cylindrical oriented autoclave with a capacity of 200 L. Fully automatic computer controlled system with a sterilizing temperature of 134 °C and heat resistant silicon rubber to prevent steam leakage. Automatic open of jacket and chamber valve incase the door is opened during the operation to prevent damage to the unit. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure.

Horizontal Laboratory Autoclave LHA-G11

Horizontal Laboratory Autoclave LHA-G11

Horizontal Laboratory Autoclave LHA-G11

Horizontal Laboratory Autoclave LHA-G11

Request Quote

Capacity	200 L
Sterilization Temperature	134 °C
Sterilization Pressure	0.22 Mpa
Timer Range	0 - 60 minutes
Heat Average	≤ ± 2 ℃
Chamber Dimensions ( Φ × D )	515 × 1000 mm
Product Dimension ( L × W × H )	1400×670×1650mm
Net Weight	260 kg
Gross Weight	350 kg
Power Supply	9 kW / 220 V 50 Hz

Digital LCD display to monitor working status and parameters
Working pressure : 0.22 MPa
Working temperature : 134 ℃
Automated drying function
Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
Self-inflating leak proof chamber
Safe door lock system ensuring safety / protection during sterilization
Automatic power cut off with alarm with low water levels indication

Horizontal autoclave is widely used in pharmaceuticals, medical & clinical research laboratories, and life science industry to sterile material to be used and also to sterile the waste before discarding.

Download catalog for
Horizontal Laboratory Autoclave LHA-G11 Catalog

Available Range :

Horizontal Laboratory Autoclave LHA-K10 : 100 L Horizontal Laboratory Autoclave LHA-F17 : 10000L Horizontal Laboratory Autoclave LHA-J10 : 100L Horizontal Laboratory Autoclave LHA-D18 : 120 L Horizontal Laboratory Autoclave LHA-D14 : 1200 L Horizontal Laboratory Autoclave LHA-D20 : 150 L Horizontal Laboratory Autoclave LHA-D15 : 1500 L Horizontal Laboratory Autoclave LHA-D21 : 1500L Horizontal Laboratory Autoclave LHA-B15 : 150L Horizontal Laboratory Autoclave LHA-I14 : 180 L Horizontal Laboratory Autoclave LHA-B11 : 200 L Horizontal Laboratory Autoclave LHA-D16 : 2000 L Horizontal Laboratory Autoclave LHA-I16 : 2000L Horizontal Laboratory Autoclave LHA-B18 : 200L Horizontal Laboratory Autoclave LHA-D10 : 250 L Horizontal Laboratory Autoclave LHA-B12 : 280 L Horizontal Laboratory Autoclave LHA-A10 : 300 L Horizontal Laboratory Autoclave LHA-B19 : 300L Horizontal Laboratory Autoclave LHA-D11 : 360 L Horizontal Laboratory Autoclave LHA-B13 : 400 L Horizontal Laboratory Autoclave LHA-A11 : 500 L Horizontal Laboratory Autoclave LHA-B20 : 500L Horizontal Laboratory Autoclave LHA-I10 : 60 L Horizontal Laboratory Autoclave LHA-D12 : 600 L Horizontal Laboratory Autoclave LHA-I11 : 80 L Horizontal Laboratory Autoclave LHA-D13 : 800 L Horizontal Laboratory Autoclave LHA-I20 : 90 L

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-D24

Horizontal Laboratory Autoclave LHA-D24

Chamber Capacity : 200 Liters
Door Type : Single Door
Control System : PLC + HMI + Built-in Printer
Display : 7.0-inch Color Touchscreen

Compare Remove

Horizontal Laboratory Autoclave LHA-B12

Horizontal Laboratory Autoclave LHA-B12

Capacity : 280 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 MPa
Timer Range : 0 - 60 minutes

Compare Remove

Horizontal Laboratory Autoclave LHA-I15

Horizontal Laboratory Autoclave LHA-I15

Capacity : 120 L
Working Temperature Range : 105 ℃ to 139 ℃
Sterilization Temperature : 150 ℃
Sterilization Pressure : -0.1/0.3Mpa

Compare Remove

Horizontal Laboratory Autoclave LHA-K12

Horizontal Laboratory Autoclave LHA-K12

Capacity : 150 L
Design Pressure : -0.1 / 0.25 MPa
Max Working Pressure : 0.23 MPa
Design Temperature : 139°C

Compare Remove

Horizontal Laboratory Autoclave LHA-H13

Horizontal Laboratory Autoclave LHA-H13

Capacity : 300 L
Working Pressure : 0 to 0.22 MPa
Working Temperature : 134 °C
Temperature Range : 0 to 134 °C

Compare Remove

Horizontal Laboratory Autoclave LHA-K13

Horizontal Laboratory Autoclave LHA-K13

Capacity : 150 L
Design Pressure : -0.1 / 0.25 MPa
Max Working Pressure : 0.23 MPa
Design Temperature : 139°C

Compare Remove

Horizontal Laboratory Autoclave LHA-F11

Horizontal Laboratory Autoclave LHA-F11

Capacity : 360 L
Sterilization Temperature : 139 °C
Sterilization Pressure : 0.25MPa
Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 20 kg

Compare Remove

Horizontal Laboratory Autoclave LHA-D11

Horizontal Laboratory Autoclave LHA-D11

Capacity : 360 L
Design Temperature : 150 ℃
Temperature Uniformity : ±1 ℃
Max. Working Temperature : 139 ℃

Compare Remove

Horizontal Autoclave:
Horizontal Laboratory Autoclave LHA-D24, Horizontal Laboratory Autoclave LHA-B12, Horizontal Laboratory Autoclave LHA-I15, Horizontal Laboratory Autoclave LHA-K12, Horizontal Laboratory Autoclave LHA-H13, Horizontal Laboratory Autoclave LHA-K13, Horizontal Laboratory Autoclave LHA-F11, Horizontal Laboratory Autoclave LHA-D11, and more.
