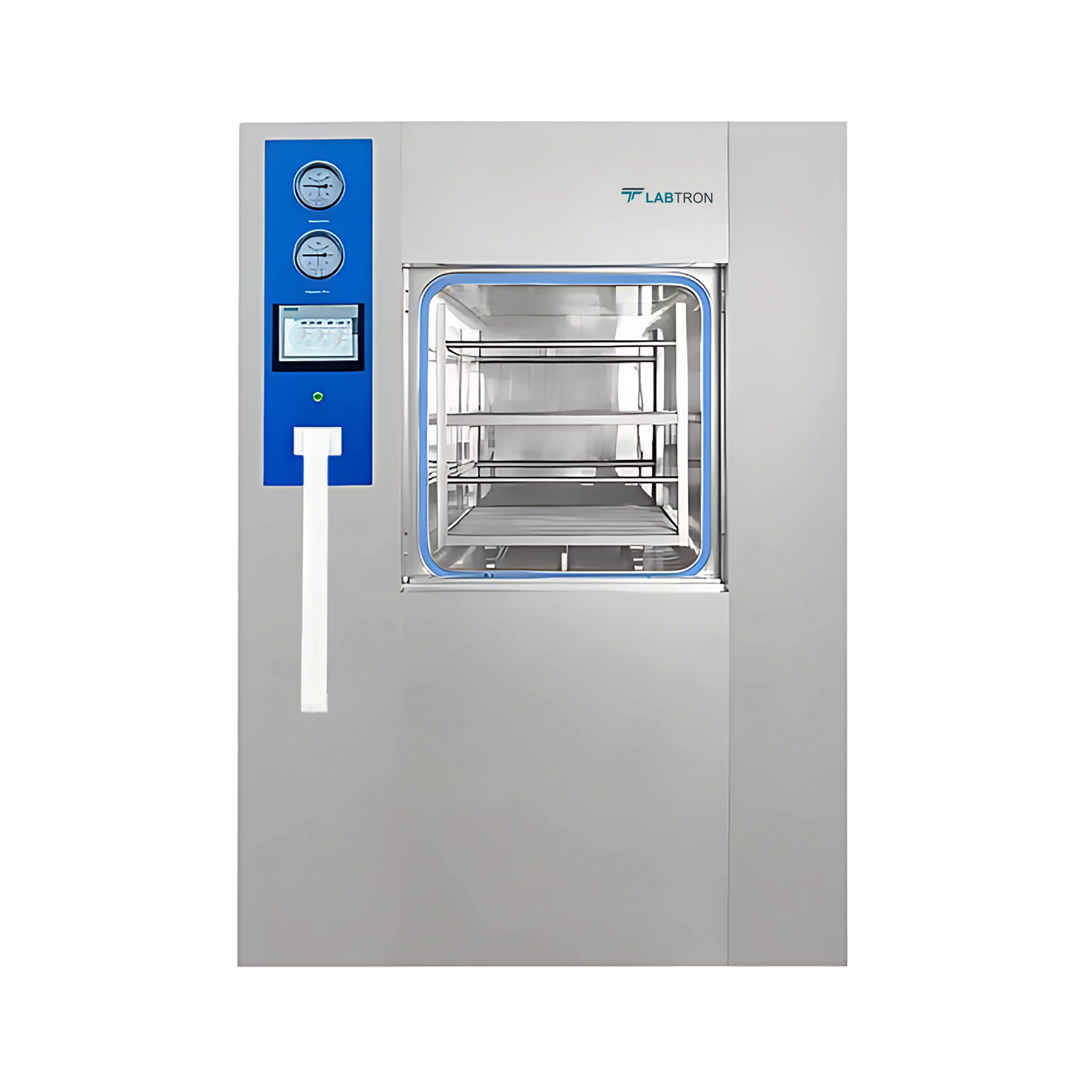

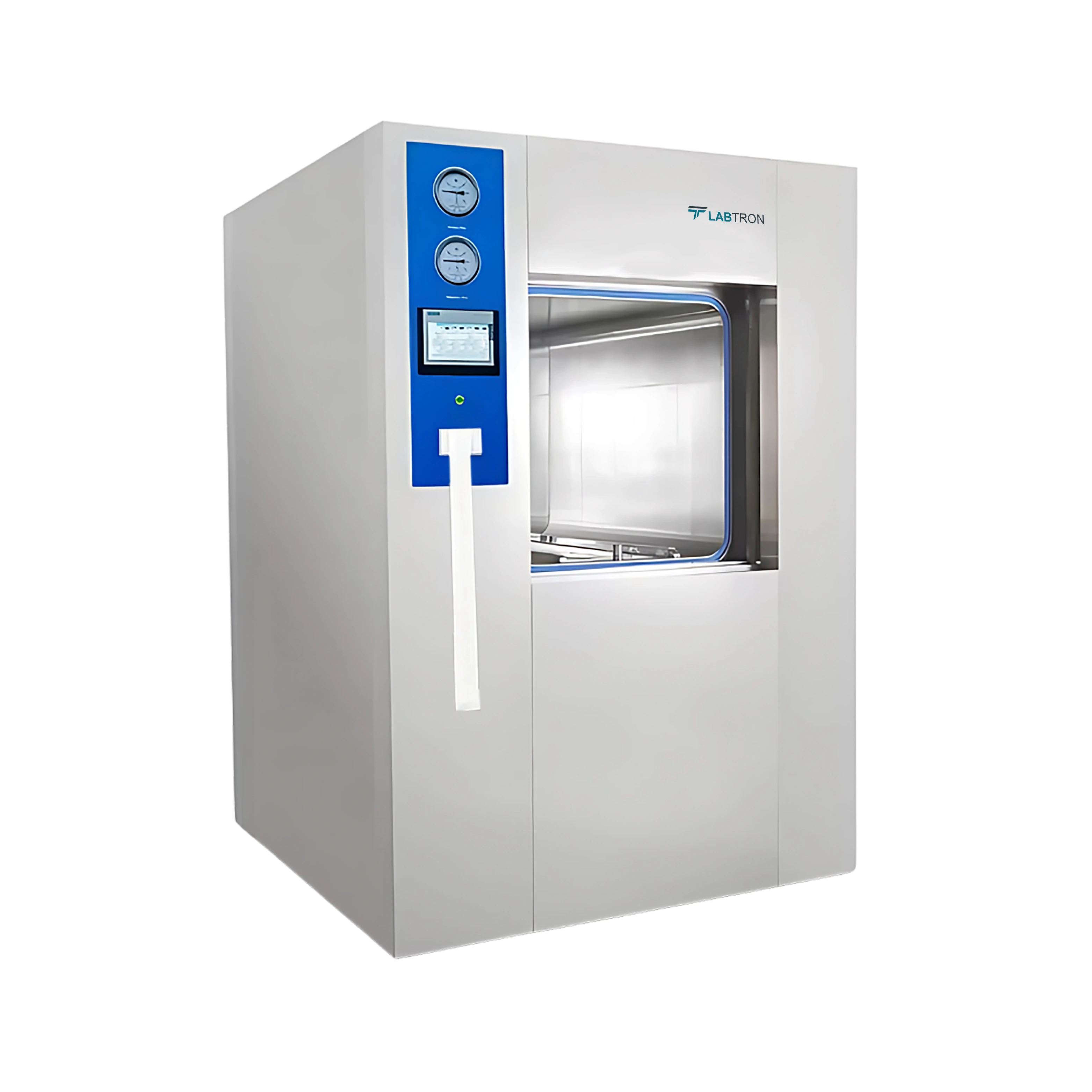

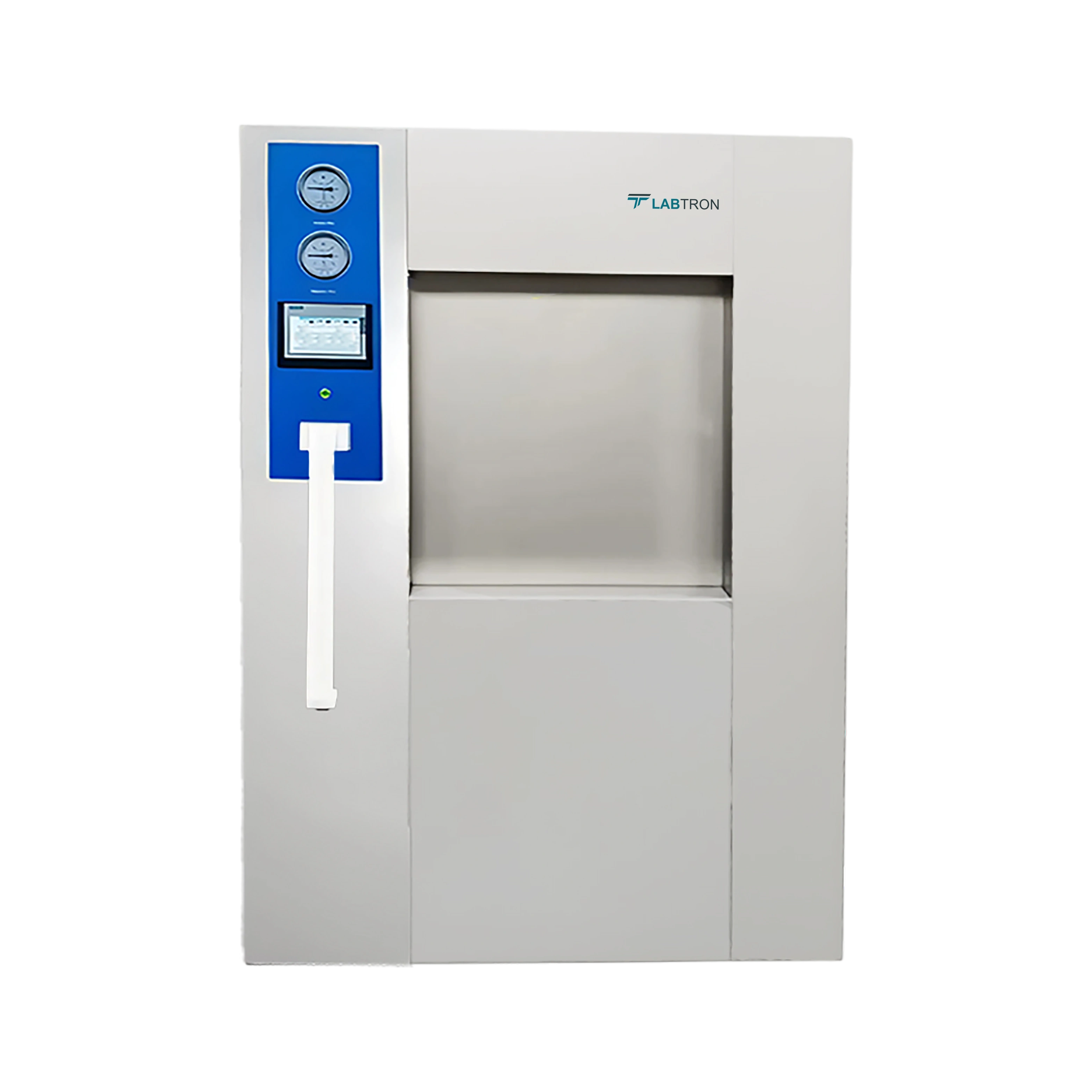

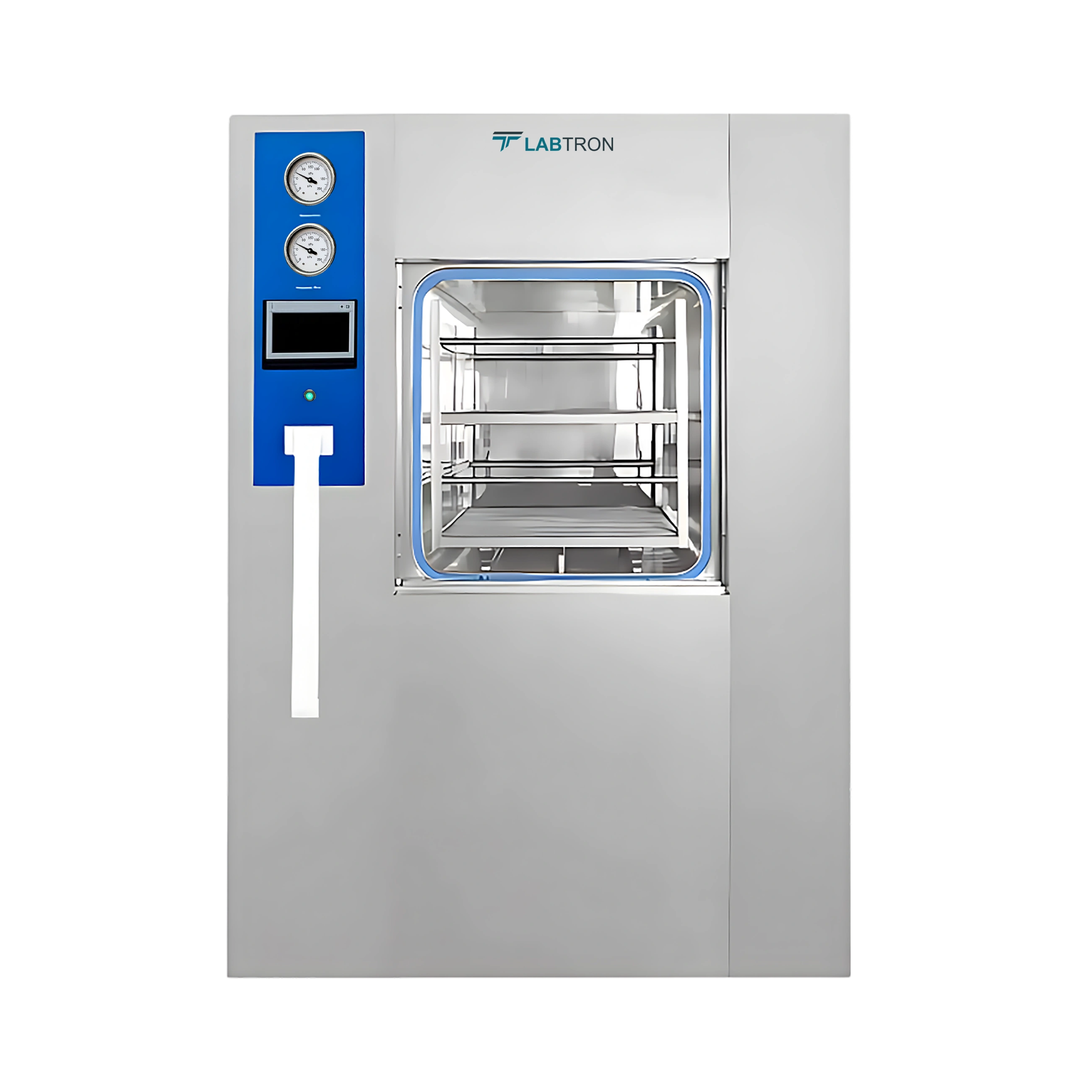

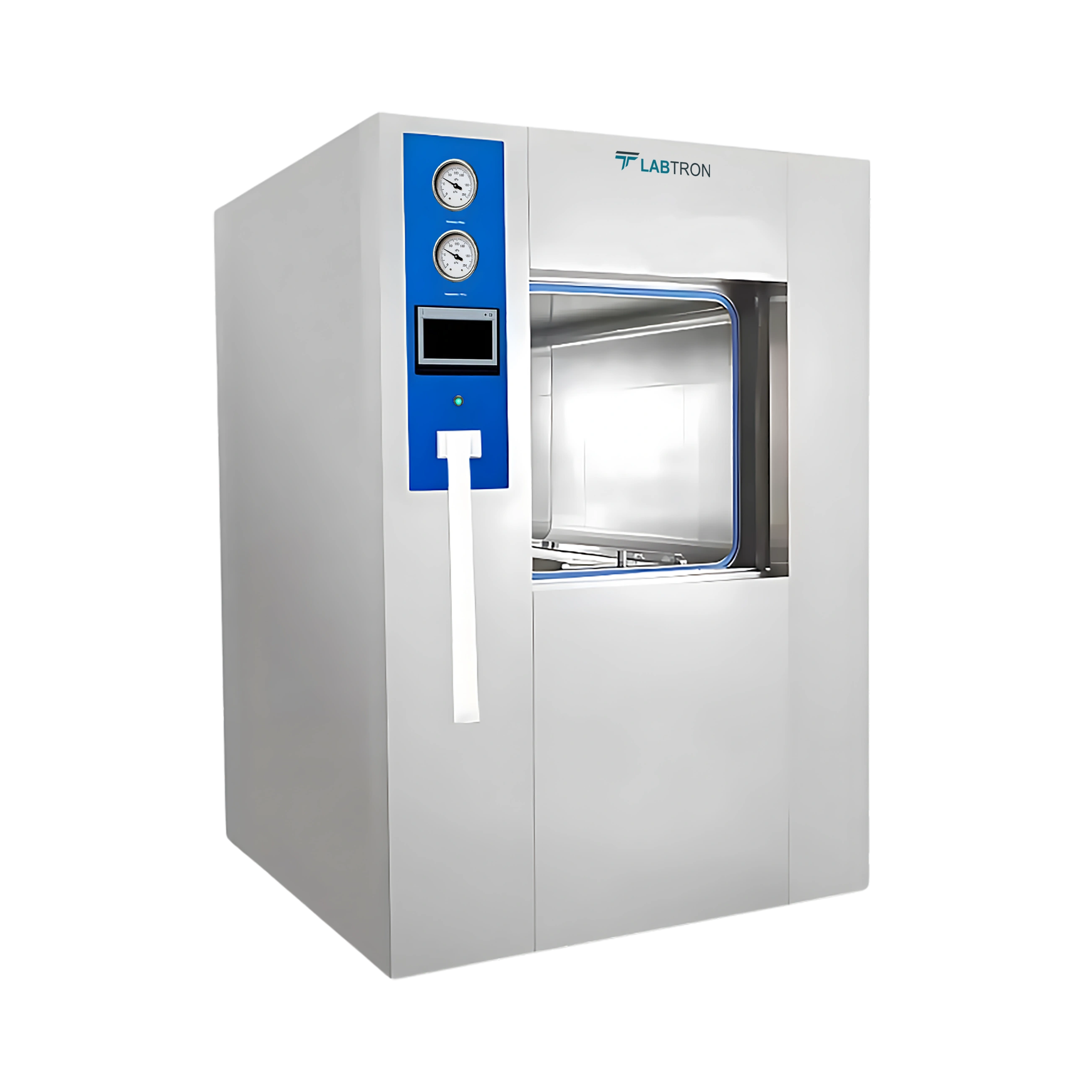

Horizontal Autoclave LHA-I15

Horizontal Autoclave LHA-I15

Horizontal Autoclave LHA-I15 is a Class B single-door autoclave that operates within a temperature range of 105℃ to 139℃. It boasts a capacity of 120 Liters and features a built-in feeding pump along with a water tank. It utilizes saturated steam for disinfection and sterilization, employing electric heating as its heating method. Equipped with standard GMP verification port and incorporated Flawless fault information prompt with self-diagnostic capabilities.

Request Quote
Capacity 120 L
Working Temperature Range 105 ℃ to 139 ℃
Sterilization Temperature 150 ℃
Sterilization Pressure -0.1/0.3Mpa
Working Pressure Range 0 to 0.25Mpa
Vacuum Rate -97Kpa
Safety Valve Open Pressure 0.28Mpa
Steam Pressure 0.3 to 0.6Mpa
Water Pressure 0.15 to 0.3MPa
Compressed Air Pressure 0.4MPa to 0.7MPa
Sterilization Time Range 0 to 999 min
Drying Time Range 0 to 999 min
Temperature Control Accuracy ≤ ± 0.2℃
Temperature Equilibrium ≤ ±0.5
Door Number Single Door
Door Type Automatic vertical sliding door
Vacuum System Liquid ring vacuum pump, pre-vacuum, and post-vacuum pump
Control System PLC + HMI + Printer
Sterilization Programs (Additional) Gravity program
High vacuum program
User-defined cycle
Vacuum test
Fast program
Auxiliary program
Manual control /Automatic control
Display 7- inch Colour touch screen
Steam Consumption 10 kg/cycle
Water Consumption 70 kg/cycle
Power Consumption 14Kw
Power Supply 220V/380V, 50Hz/60Hz
Chamber Dimensions (L × W × H) 450 × 450 × 650mm
Dimensions (L × W × H) 1190 × 1700 × 1000mm
Weight 520 Kg
  • Equipped with Ethernet interface and USB interface
  • AISI 304 stainless steel material
  • Incorporates a built-in printer and steam generator
  • Water level detection sensor for low water cutoff
  • Mechanical pressure relief safety valve for chamber and jacket
  • Over-temperature and over-pressure protection system
  • Door safety protection alarm with Emergency stop button
  • Comprehensive fault alert system and self-diagnostic function
  • Seal door utilizes patented compressed air sealing technology
  • Drain lines feature removable filter plugs designed to prevent clogging

Horizontal Autoclave finds extensive application in CSSD, laboratories, scientific research institutions, and pharmaceutical and food industries. Suitable for unwrapped or wrapped instruments, dressings, rubber, liquids, plant instruments, porous items, and hollow items.

Shelf: 2 pcs

Remote monitoring system

Loading cart
Transfer trolley

Program Sterilization Temperature Sterilization Time Drying Time
Unwrapped instruments 134℃ 6 mins 8 mins
Wrapped instruments 134℃ 7 mins 15 mins
Textile program 134℃ 7 mins 15 mins
Implant program 134℃ 10 mins 15 mins
Liquid program 121℃ 20 mins No
Rubber 121℃ 20 mins 15 mins
Hollow 134℃ 6 mins 10 mins
Prions 134℃ 18 mins 15 mins
PCD 134℃ 3.5 mins 5 mins
Bowie-Dick test 134℃ 3.5 mins 5 min

Available Range :

Capacity : 120 L Capacity : 90 L Capacity : 60 L Capacity : 80 L Capacity : 120 L Capacity : 180 L

Related Models :

Compare Models

Model Capacity Working Temperature Range Sterilization Temperature Sterilization Pressure Working Pressure Range Vacuum Rate Safety Valve Open Pressure Steam Pressure Water Pressure Compressed Air Pressure Sterilization Time Range Drying Time Range Temperature Control Accuracy Temperature Equilibrium Door Number Door Type Vacuum System Control System Sterilization Programs (Additional) Display Steam Consumption Water Consumption Power Consumption Power Supply Chamber Dimensions (L × W × H) Dimensions (L × W × H) Weight
LHA-D18 120 L - - - - - - - - - - - - - - - - - - 7 inch LCS touch screen - - - - - - -
LHA-I20 90 L - 134 °C - - - - - - - - - - - - - - - - - - - - AC 220 V, 50 Hz - - -
LHA-I10 60 L - - - - - - - - - - - - - - - - - - Touch Screen - - - 220 V, 50 Hz - - -
LHA-I11 80 L - - - - - - - - - - - - - - - - - - Touch Screen - - - 220 V, 50 Hz - - -
LHA-I12 120 L - - - - - - - - - - - - - - - - - - Touch Screen - - - 380 V, 50 Hz - - -
LHA-I14 180 L - - - - - - - - - - - - - - - - - - Touch Screen - - - 380 V, 50 Hz - - -
LHA-D20 150 L - - - - - - - - - - - - - - - - - - - - - - - - - 550 kg
LHA-A11 500 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 16 kW / AC 220 V 50 Hz - - -
LHA-B10 150 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 9 kW / AC 380 V 50 Hz - - -
LHA-B11 200 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 9 kW / AC 220V 50 Hz - - -
LHA-B12 280 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 12 kW / AC 380 V 50 Hz - - -
LHA-B13 400 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 18 kW / AC 380 V 50 Hz - - -
LHA-B14 500 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 18 kW / AC 380 V 50 Hz - - -
LHA-D10 250 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - 26 kW - - -
LHA-D11 360 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - 26 kW - - -
LHA-D12 600 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - 36 kW - - -
LHA-D13 800 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-D14 1200 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-D15 1500 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-D16 2000 L - 139 °C 0.22MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-E10 150 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 9 kW / 380 V 50 Hz - - -
LHA-E11 200 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 9 kW / 220 V 50 Hz - - -
LHA-E12 280 L - 134 °C 0.22 MPa - - - - - - - - - - - - - - - - - - - 12 kW / 380 V 50 Hz - - -
LHA-F10 250 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - 26 kW - - -
LHA-F11 360 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - 26 kW - - -
LHA-F12 600 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - 36 kW - - -
LHA-F13 800 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-F14 1200 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-F15 1500 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-F16 2000 L - 139 °C 0.25MPa - - - - - 0.6 - 0.8 MPa - - - - - - - - - - - - - - - - -
LHA-G10 150 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 9 kW / 380 V 50 Hz - - -
LHA-G11 200 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 9 kW / 220 V 50 Hz - - -
LHA-G12 280 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 12 kW / 380 V 50 Hz - - -
LHA-H11 200 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 9 kW / 380 V 50 Hz - - -
LHA-H12 280 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 12 kW / 380 V 50 Hz - - -
LHA-H10 150 L - 134 °C 0.22 Mpa - - - - - - - - - - - - - - - - - - - 9 kW / 380 V 50 Hz - - -
LHA-A10 300 L - 105 to 138 ℃ 0.3 MPa - - - - - - - - - - - - - - - - - - - - - - -
LHA-I15 120 L 105 ℃ to 139 ℃ 150 ℃ -0.1/0.3Mpa 0 to 0.25Mpa -97Kpa 0.28Mpa 0.3 to 0.6Mpa 0.15 to 0.3MPa 0.4MPa to 0.7MPa 0 to 999 min 0 to 999 min ≤ ± 0.2℃ ≤ ±0.5 Single Door Automatic vertical sliding door Liquid ring vacuum pump, pre-vacuum, and post-vacuum pump PLC + HMI + Printer Gravity program
High vacuum program
User-defined cycle
Vacuum test
Fast program
Auxiliary program
Manual control /Automatic control 		7- inch Colour touch screen 10 kg/cycle 70 kg/cycle 14Kw 220V/380V, 50Hz/60Hz 450 × 450 × 650mm 1190 × 1700 × 1000mm 520 Kg
