Name: Horizontal Laboratory Autoclave LHA-G10
Brand: Labtron
SKU: LHA-G10
Rating: 4.8 (814 reviews)

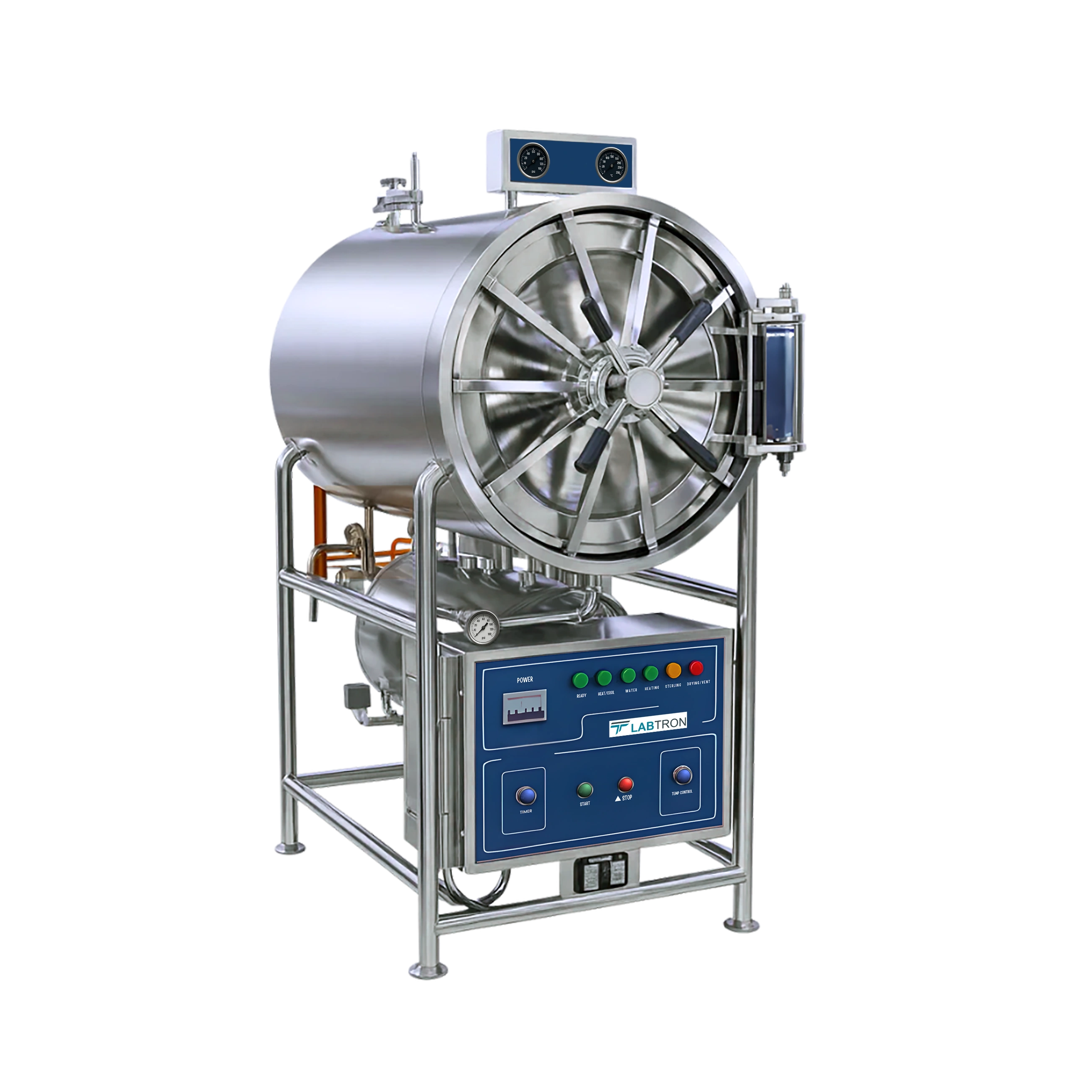

Horizontal Laboratory autoclave LHA-G10 is a cylindrical oriented autoclave with a capacity of 150 L. Fully automatic computer controlled system with a sterilizing temperature of 134 °C and heat resistant silicon rubber to prevent steam leakage. Automatic open of jacket and chamber valve incase the door is opened during the operation to prevent damage to the unit. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure.

Request Quote

Capacity	150 L
Sterilization Temperature	134 °C
Sterilization Pressure	0.22 Mpa
Timer Range	0 - 60 minutes
Heat Average	≤ ± 2 ℃
Chamber Dimensions ( Φ × D )	440 × 1000 mm
Product Dimension ( L × W × H )	1400×600×1300mm
Net Weight	240 kg
Gross Weight	320 kg
Power Supply	9 kW / 380 V 50 Hz

Digital LCD display to monitor working status and parameters
Working pressure : 0.22 MPa
Working temperature : 134 ℃
Automated drying function
Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa
Self-inflating leak proof chamber
Safe door lock system ensuring safety / protection during sterilization
Automatic power cut off with alarm with low water levels indication

Horizontal autoclave is widely used in pharmaceuticals, medical & clinical research laboratories, and life science industry to sterile material to be used and also to sterile the waste before discarding.

Download catalog for
Horizontal Laboratory Autoclave LHA-G10

Available Range :

Horizontal autoclave LHA-D18 : 120 L Horizontal Autoclave LHA-I20 : 90 L Horizontal Autoclave LHA-I10 : 60 L Horizontal Autoclave LHA-I11 : 80 L Horizontal Autoclave LHA-I12 : 120 L Horizontal Autoclave LHA-I14 : 180 L
