What temperature and pressure ranges does the Horizontal Laboratory Autoclave LHA-D26 operate within?

The LHA-D26 operates efficiently within a working temperature range of 105°C to 139°C, with a design temperature of up to 150°C. Its working pressure range is 0 to 0.25 MPa, while the design pressure spans from –0.1 MPa to 0.5 MPa. These wide ranges enable the autoclave to accommodate various sterilization requirements across different load types and conditions.

What control and display systems are used in the Horizontal Laboratory Autoclave LHA-D26?

The Horizontal Laboratory Autoclave LHA-D26 features an advanced PLC (Programmable Logic Controller) and HMI (Human Machine Interface) control system for precise monitoring and automation. The autoclave is equipped with a 7.0-inch color touchscreen display that allows users to control sterilization parameters easily, monitor cycle status in real time, and print sterilization records with the built-in printer.

How does the vacuum system in the Horizontal Laboratory Autoclave LHA-D26 enhance sterilization performance?

Horizontal Laboratory Autoclave LHA-D26 is equipped with a liquid ring vacuum pump that supports both pre-vacuum and post-vacuum cycles. The vacuum rate reaches –97 kPa, ensuring efficient air removal before steam injection and effective drying after sterilization. This feature enhances sterilization quality, especially for porous loads and hollow instruments, by improving steam penetration and ensuring complete drying.

How energy- and resource-efficient is the Horizontal Laboratory Autoclave LHA-D26 during its operation?

The LHA-D26 is engineered for resource efficiency without compromising performance. Each sterilization cycle consumes approximately 16 kg of steam and 120 kg of water, while the power consumption is 22 kW. These values reflect a balanced design that prioritizes both high sterilization output and optimized utility usage, helping facilities manage operational costs effectively.

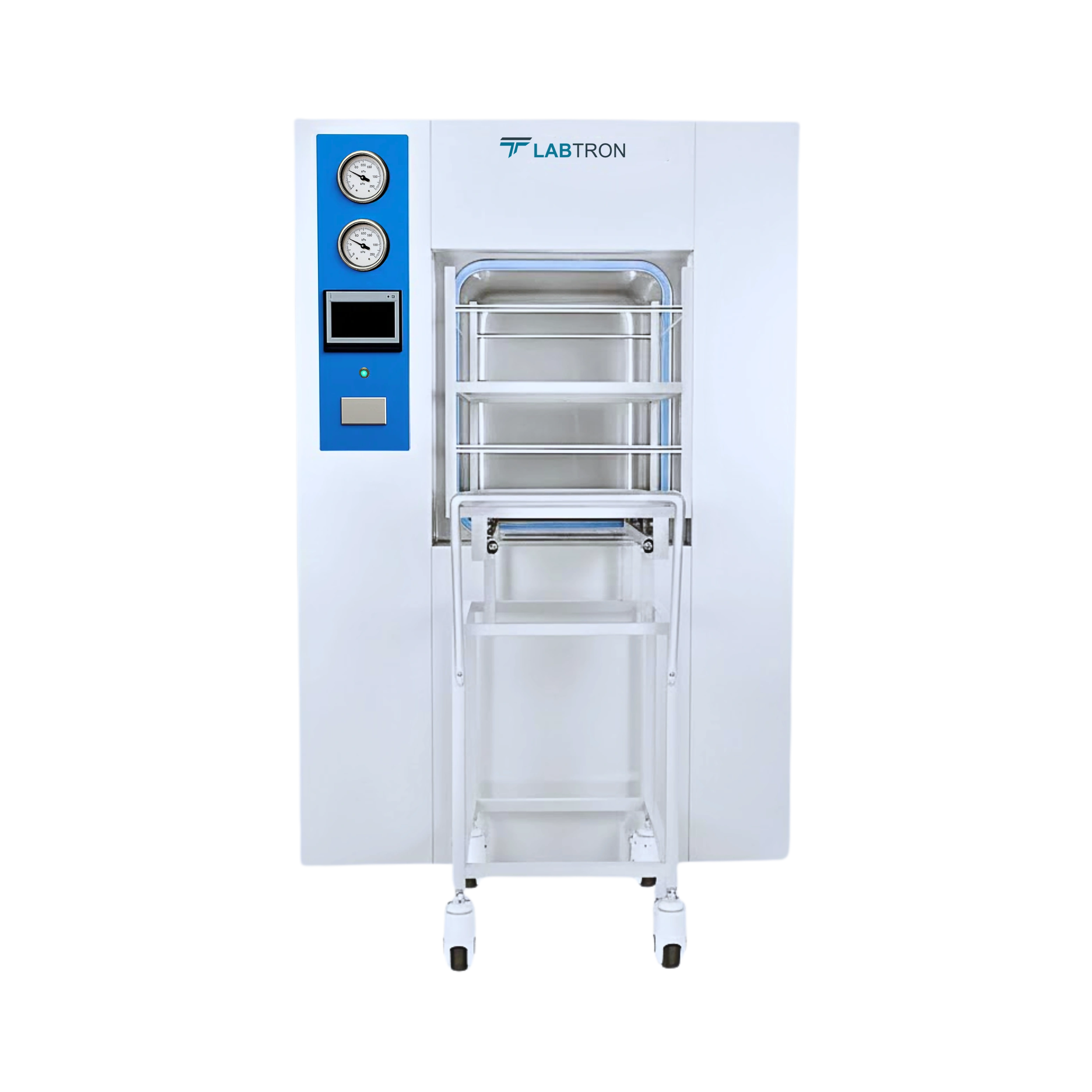

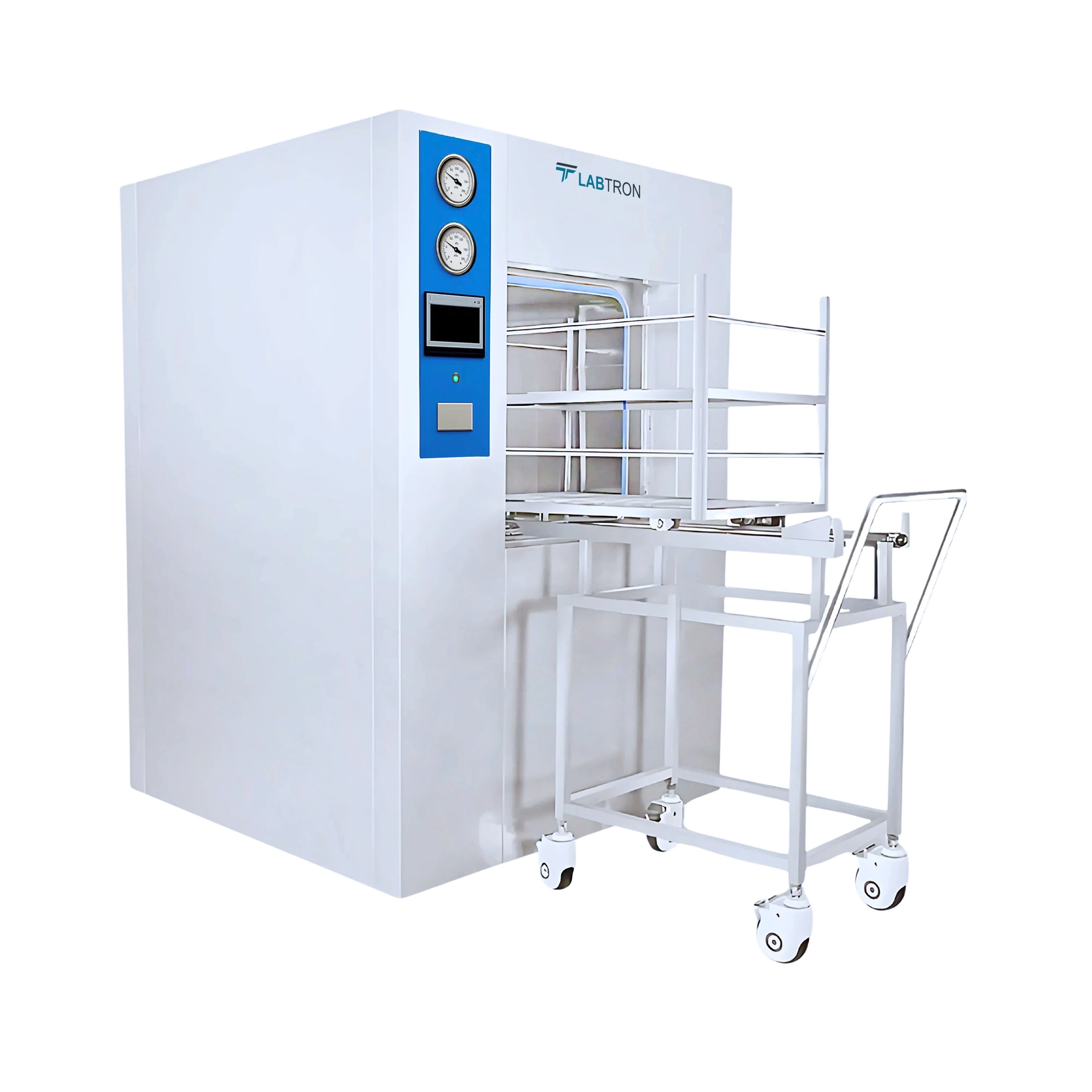

Horizontal Laboratory Autoclave LHA-D26

Name: Horizontal Laboratory Autoclave LHA-D26
Brand: Labtron
SKU: LHA-D26
Rating: 4.9 (836 reviews)

Horizontal Laboratory Autoclave LHA-D26 features a spacious 250-liter chamber with a durable single-door design. It is designed to operate within a pressure range of 0 to 0.25 MPa and a temperature range of 105°C to 139°C. Its liquid ring vacuum pump system provides efficient pre- and post-vacuum phases for enhanced sterilization of porous and hollow items. With a steam consumption and water consumption per cycle, this autoclave balances performance with resource efficiency.

Request Quote

Chamber Capacity	250 Liters
Door Type	Single Door
Control System	PLC + HMI + Built-in Printer
Display	7.0-inch Color Touchscreen
Design Pressure	– 0.1 / 0.5 MPa
Working Pressure Range	0 to 0.25 MPa
Safety Valve Opening Pressure	0.28 MPa
Design Temperature	150°C
Working Temperature Range	105°C to 139°C
Temperature Control Accuracy	Up to ± 0.2°C
Temperature Display Accuracy	0.1°C
Temperature Equilibrium	Up to ± 0.5°C
Sterilization Time Range	0 to 999 min
Drying Time Range	0 to 999 min
Vacuum Rate	– 97 kPa
Vacuum System	Liquid Ring Vacuum Pump (Pre & Post)
Steam Consumption per Cycle	16 kg
Water Consumption per Cycle	120 kg
Power Consumption	22 kW
Chamber Size (W × D × H)	550 × 550 × 850 mm
Outer Dimensions (W × D × H)	1290 × 1850 × 1200 mm
Packing Dimension	1450 × 2050 × 1390 mm
Net Weight	750 kg
Gross Weight	950 kg

Large Chamber Capacity
Advanced Control System
User-Friendly Interface
High Sterilization Precision
Wide Operating Ranges
Efficient Vacuum System
Flexible Timing Options
Robust Safety Measures
Efficient Resource Use
Durable Design
Compact Footprint

Our Horizontal Laboratory Autoclave LHA-D26 is suitable for sterilizing a variety of materials including unwrapped or wrapped instruments, surgical tools, glassware, rubber items, liquids, culture media, porous loads, and hollow instruments.

Air Compressor

Download catalog for
Horizontal Laboratory Autoclave LHA-D26 Catalog

Available Range :

Horizontal Laboratory Autoclave LHA-D23 : 150 Liters Horizontal Laboratory Autoclave LHA-D24 : 200 Liters Horizontal Laboratory Autoclave LHA-D26 : 250 Liters Horizontal Laboratory Autoclave LHA-D28 : 360 Liters Horizontal Laboratory Autoclave LHA-D30 : 400 Liters Horizontal Laboratory Autoclave LHA-D32 : 450 Liters Horizontal Laboratory Autoclave LHA-D34 : 600 Liters Horizontal Laboratory Autoclave LHA-D36 : 800 Liters

Horizontal Laboratory Autoclave LHA-D26 | Temperature Control Accuracy: Up to ± 0.2°C | Working Pressure Range: 0 to 0.25 MPa

Horizontal Laboratory Autoclave LHA-D26 | Flexible Timing Options | Advanced Control System

Models of Horizontal Autoclave

Labtron Horizontal Autoclave features side-loading capability with capacities ranging from 50 L to 2000 L. Their integrated steam generators provide a steady supply of sterilization vapors at temperatures from 105℃ to 150℃. Equipped with gauges for precise pressure monitoring and a display for checking pressure. The doors are safely interlocked, preventing accidental opening during operation. These Horizontal Autoclave efficiently sterilize medical and laboratory equipment by eliminating harmful microbes.

Horizontal Laboratory Autoclave LHA-J10

Capacity : 100L
Sterilization Temperature : 134℃
Working Pressure : 0 to 0.22Mpa
Timer Range : 0 to 99 min

Compare Remove

Horizontal Laboratory Autoclave LHA-D29

Chamber Capacity : 360 Liters
Door Type : Double Door
Control System : PLC + HMI + Built-in Printer
Display : 7.0-inch Color Touchscreen

Compare Remove

Horizontal Laboratory Autoclave LHA-I13

Capacity : 150 L
Designed Temperature : 150℃
Maximum Working Temperature : 139℃
Inner Chamber Pressure : -0.1 to 0.3 MPa

Compare Remove

Horizontal Laboratory Autoclave LHA-A10

Capacity : 300 L
Sterilization Temperature : 105 to 138 ℃
Maximum Temperature : 138 ℃
Temperature uniformity : ≤ ± 0.5 ℃

Compare Remove

Horizontal Laboratory Autoclave LHA-H13

Capacity : 300 L
Working Pressure : 0 to 0.22 MPa
Working Temperature : 134 °C
Temperature Range : 0 to 134 °C

Compare Remove

Horizontal Laboratory Autoclave LHA-B14

Capacity : 500 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 MPa
Timer Range : 0 - 60 minutes

Compare Remove

Horizontal Laboratory Autoclave LHA-I20

Capacity : 90 L
Sterilization Temperature : 134 °C
Working Pressure : 0.22 MPa
Timer Range : 0 to 99 min

Compare Remove

Horizontal Laboratory Autoclave LHA-D18

Capacity : 120 L
Working temperature : 105 °C to 134 °C
Sterilization temperature : 139 °C
Sterilization pressure : 0.245 MPa

Compare Remove

Horizontal Laboratory Autoclave LHA-D26 FAQ's

The Horizontal Laboratory Autoclave LHA-D26 is designed with a spacious 250-liter chamber, making it suitable for handling a wide range of sterilization loads. It can sterilize unwrapped and wrapped instruments, surgical tools, glassware, rubber items, liquids, culture media, porous materials, and hollow instruments. Its large volume and versatile sterilization capability make it ideal for use in laboratories, hospitals, research institutions, and pharmaceutical environments.
The LHA-D26 operates efficiently within a working temperature range of 105°C to 139°C, with a design temperature of up to 150°C. Its working pressure range is 0 to 0.25 MPa, while the design pressure spans from –0.1 MPa to 0.5 MPa. These wide ranges enable the autoclave to accommodate various sterilization requirements across different load types and conditions.
The Horizontal Laboratory Autoclave LHA-D26 features an advanced PLC (Programmable Logic Controller) and HMI (Human Machine Interface) control system for precise monitoring and automation. The autoclave is equipped with a 7.0-inch color touchscreen display that allows users to control sterilization parameters easily, monitor cycle status in real time, and print sterilization records with the built-in printer.
Horizontal Laboratory Autoclave LHA-D26 is equipped with a liquid ring vacuum pump that supports both pre-vacuum and post-vacuum cycles. The vacuum rate reaches –97 kPa, ensuring efficient air removal before steam injection and effective drying after sterilization. This feature enhances sterilization quality, especially for porous loads and hollow instruments, by improving steam penetration and ensuring complete drying.
The LHA-D26 is engineered for resource efficiency without compromising performance. Each sterilization cycle consumes approximately 16 kg of steam and 120 kg of water, while the power consumption is 22 kW. These values reflect a balanced design that prioritizes both high sterilization output and optimized utility usage, helping facilities manage operational costs effectively.
