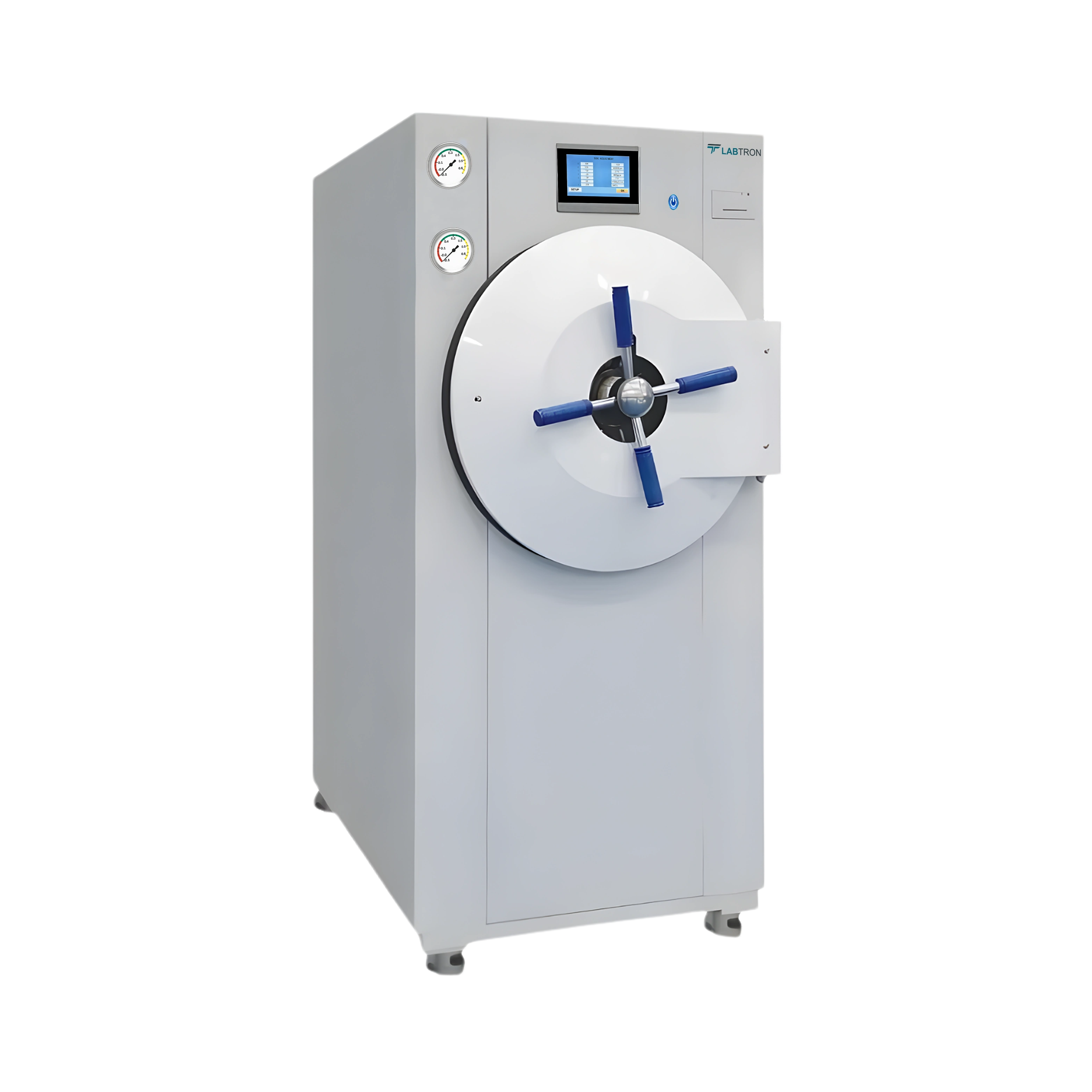

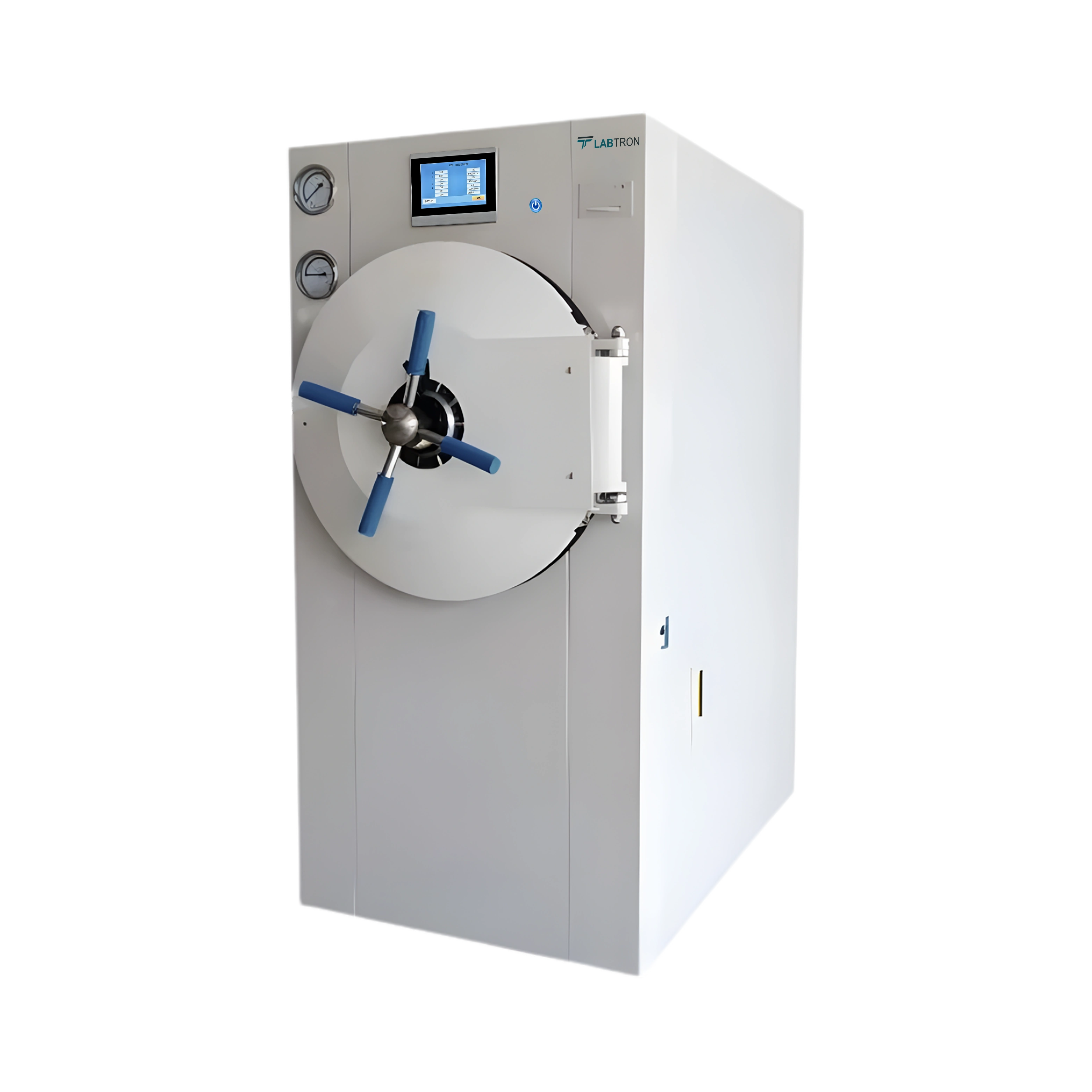

Horizontal Laboratory Autoclave LHA-K12

The Horizontal Laboratory Autoclave LHA-K12 is engineered for medium-volume sterilization in laboratory, medical, and research settings. Its 150-liter chamber capacity allows efficient sterilization of a wide range of materials such as glassware, instruments, culture media, and laboratory waste. Key features include a high working temperature range (105°C to 136°C), accurate temperature control (±0.1°C), and a robust stainless-steel sterilization tray. The integrated PLC control system with a 7-inch LCD touch screen provides user-friendly operation, while the built-in steam generator and vacuum system ensure thorough and reliable sterilization and drying cycles. Energy-efficient design and compact dimensions further enhance its usability in space-constrained environments.

The PLC (Programmable Logic Controller) combined with an HMI (Human-Machine Interface) in the Horizontal Laboratory Autoclave LHA-K12 offers intelligent and highly customizable control. Users can program sterilization parameters such as temperature, pressure, and time, ensuring precise operation for various types of loads. The 7-inch LCD color touchscreen interface displays real-time cycle progress, error messages, and system status, making it easier to monitor and adjust settings. This advanced control setup improves process consistency, traceability (thanks to the built-in printer), and user experience, particularly in regulated or high-demand environments such as hospitals and pharmaceutical labs.

The Horizontal Laboratory Autoclave LHA-K12 employs both pre-vacuum and post-vacuum systems to ensure effective air removal before sterilization and moisture removal after the process. This technique enables deeper steam penetration and faster, more thorough drying, particularly for porous and hollow loads. The vacuum drying function ensures instruments and materials come out dry, reducing the risk of corrosion and contamination. Additionally, the sterilization time is adjustable from 0 to 99 minutes, and the drying time can also be customized up to 99 minutes, offering flexibility for different sterilization requirements.

Yes, the Horizontal Laboratory Autoclave LHA-K12 is designed with energy efficiency in mind. It operates on 380V (50/60Hz) and consumes 10 kW of power, which is considered optimal for mid-capacity autoclaves offering both performance and cost-effectiveness. The integration of a built-in steam generator and insulated chamber ensures minimal energy loss. Its durable build and automated control system support continuous operation with minimal downtime, making it suitable for high-throughput environments such as research institutions, diagnostic labs, and hospital sterilization units.

The Horizontal Laboratory Autoclave LHA-K12 is versatile in its application and can effectively sterilize a wide variety of items, including surgical instruments, laboratory glassware, culture media, textiles, rubber products, and medical waste. The high pressure (up to 0.23 MPa) and working temperature range (105°C to 136°C) enable the sterilization of even heat-resistant and dense materials. Its vacuum-assisted cycle ensures air is completely removed from the chamber and load, making it ideal for sterilizing wrapped, hollow, and porous items that require complete steam penetration.
