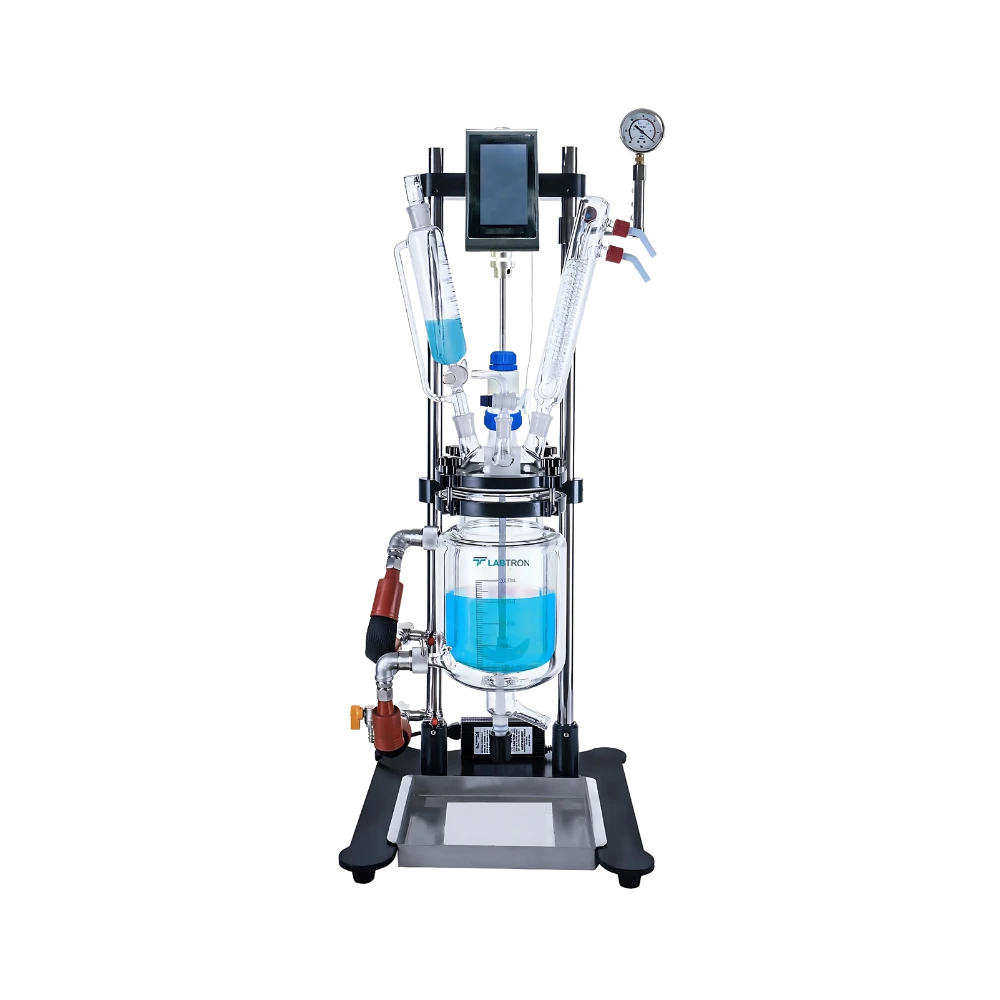

Jacketed Glass Reactor LJGR-A13

Jacketed Glass Reactor LJGR-A13

Jacketed Layer Glass Reactor LJGR-A13 has a 5 L cylindrical vessel suitable for laboratory procedures requiring controlled thermal environments. It maintains operational consistency during extended use, making it suitable for time-intensive processes. The unit supports a wide temperature range, enabling use in thermally demanding applications. Our Glass Reactor is ideal for research involving synthesis, distillation, and concentration across laboratories.

Request Quote
Glass Vessel Volume 5 L, Cylindrical
Glass Vessel Lid Diameter Φ 205 mm
Jacketed Volume 800 ml
Time Range 0 to 99 hr 59 min
Temperature Range -80℃ to 250℃
Temperature Measurement Accuracy ±1℃
Stirring Speed 50 to 1100 rpm
Vacuum Degree 0.0098 MPa
Display Stirring Speed, Timer, Temperature
HS Code 8419899090
Power Consumption 120 W
Power Supply 220V/50Hz
Dimensions (W×D×H) 450 × 450 × 1200 mm
Packaging Dimensions 1170 × 470 × 550 mm
Net Weight 30 kg
Gross Weight 50 kg
  • Corrosion-resistant structural design

  • Digital interface with controls

  • Reinforced support frame setup

  • Low-noise stirring mechanism

  • Compatible with varied chemicals

Our Jacketed Layer Glass Reactor LJGR-A13 is ideal for synthesis, distillation, and concentration under controlled temperature and vacuum. Suitable for lab-scale R&D work.

Accessory NameQuantity
Fixed Frame1 Set
Machine Head1 Set
Vacuum Gauge1 Piece
Reactor Body, Reactor Lid1 Set
Condenser1 Piece
Constant-Pressure Funnel1 Piece
Bleed Valve1 Piece
Plug1 Piece
Nozzle1 Piece
Temperature Sensor1 Piece
Drain Valve1 Set
Stirring Rod1 Piece
Spare Parts (Fuse, O-ring, Wrenches, Jackscrew)1 Set
AccessoryQuantity
Thermal Insulation Jacket1 pc
Stirring Paddle1 pc

Models of Jacketed Glass Reactor

Jacketed Glass Reactor supports controlled mixing with adjustable stirring speed, ensuring consistent reaction dynamics in varied experiments. They maintain thermal stability using a jacketed layer for fluid circulation without exposing the medium. Their borosilicate glass build withstands thermal stress and chemical exposure over time. These systems include a display panel for monitoring key parameters during operation. Our glass reactor is suited for synthesis, distillation, extraction, crystallization, and pharmaceutical development.

Jacketed Glass Reactor LJGR-B27

Jacketed Glass Reactor LJGR-B27

  • Glass Vessel volume : 100L
  • Receiving Bottle : 20000ml
  • Glass Vessel Flange : Φ285mm
  • OD of Glass vessel opening : Φ338mm
Jacketed Glass Reactor LJGR-A29

Jacketed Glass Reactor LJGR-A29

  • Glass Vessel Volume : 10 L Cylindrical
  • Glass Vessel Lid Diameter : Φ 265 mm
  • Jacketed Volume : 3000 ml
  • Dropping Funnel : 1000 ml
Jacketed Glass Reactor LJGR-A47

Jacketed Glass Reactor LJGR-A47

  • Glass Vessel Volume : 2 L Cylindrical
  • Dropping Funnel Volume : 200 ml
  • Dropping Funnel Interface : 24/29
  • Glass Vessel Flange : Φ 105 mm
Jacketed Glass Reactor LJGR-A15
Jacketed Glass Reactor LJGR-A15
  • Glass Vessel Volume : 2 L Cylindrical
  • Glass Vessel Lid Diameter : Φ 150 mm
  • Jacketed Volume : 250 ml
  • Dropping Funnel : 250 ml
Jacketed Glass Reactor LJGR-A32
Jacketed Glass Reactor LJGR-A32
  • Glass Vessel Volume : 50 L Cylindrical
  • Glass Vessel Lid Diameter : Φ 265 mm
  • Jacketed Volume : 7000 ml
  • Dropping Funnel : 1000 ml
Jacketed Glass Reactor LJGR-A24

Jacketed Glass Reactor LJGR-A24

  • Glass Vessel Volume : 30 L Cylindrical
  • Glass Vessel Lid Diameter : Φ 265 mm
  • Jacketed Volume : 9000 ml
  • Dropping Funnel : 2000 ml
Jacketed Glass Reactor LJGR-B15

Jacketed Glass Reactor LJGR-B15

  • Glass Vessel Volume : 30 L Cylindrical
  • Dropping Funnel Volume : 2000 mL
  • Dropping Funnel Interface : 40/38
  • Glass Vessel Flange : Φ 215 mm
Jacketed Glass Reactor LJGR-A41

Jacketed Glass Reactor LJGR-A41

  • Glass Vessel Volume : 5 L Cylindrical
  • Glass Vessel Lid Diameter : Φ 205 mm
  • Jacketed Volume : 800 ml
  • Dropping Funnel : 50 ml

Jacketed Glass Reactor LJGR-A13 FAQ's
  • Our Jacketed Layer Glass Reactor is built to remain consistent throughout prolonged usage in research labs. It operates smoothly over extended periods without losing thermal control or mixing uniformity. This durability helps reduce downtime during complex, multi-stage processes. The equipment’s stability across long experiment cycles keeps results dependable. Reaction stages can progress without needing to pause for recalibration or adjustments. That allows teams to work continuously with fewer disruptions. Its steady performance simplifies the workflow in repetitive synthesis tasks. This saves researchers both time and procedural resources.

  • The Jacketed Layer Glass Reactor is engineered with operator protection in mind, especially during chemical operations involving heat or vacuum. Its enclosed system structure reduces the chance of exposure to active compounds or vapors. This is particularly important in multi-user labs or training environments. Reactions remain stable and isolated from external disturbances throughout the process. The outer jacket design supports temperature shifts without compromising safety. Researchers don't need to intervene mid-run, lowering the chance of handling errors. That dependable containment ensures safer execution of demanding chemical tasks. It’s suited for both academic and industrial labs.

  • The Jacketed Layer Glass Reactor is highly adaptable for labs running multiple chemical workflows. Whether used for distillation, extraction, or reaction synthesis, it supports different methods without changing equipment. That flexibility allows scientists to perform diverse procedures with ease. It’s well-suited to environments where various users require different experiment setups daily. Its structure accommodates quick shifts between tasks without needing special modifications. Each process maintains clarity and control despite changing objectives. Researchers can explore cross-functional studies without logistical interruptions. The same system serves different departments without compromising results.

  • Lab environments that move from initial tests to pilot trials benefit from the Jacketed Layer Glass Reactor’s transition-ready structure. It replicates early-stage results effectively even as batch sizes increase. This consistency is useful when expanding lab findings into larger sample runs. Teams don’t need to reconfigure their approach during scaling, which saves both effort and budget. The same configuration supports both development and early production goals. There’s no need to switch to unfamiliar equipment mid-cycle. Its continued accuracy at expanded volumes helps maintain project momentum. It bridges the gap between research and scale-up seamlessly.

  • The Jacketed Layer Glass Reactor offers dependable operation even during long periods of continuous mixing. Its design resists shifting or temperature instability under mechanical movement. That means stirring remains uniform without uneven distribution of ingredients. Researchers working with time-sensitive reactions can rely on steady performance throughout. The internal flow supports even dispersion of materials regardless of viscosity. This is especially valuable during procedures requiring texture uniformity or staged blending. There’s no need to stop and manually re-balance mid-reaction. It allows smoother processing from start to finish.

  • Labtron’s Jacketed Layer Glass Reactor is constructed from materials that resist damage from strong chemical agents over time. Whether handling corrosive acids or volatile solvents, it retains structural integrity and performance. That makes it an ideal choice for researchers who repeat high-demand experiments. The reactor’s components are non-reactive and protect sample purity throughout. Users don’t need to worry about gradual wear altering experimental behavior. It also minimizes cross-contamination during process changes. Its resilience supports heavy use across various compound categories. This extends the equipment’s value well beyond single-use cycles.
