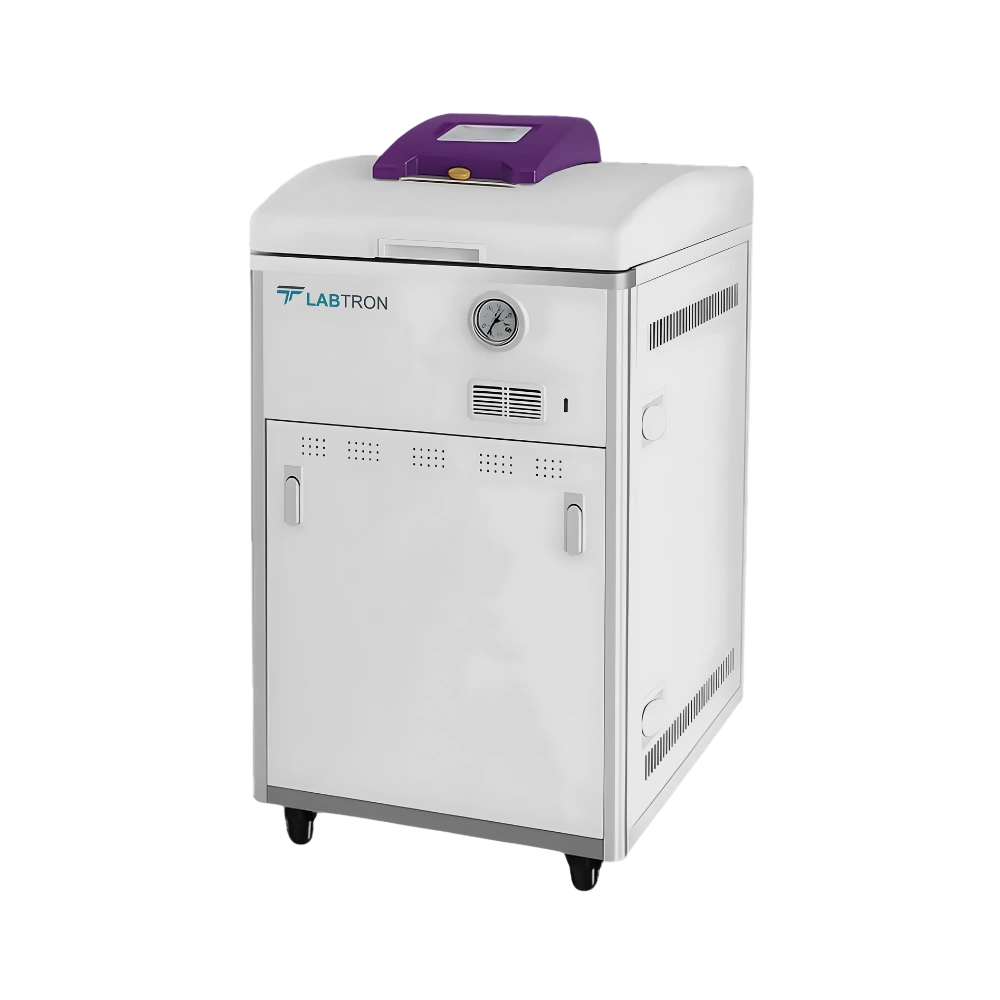

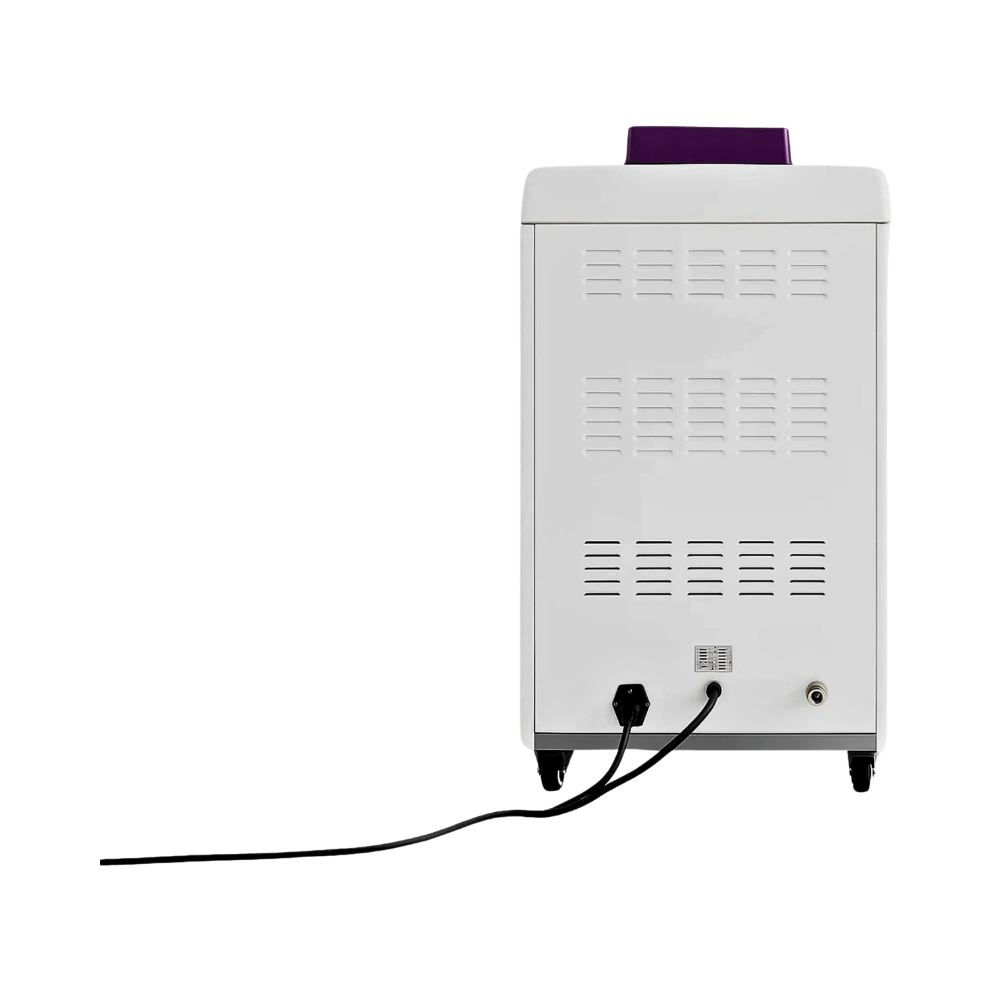

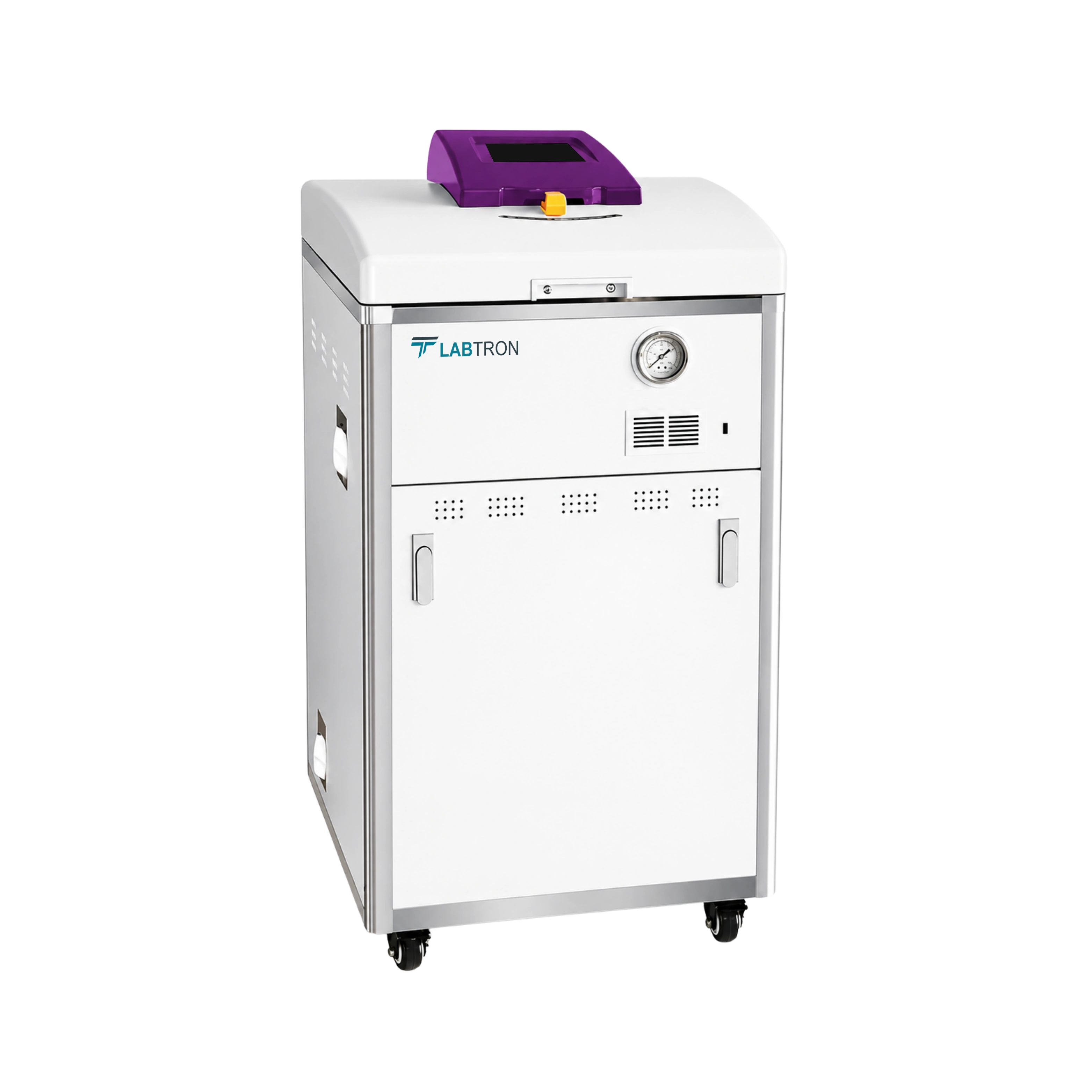

Vertical Autoclave LVA-E13

Vertical Autoclave LVA-E13

Vertical Autoclave LVA-E13 offers a generous 50-liter capacity, making it ideal for high-volume sterilization tasks. It uses a microcomputer-controlled graphic display for automatic cycle management. It provides real-time monitoring to ensure precise and reliable sterilization results. It features a programmable timer for setting sterilization cycles. Our Autoclave is well-suited for sterilizing instruments, tools, and materials in hospitals, clinics, laboratories, and the pharmaceutical and biotech industries.

Vertical Autoclave LVA-E13
Request Quote
Volume of Chamber 50 L
Chamber thickness 2 mm
Working temperature 50 °C to 134 °C
Working pressure 0.217 MPa
Working environment 5 °C to 45°C
Relative Humidity 10% to 85%
Time setting range 0 to 99h
Rated power 3500W
Power supply 220V, 50/60Hz
Dimension 550 × 620 × 1070 mm
Net weight 97 Kg
Gross weight 100 Kg
  • User-Friendly Interface

  • Stainless Steel Construction

  • Fully Automatic Operation

  • Automatic Fault Detection

  • Process Completion Alert

Our autoclave is well-suited for sterilizing instruments, tools, and materials used in hospitals, laboratories, pharmaceutical industries, biotechnology, clinical research, food testing, vaccine production, and industrial hygiene applications, ensuring optimal safety.

Vertical Autoclave LVA-E13 | Working Pressure: 0.217 MPa | Chamber Thickness: 2 mm
Vertical Autoclave LVA-E13 | User-Friendly Interface | Stainlee Steel Construction


Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Laboratory Autoclave LVA-I11

Vertical Laboratory Autoclave LVA-I11

  • Capacity : 50 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 320 × 610 mm
Vertical Autoclave LVA-O10

Vertical Autoclave LVA-O10

  • Capacity : 35 L
  • Chamber Volume : Ø350 × 400 mm
  • Working Sterilization Temperature : 134℃
  • Sterilization Temperature : 116℃ to 134℃
Vertical Autoclave LVA-D12

Vertical Autoclave LVA-D12

  • Capacity : 75 L
  • Chamber Volume : 400×600 mm
  • Working Sterilization Temperature : 134°C
  • Working Sterilization Pressure : 0.22 MPa
Vertical Autoclave LVA-O23
Vertical Autoclave LVA-O23
  • Capacity : 50 L
  • Chamber Volume : Φ350 × 550 mm
  • Chamber Thickness : 2.0 mm
  • Temperature Range : 50 °C to 126 °C
Vertical Autoclave LVA-P11
Vertical Autoclave LVA-P11
  • Chamber Capacity : 50L
  • Control : PID Processor
  • Display : Digital Display
  • Material : Fully Stainless Steel 304
Vertical Autoclave LVA-Q12

Vertical Autoclave LVA-Q12

  • Capacity : 75 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes
Vertical Autoclave LVA-Q11

Vertical Autoclave LVA-Q11

  • Capacity : 50 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes
Vertical Autoclave LVA-D13

Vertical Autoclave LVA-D13

  • Capacity : 100 L
  • Chamber Volume : 440×650 mm
  • Working Sterilization Temperature : 134°C
  • Working Sterilization Pressure : 0.22 MPa
Vertical Autoclave LVA-E13 FAQ's
  • Yes, the Vertical Autoclave incorporates an advanced microcomputer-controlled system that fully automates the sterilization process. This automation includes cycle selection, timing, temperature, and pressure regulation. The system reduces human error, improves consistency in sterilization results, and simplifies operation by allowing users to select preset programs or customize cycles based on specific needs. This feature makes it reliable and efficient for both medical and laboratory applications.

  • Yes, the Vertical Autoclave is highly suitable for use in laboratories and pharmaceutical industries. It can sterilize a wide range of items including glassware, culture media, lab instruments, and production materials. Its precise control ensures that sensitive lab equipment and pharmaceutical components are sterilized without damage, maintaining the integrity of research and manufacturing processes while adhering to strict contamination control protocols.

  • The Vertical Autoclave is designed to be user-friendly, featuring an intuitive LED graphic display that clearly shows cycle status, temperature, pressure, and timing. The programmable timer allows easy customization of sterilization cycles without complicated setup. Additionally, the autoclave requires minimal maintenance, with stainless steel chambers resistant to corrosion and easy to clean. Regular maintenance tasks are straightforward, supported by clear guidelines, making it suitable for busy medical and laboratory staff with varying levels of technical expertise.

  • The Vertical Autoclave comes equipped with multiple safety mechanisms to protect both the operator and the equipment. These include pressure and temperature sensors that monitor conditions inside the chamber, safety valves to release excess pressure automatically, and an emergency stop function to halt the cycle if needed. The unit also has alarms to notify users of any irregularities or cycle completion. These features ensure the autoclave operates safely even during extended or high-pressure cycles.

  • Yes, our vertical autoclave is designed to maintain consistent temperature and pressure throughout the entire sterilization cycle. It is equipped with an advanced precision PID (Proportional-Integral-Derivative) controller that continuously monitors and adjusts heating parameters to ensure uniform thermal conditions. This level of control is essential for achieving complete sterilization of instruments and materials, as fluctuations can compromise the effectiveness of the process. Additionally, built-in safety valves and pressure regulation systems work in tandem to maintain optimal internal pressure levels, enhancing both performance and safety. This ensures reliable, repeatable results with every use, meeting the rigorous standards of laboratories and healthcare environments.
