What is the chamber capacity of the Vertical Autoclave LVA-A10, and what types of materials can it sterilize?

The Vertical Autoclave LVA-A10 features a 35-liter stainless steel chamber with dimensions Ø318×450 mm, making it suitable for sterilizing a variety of heat-resistant materials such as laboratory glassware, surgical tools, culture media, and instruments. It is ideal for use in medical, research, pharmaceutical, and industrial laboratory settings.

How does the microprocessor control system of the Vertical Autoclave LVA-A10 enhance the sterilization process?

The LVA-A10 is equipped with a microprocessor control system that ensures precise regulation of sterilization temperature and time. This advanced control enables consistent performance, user convenience, and increased reliability by automating essential functions and maintaining optimal sterilization conditions throughout each cycle.

What are the working pressure and temperature specifications of the Vertical Autoclave LVA-A10?

The Vertical Autoclave LVA-A10 operates at a working pressure of 0.22 MPa and a sterilization temperature of 134°C. It supports a temperature range from 105°C to 134°C, providing flexibility for sterilizing different types of instruments and materials based on required sterilization protocols.

Does the Vertical Autoclave LVA-A10 come with safety or operational indicators?

Yes, the LVA-A10 is equipped with working status and water level indicator lights. These indicators ensure safe and smooth operation by alerting users to the machine’s status during the sterilization cycle and providing early warning in case of low water levels.

Can the sterilization time be adjusted in the Vertical Autoclave LVA-A10?

Absolutely. The sterilization time in the LVA-A10 can be set anywhere between 0 to 60 minutes, allowing users to tailor each sterilization cycle to specific load types and requirements. This flexibility is especially beneficial for varied laboratory and clinical workloads.

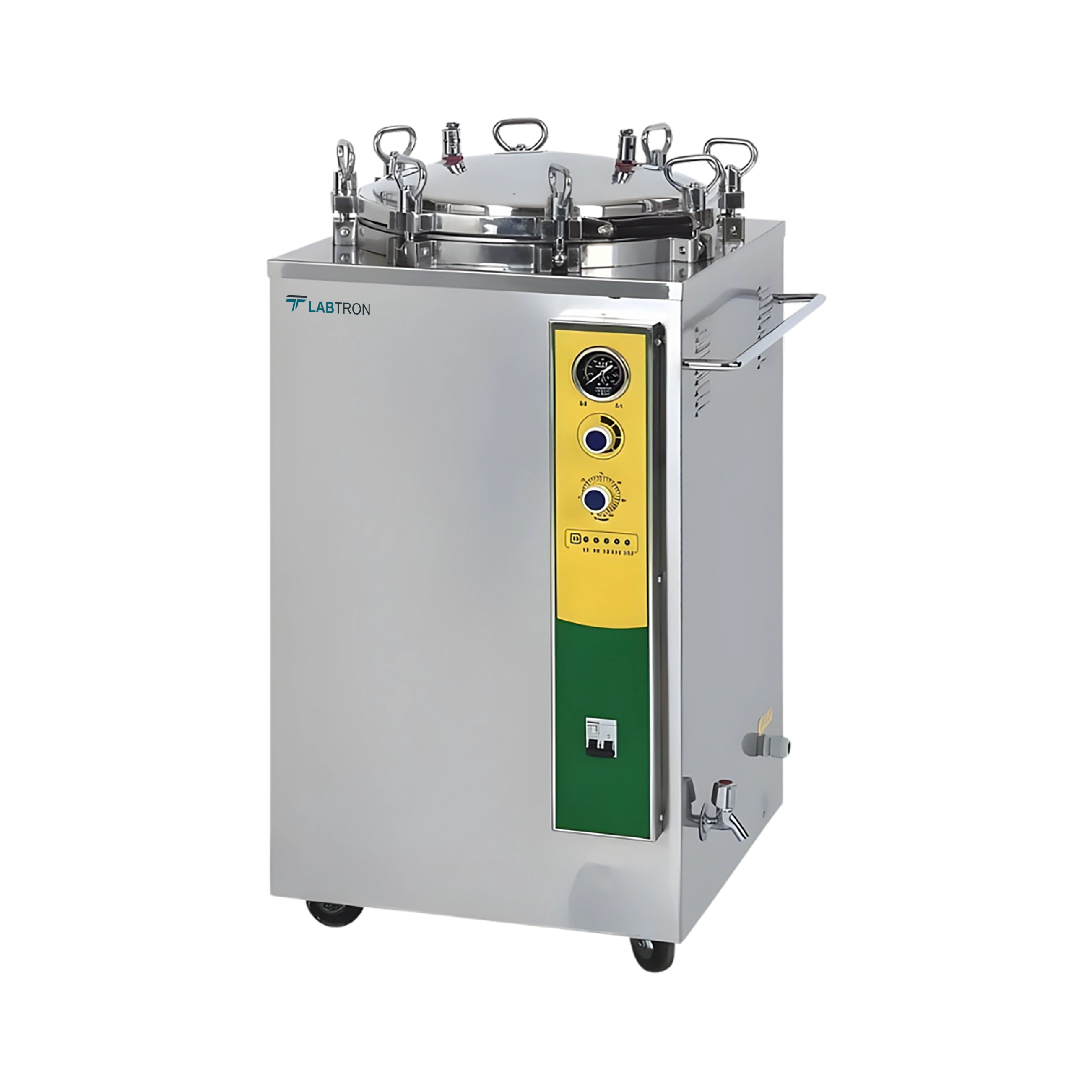

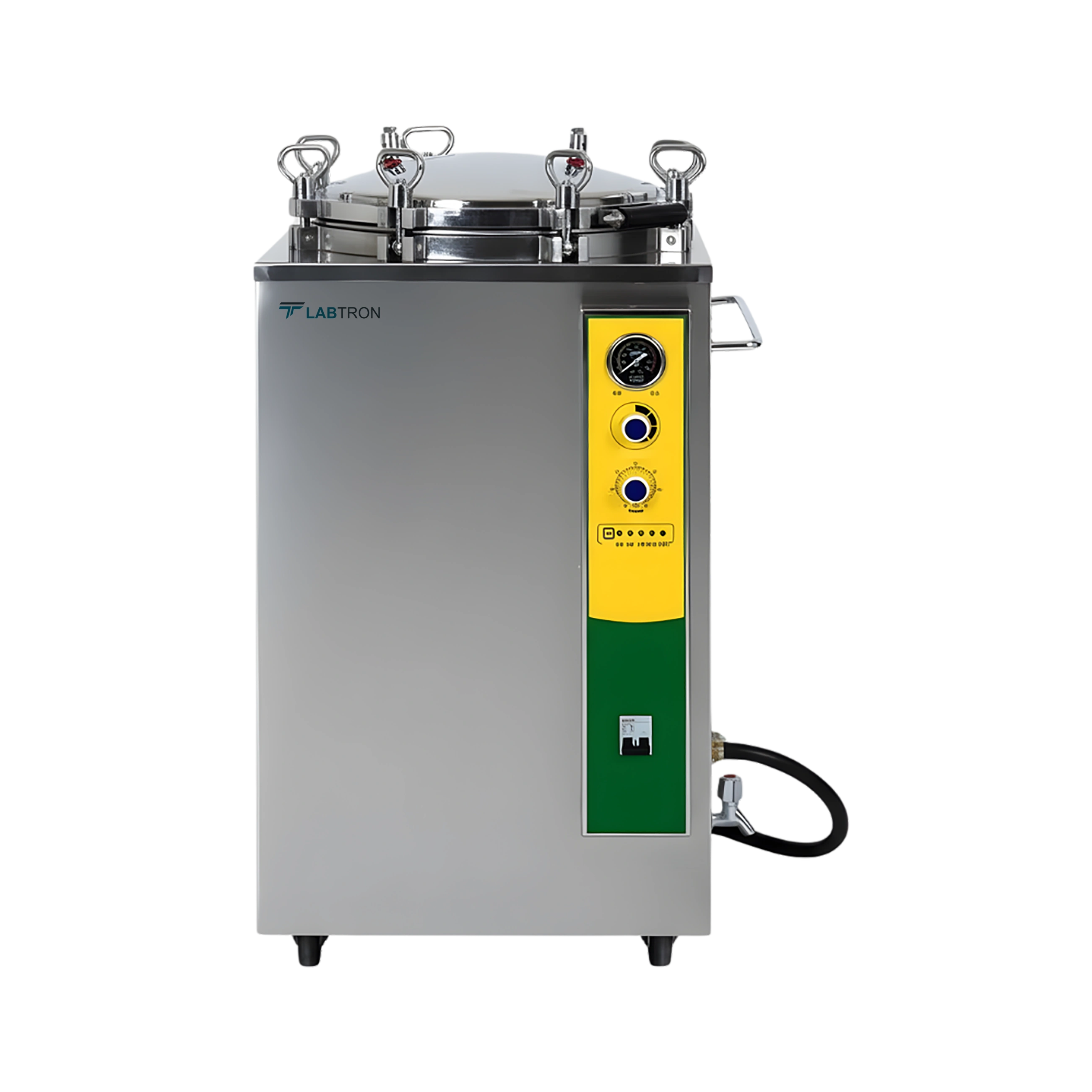

Vertical Autoclave LVA-A10

Name: Vertical Autoclave LVA-A10
Brand: Labtron
SKU: LVA-A10
Rating: 4.9 (991 reviews)

Vertical Autoclave LVA-A10 offers flexible sterilization time settings from 0 to 60 minutes and ensures uniform heat distribution. With a spacious 35L chamber, it operates at a working pressure of 0.22 MPa. It is controlled by a user-friendly microprocessor system, ensuring ease of monitoring and operation. Its robust design, makes it a dependable and space-saving sterilization solution for demanding environments.

Request Quote

Capacity	35 L
Maximum Working Pressure	0.23 MPa
Working Pressure	0.22 MPa
Working Temperature	134°C
Temperature Range	105 to 134°C
Sterilization Time	0 to 60 min
Heat Average	≤ ±1°C
Control System	Microprocessor
Display Type	Indicator Light
Indicators	Working Status & Water Level Indicator Lights
Power Consumption	2.5 KW
Power supply	110/220V, 50/60Hz, Single-Phase
Chamber Size	35L / Ø318 × 450 mm
Outer Dimensions	450 × 450 × 1010 mm
Packing Dimensions	570 × 570 × 1150 mm
Net Weight	56 kg
Gross Weight	72 kg

High Sterilization Efficiency
Wide Temperature Range
Microprocessor Control System
User-Friendly Indicators
Customizable Sterilization Time
Uniform Heat Distribution
Spacious Stainless-Steel Chamber
Dual Voltage Compatibility
Compact and Durable Design
English Language Interface

Our Vertical Autoclave LVA-A10 is ideal for sterilizing laboratory instruments, glassware, and other heat-resistant materials. Its efficient sterilization cycle, reliable safety features, and compact vertical design make it suitable for routine sterilization tasks.

Accessory no.	Name	Material	Quantity
1	Basket	Stainless steel	02 pcs

Download catalog for
Vertical Autoclave LVA-A10 Catalog

Download manual for
Vertical Autoclave LVA-A10 Manual

Available Range :

Vertical Autoclave LVA-C13 : 100 L Vertical Laboratory Autoclave LVA-G13 : 100L Vertical Autoclave LVA-L12 : 110 L Vertical Autoclave LVA-C14 : 120 L Vertical Autoclave LVA-C15 : 150 L Vertical Autoclave LVA-N13 : 200 L Vertical Autoclave LVA-N10 : 200L Vertical Autoclave LVA-E10 : 30 L Vertical Autoclave LVA-C10 : 35 L Vertical Laboratory Autoclave LVA-G10 : 35L Vertical Laboratory Autoclave LVA-K14 : 40 L Vertical Autoclave LVA-C11 : 50 L Vertical Laboratory Autoclave LVA-G11 : 50L Vertical Autoclave LVA-L21 : 54 L Vertical Laboratory Autoclave LVA-K10 : 60 L Vertical Autoclave LVA-C12 : 75 L Vertical Laboratory Autoclave LVA-G12 : 75L Vertical Laboratory Autoclave LVA-K11 : 80 L Vertical Autoclave LVA-L11 : 85 L

Vertical Autoclave LVA-A10 | Capacity: 35 L | Working Pressure: 0.22 MPa

Vertical Autoclave LVA-A10 | High Sterilization Efficiency | Microprocessor Control System

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-A14

Capacity : 120 L
Maximum Working Pressure : 0.23 MPa
Working Pressure : 0.22 MPa
Working Temperature : 134°C

Compare Remove

Vertical Autoclave LVA-E22

Volume of Chamber : 60 L
Chamber thickness : 2 mm
Working temperature : 50 °C to 134 °C
Working pressure : 0.217 MPa

Compare Remove

Vertical Autoclave LVA-Q12

Capacity : 75 L
Working Pressure : 0.22 MPa
Working Temperature : 100 to 134℃
Sterilization Time : 0 to 9999 minutes

Compare Remove

Vertical Laboratory Autoclave LVA-I15

Capacity : 150 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 Mpa
Chamber Dimension ( Φ × D ) : 460 × 760 mm

Compare Remove

Vertical Autoclave LVA-H13

Capacity : 100 L
Working Pressure : 0 to 0.22 MPa
Working Temperature Range : 105 to 134°C
Sterilization Time : 0 to 99 min or 0 to 99 hour 59 min

Compare Remove

Vertical Autoclave LVA-L11

Capacity : 85 L
Number of baskets : 2
Sterilization temperature : 105 °C to 138 °C
Working environment temperature : 5 °C to 45 °C

Compare Remove

Vertical Autoclave LVA-B12

Capacity : 75 L
Working Pressure : 0.22 MPa
Working Temperature : 134°C
Temperature Range : 105 to 134°C

Compare Remove

Vertical Autoclave LVA-A11

Capacity : 50 L
Maximum Working Pressure : 0.23 MPa
Working Pressure : 0.22 MPa
Working Temperature : 134°C

Compare Remove

Vertical Autoclave LVA-A10 FAQ's

The Vertical Autoclave LVA-A10 features a 35-liter stainless steel chamber with dimensions Ø318×450 mm, making it suitable for sterilizing a variety of heat-resistant materials such as laboratory glassware, surgical tools, culture media, and instruments. It is ideal for use in medical, research, pharmaceutical, and industrial laboratory settings.
The LVA-A10 is equipped with a microprocessor control system that ensures precise regulation of sterilization temperature and time. This advanced control enables consistent performance, user convenience, and increased reliability by automating essential functions and maintaining optimal sterilization conditions throughout each cycle.
The Vertical Autoclave LVA-A10 operates at a working pressure of 0.22 MPa and a sterilization temperature of 134°C. It supports a temperature range from 105°C to 134°C, providing flexibility for sterilizing different types of instruments and materials based on required sterilization protocols.
Yes, the LVA-A10 is equipped with working status and water level indicator lights. These indicators ensure safe and smooth operation by alerting users to the machine’s status during the sterilization cycle and providing early warning in case of low water levels.
Absolutely. The sterilization time in the LVA-A10 can be set anywhere between 0 to 60 minutes, allowing users to tailor each sterilization cycle to specific load types and requirements. This flexibility is especially beneficial for varied laboratory and clinical workloads.
