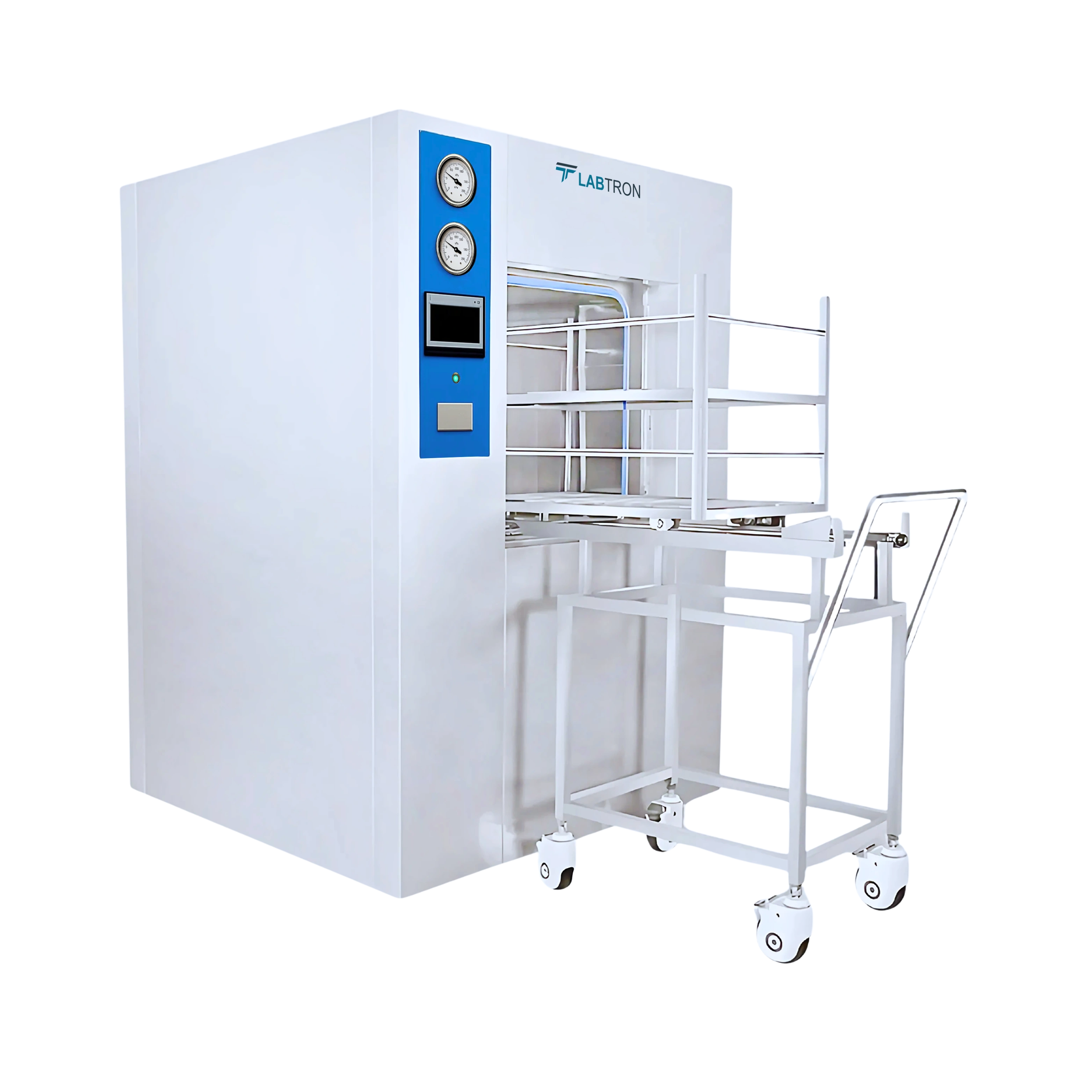

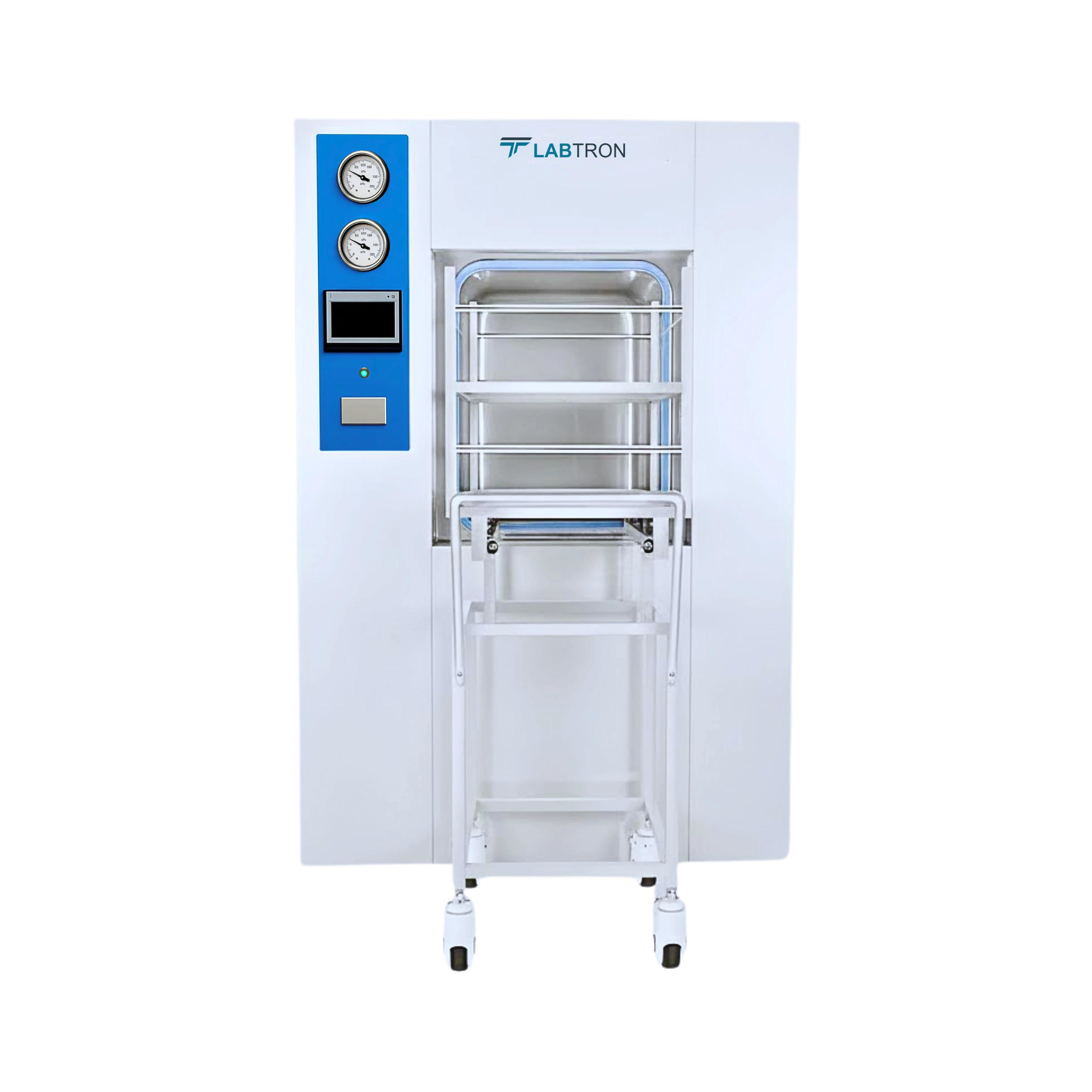

Horizontal Laboratory Autoclave LHA-D25

The Horizontal Laboratory Autoclave LHA-D25 is engineered to handle intensive sterilization workloads efficiently. Its 200-liter chamber capacity allows large batch processing, while its robust double-door design minimizes the risk of cross-contamination—making it ideal for environments like hospitals, pharmaceutical labs, and research institutions. With a design temperature of 150°C and a working range of 105°C to 139°C, it ensures effective sterilization. The PLC + HMI system and 7.0-inch touchscreen provide intuitive control and real-time monitoring. Additionally, its liquid ring vacuum pump supports both pre and post-vacuum cycles, ensuring thorough steam penetration and drying for complex loads.

The intelligent PLC + HMI control system in the LHA-D25 provides a seamless interface for managing sterilization parameters. The 7.0-inch color touchscreen allows operators to easily program and monitor sterilization cycles, adjust temperature, pressure, and time settings, and track real-time performance data. The built-in printer supports documentation, which is essential for maintaining sterilization logs in medical, research, and industrial settings. The system also includes safety interlocks and error alerts to ensure safe and uninterrupted operation.

Safety is a top priority in the design of the Horizontal Laboratory Autoclave LHA-D25. It comes with built-in safety mechanisms, including a safety valve that opens at 0.28 MPa to relieve excess pressure. The temperature control accuracy of ±0.2°C and a display accuracy of 0.1°C ensure precise monitoring. The temperature equilibrium is maintained at less than equal to ± 0.5°C, preventing temperature spikes. Additionally, the double-door system is engineered to prevent accidental opening during cycles, reducing contamination and injury risks.

The LHA-D25 features a liquid ring vacuum pump capable of executing both pre-vacuum and post-vacuum functions. The vacuum rate reaches –97 kPa, allowing the autoclave to remove air effectively before steam injection, which is essential for sterilizing hollow and porous items. Post-vacuum cycles facilitate enhanced drying, making the equipment especially suitable for wrapped instruments and materials where moisture retention must be minimized.

Thanks to its high-capacity chamber, advanced sterilization control, and robust safety features, the Horizontal Laboratory Autoclave LHA-D25 is perfect for use in research laboratories, pharmaceutical manufacturing units, clinical hospitals, universities, and food or chemical testing facilities. It is ideal for sterilizing instruments, labware, rubber, glass, liquids, porous materials, and more. The double-door design makes it especially suitable for controlled environments such as cleanrooms or central sterile services departments (CSSD).
