What is the temperature range of the Horizontal Laboratory Autoclave LHA-D37 and why is it important for sterilization?

The Horizontal Laboratory Autoclave LHA-D37 operates within a wide temperature range of 105°C to 139°C, making it suitable for the effective sterilization of a broad spectrum of materials, including liquids, glassware, instruments, and porous loads. This wide range allows for flexibility in application and ensures microbial inactivation, even in the most challenging sterilization environments.

How does the double-door design of the Horizontal Laboratory Autoclave LHA-D37 ensure contamination-free operation?

The double-door design of the Horizontal Laboratory Autoclave LHA-D37 supports pass-through installation, typically used in cleanroom environments. It prevents cross-contamination between the sterile and non-sterile zones by allowing materials to be loaded from one side and unloaded from the other after sterilization, maintaining a strict workflow and ensuring the highest hygiene standards.

What makes the control system of the Horizontal Laboratory Autoclave LHA-D37 user-friendly and efficient?

Horizontal Laboratory Autoclave LHA-D37 is equipped with a PLC + HMI control system and a 7.0-inch color touchscreen, providing an intuitive interface for monitoring and customizing sterilization and drying parameters. It includes programmable cycles (0–999 minutes) and displays real-time data such as temperature, pressure, and cycle progress, allowing for precise and reliable operation with minimal user training.

What kind of vacuum system is used in the Horizontal Laboratory Autoclave LHA-D37 and how does it enhance sterilization?

The Horizontal Laboratory Autoclave LHA-D37 features a liquid ring vacuum pump that supports both pre- and post-vacuum processes. This advanced vacuum system efficiently removes air from the chamber before sterilization and helps with rapid drying after the cycle. The high vacuum rate of –97 kPa ensures optimal penetration of steam into complex load types, including hollow and porous items.

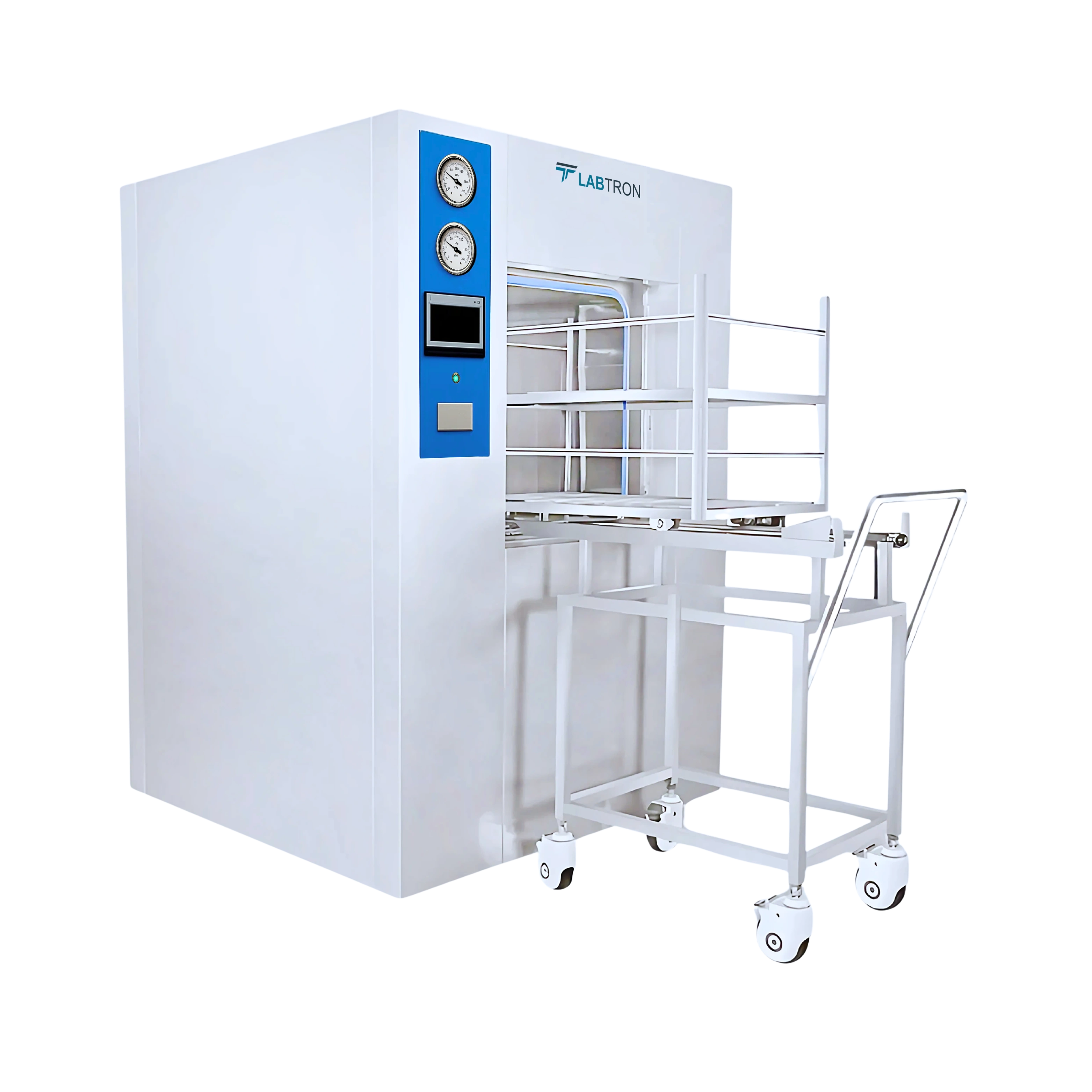

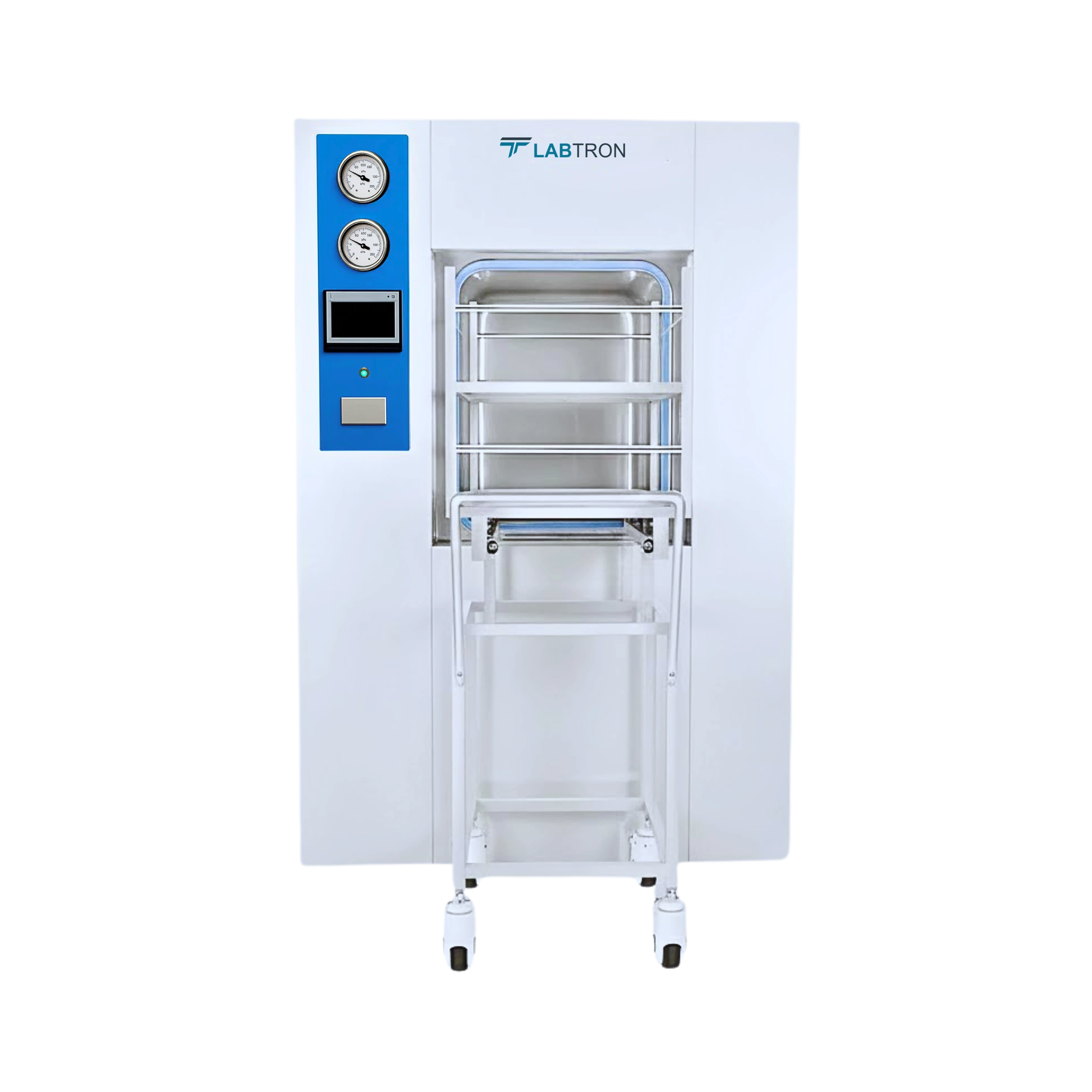

Horizontal Laboratory Autoclave LHA-D37

Name: Horizontal Laboratory Autoclave LHA-D37
Brand: Labtron
SKU: LHA-D37
Rating: 4.9 (993 reviews)

Horizontal Laboratory Autoclave LHA-D37 features a temperature range of 105°C to 139°C, ensuring uniform sterilization. With programmable sterilization and drying time of 0 to 999 minutes, it offers high flexibility for varied load types. Featuring a robust double-door design, it ensures contamination-free operation with enhanced safety. It combines high performance and large load handling, making it an ideal solution for demanding sterilization needs.

Request Quote

Chamber Capacity	800 Liters
Door Type	Double Door
Control System	PLC + HMI + Built-in Printer
Display	7.0-inch Color Touchscreen
Design Pressure	–0.1 / 0.5 MPa
Working Pressure Range	0 to 0.25 MPa
Safety Valve Opening Pressure	0.28 MPa
Design Temperature	150°C
Working Temperature Range	105°C to 139°C
Temperature Control Accuracy	≤ ± 0.2°C
Temperature Display Accuracy	0.1°C
Temperature Equilibrium	≤ ± 0.5°C
Sterilization Time Range	0 to 999 min
Drying Time Range	0 to 999 min
Vacuum Rate	–97 kPa
Vacuum System	Liquid Ring Vacuum Pump (Pre & Post)
Steam Consumption per Cycle	52 kg
Water Consumption per Cycle	320 kg
Power Consumption	52 kW
Chamber Size (W × D × H)	652 × 690 × 1800 mm
Outer Dimensions (W × D × H)	1400 × 1950 × 2150 mm
Net Weight	1500 kg
Gross Weight	1800 Kg

Large Chamber Capacity
Double Door Design
Advanced Control System
User-Friendly Interface
Wide Working Temperature Range
High Temperature Accuracy
Excellent Temperature Uniformity
Programmable Cycles
Efficient Vacuum System
Strong Vacuum Performance
High Safety Standards
Energy Efficient
Durable and Spacious Build
Heavy-Duty Construction

Our Horizontal Laboratory Autoclave LHA-D37 is specifically designed for the efficient sterilization of high-temperature and high-pressure-resistant items such as unwrapped or wrapped instruments, laboratory glassware, liquids, porous materials, and hollow instruments.

Download catalog for
Horizontal Laboratory Autoclave LHA-D37 Catalog

Available Range :

Horizontal Laboratory Autoclave LHA-D23 : 150 Liters Horizontal Laboratory Autoclave LHA-D24 : 200 Liters Horizontal Laboratory Autoclave LHA-D26 : 250 Liters Horizontal Laboratory Autoclave LHA-D28 : 360 Liters Horizontal Laboratory Autoclave LHA-D30 : 400 Liters Horizontal Laboratory Autoclave LHA-D32 : 450 Liters Horizontal Laboratory Autoclave LHA-D34 : 600 Liters Horizontal Laboratory Autoclave LHA-D36 : 800 Liters

Horizontal Laboratory Autoclave LHA-G11

Capacity : 200 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 Mpa
Timer Range : 0 - 60 minutes

Compare Remove

Horizontal Laboratory Autoclave LHA-D11

Capacity : 360 L
Design Temperature : 150 ℃
Temperature Uniformity : ±1 ℃
Max. Working Temperature : 139 ℃

Compare Remove

Horizontal Laboratory Autoclave LHA-E11

Capacity : 200 L
Sterilization Temperature : 134 °C
Sterilization Pressure : 0.22 MPa
Timer Range : 0 - 99 minutes

Compare Remove

Horizontal Laboratory Autoclave LHA-F17

Capacity : 10000L
Sterilization Temperature : 105°C to 138°C
Sterilization Pressure : -0.1 / 0.5 MPa
Steam Pressure : 0.3 to 0.5 MPa

Compare Remove

Horizontal Laboratory Autoclave LHA-D12

Capacity : 600 L
Sterilization Temperature : 139 °C
Sterilization Pressure : 0.22MPa
Steam Pressure and the Consumption : 0.4 - 0.6 MPa / 30 kg

Compare Remove

Horizontal Laboratory Autoclave LHA-B19

Capacity : 300L
Working Pressure : 0.22 MPa
Working Temperature : 134 °C
Temperature Range : 105 to 134 °C

Compare Remove

Horizontal Laboratory Autoclave LHA-D22

Capacity : 150L
Design Temperature : 150℃
Working Temperature Range : 105℃ to 138℃
Working Pressure Range : 0 to 0.25 MPa

Compare Remove

Horizontal Laboratory Autoclave LHA-D26

Chamber Capacity : 250 Liters
Door Type : Single Door
Control System : PLC + HMI + Built-in Printer
Display : 7.0-inch Color Touchscreen

Compare Remove

The Horizontal Laboratory Autoclave LHA-D37 operates within a wide temperature range of 105°C to 139°C, making it suitable for the effective sterilization of a broad spectrum of materials, including liquids, glassware, instruments, and porous loads. This wide range allows for flexibility in application and ensures microbial inactivation, even in the most challenging sterilization environments.
The double-door design of the Horizontal Laboratory Autoclave LHA-D37 supports pass-through installation, typically used in cleanroom environments. It prevents cross-contamination between the sterile and non-sterile zones by allowing materials to be loaded from one side and unloaded from the other after sterilization, maintaining a strict workflow and ensuring the highest hygiene standards.
Horizontal Laboratory Autoclave LHA-D37 is engineered to sterilize items that are high temperature and high pressure-resistant, including unwrapped or wrapped surgical instruments, laboratory glassware, liquids, porous materials, and hollow instruments. Its robust temperature and pressure capabilities make it ideal for diverse applications in laboratories, CSSDs, pharmaceutical facilities, and research institutions.
Horizontal Laboratory Autoclave LHA-D37 is equipped with a PLC + HMI control system and a 7.0-inch color touchscreen, providing an intuitive interface for monitoring and customizing sterilization and drying parameters. It includes programmable cycles (0–999 minutes) and displays real-time data such as temperature, pressure, and cycle progress, allowing for precise and reliable operation with minimal user training.
The Horizontal Laboratory Autoclave LHA-D37 features a liquid ring vacuum pump that supports both pre- and post-vacuum processes. This advanced vacuum system efficiently removes air from the chamber before sterilization and helps with rapid drying after the cycle. The high vacuum rate of –97 kPa ensures optimal penetration of steam into complex load types, including hollow and porous items.
