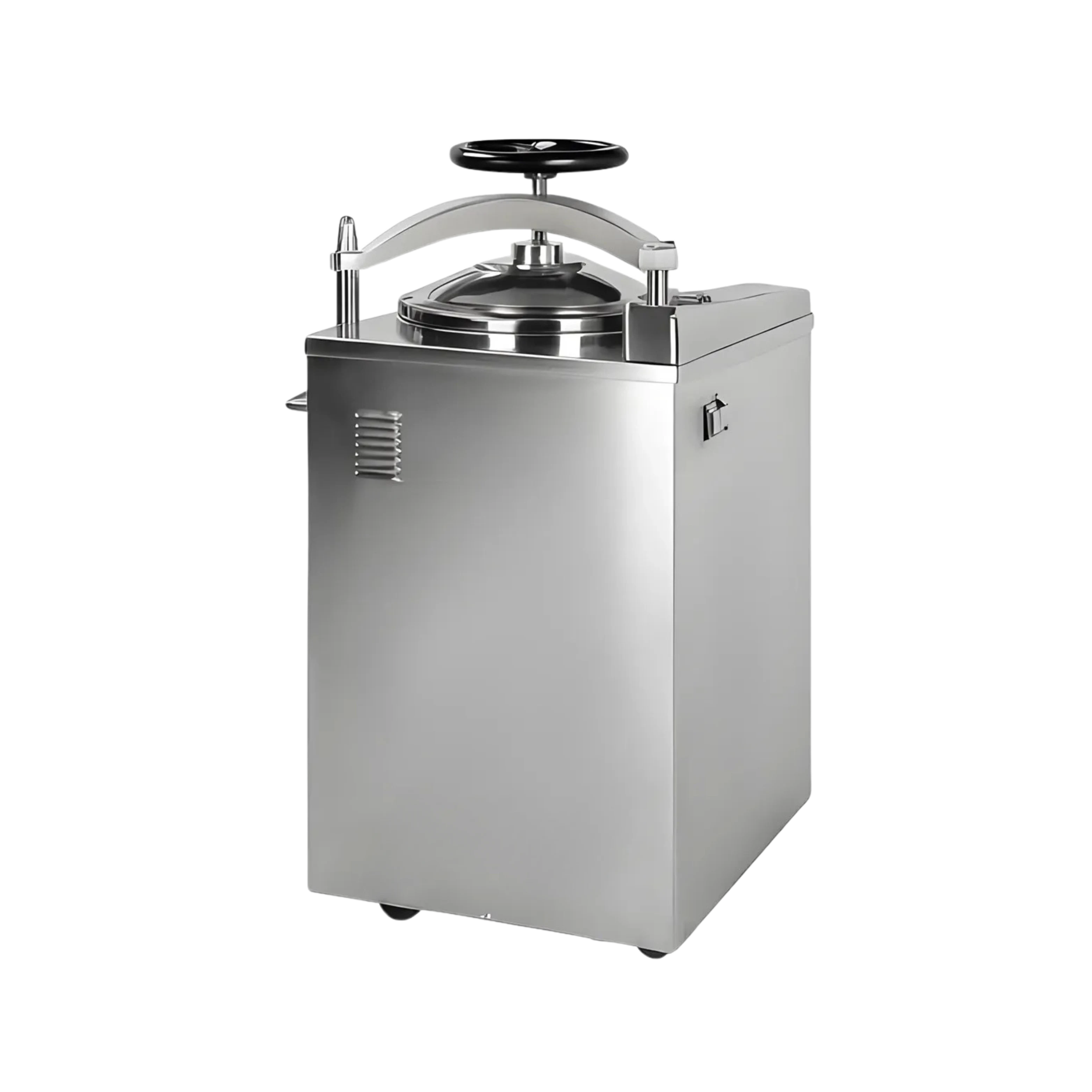

Vertical Autoclave LVA-F23

Vertical Autoclave LVA-F23 is fully automatic microcomputer controlled vertical pressure steam sterilizer with chamber capacity of 35 L, working sterilization temperature and pressure of 134°C and 0.23 MPa respectively. Designed digital display with touch keypad and double stainless steel baskets to keep the sterilization material load. The chamber is constructed of long lasting 304 grade stainless steel with superior corrosion resistance property. This Vertical Autoclave functions without any vacuum pump, and the drying function is offered as per requirement. Designed with steam-water inner circulation system no steam discharge, and the environment for sterilizing will be clean and dry.

Available Range :

Capacity : 110 L Capacity : 75 L Capacity : 50 L Capacity : 60 L Capacity : 36 L Capacity : 50 L

Capacity	35 L
Chamber volume	318 × 450 mm
Working Sterilization Temperature	134℃
Working Sterilization Pressure	0.22 MPa
Time Range	0 to 99 min0 to 99 h 59 min
Sterilization Temperature Range	0 to 134℃
Maximum working pressure	0.23 MPa
Heat Average	≤± 1℃
Power Consumption	2.5 kW
Power Supply	AC 220 V, 50 Hz
Overall Dimension	600 × 410 × 1030 mm
Packing Dimension	730 × 500 × 1170 mm
Net weight	77 kg
Gross weight	96 kg

Material used stainless steel body structure, with hand wheel type structure to quickly open the door and door safety lock system
Designed digital display of working status with touch keypad
Over temperature & over pressure auto-protection
Designed with steam-water inner circulation system no steam discharge, and the environment for sterilizing will be clean and dry
Microcomputer controlled automated vertical autoclave system
Automatically shut off with beep alarm after sterilization
Designed with self-inflating type seal
Dual stainless steel baskets as standard accessory
Safe protection of water lacking
Drying system can be incorporated as a requirement

Vertical autoclave used in pharmaceutical industry, medicine and health care industry, Biotechnology, Microbiology for effective sterilization of glassware’s, biological materials, culture media and others.

Accessories no.	Name	Material	Quantity
1	Basket	Stainless steel	02 pcs
