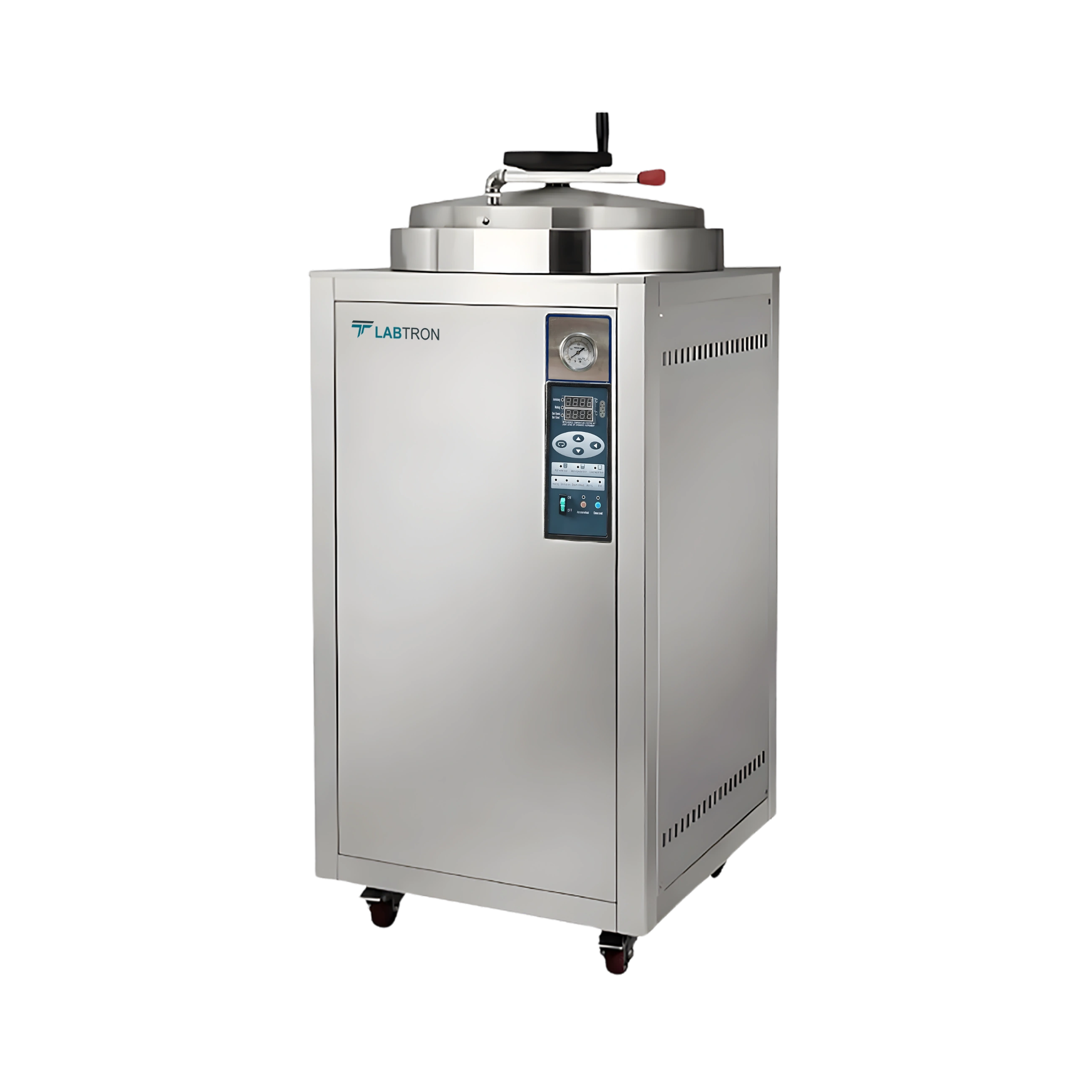

Vertical Autoclave LVA-N11

Vertical Autoclave LVA-N11

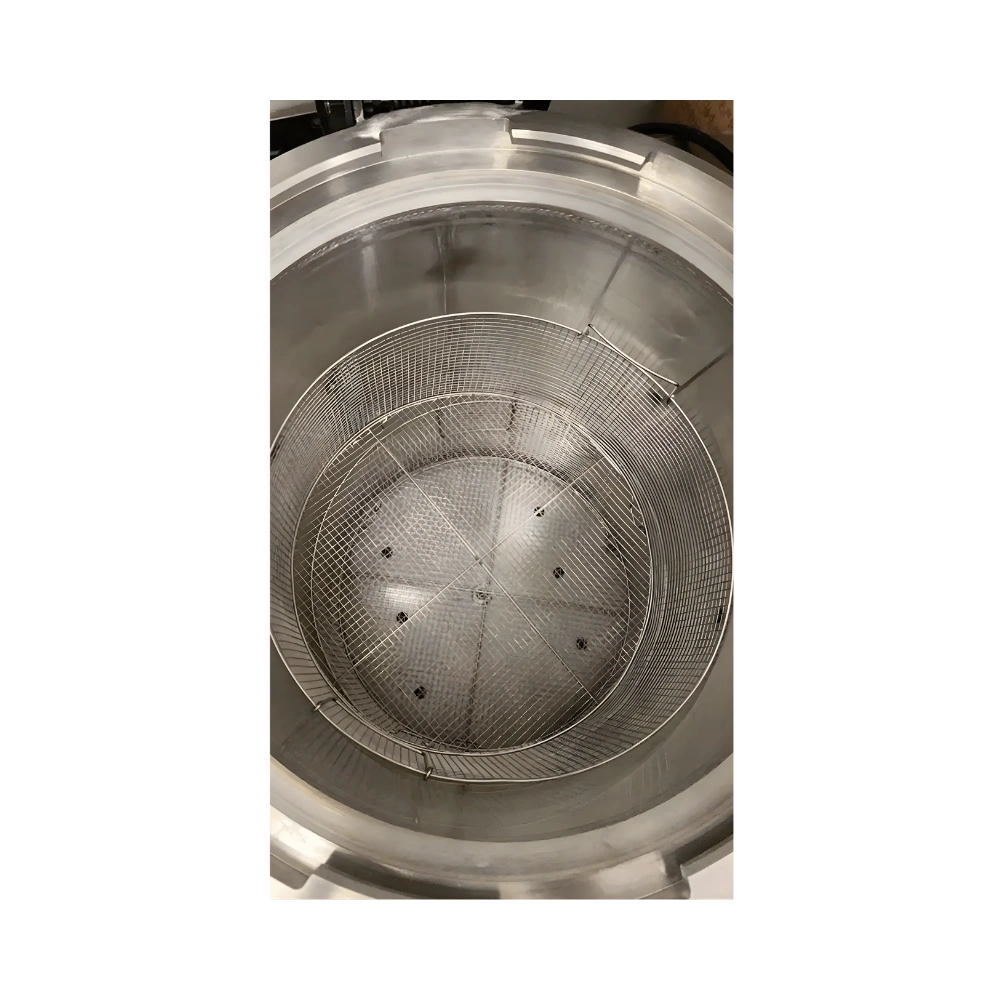

Vertical Autoclave LVA-N11 is a semi-automatic unit with a 100-liter capacity. It features a durable, corrosion-resistant stainless-steel chamber designed for long-term reliability and low maintenance. Its vertical design provides a compact and efficient solution to optimize workspace. The dual-basket system ensures even load distribution and consistent sterilization performance. Our autoclave is ideal for sterilizing equipment in academic institutions, veterinary clinics, agricultural research centers, and tissue culture labs, where maintaining sterile conditions is critical.

Request Quote
Capacity 100 L
Chamber Volume Φ500 × 550 mm
Chamber Thickness 3.0 mm
Temperature Range 50 °C to 134 °C
Working Environment 5 °C to 45°C
Relative Humidity 10% to 85%
Rated Working Pressure 0.217 MPa
Sterilization Time Range 0 to 99 h
Power Supply 380 V
Rated Power 6000 W
Packing Size 760 × 800 × 1340 mm
Dimension 630 × 700 × 1200 mm
Gross Weight 188 Kg
  • Automatic Water Filling & Drainage

  • Temperature Uniformity

  • Multiple Sterilization Programs

  • Quiet Operation

  • Pre-vacuum and Post-vacuum Cycles

Our autoclave is ideal for sterilizing 3D-printed prototypes, microbiology media, cosmetic tools, forensic evidence, aquaculture gear, tattoo instruments, pharma packaging, space lab materials, implantable devices, and biohazardous waste.

Vertical Autoclave LVA-N11 | Temperature Range: 50 °C to 134 °C | Working Environment: 5 °C to 45°C
Vertical Autoclave LVA-N12 | Automatic Water Filling & Drainage | Temperature Uniformity

Models of Vertical Autoclave

Labtron Vertical Autoclave provide upright design, high pressure steam sterilizer at working temperature of 134℃. Their orientation makes loading and unloading more convenient and efficient. They feature sensors and automatic shut off system enhancing safety by preventing overeating during operation. Their programmable controls enable automatic operation, managing heating, sterilization and cooling phases efficiently. Our Vertical Autoclave effectively eliminates pathogens from glassware and media, ensuring infection control in healthcare settings.

Vertical Autoclave LVA-Q12

Vertical Autoclave LVA-Q12

  • Capacity : 75 L
  • Working Pressure : 0.22 MPa
  • Working Temperature : 100 to 134℃
  • Sterilization Time : 0 to 9999 minutes
Vertical Autoclave LVA-H10

Vertical Autoclave LVA-H10

  • Capacity : 35 L
  • Working Pressure : 0 to 0.22 MPa
  • Working Temperature Range : 105 to 134°C
  • Sterilization Time : 0 to 99 min or 0 to 99 hour 59 min
Vertical Autoclave LVA-A14

Vertical Autoclave LVA-A14

  • Capacity : 120 L
  • Maximum Working Pressure : 0.23 MPa
  • Working Pressure : 0.22 MPa
  • Working Temperature : 134°C
Vertical Laboratory Autoclave LVA-I12
Vertical Laboratory Autoclave LVA-I12
  • Capacity : 75 L
  • Sterilization Temperature : 134 °C
  • Sterilization Pressure : 0.22 Mpa
  • Chamber Dimension ( Φ × D ) : 388 × 530 mm
Vertical Autoclave LVA-P14
Vertical Autoclave LVA-P14
  • Chamber Capacity : 120L
  • Control : PID Processor
  • Display : Digital Display
  • Material : Fully Stainless Steel 304
Vertical Autoclave LVA-E12

Vertical Autoclave LVA-E12

  • Volume of Chamber : 50 L
  • Chamber thickness : 2 mm
  • Working temperature : 50 °C to 134 °C
  • Working pressure : 0.217 MPa
Vertical Autoclave LVA-P15

Vertical Autoclave LVA-P15

  • Chamber Capacity : 150L
  • Control : PID Processor
  • Display : Digital Display
  • Material : Fully Stainless Steel 304
Vertical Laboratory Autoclave LVA-J13

Vertical Laboratory Autoclave LVA-J13

  • Capacity : 100 L
  • Chamber Dimension : φ440 × 650 mm
  • Temperature Range : 105 to 134℃
  • Sterilization Temperature : 134 °C

Vertical Autoclave LVA-N11 FAQ's
  • Yes, the Vertical Autoclave LVA-N11 can effectively sterilize heat-sensitive liquids by adjusting temperature and cycle duration settings. Its advanced control system allows users to select lower temperatures and extended sterilization times to avoid damaging the contents. This feature is ideal for labs dealing with delicate reagents or media. The unit includes optimized venting to prevent pressure shock in containers holding liquids. Care should be taken to use compatible glassware that can withstand autoclave conditions. Always ensure that the selected program matches the thermal tolerance of the liquid. Following manufacturer recommendations is crucial to prevent spills or ruptures.

  • Regular maintenance is essential to ensure the reliable performance of the Vertical Autoclave LVA-N11. The chamber should be cleaned frequently to prevent mineral buildup or corrosion, especially if not using distilled water. Check and replace the door gasket periodically to maintain proper sealing. Electrical and heating components should be inspected annually for any wear or damage. It is recommended to drain and refill the water tank at least once a week. Lubrication of moving parts, such as the door hinges or clamps, may also be necessary. Always follow the maintenance schedule provided in the user manual.

  • Yes, the Vertical Autoclave LVA-N11 offers digital record-keeping functionality, typically via USB or onboard memory. This allows users to export data from sterilization cycles for tracking and documentation. It’s especially useful in regulated labs that require traceability for quality control. The recorded data includes cycle time, temperature, pressure, and status indicators. Users can store or print these records for audits or compliance verification. Digital tracking also helps identify trends in autoclave usage and performance.

  • The Vertical Autoclave LVA-N11 is designed with a built-in safety memory to manage power interruptions effectively. In the event of a power outage, the autoclave saves the current sterilization parameters. Once power is restored, the user can choose to resume the interrupted cycle or restart it completely. This feature helps avoid partially completed sterilization processes. For critical loads, it's recommended to initiate a fresh cycle to ensure full sterilization. The unit also supports surge protection to prevent damage from voltage spikes. Regular use of a voltage stabilizer can further enhance equipment longevity.

  • Yes, the Vertical Autoclave LVA-N11 is designed to handle varying load sizes with high efficiency. Its vertical chamber and dual-basket system support both small and large loads without compromising performance. The unit evenly distributes steam, ensuring uniform sterilization regardless of load volume. This makes it ideal for labs with fluctuating daily sterilization needs. Adjustable cycle settings allow users to select programs that match the load size and type. Using the proper loading technique is important to maintain airflow and sterilization integrity. Always follow the recommended loading guidelines in the manual for best results.

  • The Vertical Autoclave LVA-N12 is engineered for energy efficiency, particularly during repeated or extended use. It uses intelligent heating control to regulate power based on cycle requirements. Once sterilization parameters are met, it shifts into energy-saving standby mode. Its insulated stainless-steel chamber retains heat effectively, minimizing energy loss. Some models also include eco modes or programmable schedules to reduce unnecessary power use. Over time, this results in lower utility costs without compromising performance. It's an excellent option for labs aiming to reduce operational expenses.
