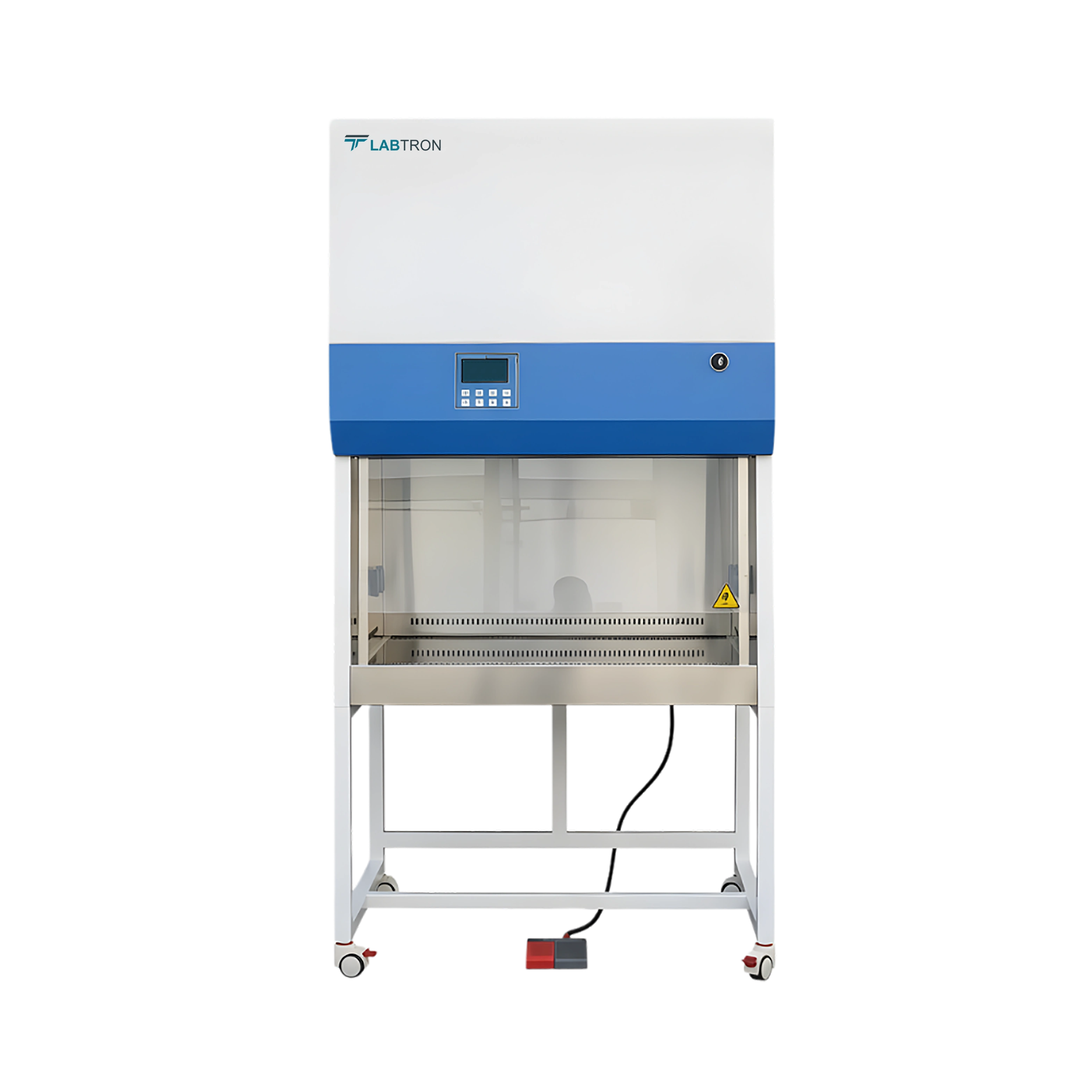

Biosafety Cabinet LBS2-A22 (Class II A2) Catalog

Overview

Biosafety Cabinet LBS2-A22 (Class ll A2) is built in with foot switch to avoid airflow turbulence caused by arm movement, motorized front window of two layered laminated toughened glass and anti UV, UV lamp for most efficient decontamination and remote control with all functions for easier and convenient operation. Offers maximum opening of 500 mm (20 inch) and tested opening of safety height 200 mm (8 inch). Features airflow system of 30 % air exhaust and 70 % air recirculation and three protection such as sample, environment and operator. Incorporated with interlock function for blower and front window, UV lamp and front window, UV lamp and blower and LED lamp. Designed with UV life indicator and ULPA Filter, Two in number, 99.999 % efficiency at 0.12 um.

Specifications :

Tested Opening	Safety height of 200 mm (8 inch)
Maximum Opening	500 mm (20 inch)
Inflow Velocity	0.53 ± 0.025 m/s
Down Flow Velocity	0.33 ± 0.025 m/s
ULPA Filter	Two, 99.999 % efficient at 0.12 um, filter life indicator
Front Window	Motorized, two-layer laminated toughened glass ≥ 5 mm, anti UV
Noise	EN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp	40 W×1 UV timer, UV life indicator, emission of 253.7 nanometres for most efficient decontamination
Illuminating Lamp	16 W×2 LED Lamp
Illumination	≥ 1000 Lux
Consumption	900 W
Waterproof Sockets	Two, total load of two sockets: 500 W
Display	LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70 % air recirculation, 30 % air exhaust
Visual and audio alarm	Filter replacement, front window at unsafe height, abnormal airflow velocity
Material	Work Zone: 304 stainless steel;Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	750 mm
Caster	Foot master caster
Power Supply	AC 220 V ± 10 %, 50/60 hz; 110 V ± 10 %, 60 hz
Internal Size (W×D×H)	940×600×660 mm
External Size (W×D×H)	1350×600×660 mm
Package Size (W×D×H)	1630×1000×1820 mm
Gross Weight	315 kg

Features :

• • Managed and monitored by an integrated microprocessor controller
  • Large LCD digital display for ease of monitoring all safety parameters
  • Incorporated with memory function in case of power-failure
  • Work zone made up of 304 stainless steel
  • Built in with time reserve function, automatic air speed adjustable with filter block and interlock function
  • Integrated with visual and audible alarm for abnormal airflow velocity, filter replacement, front window at unsafe height
  • Designed with universal caster with brake and leveling feet
  • Easy to use, operate and maintain
  • Easy to clean, corrosion resistant, stainless steel lining
  • Incorporated with air vent
