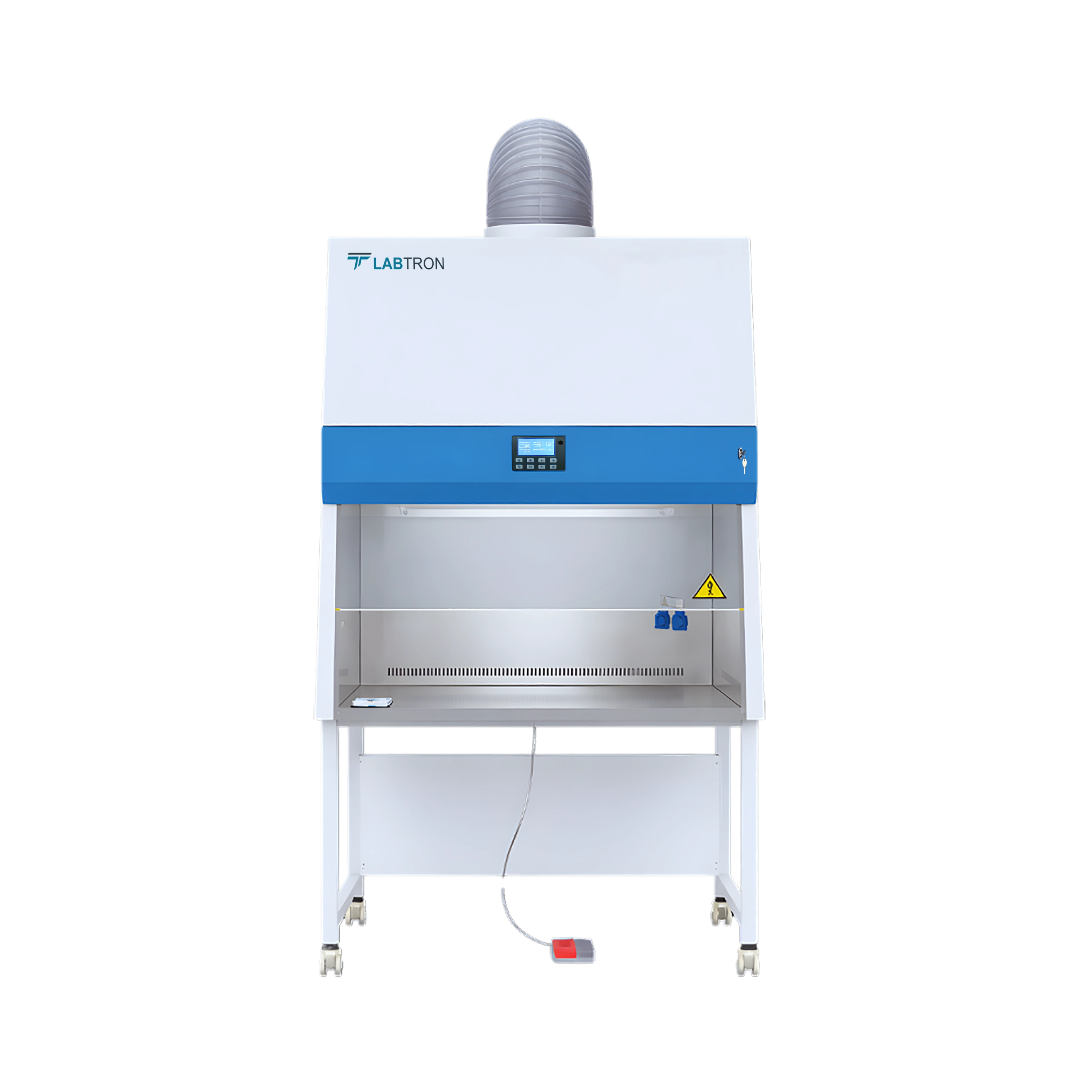

Biosafety Cabinet Class II B2 LBS2-B21 is a Class II type B2 total exhaust cabinet with 420 mm (17 inch) maximum opening. It has ULPA Filter Two in number, 99.999 % efficient at 0.12 µm and offers two layer laminated toughened glass >5 mm. Designed with Large digital LCD display used to monitor all safety parameters and Universal caster for moving with brake and levelling feet. Work area surrounded by negative pressure and it can ensure maximum safety in work area.
| Max Opening | 420 mm (17 inch) |
| Tested Opening | Safety Height 200 mm（8 inch） |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Down flow Velocity | 0.33 ± 0.025 m/s |
| Pre-Filter | Washable |
| ULPA Filter | 99.999 % efficiency at 0.12 μm, filter life indicator |
| Front Window | Motorized, two-layer laminated toughened glass ≥ 5 mm, anti UV |
| Noise | NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB |
| Illumination | ≥ 1000 Lux |
| Consumption | 850 W |
| Display | LCD display, exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc. |
| Waterproof Sockets | Two, total load of two sockets 500 W |
| Control System | Microprocessor |
| Airflow System | 0 % air recirculation, 100 % air exhaust |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height |
| Exhaust Duct | 4 meters PVC duct, Diameter 300 mm |
| Material Work Zone | 304 stainless steel |
| Material Main Body | Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 750 mm |
| Caster | Foot master caster |
| UV Lamp | 30 W × 1 UV timer, UV life indicator, emission of 253.7 nano meters for most efficient decontamination |
| Illuminating Lamp | LED Lamp14 W × 2 |
| Internal dimension (W×D×H) | 1150 × 600 × 660 mm |
| External dimension (W×D×H) | 1300 × 750 × 2250 mm |
| Power supply | AC 220V±10 %, 50/60 Hz; 110V±10 %, 60 Hz |
| Weight | 276 kg |
304 stainless steel, negative pressure design
Remote control for convenient operation
Universal caster with brake, leveling feet
Iron hook rod supports panel
Foot-adjustable front window height
Motorized toughened glass, UV-resistant
Cabinet support block for safety
ULPA filter with UV indicator
Auto-adjust air speed with blockage
Large digital display for monitoring
Memory function for power failure
Interlock function for enhanced safety
Time reserve function for scheduling
Biosafety Cabinet product is used in protection from biological hazards and contamination as well as protection from volatile toxic chemicals.
| Accessories no. | Name | Qty. |
|---|---|---|
| 1 | Illuminating lamp | 2 pcs |
| 2 | UV lamp | 1 pcs |
| 3 | Base Stand | 1 pcs |
| 4 | Remote control | 1 pcs |
| 5 | Foot switch | 1 pcs |
| 6 | Exhaust blower | 1 pcs |
| 7 | Exhaust duct | 1 pcs |
| 8 | Drain valve | 1 pcs |
| 9 | Waterproof sockets | 2 pcs |
| 10 | Pipe strap | 2 pcs |
