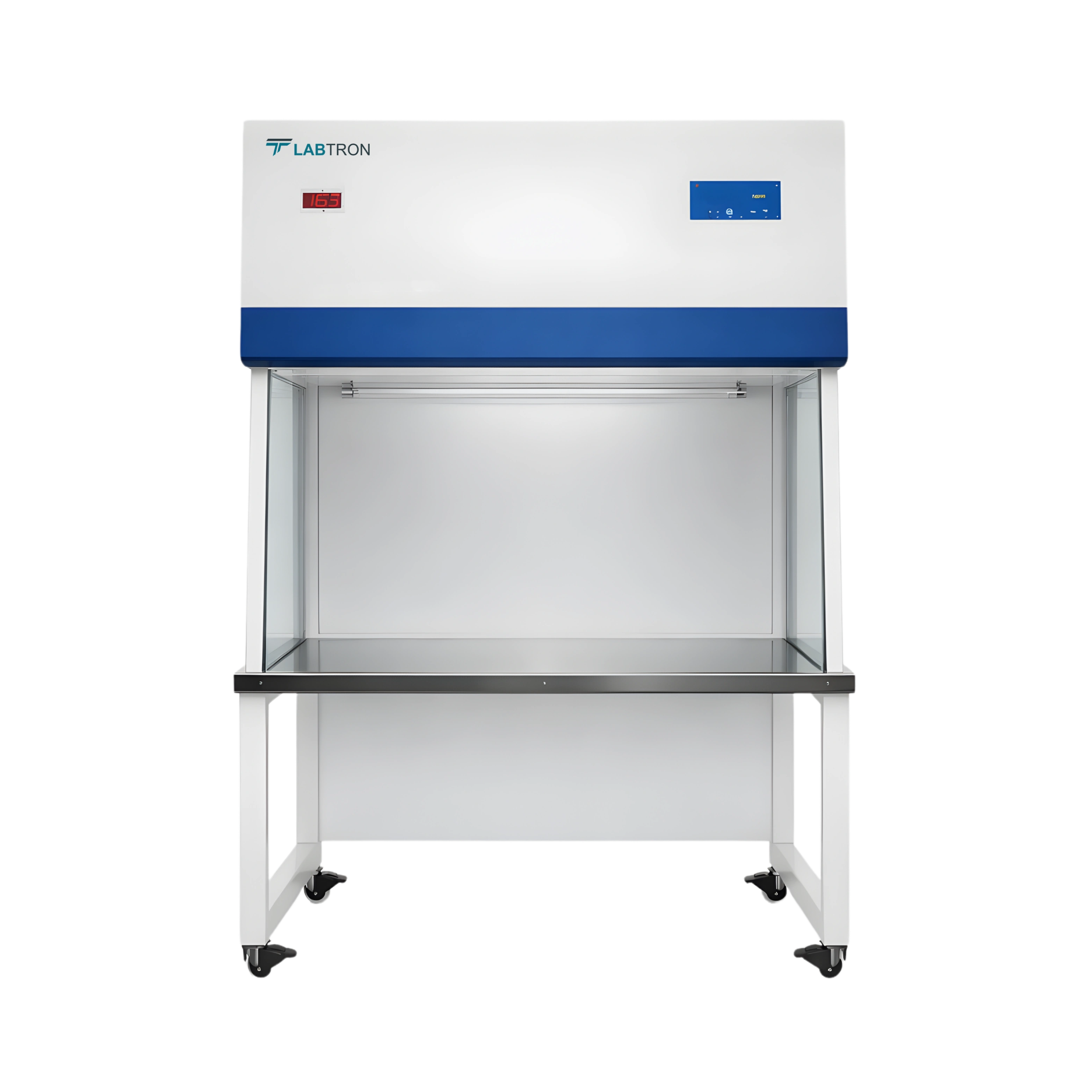

Horizontal laminar flow clean bench LHCB-A12 Catalog

Overview

Horizontal laminar flow clean bench LHCB-A12 is a compact structures providing unmediated HEPA-filtered air horizontally over the work area with purification rank of 100 and is equipped with removable protective glass to provide enclosed environment for work region in order to protect your work from contamination.

Features :

• Horizontal laminar flow
• Class 100 purification
• Cold rolled powder coated exterior
• Polished stainless steel table board with work area up to 1430x620x575 mm
• Adjustable air system with gear for speed regulation to maintain the work area wind speed in ideal condition
• Air system is noise less and requires low maintenance
• Provided with power saving fluorescent lamp
• Equipped with protective glass in order to provide enclosed environment for work region
• Removable cabinet support with adjustable foot margin

Specifications :

External dimension (W x L x H)	1090 x 800 x 1800 mm
Internal dimension (W x L x H)	930 x 620 x 575 mm
Illumination	≥ 300 lux
Purification rank (ISO 14644-1 Std.)	100
Noise	≤ 61 dB
Power	220 W
Power supply	220 V/50 Hz
LED standard	9x1
HEPA size (W x H x D)	610 x 970 x 69 mm
Average velocity	0.25-0.4 m/s
Net Weight	130 kg

Applications :

Used in clean environments such as production plants and research laboratories, bio-pharmaceutical industry, hard disk and other electronic devices inspection, food Industry, drug and medical devices industries.
