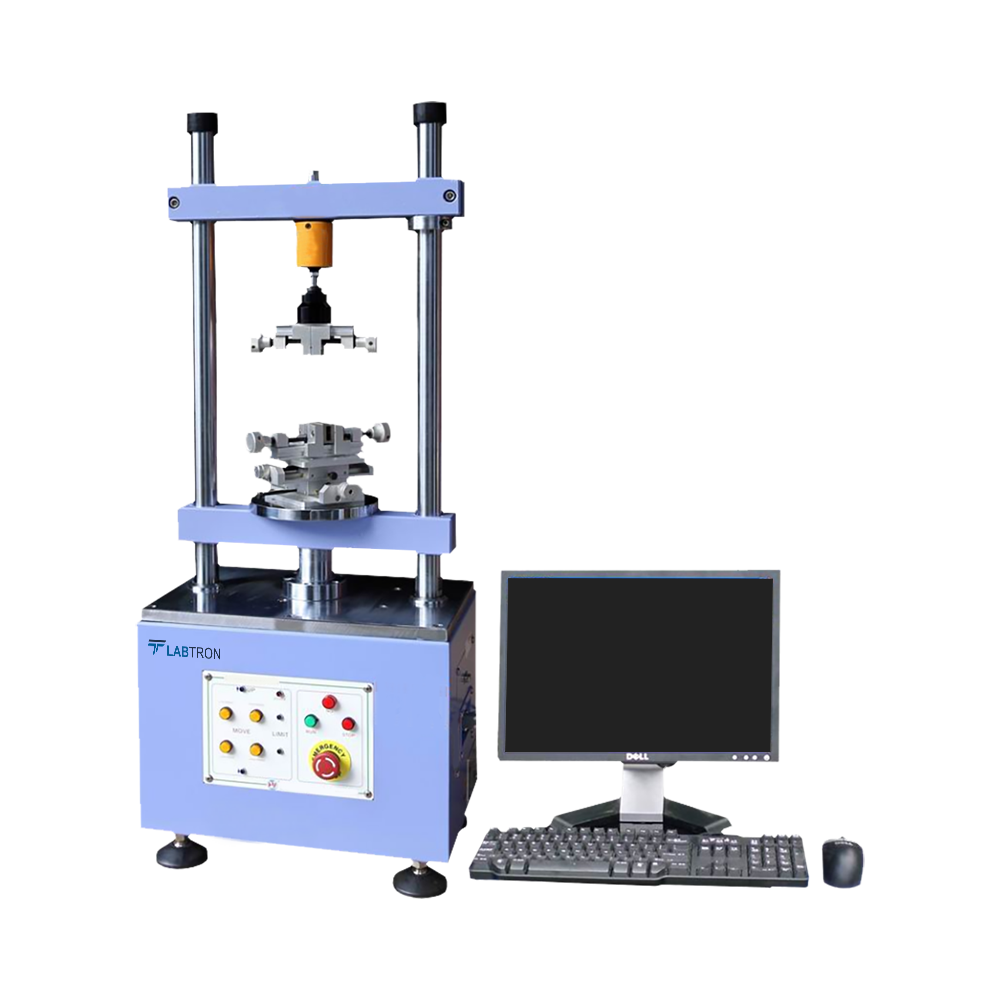

Automatic Insert and Extract Test Machine LATM-A10 features a load accuracy of ±0.2%, ensuring reliable and precise results. It performs fully automatic compression and tensile tests by storing batch-specific test conditions. The system is designed for high-efficiency operation, reducing manual intervention during testing. Its intuitive software interface allows users to easily configure test parameters. Our machine is ideal for testing insertion and withdrawal forces of connectors with high precision.
| Capacity(optional) | 5kgf, 10kgf, 20kgf, 50kgf, 100kgf |
| Unit(Switchable) | kgf, N, Lb, gf |
| Load Accuracy | ±0.2% |
| Load Least Display | 0.01kgf or 0.01gf |
| Test Stroke | 0 to 150mm |
| Stroke Least Display | 0.001mm |
| Test speed | 0 to 500mm/min |
| Emergency stop time | 100ms |
| Speed Accuracy | ±0.5% |
| Motor | Japanese Panasonic servomotor |
| Power | AC220 5A Or is specified |
| Effective Width | 290mm |
| Main Unit Dimension(W x D x H) | 460 x 270 x 950 mm |
| Main Unit Weight | 70kg |
Our Automatic Insert and Extract Test Machine ensures precise insertion and withdrawal force testing, supporting tension and pressure evaluation for connector development, inspection, and quality control applications.
Accessories | Quantity | Unit |
| Automatic O-shape centering device | 1 | pc |
| Large-scale X-Y mobile station | 1 | set |
| Elevated jig (without clamps) | 1 | set |
| Special clamp for single-pin retention force | 1 | set |
Components | Quantity | Unit |
| Servo motor and actuator | 1 | pc |
| Precise ball screw | 1 | pc |
| Load cell, 200N | 1 | pc |
| Move rail | 1 | pc |
| Up rail | 1 | pc |
| Automatic O-shape device | 1 | pc |
| Control cabinet | 1 | pc |
| Mainframe computer | 1 | pc |
| Switching power | 1 | pc |
| Large-scale X-Y mobile platform | 1 | set |
| Elevated clamp with cables | 1 | set |
| Single PIN retention force clamp | 1 | set |
| Test Control Board | 1 | set |
| Console with Siemens buttons | 1 | set |
| Control computer with 18.5” LCD | 1 | Set |
