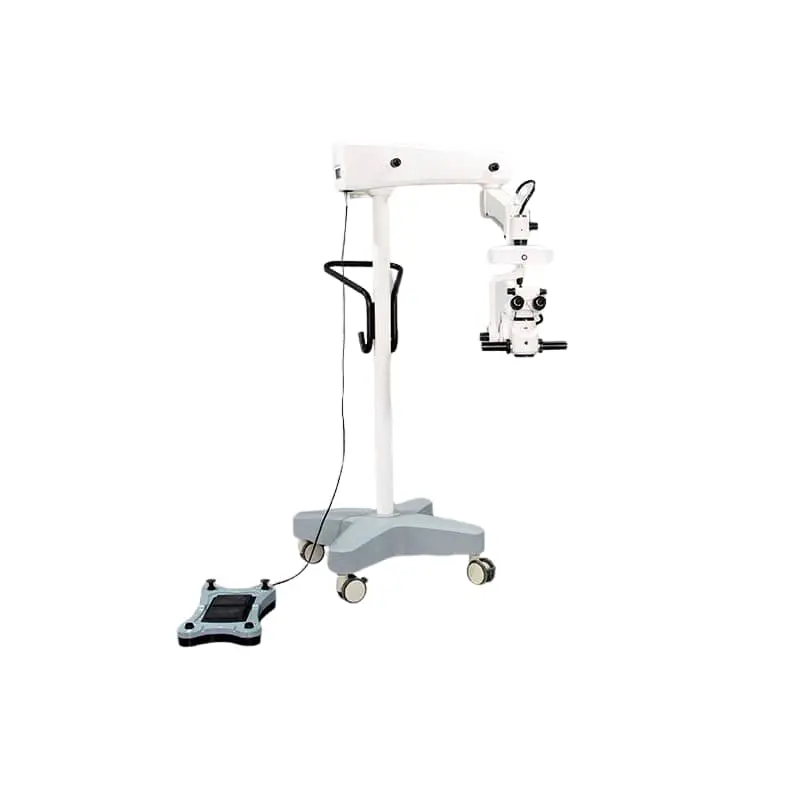

Operating Microscope LOPM-A10 has a coaxial LED light sourcing technique used for enhanced visual by alignment the lenses and light source on the same optical axis. It is equipped with automatic control for X and Y axis movement for better control. This microscope has infrared filters for better visual quality. Its Lighting system is equipped with retina retina-protective device which protects the user’s eyes from damage. Our microscope adapts to a gas spring counterbalance at every fixed point, making it stable to be used in research institutes and universities.
| Eyepiece | 12.5 x |
| Diopter Adjustment Range | -7D ~+ 7D |
| Objective | F=200 mm |
| Magnification of Main Optics System | 190 mm |
| Magnifications | ZOOM 6:1 motorized |
| Field Diameter | Main Optics: 4.1 X ~24.6 X ; Assistant Optics: 5.4X, 8X, 12.2X |
| PD For Main Binocular | Main Optics: 8 mm~50 mm |
| PD Fro Assistant Binocular | 51mm ~ 75mm |
| Tilt Range of Main Binocular | 0 ~ 180° |
| Focusing | 50mm, Motorized with Automatic Reset |
| Focusing Speed | Less than 2 mm/s |
| Filters | Main Illuminator: Retina Protection Filter, Red-free, GG435 Blue-blocking; |
| Carton | 75 × 75 × 76 cm , GW- 165 kgs |
Foot wheels
Automatic X and Y axis movement
Stable structure
Customizable field diameter
Easy operation and control
Our microscope is versatile customizable and user-friendly which can be used in analyzing and studying the microscopic organisms, specimens and their structures in research industries and universities.
Base and Column | 1 |
Foot Pedal | 1 |
Power Cord | 1 |
Horizontal and Balance Arm | 1 |
Main Body | 1 |
Assistant Scope | 1 |
Disinfection Hood | 1 |
Dust Cover | 1 |
Setup Toolkit (Includes 2 Screws for the Column) | 1 |
BIOM System with Reverse System
Assistant microscope
4K Video System
